Brand: Cube

Cube Reaction Hybrid Pro 500 Electric Mountain Bike 2018

Cube Reaction Hybrid Pro 500 Electric Mountain Bike 2018
Additional ImageAdditional ImageAdditional ImageAdditional Image
Brand: Cube

Cube Reaction Hybrid Pro 500 Electric Mountain Bike 2018

Price:
$2,811.15
Option:
Stock:
Price:
Black/Grey - XS
Available to OrderContact us for availability
$2,811.15
Black/Grey - S
In StockReady for despatch
$2,811.15
Black/Grey - M
Available to OrderContact us for availability
$2,811.15
Black/Grey - L
Available to OrderContact us for availability
$2,811.15
Black/Grey - XL
Available to OrderContact us for availability
$2,811.15
Black/Grey - XXL
Available to OrderContact us for availability
$2,811.15
Grey/Green - XS
Available to OrderContact us for availability
$2,811.15
Grey/Green - S
Available to OrderContact us for availability
$2,811.15
Grey/Green - M
Available to OrderContact us for availability
$2,811.15
Grey/Green - L
Available to OrderContact us for availability
$2,811.15
Grey/Green - XL
Available to OrderContact us for availability
$2,811.15
Grey/Green - XXL
Available to OrderContact us for availability
$2,811.15

Want to explore further, longer or more often?

Want to explore further, longer or more often? The CUBE Reaction Hybrid Pro is your ideal companion. Built around the superbly efficient Bosch CX drive system, our adatpable hardtail will help you tame any trail. With a plush, accurate-steering Suntour suspension fork and light, grippy 2.6 inch Schwalbe tyres to keep you on track, a Shimano 10 speed transmission with a new wide-range 11-42T cassette to provide a gear for every situation and powerful hydraulic disc brakes to keep your speed in check, there's everything you need here to expand your off-road horizons. From the first pedal stroke to the last, the Reaction Hybrid Pro will help you on your way.

Specification

  • Frame: Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
  • Fork: SR Suntour XCM34 Coil, Tapered, 15x110mm, 100mm, Lockout
  • Headset: FSA Orbit 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
  • Stem: CUBE Performance Stem Pro, 31.8mm
  • Handlebars: CUBE Rise Trail Bar, 680mm
  • Grips: CUBE Performance Grip
  • Rear derailleur: Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed
  • Shifters: Shimano Deore SL-M6000, Rapidfire-Plus
  • Brake system: Shimano BR-M315, Hydr. Disc Brake (180/180)
  • Crankset: FSA CK-745, 170mm, 15T
  • Chain: KMC X10
  • Cassette: Shimano Deore CS-HG500, 11-42T
  • Front hub: CUBE, 15QR, Boost, Centerlock
  • Rear hub: Shimano FH-TX505, QR, Centerlock
  • Rims: CUBE EX30, 32H, Disc, Tubeless Ready
  • Tyres: Schwalbe Smart Sam, Active, 2.60
  • Saddle: Selle Royal MTB
  • Seat post: CUBE Performance Post, 30.9mm
  • Seatclamp: CUBE Varioclose, 34.9mm
  • Battery: Bosch PowerPack 500
  • Extras: Dropper Post Option: #13619 RFR Teleskop-Sattelstütze 30.9x100mm, #13620 RFR Teleskop-Sattelstütze 30.9x120mm drive unit Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
  • Display: Bosch Purion Bosch 2A
  • Weight: 23,7 kg

Building a great e-mtb involves more than just bolting a motor and battery to a frame. Our engineers understand this, which is why they put so much time and energy into crafting the Reaction Hybrid Pro's chassis. Slotting the motor into the ideal position for efficient power transfer and placing the battery inside the elegant lines of the gravity cast down tube, they've created an e-bike that rides as good as it looks. By keeping the weight as low as possible and making use of our Agile Ride Geometry, we've ensured that the Reaction Hybrid Pro's handling is balanced but lively. We've not forgotten practicality, either - internally routed cables reduce maintenance and the battery can be charged without removing it from the frame, if you wish.

Technology

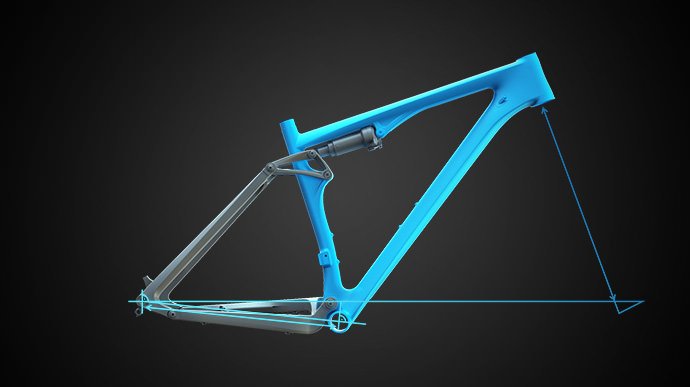

Agile Ride Geometry

We ran innumerable tests to develop the Agile Ride Geometry in our series of big wheel bikes. We also added the 27.5in wheel size to the very well received portfolio. Three important details lead to the very agile character. Increased fork offsets let us achieve the same trail as our 26in bikes without having to steepen the head angle, thus maintaining generous toe clearance to the front wheel. Secondly we shortened the chain stays without compromising the seat angle. We invented a patented construction to mount the front derailleur to give us more tyre clearance while keeping a conventional seat angle, leading to a perfect riding position for every rider size. Last but not least we kept the BB height the same as on our 26in bikes. These measures lead to a natural riding position. Every mountain biker will feel immediately at home on a CUBE 29er or 27.5.


Tapered Steerer

This steerer tube design is stiffer than a conventional straight steerer and yields a more secure ride feel even in difficult terrain. Minimal flex at the front of the frame means the greatest possible steering precision. With the larger steerer, the forks become more rigid. At the same time weight is saved due to the absence of bearing shells as the lower bearing is fully integrated into the head tube. On all of our CUBE carbon models the upper bearing shells are also directly in the frame, so that once more a few grams are saved and the energy transfer is very direct.


Easy Mount Kickstand

The Easy Mount Kick Stand is a new system developed and designed by CUBE. The base of the stand is mounted from below to a fitting plate integrated to the frame and fixed with a through bolt. This kick stand is extremely stiff and solid through the enlarged contact areas between base and frame which gives a stable stand even with loaded panniers.


Integrated Cable Routing

Internally routed cables offer many advantages. Cables are protected from dirt for longer life, weight is saved thanks to the absence of external housing and the bike has a clean, sleek appearance.


Wet Paint Surface

On polished, brushed aluminium and all HPC frames, the logos and graphics are applied in multi-layer wet paint. We use this surface treatment technology mainly to save weight.


Frame Safe System

To protect our high-end aluminium frames from damage, they are built with the CUBE Frame Save System replaceable derailleur hanger. The mounting thread is in the hanger and not in the frame as usual. In case of a crash, this hanger can be easily and quickly replaced by a new one.

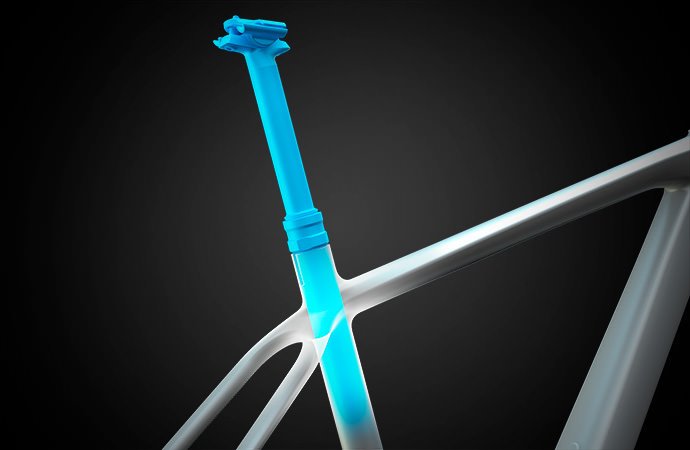

Stealth Ready

Dropper seat posts are getting more and more widespread, but to integrate them optimally in the frame, they have to be factory fitted. With the Stealth Ready frames, it is possible to build in a dropper seat post with internally routed cables, which besides the clean look, helps prevent any cables getting jammed. The exit of the cable on the frame ? if not required ? will be sealed with a cover for protection.


Optimal Drive Position

The engine is the critical part of an Ebike because of its weight and its junction to the regular drivetrain. These factors present a real challenge for the frame design. This is why CUBE developed an innovative new frame construction for the new Ebike generation: simultaneously being the cradle for the electric motor, the pivot for the rear link and the seat of the shock eyelet, the very complex area of the bottom bracket is made of two forged halves. The groove in the front section together with the specially formed down tube is home for the power pack which in this way has a very low position in the frame triangle. The positive outcome is an extremely low center of gravity supporting an agile riding characteristic while achieving a super rigid bottom bracket area.


Geometry

16" 17" 18" 19" 21" 23"
XS S M L XL XXL
