Brand: Cube

Cube Hanzz 190 SL 27.5 Mountain Bike 2019

Cube Hanzz 190 SL 27.5 Mountain Bike 2019
Brand: Cube

Cube Hanzz 190 SL 27.5 Mountain Bike 2019

Price:
$3,100.17
Option:
Stock:
Price:
Sold out

Why buy bike from us?

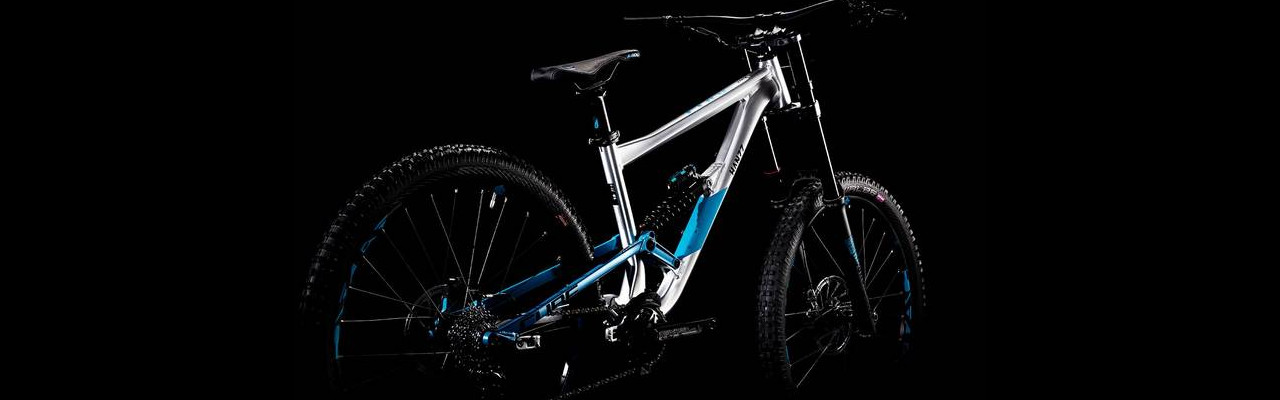

Meet the Hanzz 190 SL

Whether you're pushing your limits in the bike park or lining up for the start of another downhill run, you need to know that you can rely on your bike.



We build the Hanzz 190 SL 27.5 to fulfil that role, without breaking the bank. A nimble-handling, bomb-proof aluminium chassis is paired with RockShox's all-new dual crown, 200mm travel Boxxer RC fork for the ultimate in gravity-fuelled fun.

With a Fox VAN Performance shock out back, Sram's 10 speed GX transmission, Sram Code R brakes and Answer Atac EM wheels, we've given you everything you need to push your riding further, steeper, faster and higher. Hands down, your top choice for affordable gravity fun.

We built the Hanzz 190 SL to be strong enough to stand up to some serious riding, but nimble enough to be fun while you're shredding.

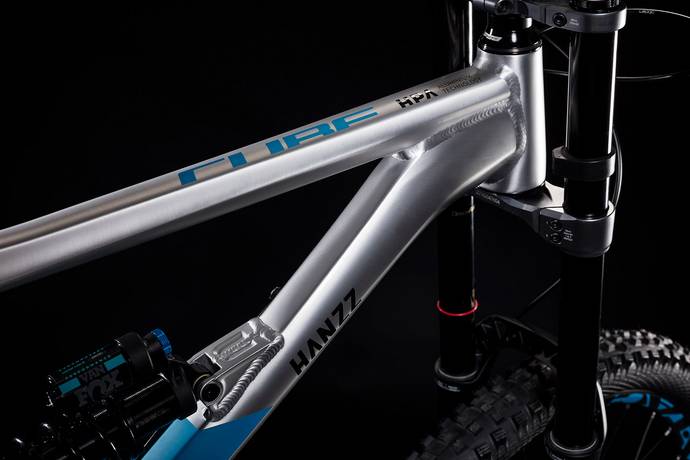

That's why we used all the experience we've gained from building strong, light and manouevrable aluminium frames, starting with our High Performance Aluminium (HPA) tubes and using your mechanical forming process to ensure that the frame has strength and ridigity exactly where it's needed most. In case you're wondering, we backed up this design approach - as we do with all our frames - with rigourous lab testing to confirm that the Hanzz 190 SL is more than strong enough for the job. A 157mm thru axle at the rear and seat stays specially designed to handle the stresses handed out by a 200mm dual crown fork are part of the package, while externally routed cables are simple to maintain. We sweated the details, so you can concentrate on shredding.


Components

  • Frame: Aluminium Light, Advanced Mechanical Forming, FSP 4-Link, ISCG Mount
  • Fork: RockShox Boxxer RC DebonAir, 20x110mm Maxle Boost, 200mm
  • Headset: FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
  • Stem: Race Face Chester 35 Direct Mount
  • Handlebar: Race Face Chester 35, 780mm
  • Grips: SDG Slater
  • Rear Derailleur: Sram GX short cage, Type 2.1, 10-Speed
  • Shifters: Sram X7 Trigger
  • Brake System: Sram Code R, Hydr. Disc Brake (200/180)
  • Crankset: e*thirteen LG1 32T, 170mm
  • Chain: KMC X10
  • Shock: Fox Van RC Performance, 222x70mm, Rebound & Low Speed Compression Adjust
  • Casette: Sram PG-1030, 11-28T
  • Wheelset: Answer Atac EM, 20x110mm / 12x157mm, Tubeless Ready
  • Tyres: Schwalbe Magic Mary, Addix Soft, Kevlar, Super Gravity, Tubeless Easy, 2.35
  • Saddle: SDG FLY MTN 2
  • Seat Post: CUBE Performance Post, 31.6mm
  • Seatclamp: CUBE Varioclose, 34.9mm
  • Weight: 16,2 kg

Technology

Adaptable X12 Hanger

We optimized our new dropout design based on the Syntace X12 through-axle system, enlarging the area of the frame where the hanger is mounted. We can now fit the longer Direct Mount hangers. Shifting precision and stiffness is therefore improved. With the new design it's also possible to swap the whole contact area of the axle with the hanger should the system be worn out.

FSP4Link

The key requirement is for continuously active and fully usable travel, with the rear triangle unaffected by pedalling or especially braking forces. There are a number of ways of achieving this – CUBE favours a four bar design with a chainstay pivot. Here, one of the pivots is located between the dropout and the chainstay, ensuring that braking does not have a negative effect on the movement of the rear wheel. By carefully positioning the remaining pivots, we obtain the finest riding qualities for our full suspension bikes both uphill and downhill. This fact is proven by many top test results in leading magazines over the last few years.

INTEGRATED POST MOUNT

The post mount rear brake system is found on all carbon fiber frames and top aluminum full suspension models. Two bolts and the IS adpater aren’t needed anymore, and fewer parts means less weight. In this case we save 30 grams. This may not sound a lot. But there's potential to save weight in every detail.

THROUGH AXLE

In this system, a cone is used to form a play-free connection. It is only necessary to tighten the axle from one side. The position of the wheel is done by an insert in the right-hand dropout which is secured by a bolt. The main advantages of the Syntace system are quick and simple changing of the wheel, reliable position of the brake disc and higher stiffness of the rear of the bike. This allows the assembly to be made lighter than a conventional through-axle.

TAPERED HEAD TUBE

This steerer tube design is stiffer than a conventional straight steerer and yields a more secure ride feel even in difficult terrain. Minimal flex at the front of the frame means the greatest possible steering precision. With the larger steerer, the forks become more rigid. At the same time weight is saved due to the absence of bearing shells as the lower bearing is fully integrated into the head tube. On all of our CUBE carbon models the upper bearing shells are also directly in the frame, so that once more a few grams are saved and the energy transfer is very direct.


WET PAINT SURFACE

On polished, brushed aluminium and all HPC frames, the logos and graphics are applied in multi-layer wet paint. We use this surface treatment technology mainly to save weight.

Geometry

S M L
16" 18" 20"

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
This could include but not limited to specification or colour
