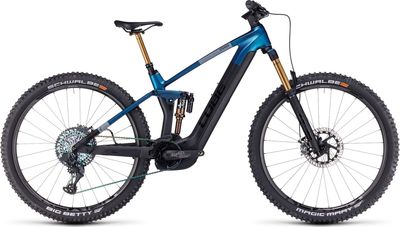

Evolution never stops. That's why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover.

Features

• It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best.
• The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel.
• Sram's UDH gear hanger helps protect against crash damage and is easily replaceable.
• And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.

Specifications

• FRAME: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
• SIZE: Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
• SUSPENSION FORK: Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated
• SHOCK: Fox Float X Factory, 205x60mm (27.5: 185x55mm), Adjustable LSC w/ 2-Pos. Lever, Trunnion Mount, Kashima Coated
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
• DRIVE UNIT: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
• BATTERY: Bosch PowerTube 750
• REMOTE: Bosch LED Remote
• DISPLAY: Bosch Kiox 300
• CHARGER: Bosch 4A
• BRAKE SYSTEM: Magura MT7, Hydr. Disc Brake (203/203)
• REAR DERAILLEUR: Sram XX1 Eagle AXS™, 12-Speed
• SHIFTERS: Sram Eagle AXS™ Controller
• CRANKSET: e*thirteen Plus Crank, 165mm (27.5: 36T // 29: 34T)
• CHAIN GUIDE: Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
• CASSETTE: Sram XG-1299 Eagle™ Rainbow, 10-52T
• CHAIN: Sram PC-XX1 Eagle™ Rainbow
• HANDLEBAR: Newmen Advanced 318.25, Carbon, 780mm
• STEM: CUBE Performance Stem E-MTB, 31.8mm
• GRIPS: ACID Disrupt, Soft Compound
• HEADSET: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• WHEELSET: Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• FRONT TYRE: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
• REAR TYRE: Schwalbe Big Betty, Super Trail, Addix Soft, Kevlar, 2.4
• SEAT POST: Fox Transfer Factory 31.6mm, Kashima Coated
• SADDLE: Natural Fit Venec
• WEIGHT: 23,9 kg
