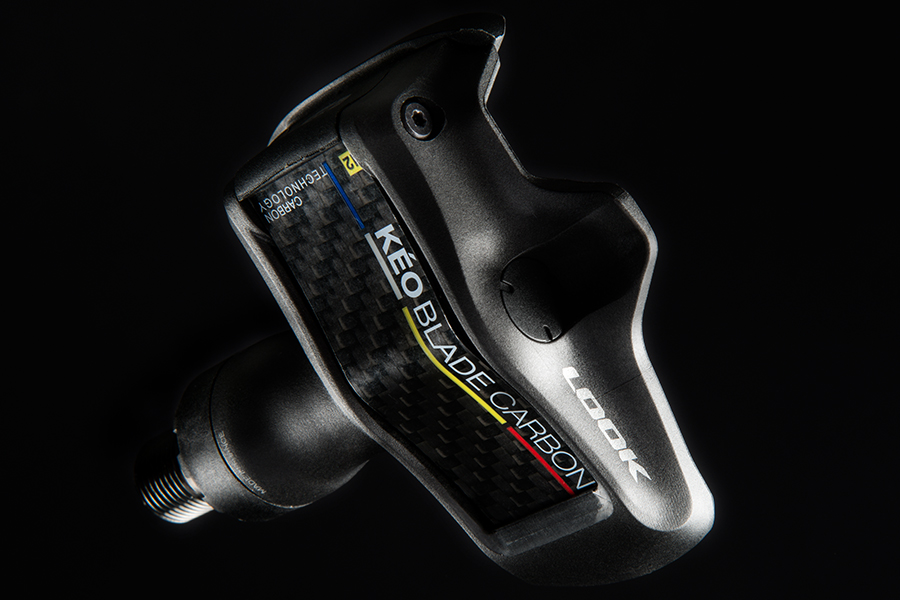

Designed to win, the new KEO BLADE CARBON improves the experience associated with the use of blade technology in a clipless pedal. This new version is the result of experience gained during years of development in the heart of our manufacturing facility and to continual improvements made thanks to daily input from the greatest of champions.
- BODY: Carbon
- SPINDLE: Chromoly Steel +
- BEARINGS: 1 roller bearing, 1 needle bearing
- STACK HEIGHT: 14.8 mm
- DISTANCE PEDAL SPINDLE / CRANKARM: 53 mm
- PLATFORM WIDTH: 67 mm
- PLATFORM SURFACE AREA:700 mm²
- TENSION: Pedals come installed with “12” carbon blades + additional “16” carbon blades (“20” carbon blades sold separately)
- CLEATS: Kéo Cleats-Gray
- FLOAT: 0 °, 4.5 ° or 9 ° according to the cleat color (Black, Grey, Red)
- PEDAL WEIGHT: 110 gr (288 gr per pair with cleats and screws)
- ACCESSORIES: 2 sets of blades +1 pair of Kéo Cleats-Gray + screws
- WARRANTY: 2 years

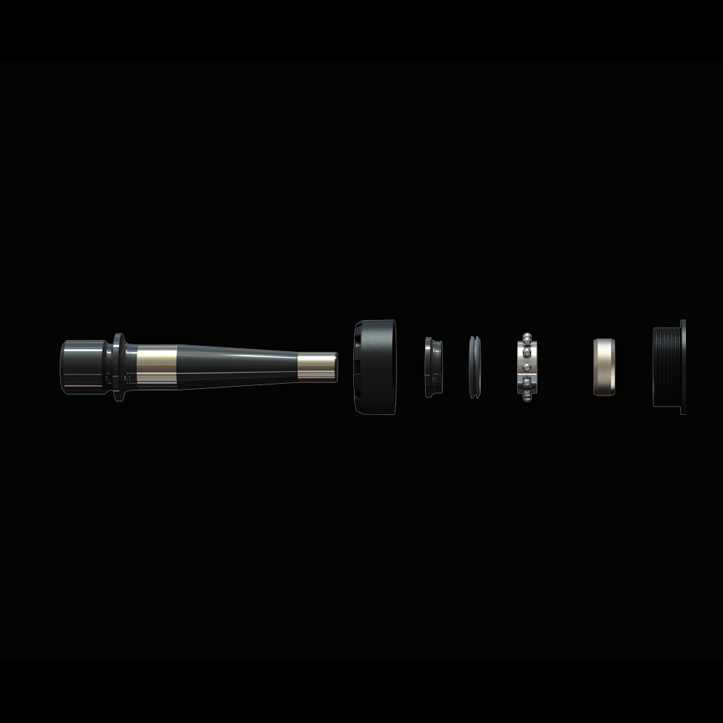

OPTIMIZED SPINDLE: MORE POWER TRANSFER AND RELIABILITY
The spindle of the new CARBON BLADE has been completely redesigned. It is built around an oversized axle and spindle that pass through internal roller and needle bearings located directly under the pedal platform. This new construction allows a gain of approximately 2 to watts at 100 rpm.
The distance between the roller and needle bearings has been increased by 25%. This provides more rigidity along the entire length of the spindle, and as a consequence, improved power transmission.
Special attention has also been given to ensure that it is water resistant. Weather resistance has been improved by 120% for even more reliability and longevity. To accomplish this, the new spindle received an updated endplug with an o-ring washer and has also been equipped with an internal, double-lipped seal.
LOOK axles are only approved after a rotational test of 2 million cycles at 100 rpm with a load of 90 kg on the center of the pedal and an eccentric rotation (which creates stress on each revolution). This is equivalent to a sprint by André GREIPEL of 1700 watts at 100 rpm for 333 hours! This test is much more demanding than the current standard, the EN14781.

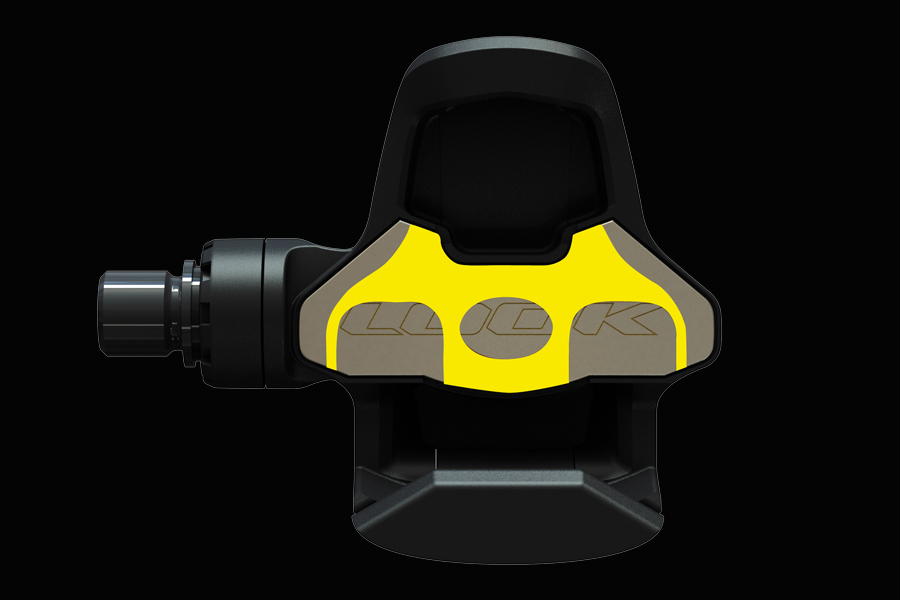

To meet the demands of the most demanding cyclists, especially competitors, the pedal-cleat system must allow efficient power transfer thanks to a broad and rigid platform.
The platform of the CARBON BLADE is fitted with a 67mm-wide stainless steel plate, optimizing the cleat/pedal contact areas, regardless of pedaling angle.
With 700 mm² of surface area, the CARBON BLADE offers an optimized contact platform for an efficiency and power transfer that is unmatched on today’s market.
Its weight / power ratio positions it well above the competition
BODY AND BLADE CARBON TECHNOLOGY
Using a carbon body lightens the weight of the pedal and provides an additional gain in stiffness for improved power transfer.
BLADE technology is a major technical innovation in the history of the automatic pedal because of its many benefits: LIGHTWEIGHT, AERODYNAMIC, ULTRA-SECURE WHEN CLIPPING IN AND OUT
Manufacturer's Code: 00016095
