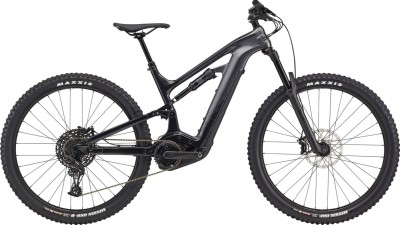

Boundless

An e-mountain bike with infinite capability. The shackles are off, go ride the unrideable. Again and again.

Highlights

• Proportional Response Tuned Carbon frame / RockShox 35 Gold RL fork and Deluxe Select shock, 160mm travel
• SRAM SX Eagle 12-speed drivetrain / Guide RE brakes
• Bosch Performance Line CX drive unit / 625Wh battery / Range: up to 108km (67mi)

Where it thrives

Challenging trails, up and down hills, out in the elements

What it's bulit for

Traction, speed, handling

Specification

• Frame: 160mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
• Fork: RockShox 35 Gold RL, 160mm, DebonAir, 15x110mm thru-axle, tapered steerer, 51mm offset
• Rear Shock: RockShox Deluxe Select, DebonAir, adjustable rebound
• Rims: WTB ST i29 TCS, 32h, tubeless ready
• Hubs: (F) Formula DC-511, 15x110mm / (R) Formula DC-1248, 12x148mm
• Spokes: DT Swiss Champion
• Tires: (F) Maxxis Minion DHF, 29 x 2.6", 3C compound, EXO+, tubeless ready / (R) Maxxis Minion DHII, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready
• Crank: FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T
• Bottom Bracket: Null
• Chain: SRAM SX Eagle, 12-speed
• Rear Cogs: SRAM PG-1210, 11-50, 12-speed
• Rear Derailleur: SRAM SX Eagle
• Shifters: SRAM SX Eagle, single click, 12-speed
• Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
• Grips: Fabric FunGuy
• Stem: Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
• Headset: Integrated Sealed Bearing, Tapered
• Brakes: SRAM Guide RE hydraulic disc, 4-piston, 220/200mm Centerline rotors
• Brake Levers: SRAM Guide RE hydraulic disc
• E-Bike Display: Bosch Purion
• E-Bike Battery: Bosch PowerTube 625Wh
• E-Bike Charger: Bosch 4A
• E-Bike Drive Unit: Bosch Performance Line CX 250W
• Saddle: Fabric Scoop Shallow Sport, steel rails
• Seatpost: TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL)
• Speeds: 12
• Extras: Pre-installed light cables
