From weekend off-road adventures to to the daily commute, the Aim Allroad can take it all on.

Grippy Schwalbe Smart Sam tyres, a comfortable 100mm Suntour suspension fork and powerful Tektro hydraulic disc brakes all work together to deliver a comfortable ride and reassuring control, both off-road and on. Wide-ranging, smooth-shifting Shimano gears ensure the right ratio is just a click away. And full-length mudguards, a kickstand and lighting system are the finishing touches which make this such an easy bike to live with.

Specification

• FRAME: Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
• FORK: SR Suntour XCE, 100mm
• HEADSET: CUBE FPH863, Semi-Integrated
• STEM: CUBE Performance Stem, 31.8mm
• HANDLEBAR: CUBE Rise Trail Bar, 680mm
• GRIPS: CUBE Performance Grip
• REAR DERAILLEUR: Shimano Tourney RD-TX800, 8-Speed
• FRONT DERAILLEUR: Shimano FD-TY700-TS6, Topswing, 31.8mm Clamp
• SHIFTERS: Shimano ST-TX800, EZ Fire Plus
• BRAKE SYSTEM: Tektro MD-280, Mech. Disc Brake (160/160)
• CRANKSET: Shimano FC-TY501, 42x34x24T, 170mm
• CHAIN: KMC Z8.3
• CASSETTE: Shimano CS-HG200, 12-32T
• FRONT HUB: Shimano DH-3D32, Hub Dynamo, QR
• REAR HUB: CUBE Alloy Light, QR, 6-Bolt
• RIMS: CUBE GE803, 32H, Disc
• TYRES: CUBE IMPAC Smartpac, 2.1
• PEDALS: CUBE PP MTB
• SADDLE: Natural Fit Venec Lite
• SEAT POST: CUBE Performance Post, 27.2mm
• SEATCLAMP: CUBE Varioclose, 31.8mm

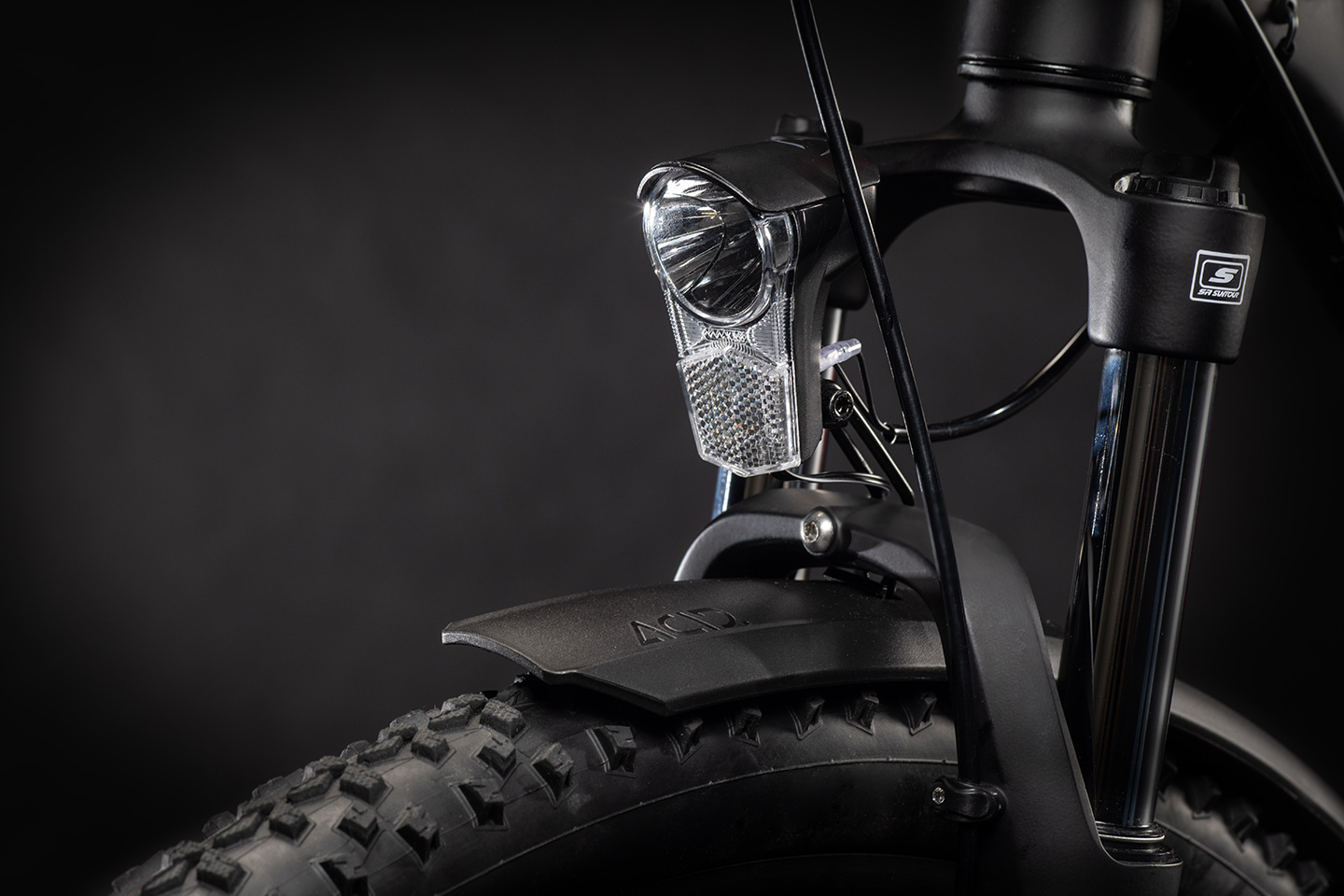

• FRONT LIGHT: Büchel Country LED
• REAR LIGHT: Büchel Broadway LED
• KICKSTAND: CUBEstand Cmpt
• MUDGUARDS: ACID 65
• BELL: ACID
• WEIGHT: 17,1 kg

Geometry
