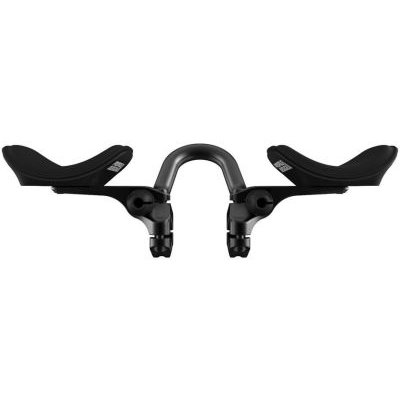

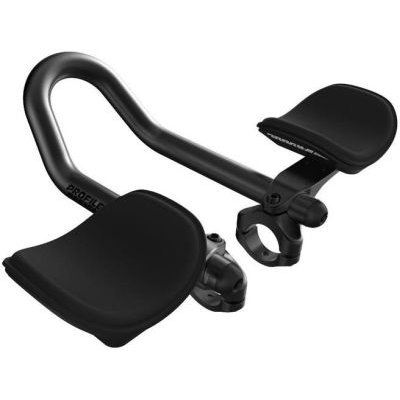

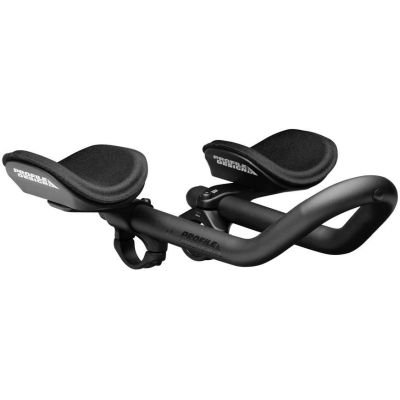

Profile Design Sonic Ergo 45AR Aluminium Aerobars

Profile Design Sonic Ergo 45AR Aluminium Aerobars
Profile Design Sonic Ergo 45AR Aluminium AerobarsAdditional ImageAdditional ImageAdditional Image

Profile Design Sonic Ergo 45AR Aluminium Aerobars

Price:
$170.68
Option:
Stock:
Price:
Black
In Stock2-3 Days Delivery Time
$170.68

The Sonic Ergo 45AR aerobar offers comprehensive yet simple adjustment, ideally suited to riders wishing to add aerobars to their road, gravel or packing bike.

Features

Performance

  • The Sonic Ergo platform offers a large range of adjustment in every dimension – enabling riders to optimize the comfort of their position.
  • This bar can be used for draft legal triathlon once shortened to meet the ITU rules.

Bracket

  • The Sonic bracket is the core product of our new generation bars,offering simple yet comprehensive adjustability.
  • Pairing this bracket with the ergo armrest offers industry leading fit options and greater comfort.
  • With the 45AR extensions this is the most versatile DL style bar we’ve ever product.
  • There are 80 distinct position options achievable just by moving the armrests - this gives an unprecedented level of adjustment for a shorty aerobar.

Orgin

  • Profile Design has a long history with shorty/DL style bars. This is our latest offering and the most adjustable yet. We wanted to create a bar that would be an easy and comfortable addition to road, gravel and packing bikes.

Specifications

  • Bracket: Sonic
  • Clamp Diameter: 31.8mm (26.0 w/Shims)
  • Armrest: Ergo / 10mm Pads
  • Armrest Width: 124mm to 290mm in 18.5mm steps (with Extensions at 100mm)
  • Armrest Offset: -70mm to -17.5mm in 7.5mm steps
  • Armrest Stack: The minimum is 60mm and the bracket is compatible with our
  • existing risers which add up to 130mm stack with (70mm of spacers added)
  • Extension Width: 100mm
  • Color: Matte Black
  • Weight: 545g
  • Armrest Offset: -70mm to -17.5mm in 7.5mm steps
  • Armrest Width: 124mm to 290mm in 18.5mm steps (With Extensions at 100mm)
  • Armrest Stack: 60mm (no riser kit) to 130mm in 5mm increments (With aftermarket Riser Kit)
  • Extension Width: 100mm
  • The extension length and rotation can be easily adjusted using the top bolt.

Manufacturer's Code: PRSNC45DL1
