Class-leading trail performance and comfort is the Stereo 120 Race's raison d'être. To that end, we chose Shimano's legendary XT 1x12 transmission for its reliability and extraordinary range. Then we added smooth, powerful Shimano hydraulic disc brakes - so you're always in complete control, whether you're climbing or descending. The RockShox Recon Gold fork and Deluxe Select+ rear shock deliver superb bump-taming performance. And it's all topped off with a Fulcrum wheelset, CUBE dropper post and Newmen Evolution finishing components. Where would you like to explore next?

Features

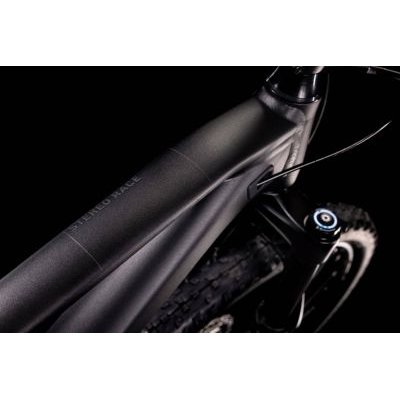

• Like all our frames, the Stereo 120 is all about providing the best performance at the lowest possible weight.
• Hydroformed tubing is triple-butted to save as much weight as possible without sacrificing strength.

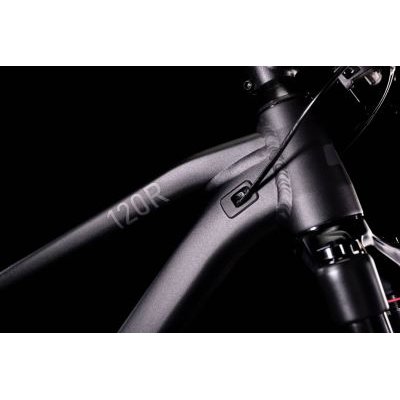

• The tapered head tube and Boost 148 rear axle ensure steering precision and excellent pedalling efficiency.
• And it's all built around our Efficient Trail Control kinematics and a 130mm fork, with Agile Trail Geometry putting you firmly in control at all times.
• New for 2022, we even added a SizeSplit XS option with 27.5in wheels for shorter-stature riders, but don't want to sacrifice performance.

Specification

• SIZE: Size Split: 27.5: XS // 29: S, M, L, XL
• FRAME: HPA Advanced Hydroform, ATG, ETC 4-Link, AXH
• FORK: RockShox Recon Gold RL Air, Tapered, 15x110mm, 130mm

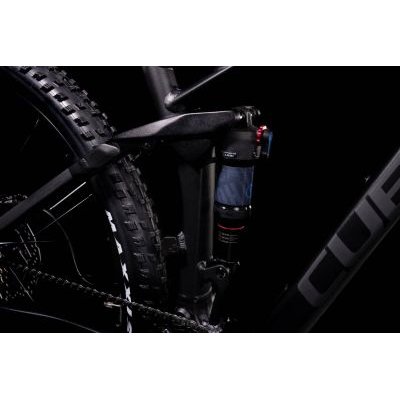

• SHOCK: RockShox Deluxe Select+, 190x45mm, Rebound Adjust, Lockout
• SHOCK HARDWARE: Top: 40x8mm, Bottom: 22x8mm
• BRAKE SYSTEM: Shimano BR-MT500, Hydr. Disc Brake (180/180)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano Deore SL-M6100, Rapidfire-Plus
• CRANKSET: Shimano FC-MT511, Boost, 30T, 175mm (170mm for XS/S)
• CASSETTE: Shimano Deore CS-M6100, 10-51T
• CHAIN: Shimano CN-M6100
• WHEELSET: Fulcrum Red 77, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• TYRES: Maxxis Forekaster, EXO, Tubeless Ready, 2.35
• STEM: Newmen Evolution 318.4, 31.8mm
• HANDLEBAR: Newmen Evolution SL 318.25, 760mm
• GRIPS: ACID React Pro
• SEAT POST: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, (XS: 100mm, S: 120mm, M/L/XL: 130mm)
• SEATCLAMP: CUBE Screwlock, 34.9mm
• SADDLE: Natural Fit Venec Lite
• HEADSET: VP Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
• WEIGHT: 14,4 kg
