Big days out demand reliable components. That's why, for the Stereo Hybrid 140 HPC Race 625, we started with a RockShox 35 Silver Air fork and matching Deluxe Select+ shock. Combined with tenaciously grippy Schwalbe 2.6in tyres, Shimano four-piston calipers and a remote dropper post, you'll be tackling anything the trail throws your way with complete confidence. Throw in Shimano's super-reliable XT 1x12 transmission and the seamless power delivery of Bosch's fourth-generation CX drive unit, and you've got everything you need to tackle any mountain trail.

Features

• Our versatile trail-tamer needs strength and agility in equal measure. Built around the CUBE Modular Battery System, the Stereo Hybrid 140 HPC 625's frame incorporates Bosch's fourth-generation CX motor and a 625Wh battery in an elegant structure that protects all its crucial components from dust and moisture.
• With a Boost 148 rear axle, large pivot bearings and internal cable routing, you're assured of great handling and lower maintenance, too.
• Our Size Split system makes it easy to find the perfect fit for any rider.
• And our All Mountain Geometry is carefully designed to work with both the suspension kinematics and Bosch's drive system, so you end up with a bike that's stable, confidence-inspiring and fun.

Specification

• SIZE: Size Split: 27.5: XS (15"), S (17") // 29: M (18"), L (20"), XL (22")
• FRAME: C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
• FORK: RockShox 35 Silver, Tapered, 15x110mm, eMTB Approved, 140mm
• SHOCK: RockShox Deluxe Select+, 185x55mm, Rebound Adjust, Trunnion Mount, Lockout
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
• DRIVE UNIT: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
• BATTERY: Bosch PowerTube 625
• DISPLAY: Bosch Kiox
• CHARGER: Bosch 2A
• BRAKE SYSTEM: Shimano BR-MT520, Hydr. Disc Brake (203/203)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano Deore SL-M6100, Rapidfire-Plus
• CRANKSET: ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
• CHAIN GUIDE: e*thirteen Plus e*spec
• CASSETTE: Shimano Deore CS-M6100, 10-51T
• CHAIN: Shimano CN-M6100
• FRONT HUB: Shimano HB-MT400-B, 15mm, Boost, Centerlock
• REAR HUB: Shimano FH-MT410-B, 12mm, Boost, Centerlock
• RIMS: CUBE EX30, 32H, Disc, Tubeless Ready
• TYRES: Schwalbe Nobby Nic, PerfL, 2.6
• STEM: CUBE Performance Stem E-MTB, 31.8mm
• HANDLEBAR: Newmen Evolution SL 318.25, 760mm
• GRIPS: ACID React Pro
• SEAT POST: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (XS, S: 100mm, M: 125mm, L, XL: 150mm)
• SEATCLAMP: CUBE Screwlock Semi Integrated, 34.9mm
• SADDLE: Natural Fit Venec
• HEADSET: 27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• WEIGHT: 25,1 kg

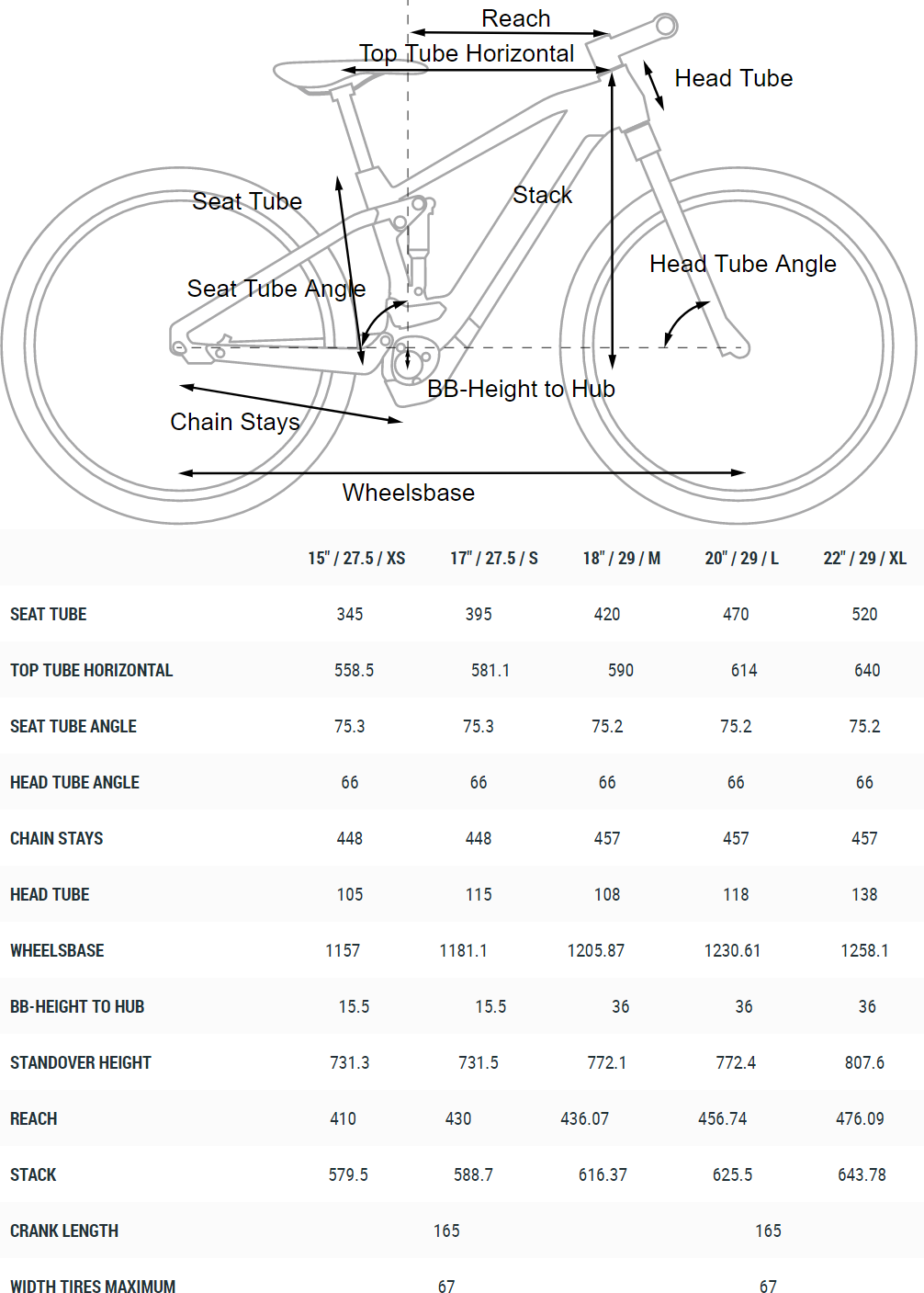

Geometry
