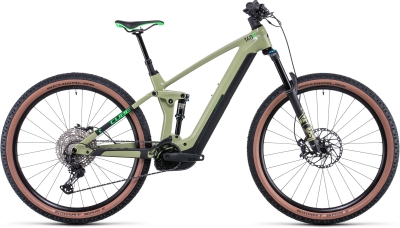

A really great bike should just get out of the way and let you enjoy the ride. It's the reason that, for the brand-new Stereo Hybrid 140 HPC SL 750, we began by choosing a 150mm Fox 34 Rhythm fork and matching Float DPS EVOL shock. Combined with the Newmen wheelset and Schwalbe 2.6in tyres, it's the closest thing to a magic carpet ride. Bosch's fourth-generation CX drive unit and new high-capacity 750Wh battery delivers your power to the trail via Shimano's slick-shifting, super-reliable XT 1x12 transmission. And strong, progressive Shimano XT four-piston hydraulic disc brakes with oversize rotors bring you safely to a stop, on demand. With a remote dropper post thrown into the mix, you'll be wondering how you ever managed without it. Simply add your spirit of adventure.

Features

• The Stereo Hybrid 140 HPC 750's brand-new frame packs a big punch.
• Our Modular Battery System helped us create the space for a high-capacity 750Wh battery, giving you all the juice you need for extended trail adventures.
• Integrated cable routing makes for a tidy appearance, lower maintenance and a stronger frame, because there are no cable holes in the head tube area.
• The battery and fourth-generation Bosch CX drive unit are protected from dust and moisture, of course.
• The Boost 148 rear axle and large pivot bearings translate into great handling.
• And our All Mountain Geometry is carefully designed to work with both the suspension kinematics and Bosch's drive system, so you end up with a bike that's stable, confidence-inspiring and fun.?

Specification

• FRAME: C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
• SIZE: 29: M (18"), L (20"), XL (22")
• FORK: Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
• SHOCK: Fox Float DPS EVOL, 205x60mm, Open/Medium/Firm Mode, Trunnion Mount
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
• DRIVE UNIT: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
• BATTERY: Bosch PowerTube 750
• DISPLAY: Bosch Kiox 300
• CHARGER: Bosch 4A
• BRAKE SYSTEM: Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
• CRANKSET: ACID E-Crank, 165mm, 34T
• CHAIN GUIDE: Reverse Flip-Guide E-Kettenf?hrung, Direct Mount, GEN4
• CASSETTE: Shimano Deore CS-M6100, 10-51T
• CHAIN: Shimano CN-M6100
• WHEELSET: Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• FRONT TIRE: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
• REAR TIRE: Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
• STEM: CUBE Performance Stem E-MTB, 31.8mm
• HANDLEBAR: Newmen Evolution SL 318.25, 760mm
• GRIPS: ACID Disrupt, Soft Compound
• SEAT POST: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
• SEATCLAMP: CUBE Screwlock Semi Integrated, 34.9mm
• SADDLE: Natural Fit Venec
• HEADSET: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120?, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• WEIGHT: 23,8 kg
