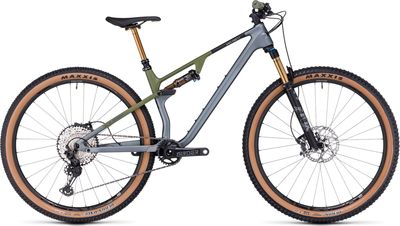

When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up.

Features

•  With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1600g.
• Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there's even an Acros angle adjustment insert to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.

Specifications

• FRAME: C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
• SIZE: 29: S, M, L, XL
• SUSPENSION FORK: Fox 34 SC Float Factory FIT4, Open(Adjustable)/Medium/Firm Mode, Tapered, 15x110mm, 120mm, Kashima Coated
• SHOCK: Fox Float DPS Factory, 190x42.5mm, Open(Adjustable)/Medium/Firm Mode, Kashima Coated
• SHOCK HARDWARE: Front: 26x8mm, Rear: 30x8mm
• BRAKE SYSTEM: Shimano XT BR-M8120/BR-M8100, Hydr. Disc Brake (180/180)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano XT SL-M8100-IR, Direct Attach
• BOTTOM BRACKET: Praxis PF92, sealed Enduro™ Bearings
• CRANKSET: Praxis Girder Carbon, Boost, 30T
• CASSETTE: Shimano SLX CS-M7100, 10-51T
• CHAIN: Shimano CN-M6100
• HANDLEBAR: Newmen Evolution 318.20, 760mm
• STEM: Newmen Evolution SL 318.4, 31.8mm
• GRIPS: SDG Thrice
• HEADSET: ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
• WHEELSET: Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• FRONT TYRE: Maxxis Rekon, EXO, Tubeless Ready, 2.4
• REAR TYRE: Maxxis Rekon Race, EXO, Tubeless Ready, 2.35
• SEAT POST: Fox Transfer Factory 30.9mm, Kashima Coated
• SADDLE: SDG Bel Air V3 Lux Alloy
• WEIGHT: 11,7 kg
