The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance.

Features

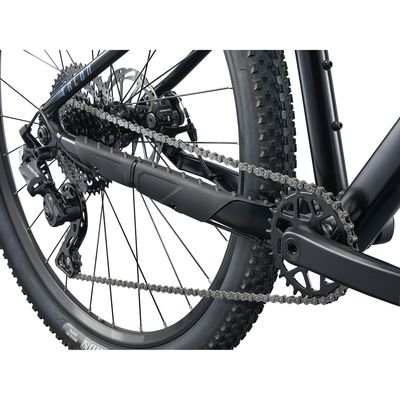

• Modern MTB Design: Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
• Off-Road Control: New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
• Light and Durable: All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Specifications

• Sizes: 27.5: XS,S 29: M,L,XL,XXL
• Colours: Gloss Radiant Orange, Satin Black
• Frame: ALUXX-grade aluminium, disc

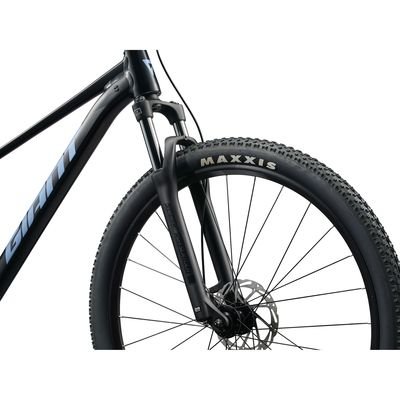

• Fork: SR Suntour XCE, QR, steel steerer XS&S: 80mm travel (27.5) M-XXL:100mm travel (29)
• Shock: N/A
• Handlebar: Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29)
• Grips: Giant Sole-O
• Stem: Giant Sport, 7-degree rise
• Seatpost: Giant Sport, 30.9mm
• Saddle: Giant ErgoContact Trail
• Pedals: MTB caged
• Shifters: microSHIFT Acolyte, 1x8
• Front Derailleur: N/A
• Rear Derailleur: microSHIFT Acolyte

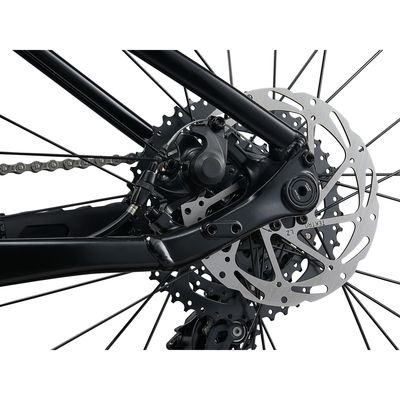

• Brakes: Tektro 172, mechanical, Tektro rotors [F]160mm, [R]160mm
• Brake Levers: Tektro TBK 172, mechanical
• Cassette: microSHIFT, 12x46
• Chain: KMC 8.3
• Crankset: ProWheel Forged, 33t (27.5) or 30t (29)
• Bottom Bracket: cartridge
• Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Hubs: alloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
• Spokes: stainless, 14g
• Tyres: Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, wire bead
• Extras: 2.4" max tyre size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
