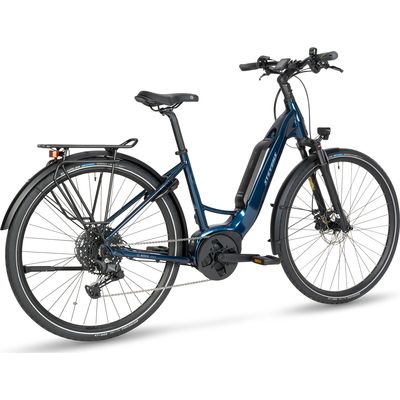

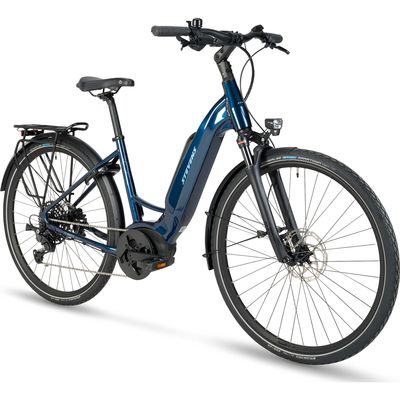

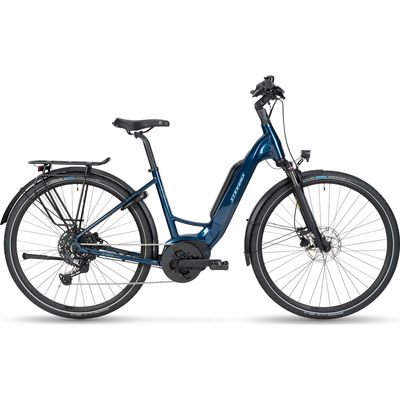

The entry into the E-Triton world, the 5.5.1, convinces with its unobtrusive frame design and the semi-integrated 545 Wh Bosch PowerPack battery. The newest Bosch Performance Line drive unit with 75 Nm of torque provides powerful propulsion. Precise and smooth gear changes combined with maximum durability are made possible by the Shimano CUES U6000 Linkglide 10-speed shifting system.

Features

• Allround pedelec with semi-integrated 545 Wh-battery
• Smooth Bosch Performance Line drive unit
• Load-capable designed frame tubes made of aluminium 6061
• Sturdy air suspension fork w/ thru-axle & lockout
• Precise Shimano CUES U6000 Linkglide 10-speed shifting

Specifications

• Frame: Aluminium 6061
• Fork: SR Suntour NCX-D Air LO
• Headset: STEVENS AH Taper 1 1/8"-1 1/2"
• Brake front: Tektro HD-T280
• Brake rear: Tektro HD-T280
• Brake disc front: Tektro TR180-35A
• Brake disc rear: Tektro TR160-35
• Crankset: Oxygen E-Scorpo
• Motor sprocket: STEVENS E-MTB
• Derailleur rear: Shimano CUES U6000 Shadow
• Chain: Shimano CN-LG500
• Cassette: Shimano CS-LG300-10
• Pedals: ATB Alu Pro Reflex
• Engine: Bosch G3 Performance Line
• Battery: Bosch PowerPack 545
• Charger: Bosch 4A charger
• Hubs rear: Formula CL-26
• Hubs front: Strummer RTP-1
• Rims: Oxygen RM-26 Disc SL
• Tires: Schwalbe Marathon
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen Versa II, adjustable
• Saddle: Selle Royal ON Female
• Seatpost: Oxygen E-Scorpo
• Shift lever right: Shimano CUES U6000
• Brake lever: Tektro HD-T280
• Display: Bosch Intuvia 100
• Headlight: Trelock Light Hammer 80
• Taillight: B M Shine Evo
• Carrier: Racktime Shine Evo RTA rear rack
• Mudguards: SKS mudguards
• Kickstand: Pletscher Comp kickstand
• Bell: STEVENS D85 bell
• Weight: 25.9 kg
• Max. Rider's weight: 140 kg
• Color(s): India Ink
• Sizes: F 46, 52, 56 cm

Geometry
