The E-ASTR is an e-bike for the rider looking for a pure riding experience with the added benefit of electrical support to make the riding more enjoyable.

Features

• We have selected the lightweight TQ system for this e-bike and we managed keep the look of the bike as close as possible to the non assisted ASTR RS version. We have even hidden the controls and display to keep the e-system as stealthy as possible.
• In addition to the light system weight the TQ drive unit is also very silent and the support level it provides is least intrusive we have ever experienced from any drive unit.

Specifications

• Frame: E-Astr 7E9/size XS/EAS02Bm
• Fork: E-Astr 7E9/EAS02Bm
• Material: Carbon
• Groupset: Sram Rival XPLR
• Cassette: Sram Rival XPLR 10-44
• Electric bike: Yes
• Drive Unit: TQ Drive Unit
• Brake Type: Flat Mount
• Rear Derailleur: SRAM RIVAL XPLR
• Handlebar: Forza Cirrus Pro Integrated Flared // 90mm - 380mm (cc shifters) - 445mm (cc drops) // 16? flared // Drop 120mm // Reach 70mm
• Seatpost: Forza Aero // 6mm Offset // 350mm
• Saddle: Selle Italia Novus Boost Superflow // Manganese Rails // Black
• Front Wheel: DT Swiss G1800 Spline // TA 12x100mm // Tubeless Ready// 25mm Deep // 24mmm Internal Width
• Rear Wheel: DT Swiss G1800 Spline // TA 12x142mm // Tubeless Ready // 25mm Deep // 24mm Internal Width
• Outer Tyre: Vittoria Terreno Dry TLR // 700x47c // Folding-TLR // Tan Wall
• Max Tire Clearance 700c (*): 50 mm

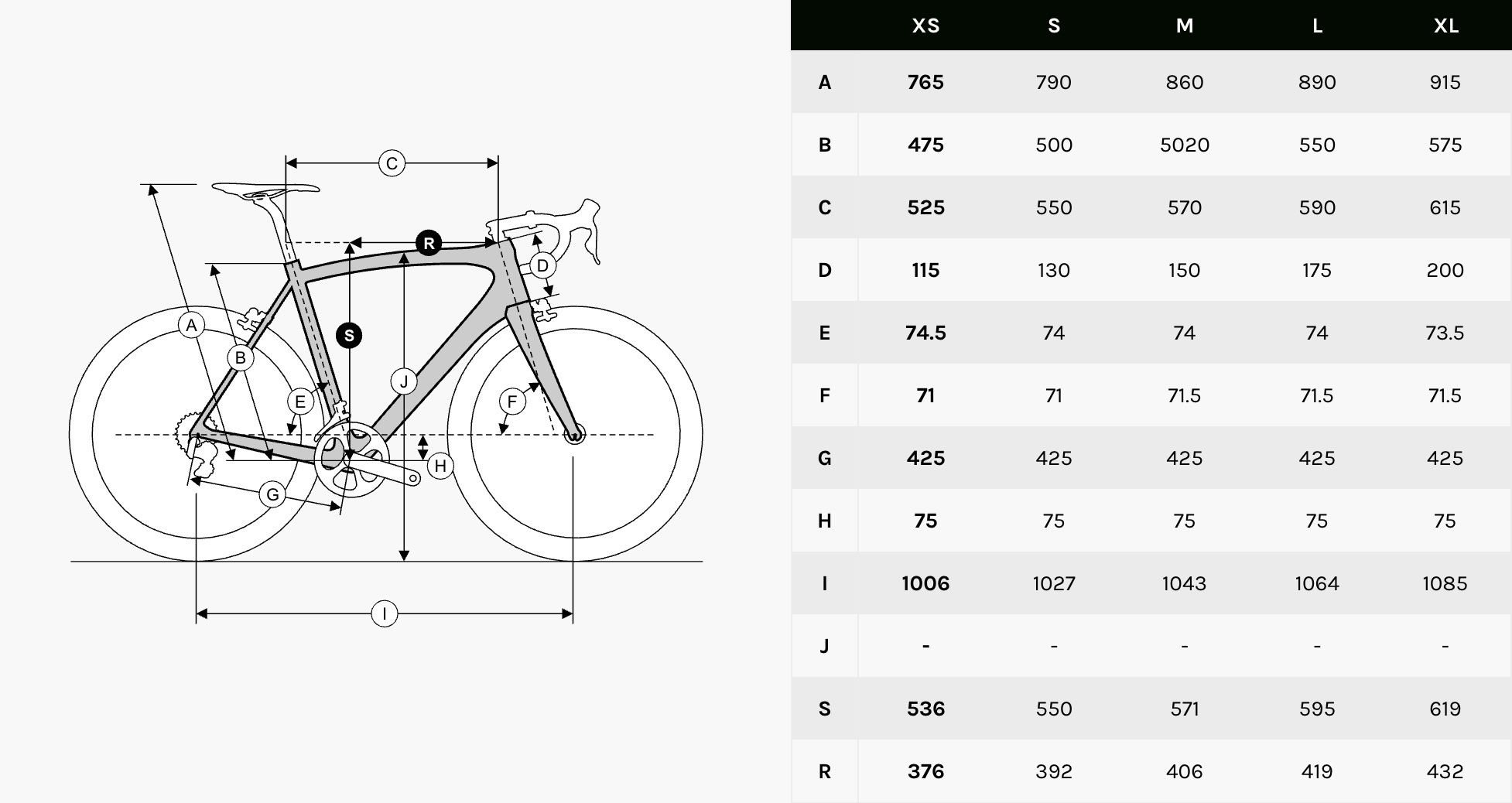

Geometry
