Designed for comfort, versatility and durability, the Kathmandu Hybrid 45's frame incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. The Integrated Carrier 3.0 is super-strong and stable as well as being integrated with the rear mudguard for an elegantly understated look that you'll love. It's the perfect way to add accessories and carry whatever you need with you. And it's all safety-tested in our own in-house lab to the highest standards, so you know you're in safe hands.

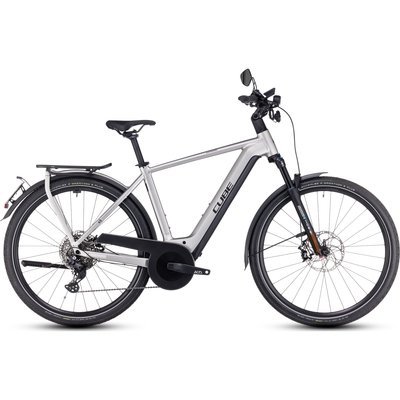

Unblock the city's streets with the Kathmandu Hybrid 45 750. With Bosch power, reliable components and a CUBE frame design that seamlessly blends comfort, style and practicality, it's the speed pedelec that'll reignite your passion for urban living. When two wheels are this good, who needs four?

Features

• Fully Integrated Battery: The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
• Advanced Internal Cable Routing: Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
• Integrated Carrier 3.0: The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
• Boost148: A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
• Efficient Comfort Geometry: With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
• Gravity Casting: Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.

Specifications

• Brake System: Magura MT5e Hydr. Disc Brake (203/203), Bremslicht
• Rear Derailleur: Shimano Deore, LinkGlide Technology, 10-Speed
• Shifters: Shimano Deore SL-M5130-R10, LinkGlide
• Crankset: ACID E-Crank, 48T, 175mm
• Cassette: Shimano CS-LG-400, 11-43
• Chain: Shimano CN-LG500
• Headset: M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Handlebar: CUBE Comfort Trail Bar, 700mm
• Grips: ACID Travel Comfort
• Wheelset: Newmen Performance 25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
• Tyres: Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622
• Saddle: Natural Fit Sequence
• Seat Post: CUBE Performance Post, 30.9mm
• Pedals: ACID PP Trekking
• Front Light: Supernova M99 Mini Pro, 250 Lux, 12V, DC
• Rear Light: Supernova M99 Tail Light, 12V DC
• Kickstand: ACID FM Pure Kickstand
• Mudguards: ACID 65 Integrated Carrier 3.0
• Bell: Supernova Horn
• Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
• Weight: 28,1 kg

Geometry
