It's tough to improve on perfection, but that's what we've done with the Stereo ONE77 C:68X frame. First up, it's light, at just 2.3kg. That's a difference you can feel on the climbs and descents. There's a flip chip and two mounting points for air and coil shocks, giving a range of options for progression and shock performance. Angle adjustment inserts mean you can switch between 63.8° and 64.4° head angles and the bottom bracket is threaded for maximum versatility and durability. We deliberately didn't include a frame storage compartment, because we wanted to keep weight down and strength up. But there is a mounting point for a custom trail tool under the down tube. Simply put, you're all set. Bring it on...

Its appearance may be understated, but don't be fooled – this is a technical powerhouse. Premium C:68X® carbon makes the Stereo ONE77 C:68X TM a real mountain goat – agile on the climbs, relentlessly precise on the descents. You'll wonder how you ever managed without it.

Features

• C:68X® Carbon Fiber Technology: Combining all our expertise from carbon frame building into the ultimate material, C:68X® carbon uses the optimum blend of fibre and nano particle-infused resin. Precision Advanced Twin Mold manufacturing means we can avoid bonded sleeves or inserts, too. It's the new benchmark for light, stiff and strong.
• Adjustable headset angle: When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
• Boost148: A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
• Advanced Twin Mold: With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
• Flip Chip: Tuneability is the best way to get the ultimate performance from your suspension setup. CUBE's Flip Chip takes customisation to a new level, by allowing you to quickly dial the performance of both air and coil shocks to best suit your riding style, personal preference and trail conditions. Flip it, set it, and ride. It's that simple.

Specifications

• Frame: C:68X® Monocoque Advanced Twin Mold Technology, Air/Coil Shock Mount Flip-Chip, ISCG, Boost148, UDH™, 170mm travel
• Size: 29: M, L, XL, XXL
• Suspension Fork: RockShox ZEB Select+ Charger 3.1 RC2, Tapered, 15x110mm, 170mm
• Shock: RockShox Vivid Select+, 230x65mm, Open Compression, Rebound & Hydr. Bottom Out Adjust, 2-Pos. Lever
• Shock Hardware: Top: 40x8mm, Bottom: 22.2x8mm
• Brake System: Hayes Dominion A4, Hydr. Disc Brake (203/180)
• Rear Derailleur: Sram X0 Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
• Shifters: Sram AXS™ Pod Controller
• Bottom Bracket: Sram DUB MTB Wide, 73mm BSA
• Crankset: Sram X0 Eagle™ Transmission DUB, 30T
• Cassette: Sram XS-1275, 10-52T
• Chain: Sram GX Eagle™ Transmission
• Chain Guide: MRP SXg Chain Guide
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• Stem: CUBE Stereo Stem w/ Cable Routing
• Handlebar: Newmen Evolution SL 318.40, 800mm
• Grips: SDG Thrice
• Wheelset: Newmen Beskar 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Maxxis Assegai, MaxxTerra/EXO+, Tubeless Ready, 2.5 WT
• Rear Tyre: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
• Saddle: SDG Bel Air V3 Lux Alloy
• Seat Post: SDG Tellis V2, Handlebar Lever, Internal Cable Routing, 31.6mm
• Extras: Schwalbe Aerothan™ Inner Tubes
• Weight: 14,6 kg

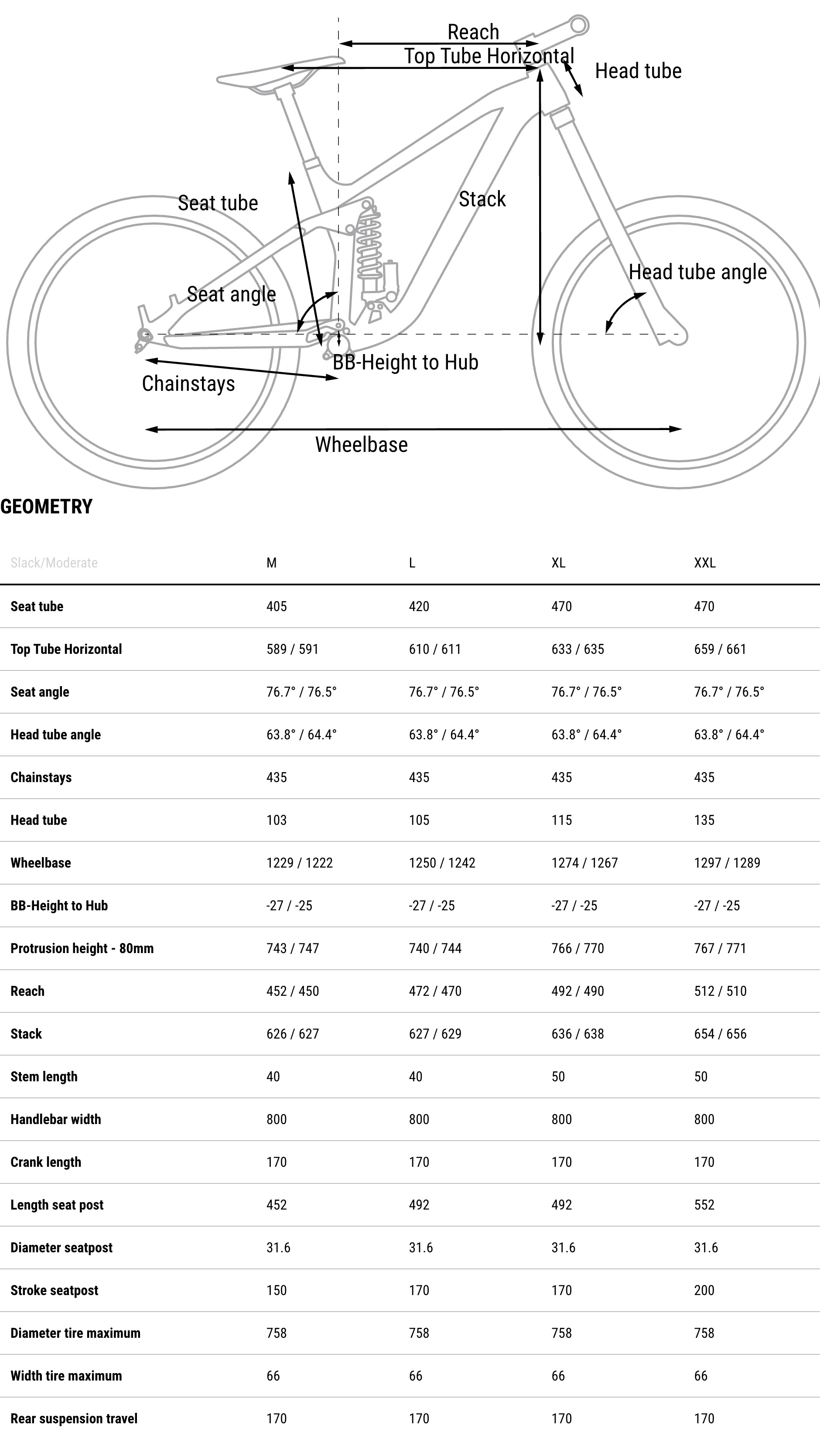

Geometry
