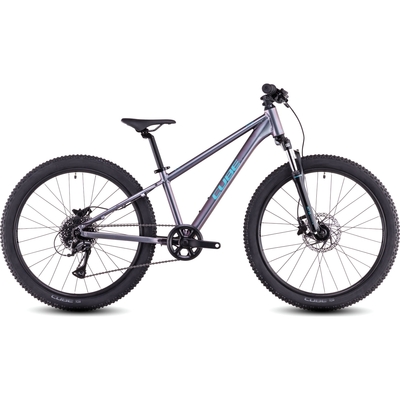

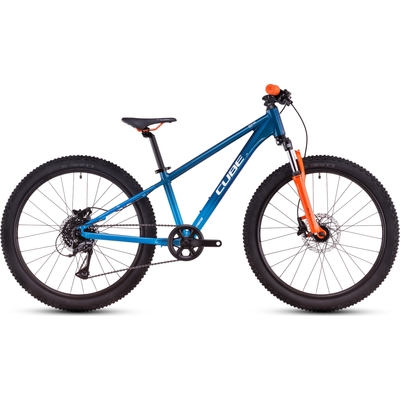

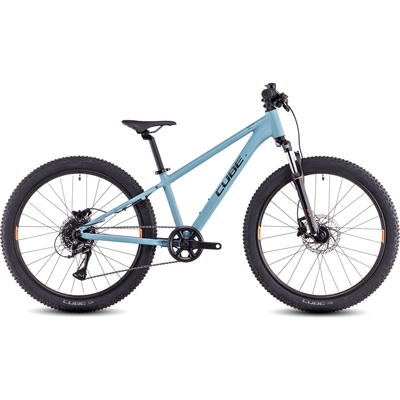

Built from the same heat-treated 6061 aluminium tubes as our adult bikes, the Acid 240 Disc's frame is every bit as tough as a full-size mountain bike, but with the right weight and proportions for a child. Disc mounts allow the use of these powerful, safe and easy-to-use brakes. There's a bottle mount for mid-ride refreshment and rack mounts, too. The handling is designed to be both fun and confidence-inspiring. And, because we know accidents can happen, we made the gear hanger easily replaceable so that a knock or crash needn't result in an expensive repair.

When you're growing up you can't always have everything you want, but for aspiring mountain bikers the Acid 240 Disc is a step in the right direction. With powerful hydraulic disc brakes, a wide gear range and the extra comfort and control of a suspension fork, it's to all intents and purposes just like mum and dad's mountain bikes.

Specifications

• Frame: Aluminium Lite 6061
• Size: 24"
• Suspension Fork: SR Suntour SF20 XCT JR, 60mm
• Brake System: Shimano BR-MT200, Hydr. Disc Brake (160/160)
• Rear Derailleur: Shimano RD-M3020, 8-Speed
• Shifters: Shimano SL-M315, Rapidfire-Plus
• Bottom Bracket: Thun PASO-ML BSA
• Crankset: ACID 32T, 127mm with Chainguard
• Cassette: Sunrace CSM55,11-34
• Chain: KMC Z8.3
• Headset: CUBE FPH863, Semi-Integrated
• Stem: CUBE Aluminium Lite
• Handlebar: CUBE Aluminium Lite, 580mm
• Grips: ACID Kids
• Rims: CUBE DB29
• Front Hub: CUBE Aluminium Disc 6-Bolt, 28H
• Rear Hub: CUBE Aluminium Disc 6-Bolt, 28H
• Tyres: Meghna, 2.1
• Saddle: CUBE Kid
• Seat Post: CUBE Aluminium Lite
• Pedals: CUBE PP MTB
• Bell: ACID
• Colour: tealblue´n´orange
• Weight: 11,7 kg

Geometry
