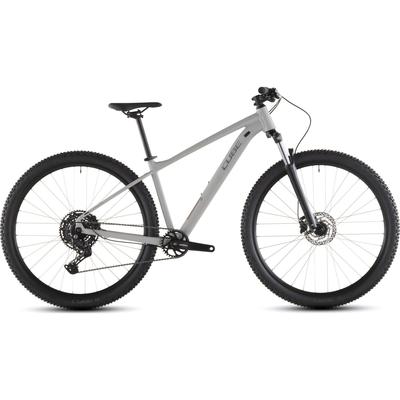

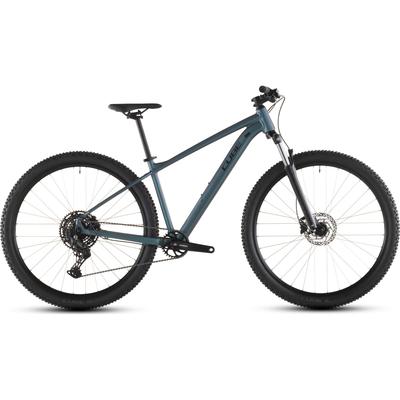

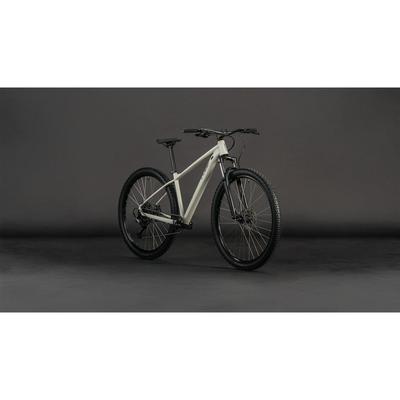

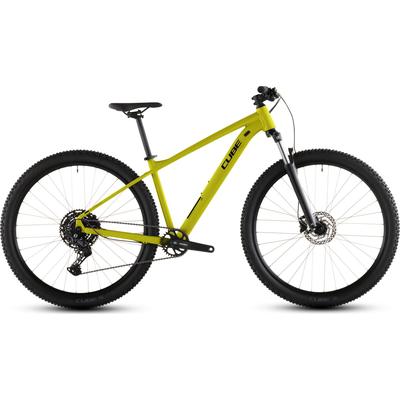

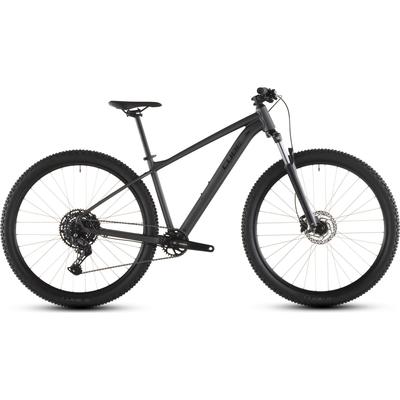

Got an off-road itch that needs scratching? The Aim Pro could be the relief you're looking for.
Features
- With its grippy 2.25in tyres and 100mm suspension fork, it's got the comfort and control you'll need to keep riding when you reach the end of the road.
- Wide-ratio Shimano Cues 10-speed gears will help you see off the steepest climbs, and strong hydraulic brakes put you in control on the descents.
- Best of all, Size Split makes it easy to find the perfect fit for every rider – and the frame is even ready to accept a future dropper post upgrade.

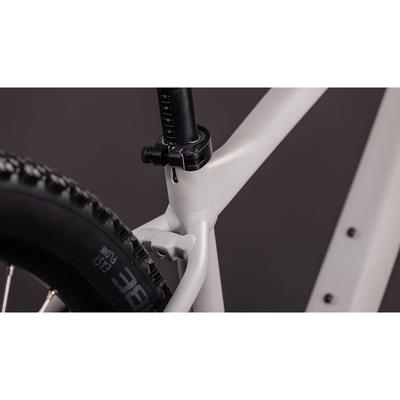

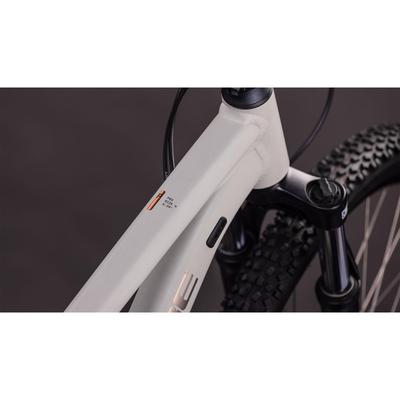

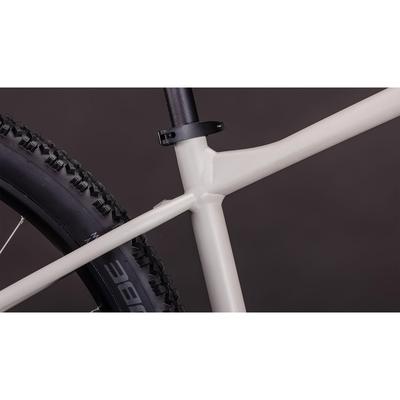

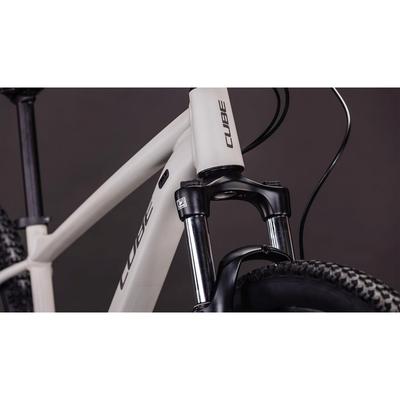

- Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter.
- It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier.
- Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
- Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Specifications
- Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
- Fork: SR Suntour XCT, 100mm
- Headset: CUBE FPH868p, Tapered, Semi-Integrated
- Stem: CUBE Performance Stem, 31.8mm
- Handlebar: CUBE Rise Trail Bar, 680mm
- Grips: ACID Icon
- Rear Derailleur: Shimano Cues RD-U6000-GS
- Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
- Brakes: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
- Bottom Bracket: Thun Paso-ML, 73mm BSA

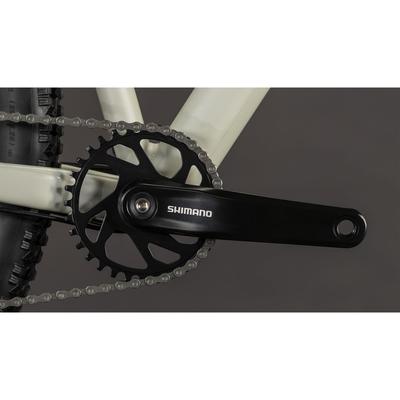

- Crankset: Shimano Cues FC-UT400, 32T
- Casette: Shimano Cues CS-LG300, 11-48T
- Number of Gears: 11
- Chain: KMC xGlide
- Wheelset: ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
- Tyres: CUBE MTB, 2.25
- Pedals: CUBE PP MTB
- Saddle: ACID Venec Lite
- Seatpost: CUBE Performance Post, 27.2mm
- Weight: 15,10kg
Size Guide

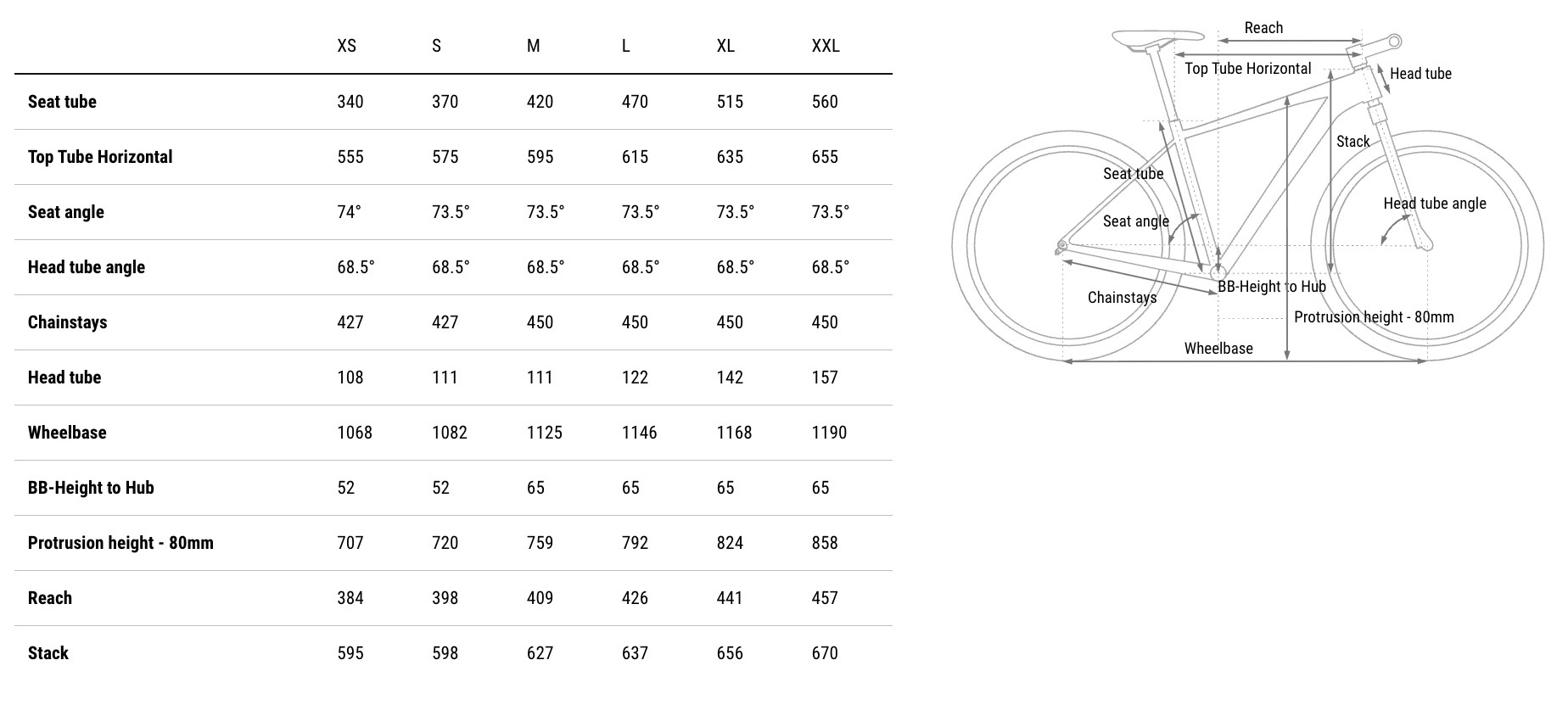

Geometry

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
This could include but not limited to specification or colour
Manufacturer's Code: 140200XXL, 140210XS, 140210S, 140210M, 140210L, 140210XL, 140210XXL, 140220XS, 140220S, 140200XS, 140200S, 140200M, 140200L, 140200XL, 140220M, 140220L, 140220XL, 140220XXL, 140225XS, 140225S, 140225M
Barcodes: 4054571506085, 4054571506092, 4054571506108, 4054571506115, 4054571506122, 4054571506139, 4054571506146, 4054571506153, 4054571506160, 4054571506030, 4054571506047, 4054571506054, 4054571506061, 4054571506078, 4054571506177, 4054571506184, 4054571506191, 4054571506207, 4054571519672, 4054571519689, 4054571519696
