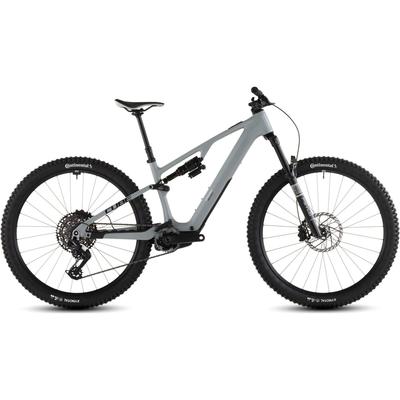

They say the frame's the heart of a bicycle, but that's only partly true of the AMS Hybrid ONE44 C:62 Race 400X.

Features

• Sure, we used our C:62 carbon to create a light, tough and agile frame.
• Then added a RockShox Psylo Gold air fork and Super Deluxe Select+ shock, to keep the Newmen Performance 30 wheels shod with Continental 2.4in Xynotal tyres glued to the trail.
• And powerful Sram Maven Base hydraulic disc brakes, plus slick and tough Sram Transmission 90 1x12 gears, give you all the stop and go you need.
• But the added secret sauce is Bosch's light but powerful SX drive with 400Wh battery (and optional 250Wh PowerMore range extender).
• With up to 60Nm of torque and a natural ride feel, it's the perfect accompaniment to our light, agile all mountain trail-tamer.
• The AMS Hybrid ONE44 C:62 frame begins with our time-proven C:62 carbon, crafted into a structure that's light enough for a lively ride feel but plenty tough enough for the trails.

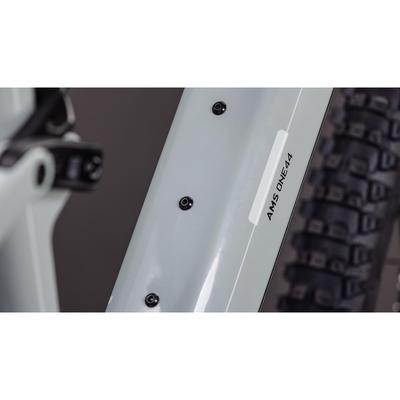

• The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack.
• Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide.
• With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing

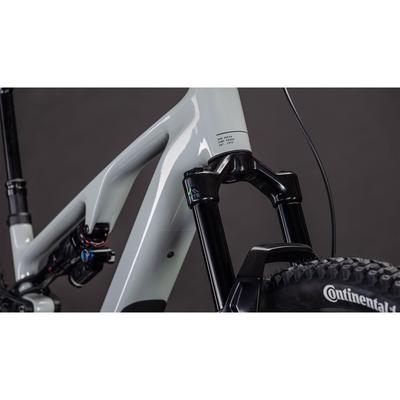

• Fork: RockShox Psylo Gold RC Air, Tapered, 15x110mm, Lockout, 140mm

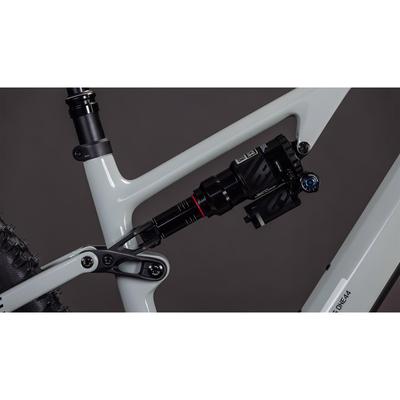

• Shock: RockShox Super Deluxe Select+, 210x55mm, Rebound Adjust, 2-Position Lever
• Shock Hardware: Front: 30x8mm, Rear: DU-Bushing 12.7mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• Stem: CUBE Stereo Stem w/ Cable Routing
• Handlebar: Newmen Evolution SL 318.25, 780mm
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Sram Eagle 90 Transmission, 12-Speed

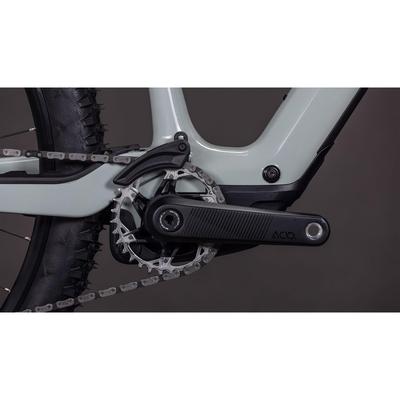

• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Sram Eagle 70 Transmission
• Brakes: Sram Maven Base, Hydr. Disc Brake (200/180)
• Crankset: ACID MTB Hybrid Carbon, 32T
• Casette: Sram XS-1270, 10-52T
• Number of Gears: 12
• Chain: Sram Eagle 70 Transmission
• Wheelset: Newmen Performance 30 base/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
• Tyres: Conti Xynotal, Enduro Soft, Tubeless Ready, 2.4
• Pedals: ACID PP MTB
• Saddle: ACID Venec EMTB Trail 140
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
• Engine: Bosch Drive Unit Performance SX max. 60Nm (BDU31)
• Battery: Bosch CompactTube 400
• Charger: Bosch 2A

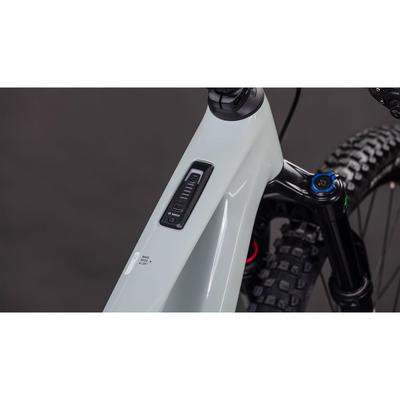

• Remote: Bosch System Control, incl. Mini Remote
• Weight: 19,80kg

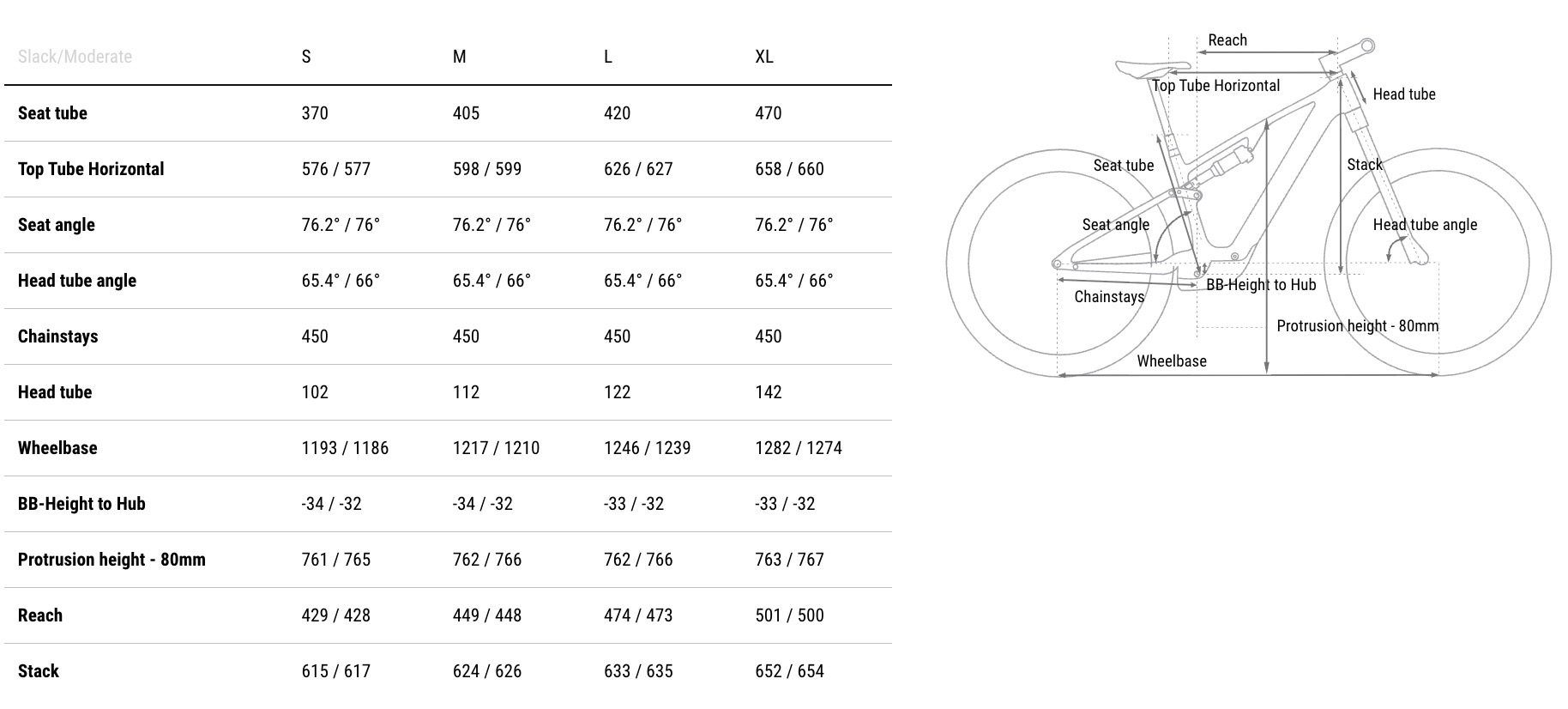

Geometry
