A bike fit for team riders needs components that'll last the course – literally.

Features

• That's why, with the AMS Hybrid 177 C:62 AT 600X, we started with Fox's smooth and versatile Fox 38 Float Factory fork and matching Float X2 Factory shock.

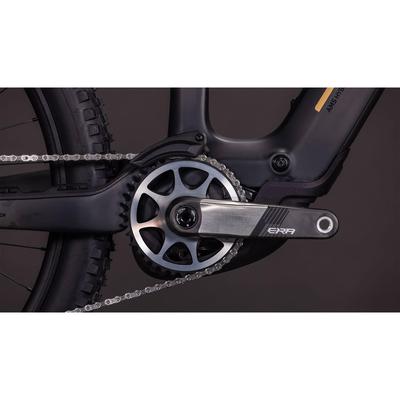

• Shimano's electronic XT Di2 1x12 gears – with a RaceFace Era carbon crank – transfer the combined power of your legs and the Bosch CX-R drive to the trail.

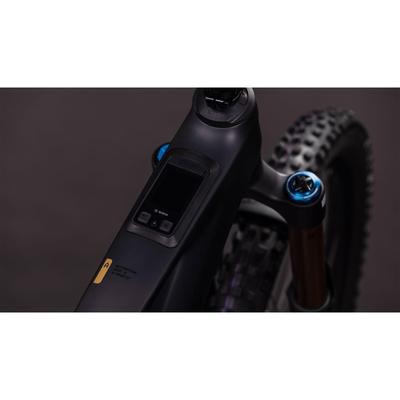

• There's a Kiox 400C controller to put you in charge of the Bosch drive and 600Wh battery, of course.
• A dropper post, naturally.
• And powerful Shimano XT hydraulic disc brakes working with Schwalbe Magic Mary and Albert 2.5in tyres on Newmen Beskar 30 wheels to keep you on track and in control.
• The complete package, in other words, for big Alpine days out...

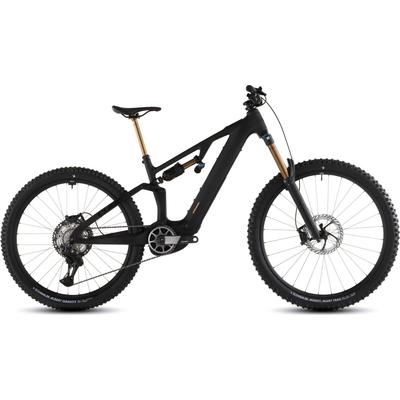

• We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it.
• Built from our C:62 carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery.
• We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed.
• Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference.
• Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard.
• Bring it on!

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing

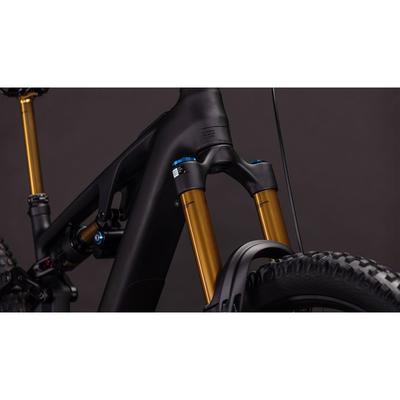

• Fork: Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm

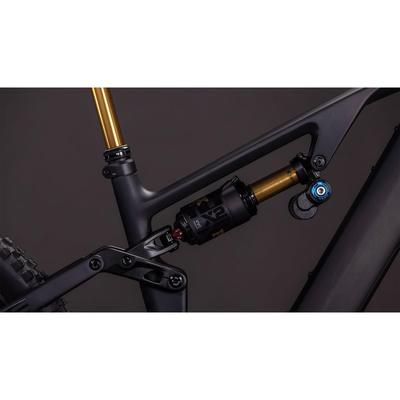

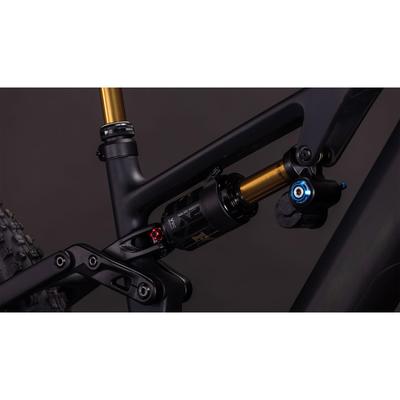

• Shock: Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
• Shock Hardware: Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• Stem: Race Face Turbine R 35
• Handlebar: Race Face ERA 35
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Shimano XT Di2 SW-M8250-IR, Direct Attach
• Brakes: Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
• Crankset: Race Face ERA E-MTB, 36T
• Casette: Shimano XT CS-M8200, 10-51T
• Number of Gears: 12
• Chain: Shimano XT CN-M8100
• Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
• Rear Tyre: Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
• Pedals: ACID PP MTB
• Saddle: ACID Venec EMTB Trail 140
• Seatpost: Fox Transfer Factory 31.6mm, Kashima Coated
• Engine: Bosch Drive Unit Performance Line CX-R 100Nm (BDU38)
• Battery: Bosch PowerTube 600
• Charger: Bosch 4A
• Remote: Bosch Mini Remote
• Display: Bosch Kiox 400C
• Weight: 21,40kg

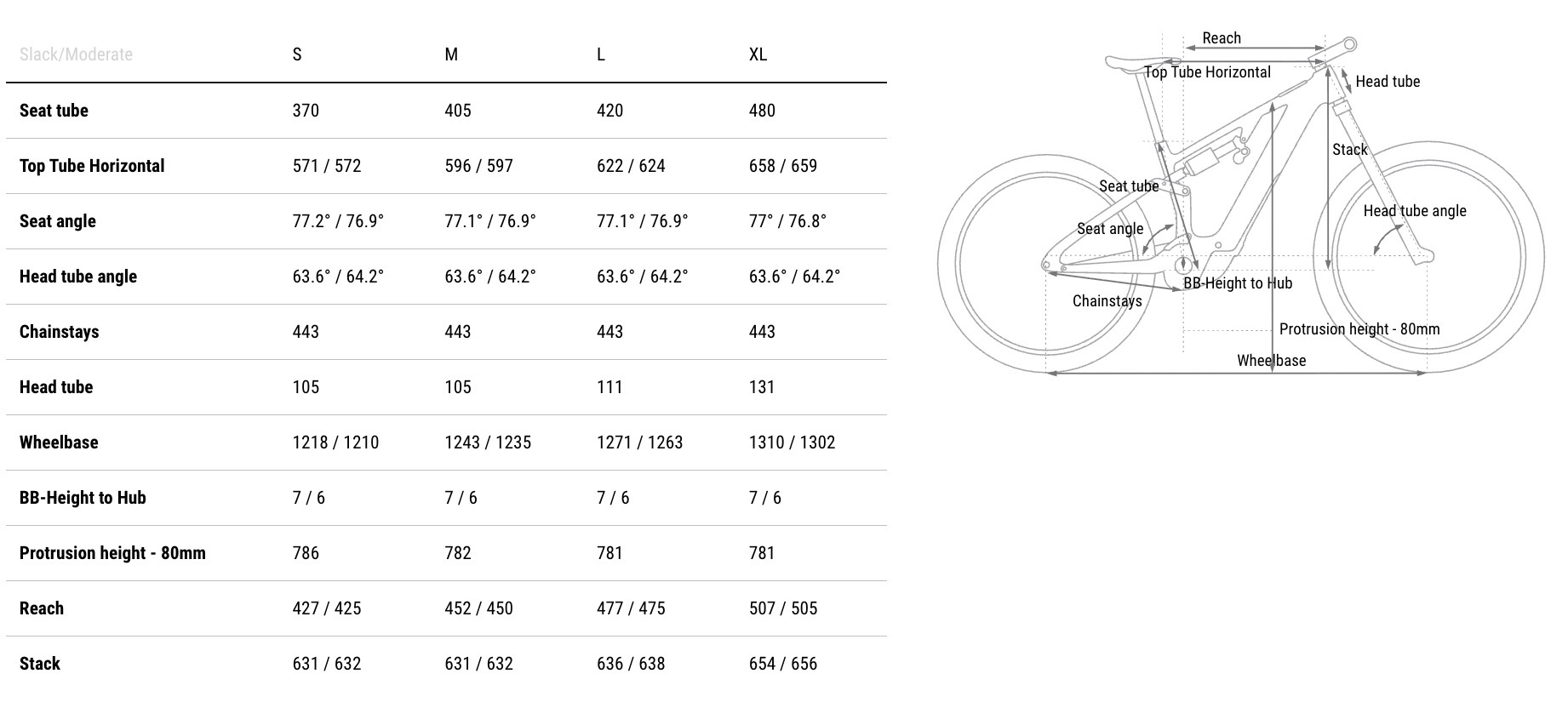

Geometry
