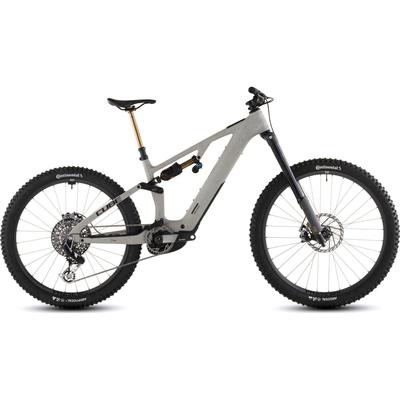

A special bike needs special treatment, which is why we fitted Bosch's powerful and versatile CX-R drive to the AMS Hybrid 177 C:62 Super TM 600X.

Features

• With up to 100Nm of torque and 750W peak power – and a 600Wh battery – it has more than enough grunt to get you back to the top for one more run, again and again.

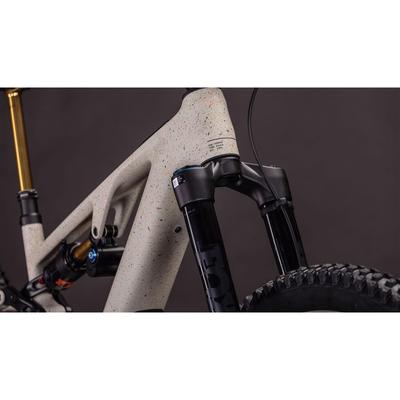

• Fox's Podium fork and Float X2 Factory shock help deliver 170mm of rock-devouring travel to the Newmen Phase 30 wheelset, shod with Continental Argotal and Kryptotal 2.4in tyres.
• Sram's Maven Ultimate hydraulic disc brakes and a dropper post help keep you in full control at all times.
• And Sram's precise XX Eagle Transmission gears with RaceFace Era carbon crank are all you need for long days of Alpine-descending mayhem.
• Bring it on!

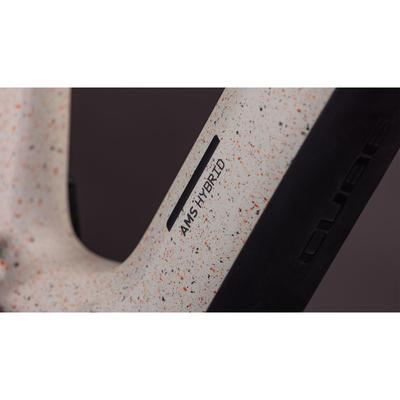

• We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it.
• Built from our C:62 carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery.
• We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed.
• Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference.
• Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard.
• Bring it on!

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
• Fork: Fox Podium Factory GRIPX2, Tapered, 15x110mm, 170mm

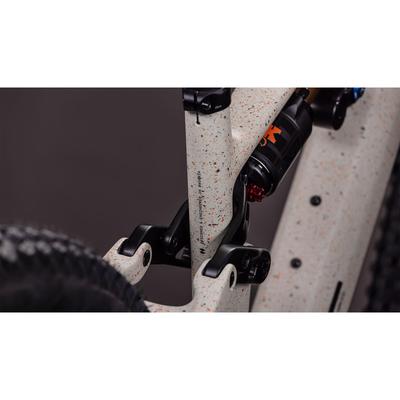

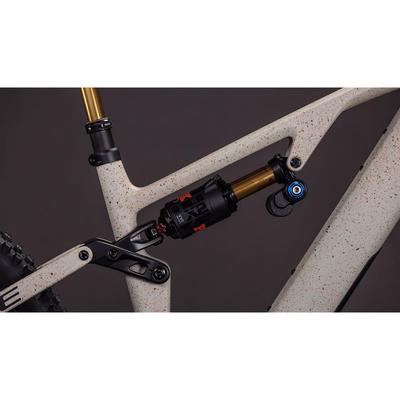

• Shock: Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
• Shock Hardware: Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• Stem: Race Face Turbine R 35
• Handlebar: Race Face ERA 35
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Sram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Sram AXS™ Pod Ultimate Controller
• Brakes: Sram Maven Ultimate, Hydr. Disc Brake (200/200)

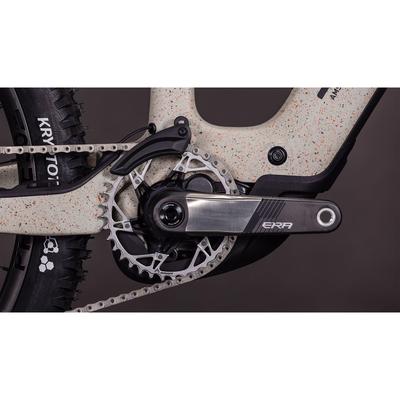

• Crankset: Race Face ERA E-MTB, 36T
• Casette: Sram XS-1297, 10-52T
• Number of Gears: 12
• Chain: Sram XX Eagle Transmission
• Wheelset: Newmen Phase 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Conti Argotal, Enduro Super Soft, Tubeless Ready, 2.4
• Rear Tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
• Pedals: ACID PP MTB
• Saddle: ACID Venec EMTB Trail 140
• Seatpost: Fox Transfer Factory 31.6mm, Kashima Coated
• Engine: Bosch Drive Unit Performance Line CX-R 100Nm (BDU38)
• Battery: Bosch PowerTube 600
• Charger: Bosch 4A
• Remote: Bosch Mini Remote

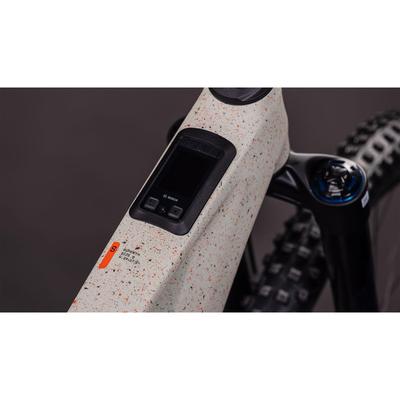

• Display: Bosch Kiox 400C
• Weight: 21,70kg

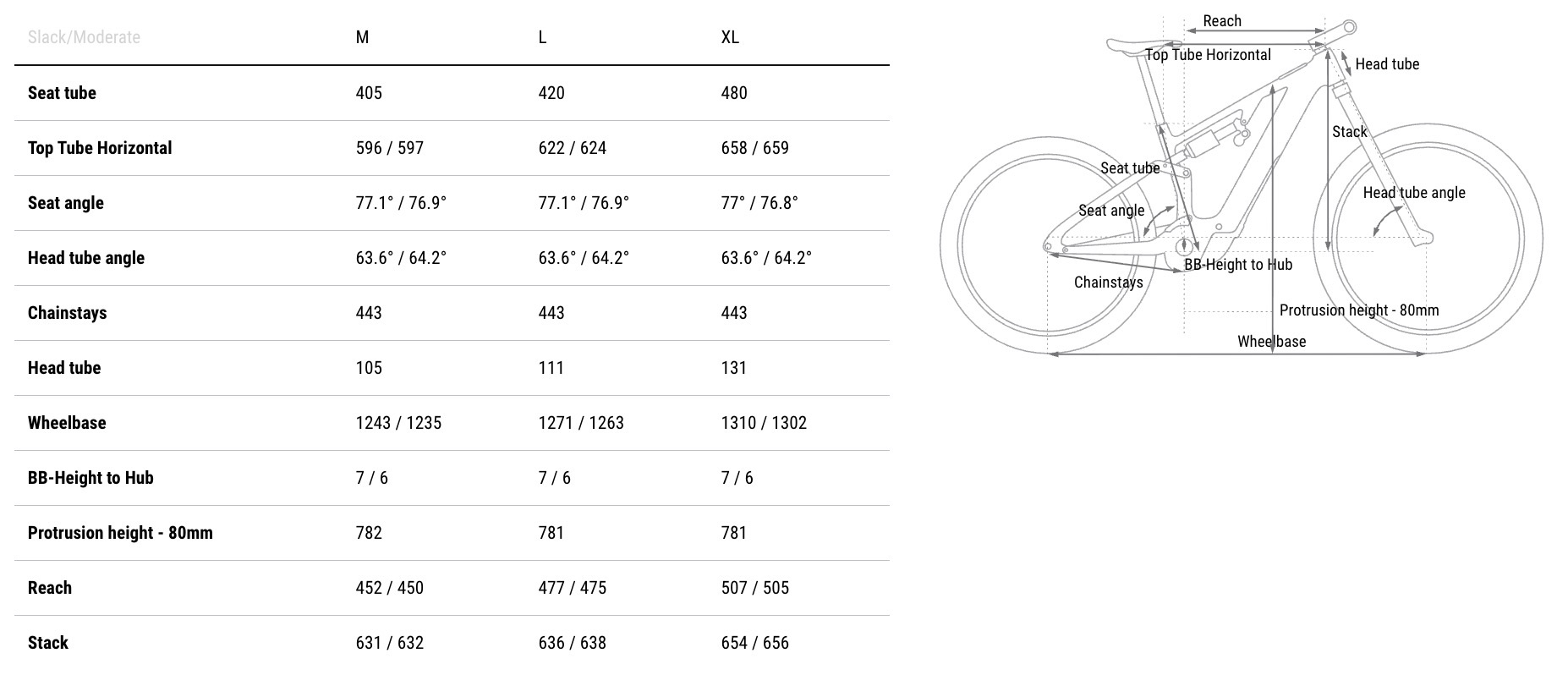

Geometry
