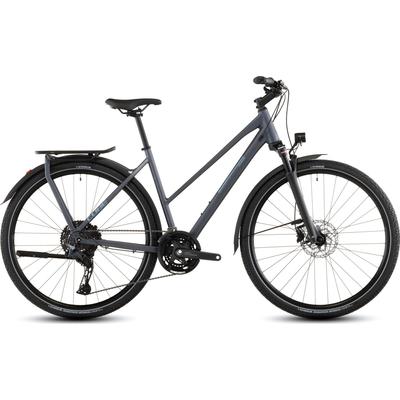

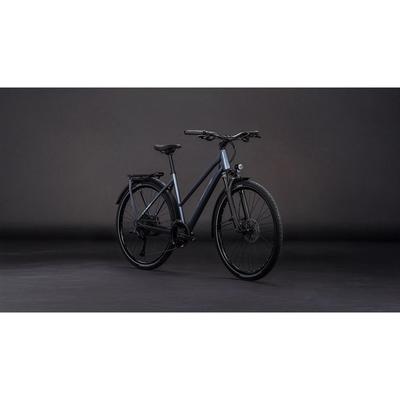

From zipping across town to tackling mountain passes you've never ridden before, the Kathmandu EXC from CUBE is designed to get you there – and back – in comfort and style.

Features

• We chose Shimano's Cues 2x11 gears for their ease of use and reliability.
• Then we added powerful Shimano hydraulic disc brakes and Schwalbe's 47mm Marathon Mondial tyres, so you know you're in full control at all times.
• Finally, we selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces.
• With our Integrated Carrier 3.0 and a full complement of accessories – including mudguards, kickstand and lights – you've everything you need.
• Just jump on and go.
• CUBE design expertise is the name of the game for the Kathmandu's Trapeze frame.

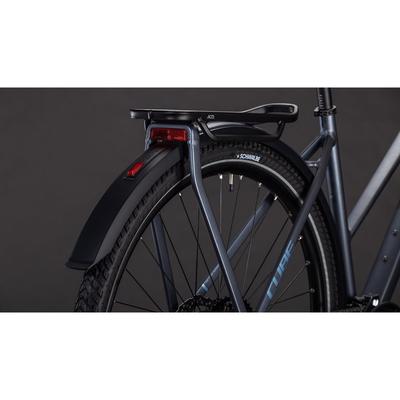

• Its Integrated Carrier 3.0 is designed to work seamlessly with our ACID mudguard.
• We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance.
• But it's not all about looks.
• We also equipped the rear end with a thru-axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden.
• With Internal Cable Routing to complement the frame's clean lines, we reckon we've thought of everything.
• Just don't forget your toothbrush.

Specifications

• Frame: Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted

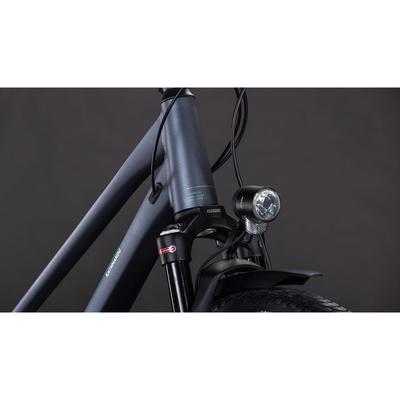

• Fork: SR Suntour NCX32 E LO Air, 63mm
• Headset: VP Integrated, Top 1 1/8", Bottom 1 1/2"
• Stem: CUBE Performance Stem SLX, 31.8mm
• Handlebar: CUBE Comfort Trail Bar, 680mm
• Grips: ACID Travel Comfort
• Front Derailleur: Shimano Cues FD-U6010, Top Swing, 31.8mm
• Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
• Brakes: Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180)
• Bottom Bracket: Shimano BB-MT501, 68mm BSA

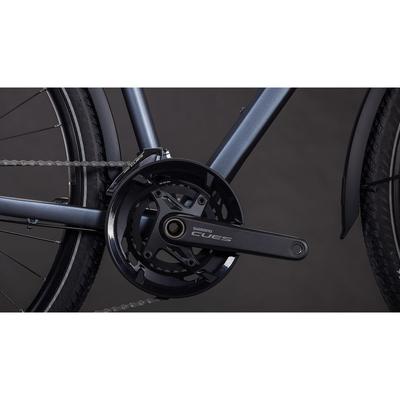

• Crankset: Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard
• Casette: Shimano Cues CS-LG700, 11-45T
• Number of Gears: 22
• Chain: KMC xGlide
• Rims: ACID EX25, 32H, Disc, Tubeless Ready
• Front Hub: ACID PL-8, 32H, QR, Centerlock
• Rear Hub: Shimano FH-TC500-HM, 12mm Through Axle, Centerlock
• Tyres: Schwalbe Marathon Mondial, 47-622
• Pedals: ACID PP Trekking
• Saddle: ACID Sequence Pro 170
• Seatpost: CUBE Performance Post, 27.2mm
• Rear Light: ACID Mudguard Rear Light PRO-D, 6V, AC
• Kickstand: ACID FM Pure Kickstand
• Mudguard: ACID 56 Integrated Carrier 3.0
• Bell: Reich Cycle Bells Ringsound
• Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
• Weight: 16,10kg

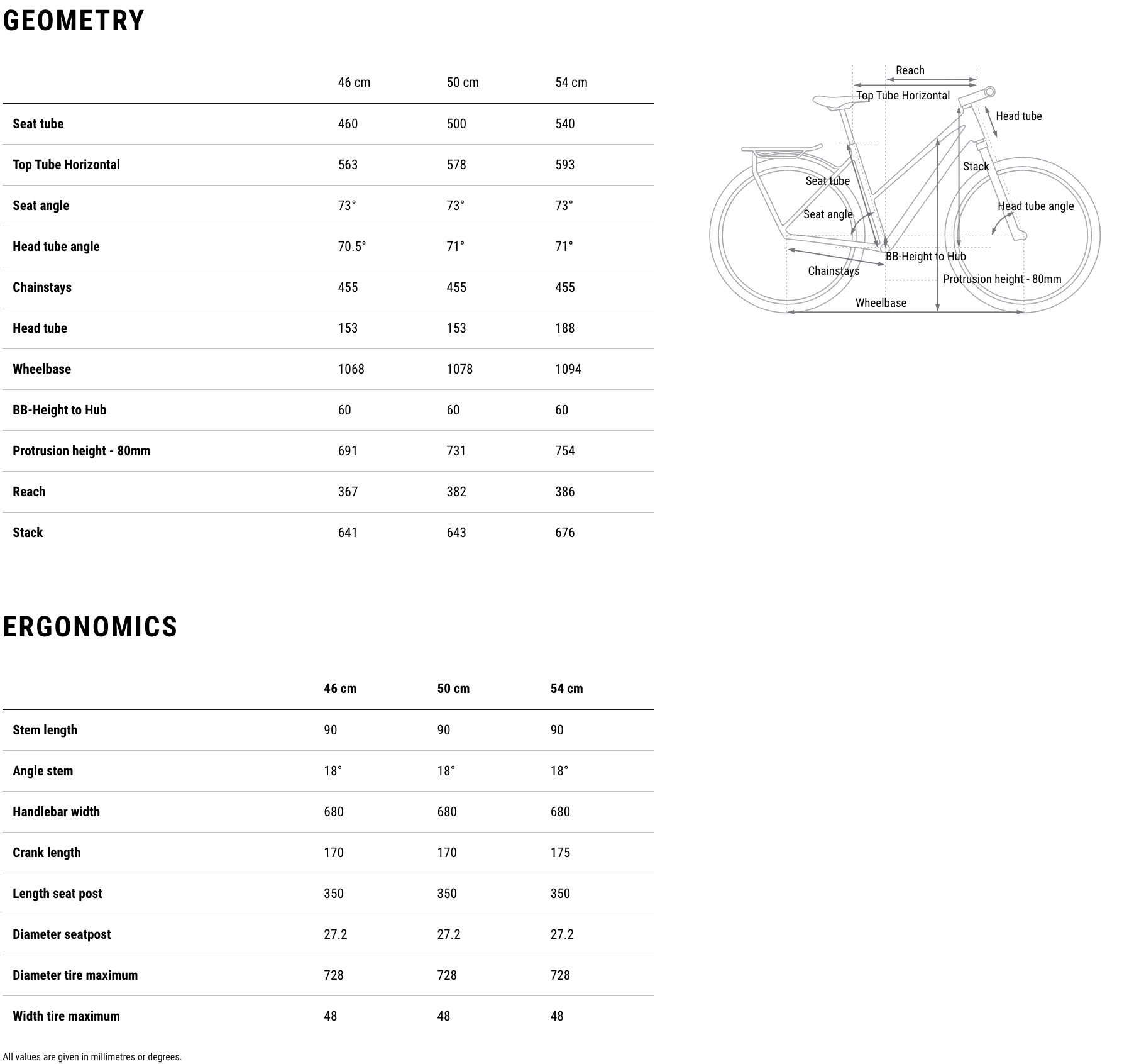

Geometry
