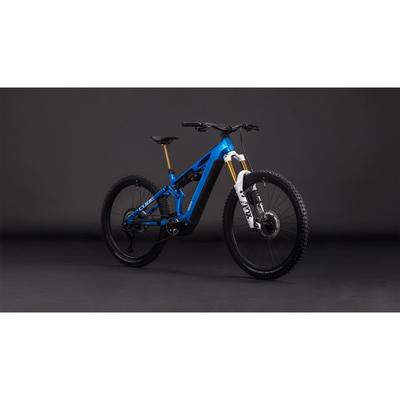

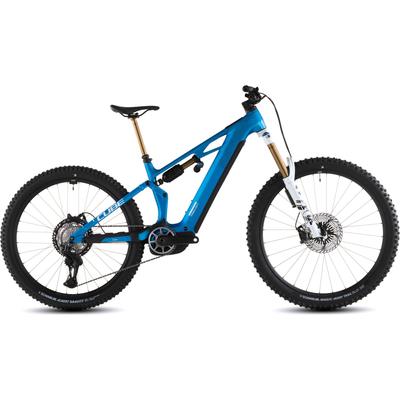

The Stereo Hybrid ONE77 HPC AT is built with big mountains in mind.

Features

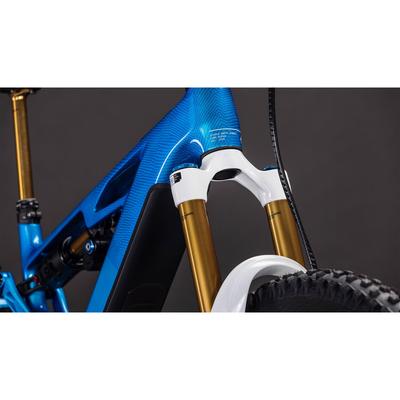

• To that end, we fitted Fox's Float 38 Factory fork and Float X2 Factory shock – because when you're making full use of 170mm of travel, you need to know you're in good hands.

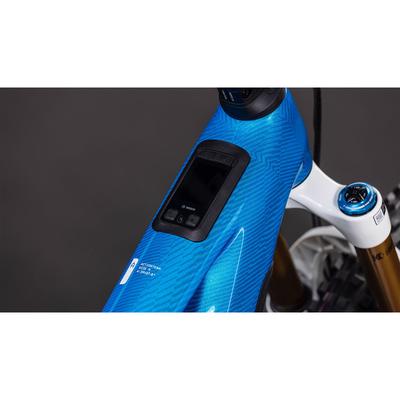

• Shimano's XT Di2 1x12 gears select with uncanny electronic precision, getting your power to the trail with help from Bosch's CX drive, the 800Wh PowerTube battery, a Kiox 400C top tube-mounted display and an ACID carbon crank.
• We added a remote dropper seatpost for extra confidence and manoeuvrability on tough trails, while Shimano XT hydraulic disc brakes with ABS Pro ensure you can safely keep your speed in check.
• And Newmen Beskar 30 wheels – in mullet configuration – with Schwalbe 2.5in Magic Mary and Albert tyres – keep you rolling, whatever obstacles lie in your path.
• The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails.
• But, as with all CUBE designs, the devil is in the detail.
• So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste.
• The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive.
• A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
• Fork: Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm

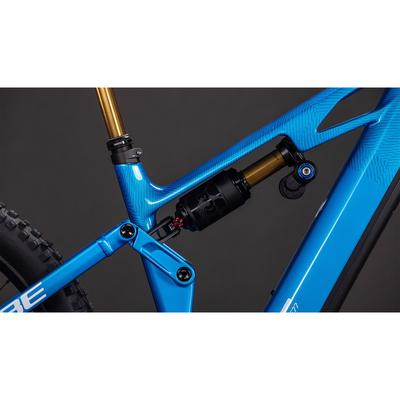

• Shock: Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
• Shock Hardware: Front: 30x8mm, Rear: DU-Bushing 12.7mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
• Stem: CUBE Performance Stem E-MTB 35, FPI-Link
• Handlebar: Race Face ERA 35
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Shimano XT Di2 SW-M8250-IR, Direct Attach
• Brakes: Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203)

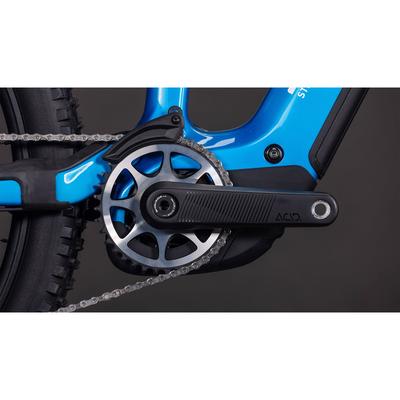

• Crankset: ACID MTB Hybrid Carbon, 36T
• Casette: Shimano XT CS-M8100, 10-51T
• Number of Gears: 12
• Chain: Shimano XT CN-M8100
• Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
• Rear Tyre: Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
• Pedals: ACID PP MTB
• Saddle: ACID Venec EMTB Trail 140
• Seatpost: Fox Transfer Factory 31.6mm, Kashima Coated
• Seatpost Clamp: CUBE Semi-Integrated
• Engine: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
• Battery: Bosch PowerTube 800
• Charger: Bosch 4A
• Remote: Bosch Mini Remote
• Display: Bosch Kiox 400C
• Weight: 24,80kg

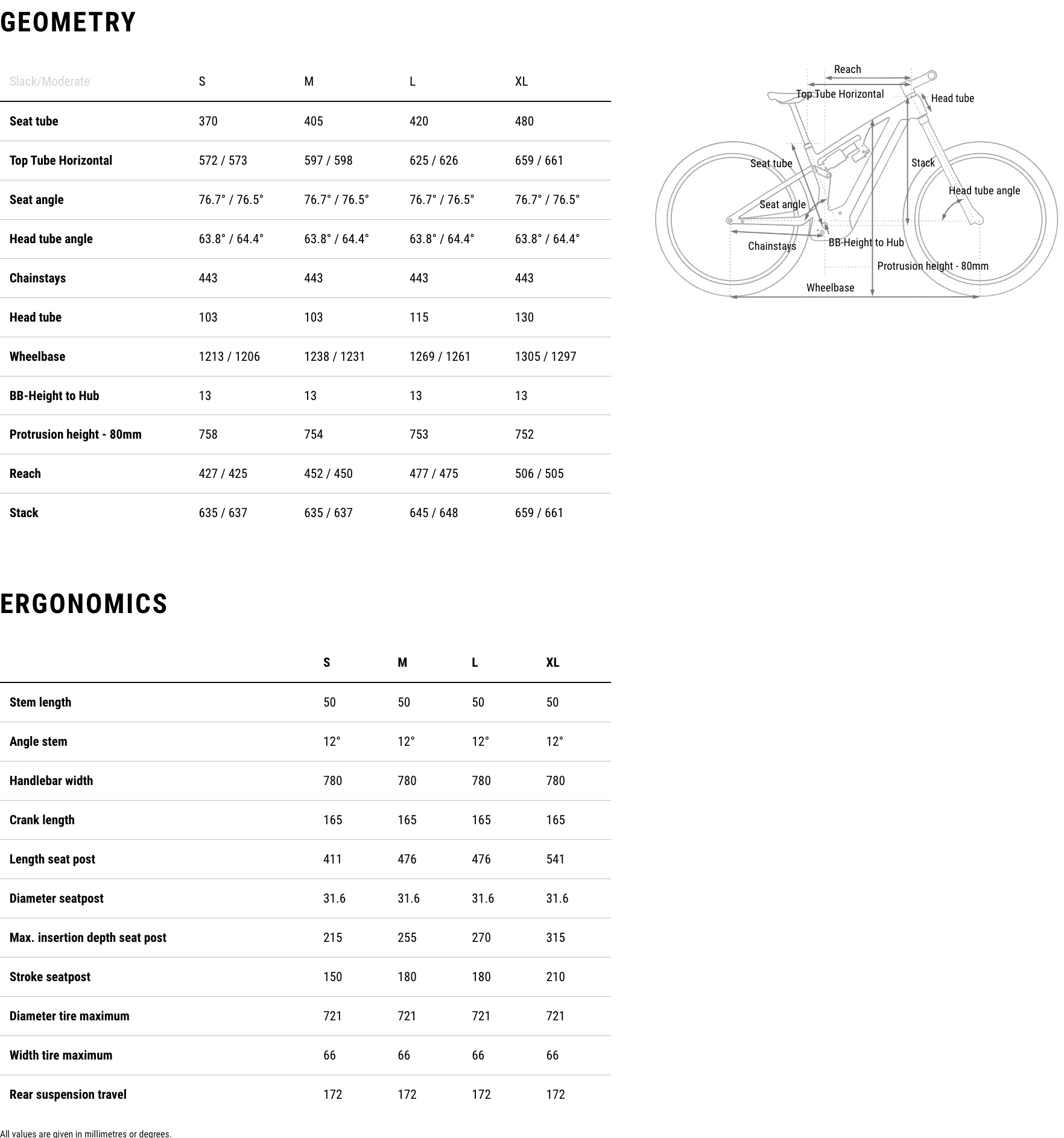

Geometry
