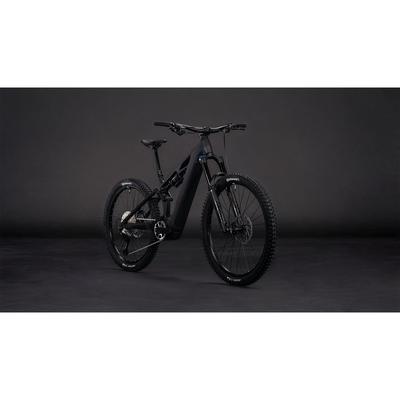

Challenging trails need a suspension set-up to match, which is why we gave the Stereo Hybrid ONE77 HPC SLX a Fox Float 38 Rhythm fork and Float X Performance shock.

Features

• Together, they deliver 170mm of rock-swallowing travel front and rear, with loads of adjustment so you can get it dialled.

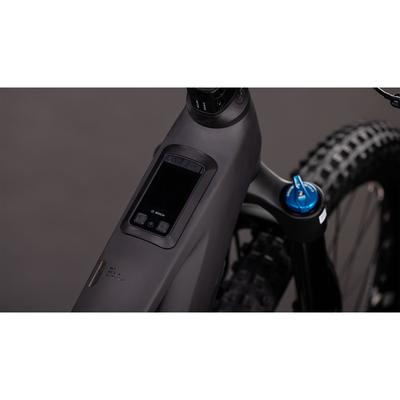

• The Bosch CX drive and 800Wh PowerTube battery give your pedalling an unobtrusive but very effective boost, via Shimano's legendary XT 1x12 gears – and the top tube-mounted Kiox 400C display shows you exactly what's going on.
• Meanwhile, the mullet Newmen Performance 30 wheelset – shod with Continental Argotal and Kryptotal 2.4in tyres – is held in check by Shimano's new XT hydraulic disc brakes.
• Add it all up and, with a remote dropper seatpost, too, it's the perfect formula for big mountain fun.
• The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails.
• But, as with all CUBE designs, the devil is in the detail.
• So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste.

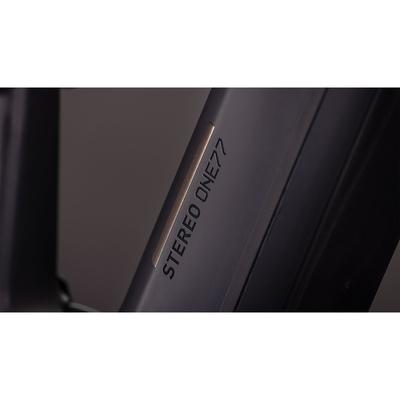

• The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive.
• A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

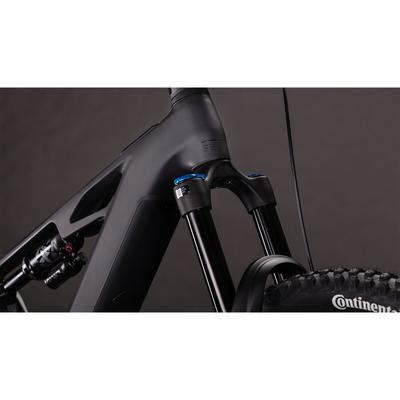

• Fork: Fox 38 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm

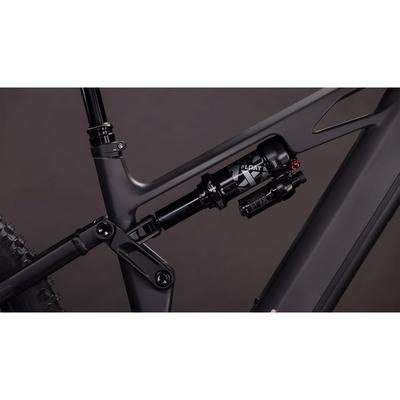

• Shock: Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever
• Shock Hardware: Front: 30x8mm, Rear: DU-Bushing 12.7mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
• Stem: CUBE Performance Stem E-MTB 35, FPI-Link
• Handlebar: CUBE Rise Trail Bar 35
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Shimano Deore SL-M6100, Rapidfire-Plus
• Brakes: Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
• Crankset: ACID MTB Hybrid Pro, 36T
• Casette: Shimano Deore CS-M6100, 10-51T
• Number of Gears: 12
• Chain: KMC e12
• Wheelset: Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
• Front Tyre: Conti Argotal, Enduro Soft, Tubeless Ready, 2.4
• Rear Tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
• Pedals: ACID PP MTB
• Saddle: ACID Venec EMTB Trail 140
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
• Seatpost Clamp: CUBE Semi-Integrated

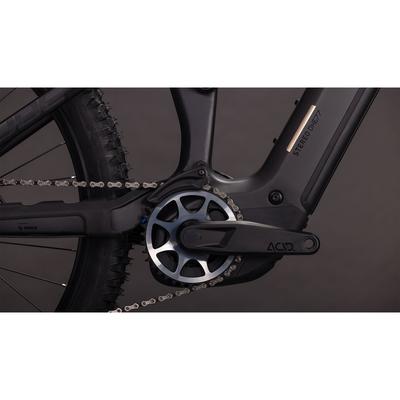

• Engine: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
• Battery: Bosch PowerTube 800
• Charger: Bosch 4A
• Remote: Bosch Mini Remote
• Display: Bosch Kiox 400C
• Weight: 24,70kg

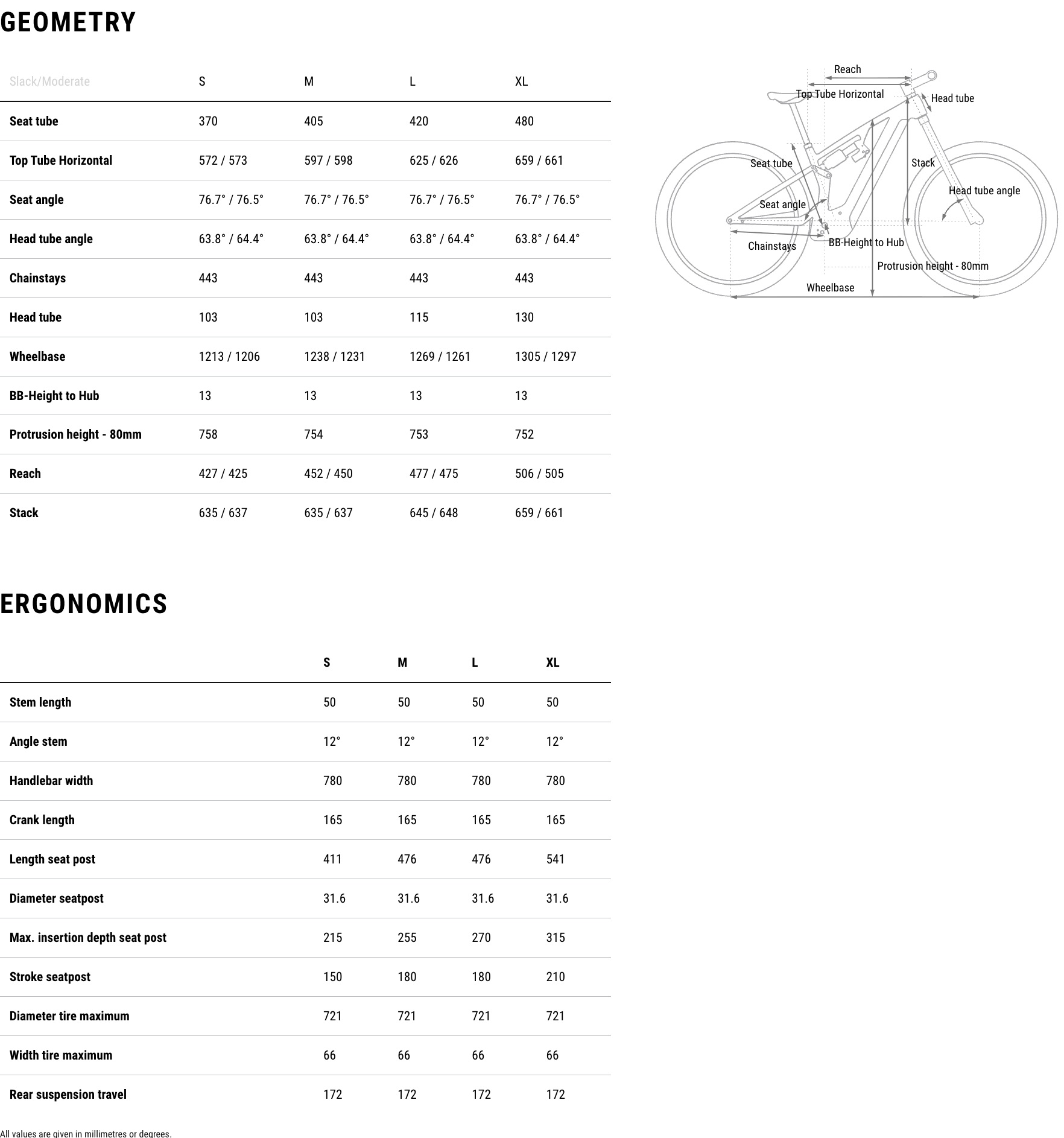

Geometry
