In keeping with CUBE Trail Motion tradition, the Stereo Hybrid ONE77 HPC TM is something rather special.

Features

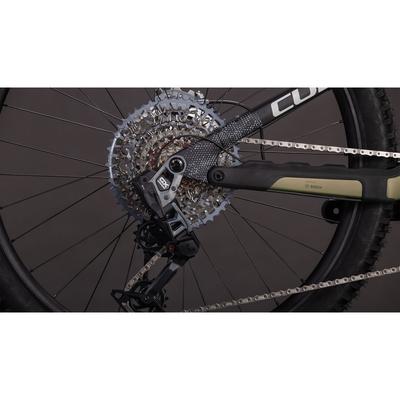

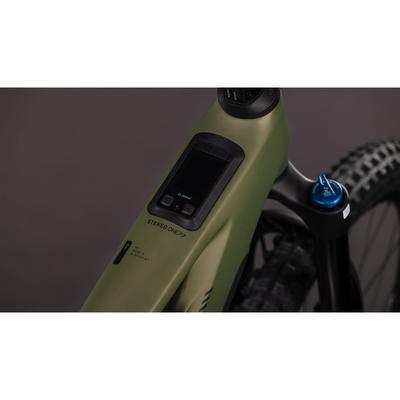

• For starters, we fed the power of the Bosch CX drive and 800Wh PowerTube battery through Sram's GX Eagle Transmission 1x12 gears with an ACID carbon crank, for effortless ratio selection and incredible electronic precision – and the Kiox 400C display shows you exactly what's going on.

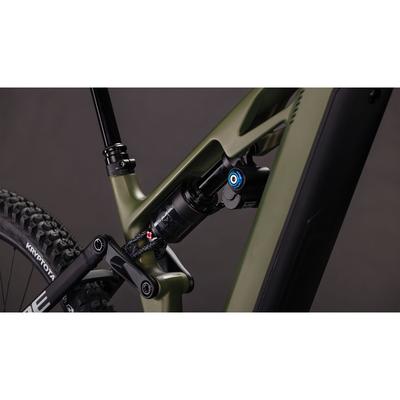

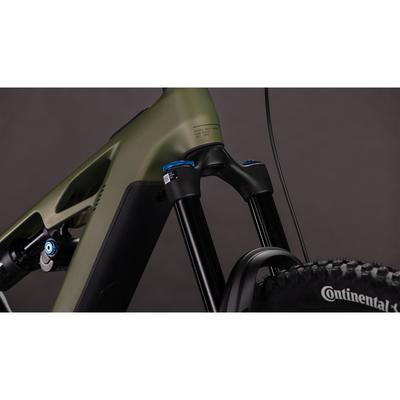

• Next, we chose a Fox Float 38 Performance fork and paired it with a Float X2 Performance shock.
• Together, they provide 170mm of travel – with loads of adjustment – to help keep the rubber side down.
• Speaking of which, the mullet Newmen Beskar 30 wheelset is shod with Continental's grippy Argotal and Kryptotal 2.4in tyres.
• Which is a good thing, because all that traction helps the powerful Sram Maven Bronze hydraulic disc brakes do their job.
• Combined with a remote dropper seatpost, it's everything you need to pick a fight with gravity and come out on top.

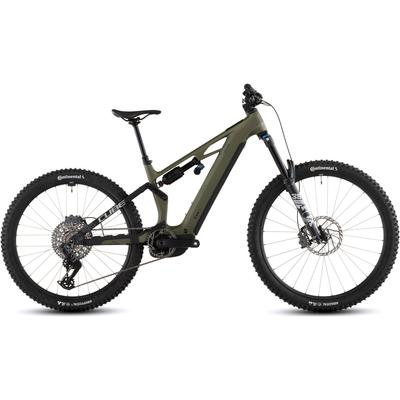

• The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails.
• But, as with all CUBE designs, the devil is in the detail.
• So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste.
• The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive.
• A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
• Fork: Fox 38 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm
• Shock: Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos. Lever
• Shock Hardware: Front: 30x8mm, Rear: DU-Bushing 12.7mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
• Stem: CUBE Performance Stem E-MTB 35, FPI-Link
• Handlebar: CUBE Rise Trail Bar 35
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Sram GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Sram AXS™ Pod Controller
• Brakes: Sram Maven Bronze, Hydr. Disc Brake (200/200)

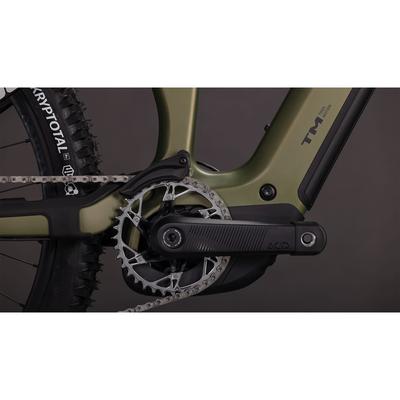

• Crankset: ACID MTB Hybrid Carbon, 36T
• Casette: Sram XS-1275, 10-52T
• Number of Gears: 12
• Chain: Sram GX Eagle™ Transmission
• Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Conti Argotal, Enduro Soft, Tubeless Ready, 2.4
• Rear Tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
• Pedals: ACID PP MTB
• Saddle: ACID Venec EMTB Trail 140
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
• Seatpost Clamp: CUBE Semi-Integrated
• Engine: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
• Battery: Bosch PowerTube 800
• Charger: Bosch 4A
• Remote: Bosch Mini Remote
• Display: Bosch Kiox 400C
• Weight: 24,60kg

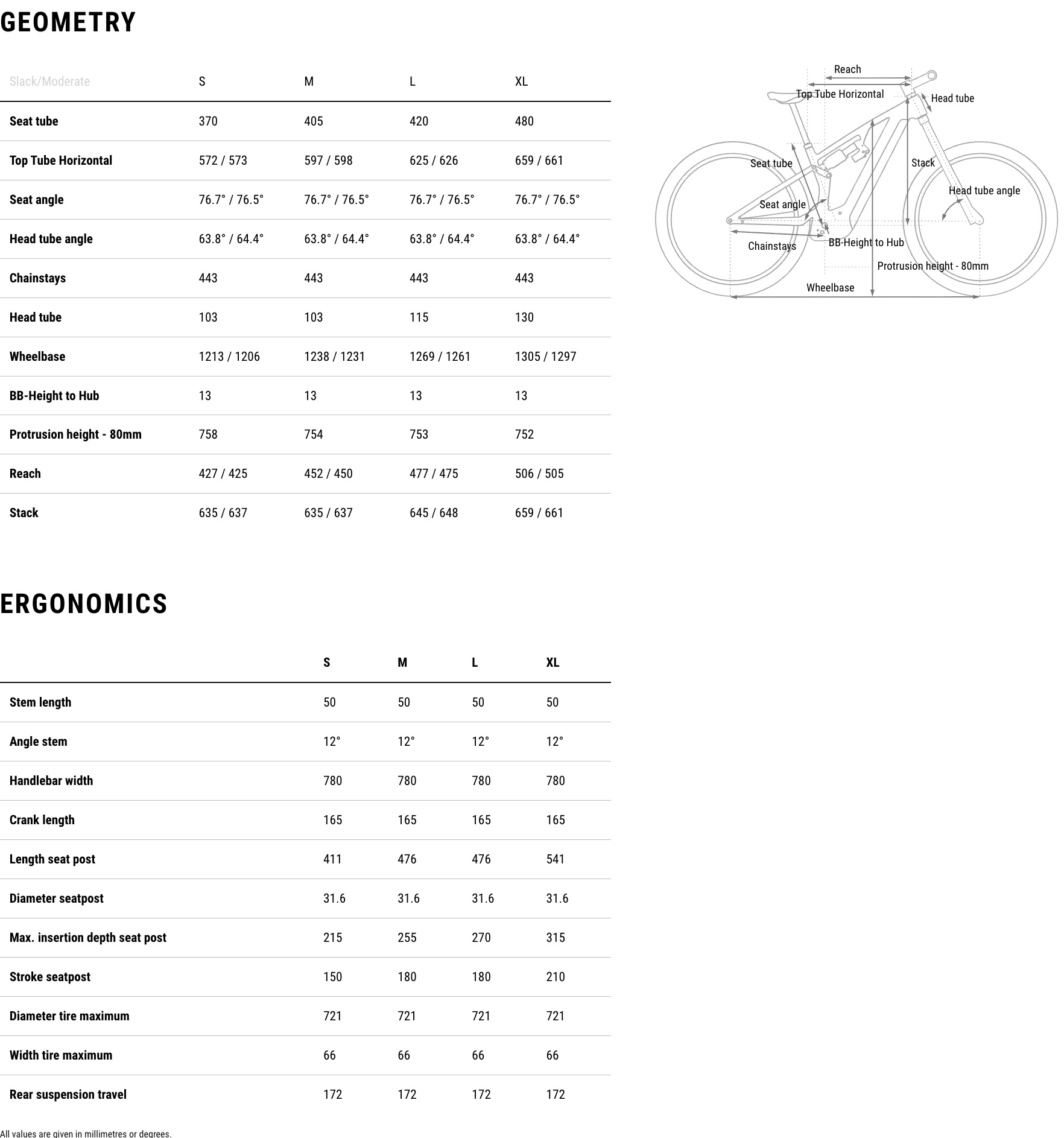

Geometry
