This is the bike for those times when you don't want to be bringing a knife to a gunfight.

Features

• Carefully tuned geometry and kinematics work with a stiff, accurate DVO Onyx 38 and plush DVO Topaz D2 shock to suck up rocks and roots whole and spit them back out in bite-sized chunks.
• Sram's GX Eagle 1x12 gears make light work of any descent – or climb.
• And Magura's powerful MT5 hydraulic disc brakes bring the Newmen Beskar 20 wheels with Maxxis Assegai 2.5in and Minion DHR II 2.4in tyres to a halt on demand, whatever the conditions.
• Add a remote dropper post for full control, and you're all set for the mountains.
• Big wheels, big travel, big fun.
• The Stereo ONE77's frame is based on our proven four-bar suspension design and Agile Trail Geometry, for superb suspension performance and dependable handling in a huge range of trail conditions.
• With a flip chip and two mounting points for air and coil, the rear suspension setup is designed to be progressive – and there are angle adjustment inserts so you can tweak the geometry to suit your own preference.
• The frame is equally happy with an air or coil shock, and covered bearings and internally routed cables mean you can spend more time shredding and less time wrenching.
• Simply put, it redefines what a big-travel, big-wheeled bike can do.

Specifications

• Frame: HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH, 170mm travel
• Fork: DVO Onyx 38 D3, LSC/LSR, Tapered, 15x110mm, 170mm

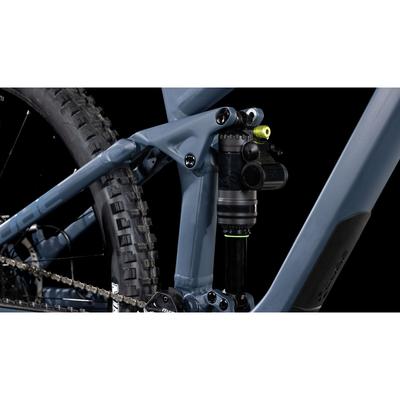

• Shock: DVO Topaz D2, 230x65mm, LSR & Bladder Adjust, T3 Compression Switch
• Shock Hardware: Top: 40x8mm, Bottom: 28x8mm (20x8mm Coil option)
• Headset: ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
• Stem: Newmen Evolution 318.4, 31.8mm
• Handlebar: Newmen Evolution SL 318.40, 800mm
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Sram GX Eagle™, 12-Speed
• Chain Guide: MRP 1X Chain Guide
• Shifters: Sram NX Eagle™ Trigger
• Brakes: Magura MT5, Hydr. Disc Brake (203/180)
• Bottom Bracket: Sram DUB MTB, 92mm Pressfit

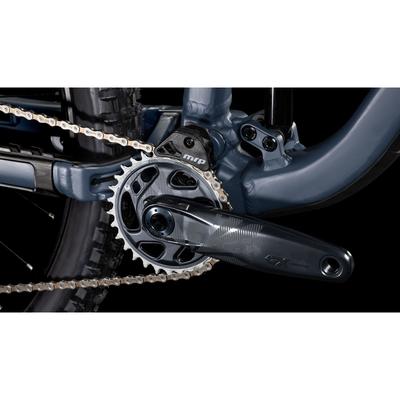

• Crankset: Sram GX Eagle™ Boost DUB, 30T
• Casette: Sram PG-1230 Eagle™, 11-50T
• Number of Gears: 12
• Chain: Sram SX Eagle™
• Wheelset: Newmen Performance 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Maxxis Assegai, MaxxTerra/EXO+, Tubeless Ready, 2.5 WT
• Rear Tyre: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
• Saddle: ACID Nuance Lite
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
• Seatpost Clamp: CUBE Screwlock, 34.9mm
• Weight: 16,10kg

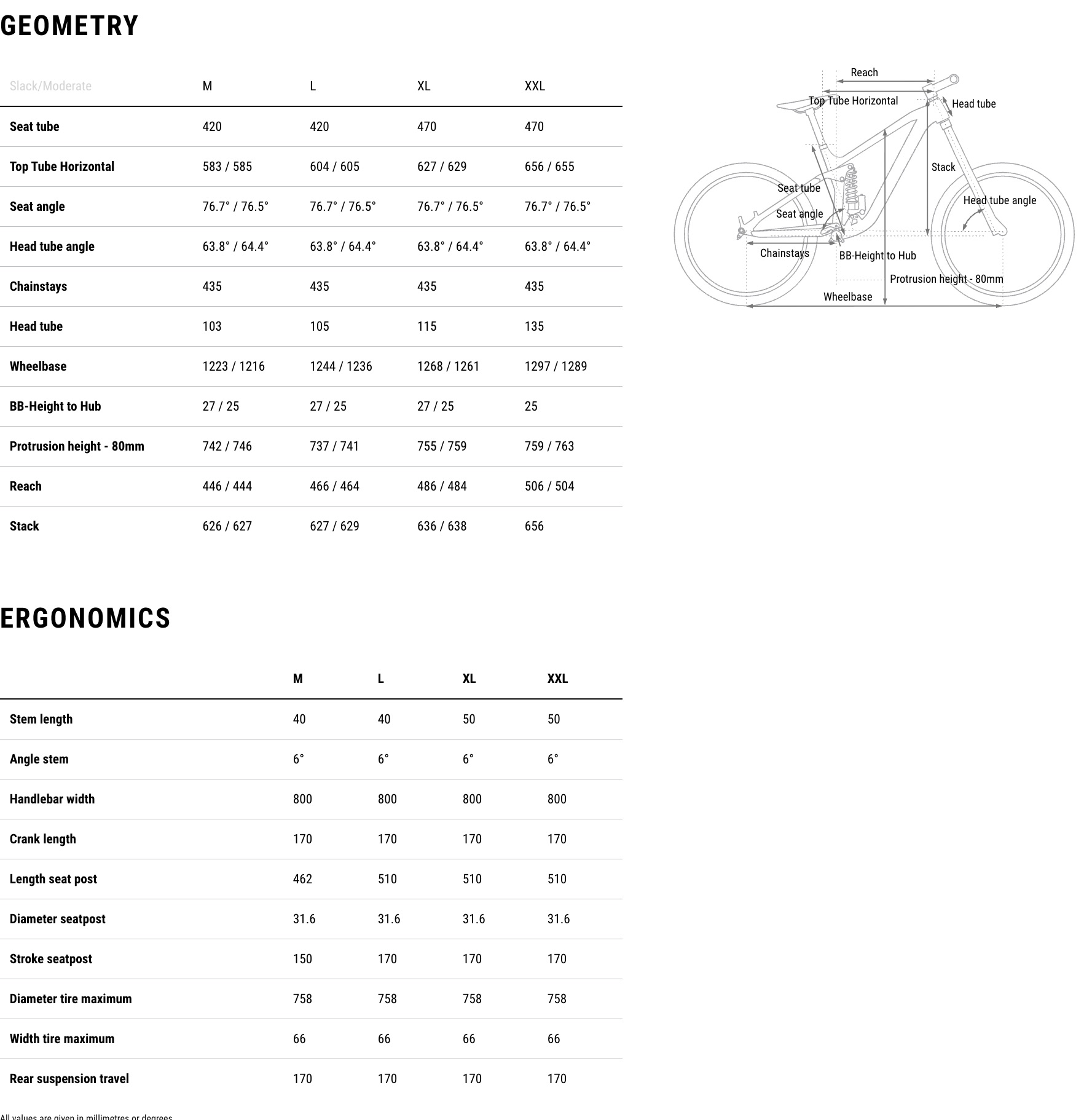

Geometry
