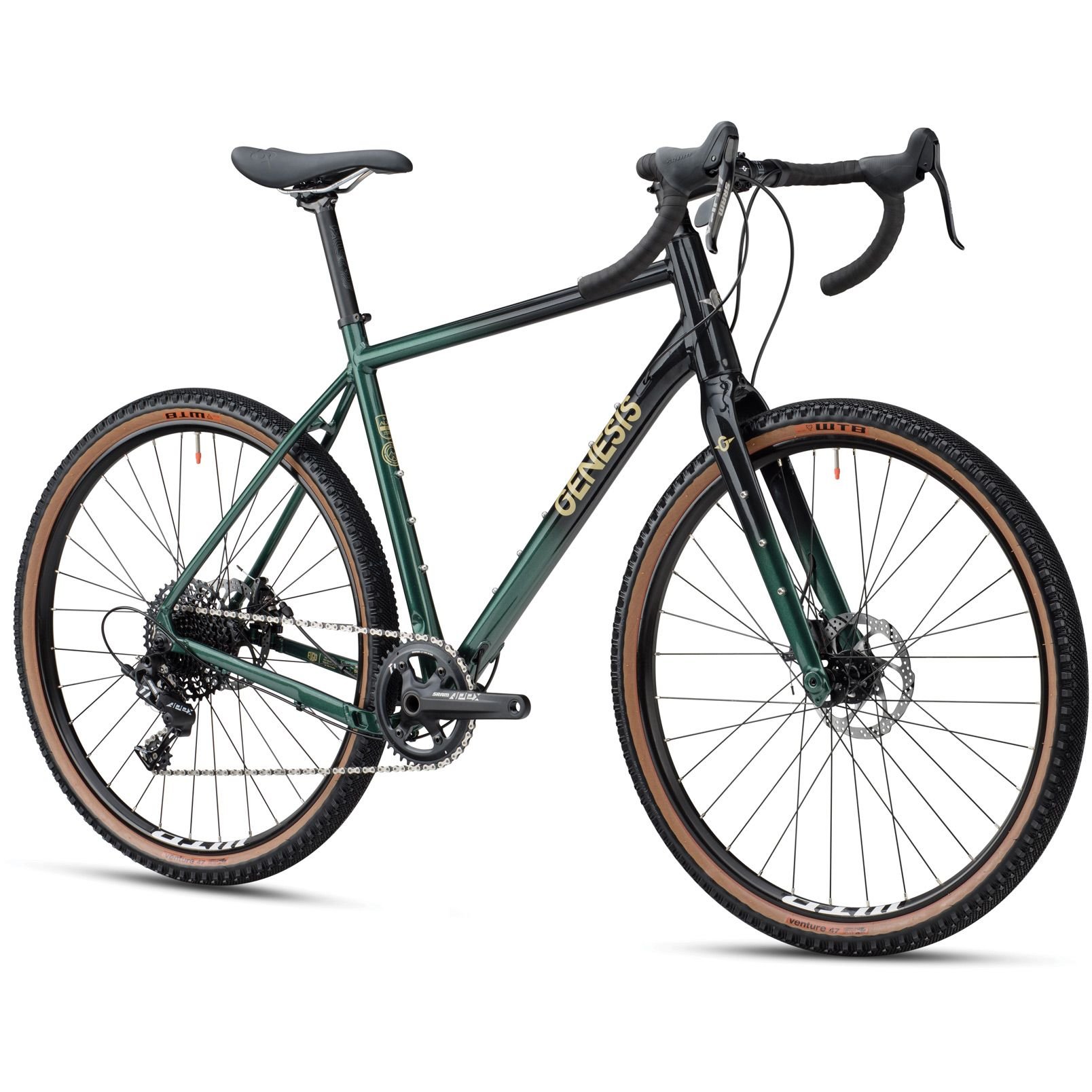

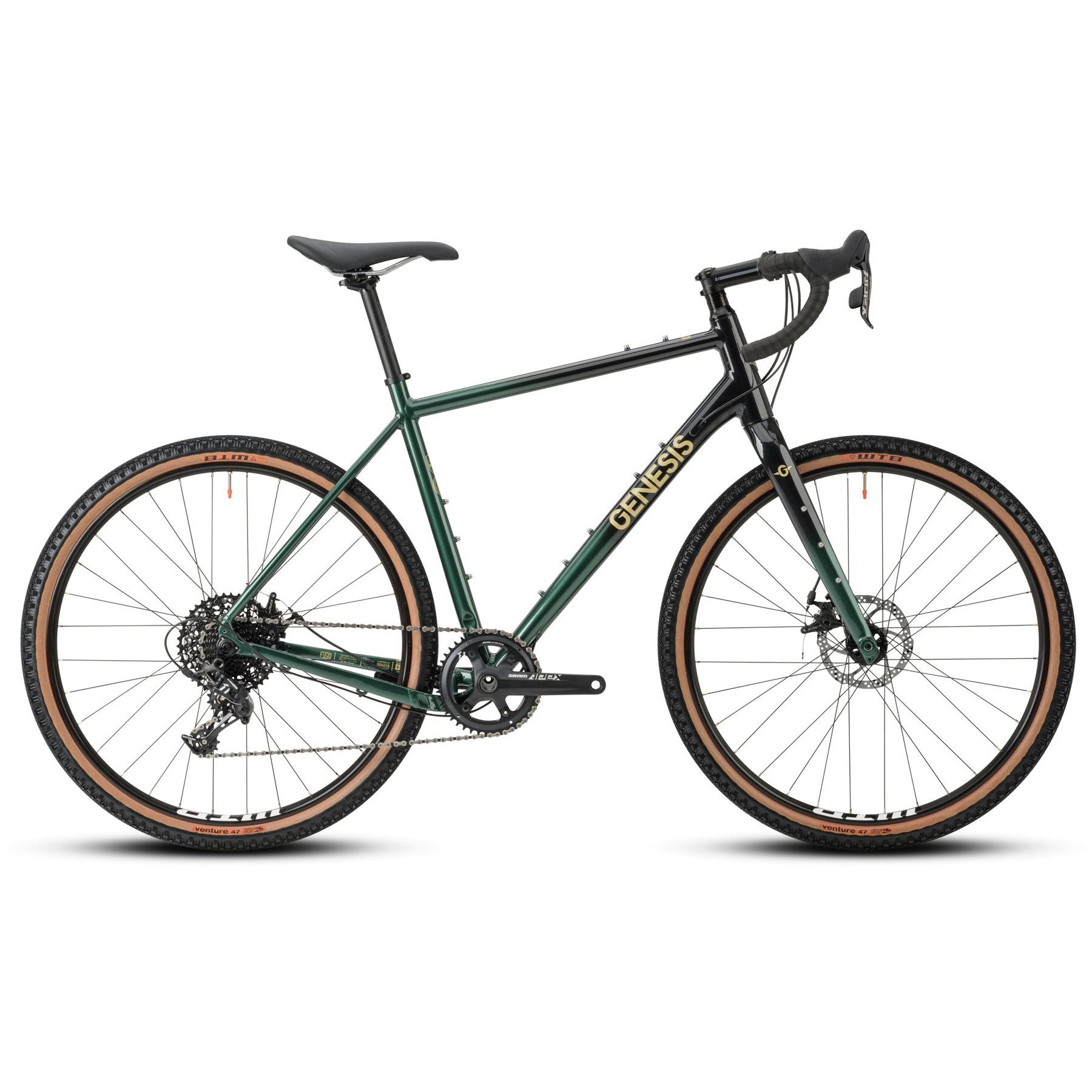

Genesis Fugio 10 Gravel Bike

The Fugio 10 trades steel for an aluminium frameset, keeping the grin on your face and cash in your wallet.

Our entry-level gravel drift machine sacrifices none of the fun factor and still gets a full carbon fork, along with all the mounts you'll need for that after-hours adventure.

Features

• Clearance for 47mm tyres on the spec'd 650B wheelset, or the option to swap to 700c wheels and 40mm rubber make this a bike that's as adaptable as it is enthusiastic.

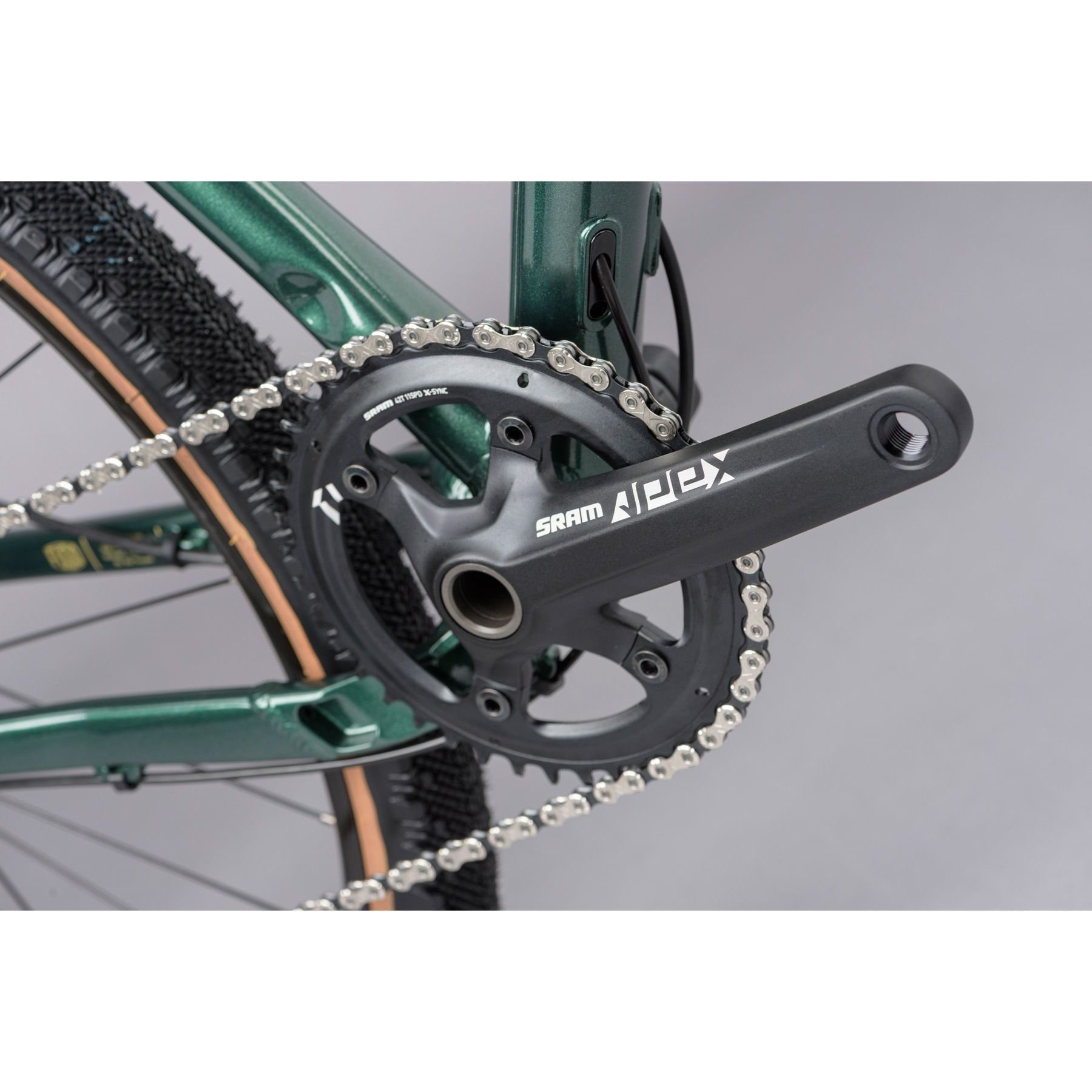

• SRAM's Apex 1X drivetrain keeps things simple, with a wide-range 11-42 cassette matched to a 42-tooth chainring up front.
• That should be enough to find some creative lines on your local trails and handle the hack back through the city.

Specifications

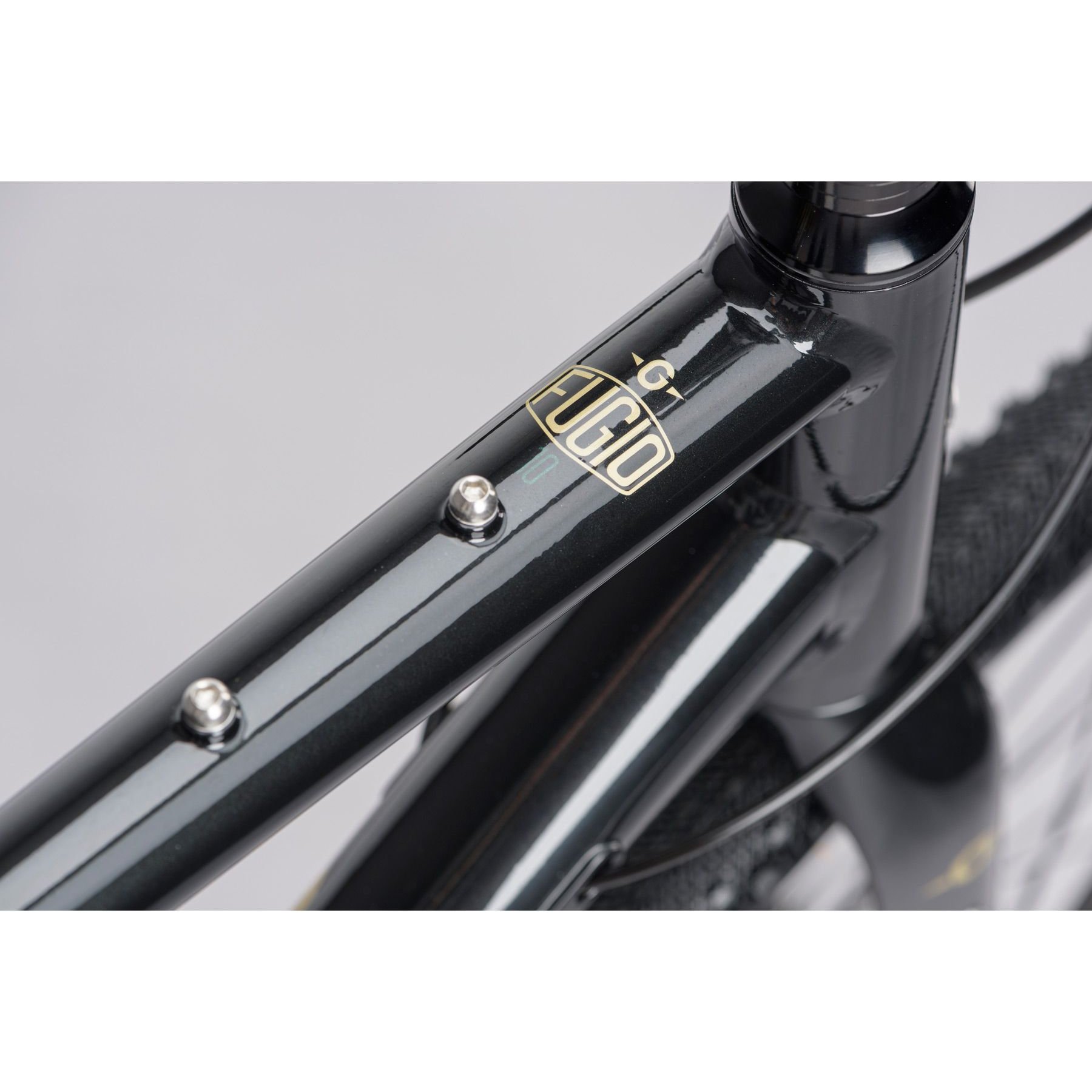

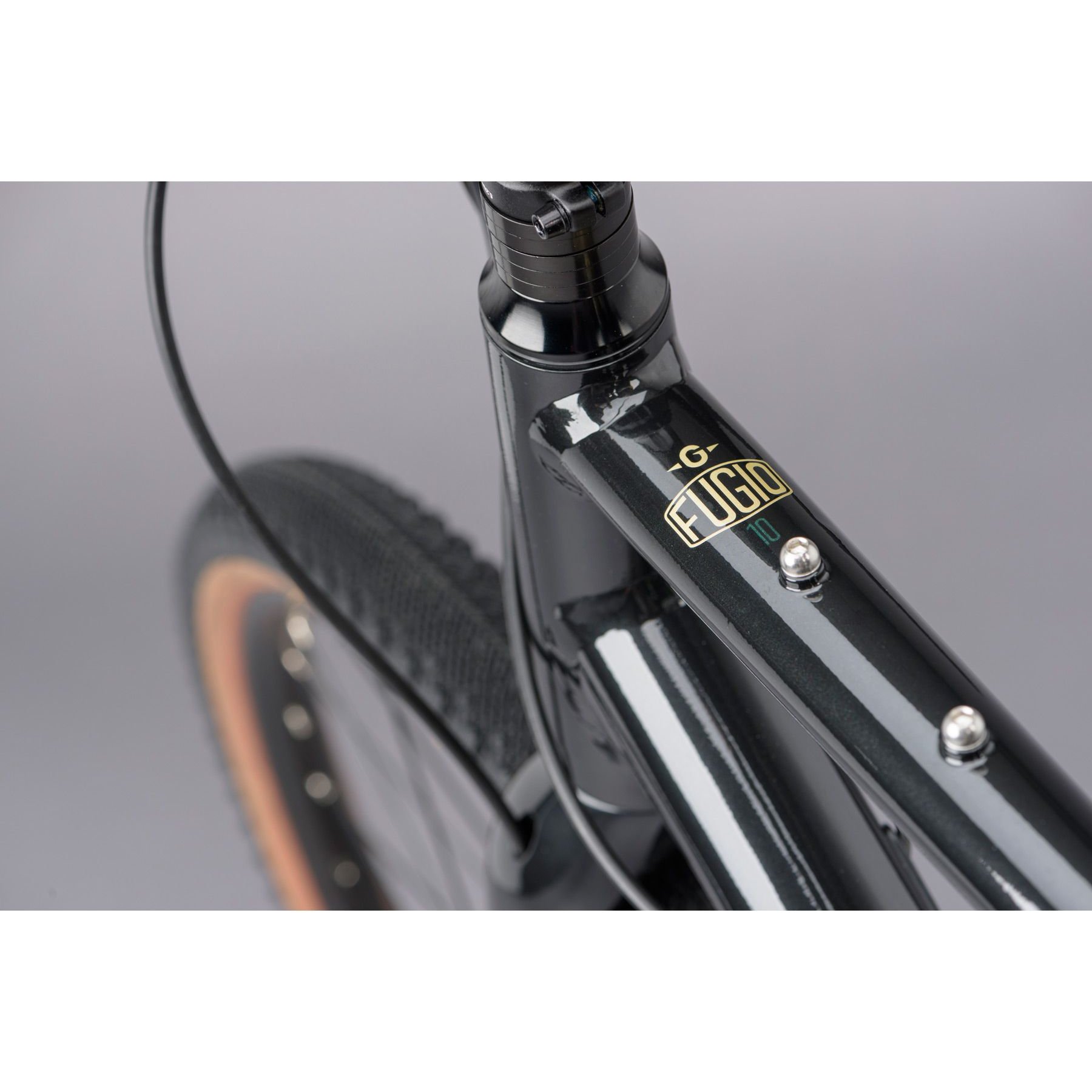

• Frame 6061 Aluminium
• Rear Shock N/A

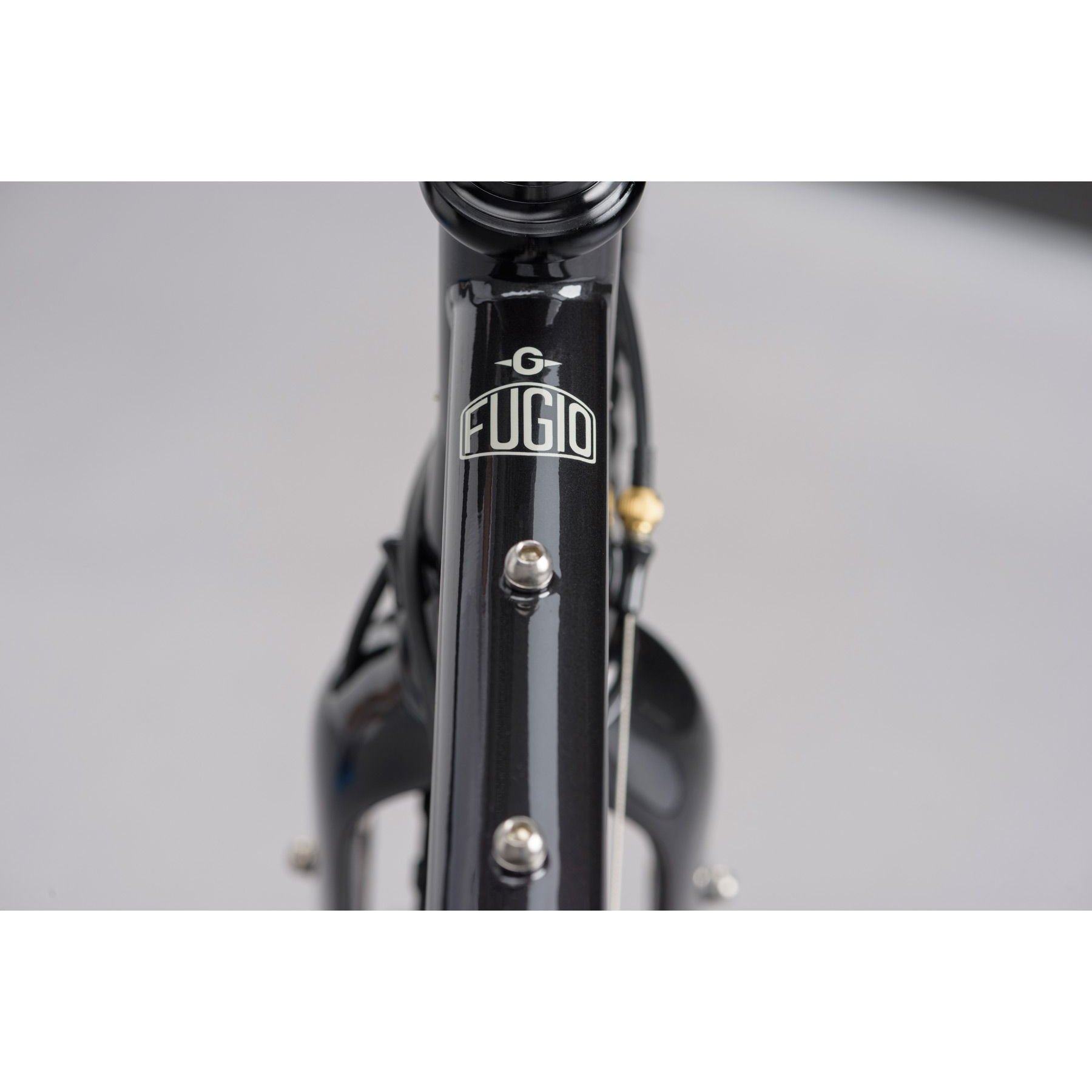

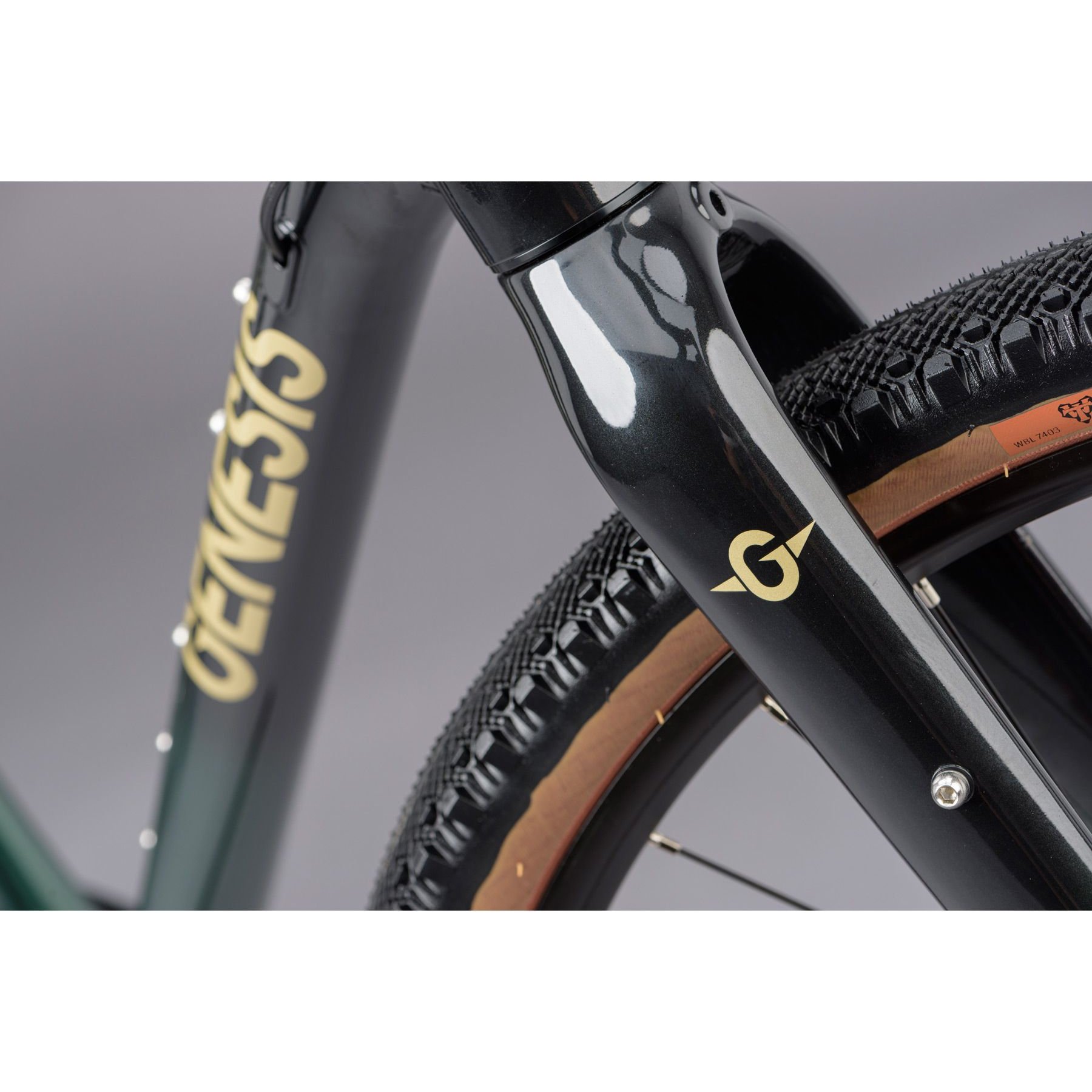

• Fork Genesis full carbon Gravel Disc Fork
• Headset F23A-2 Taper 1 1/8"" - 1 1/5""
• Shifters SRAM APEX 11spd

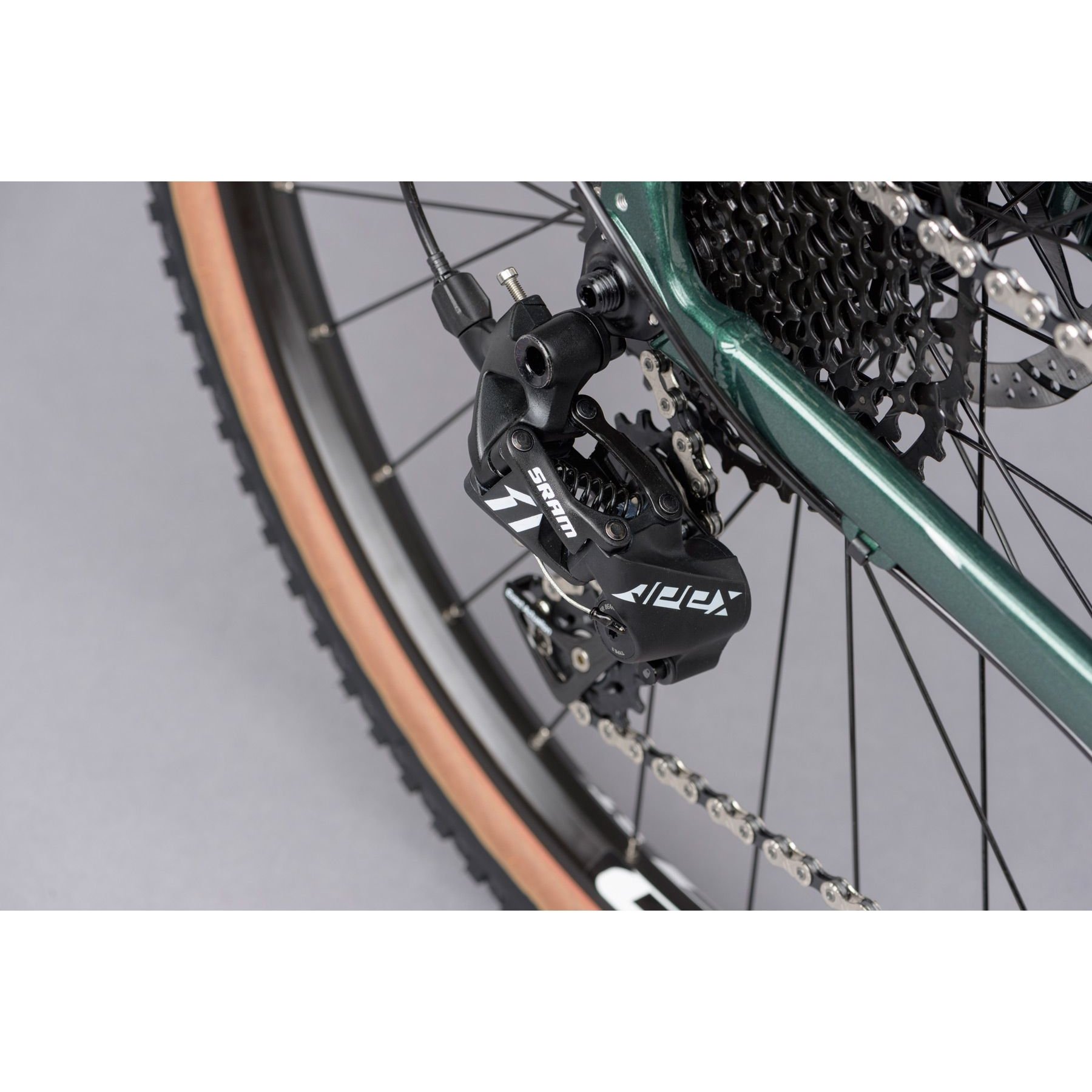

• Rear Derailleur SRAM APEX 1 Long Cage 11spd
• Front Derailleur N/A

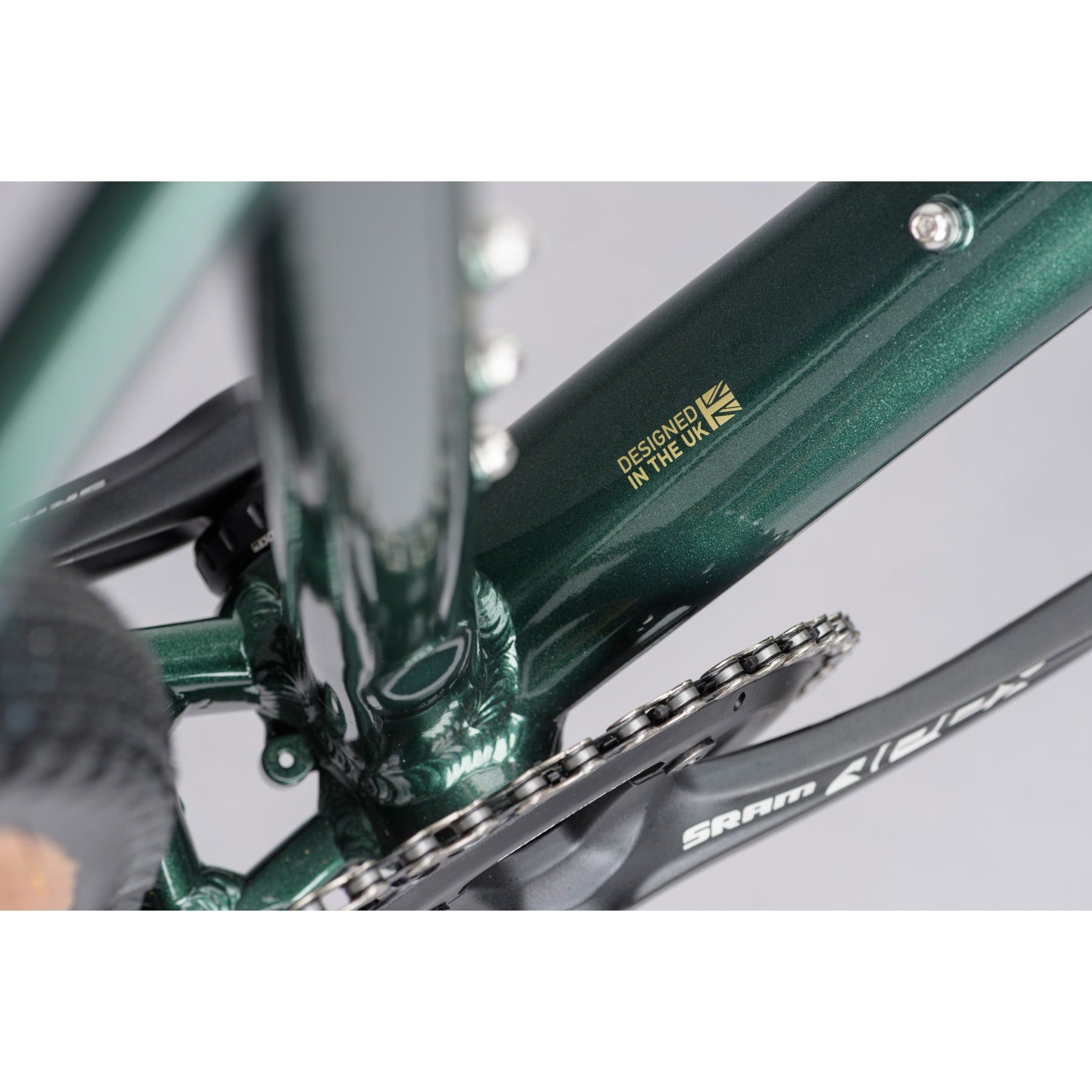

• Chainset SRAM APEX 1 42T, XS/S = 170MM, M/L = 172.5MM, XL = 175MM
• Bottom Bracket SRAM BB GXP
• Chain KMC X11
• Cassette / Freewheel SRAM CS PG-1130 11/42T 11spd
• Rims WTB ST I25 TCS 2.0
• Hubs KT Front - QL-SL2F / Rear QL-X2DR
• Spokes Steel 14g

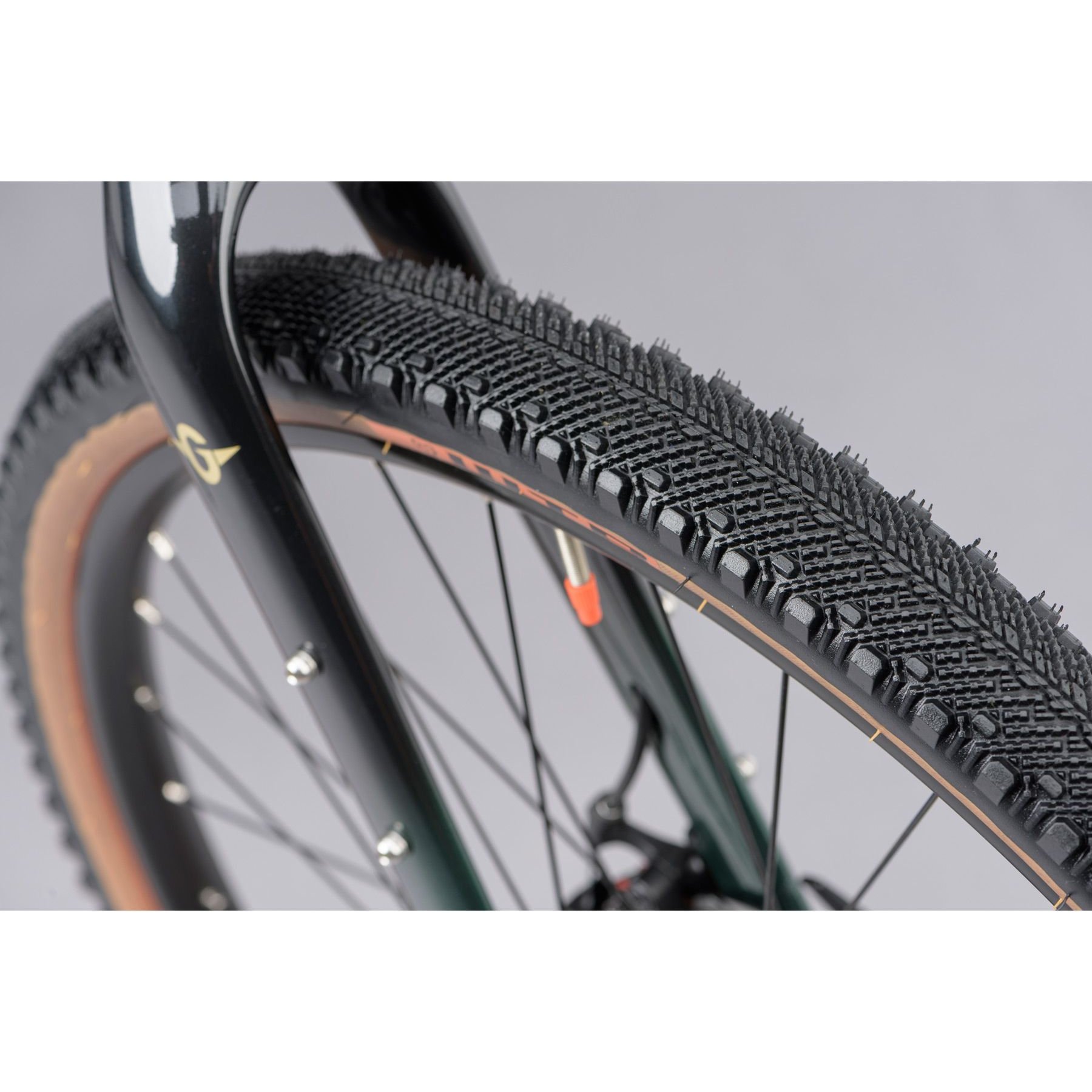

• Tyres WTB Venture 650x47c
• Brakes TRP Spyre-C FM
• Brake levers SRAM APEX 11spd
• Handlebars Genesis Alloy, 16deg flare, XS = 420MM, SM/MED = 440MM, L=460MM, XL = 480MM
• Stem Genesis Alloy, 31.8mm, -6 deg, 100mm
• Saddle Genesis
• Seatpost Genesis Alloy 27.2 x 350mm

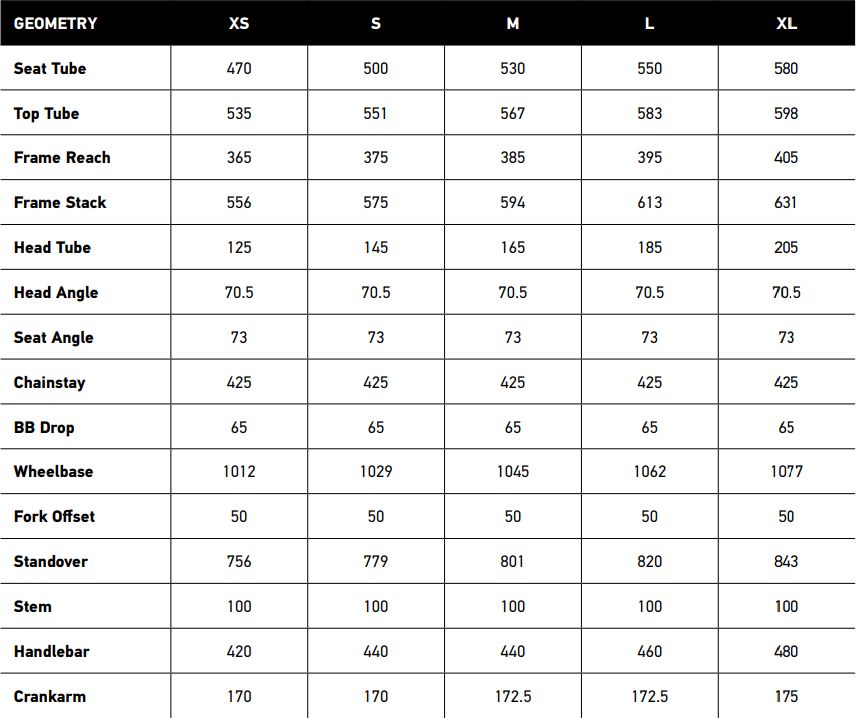

Geometry
