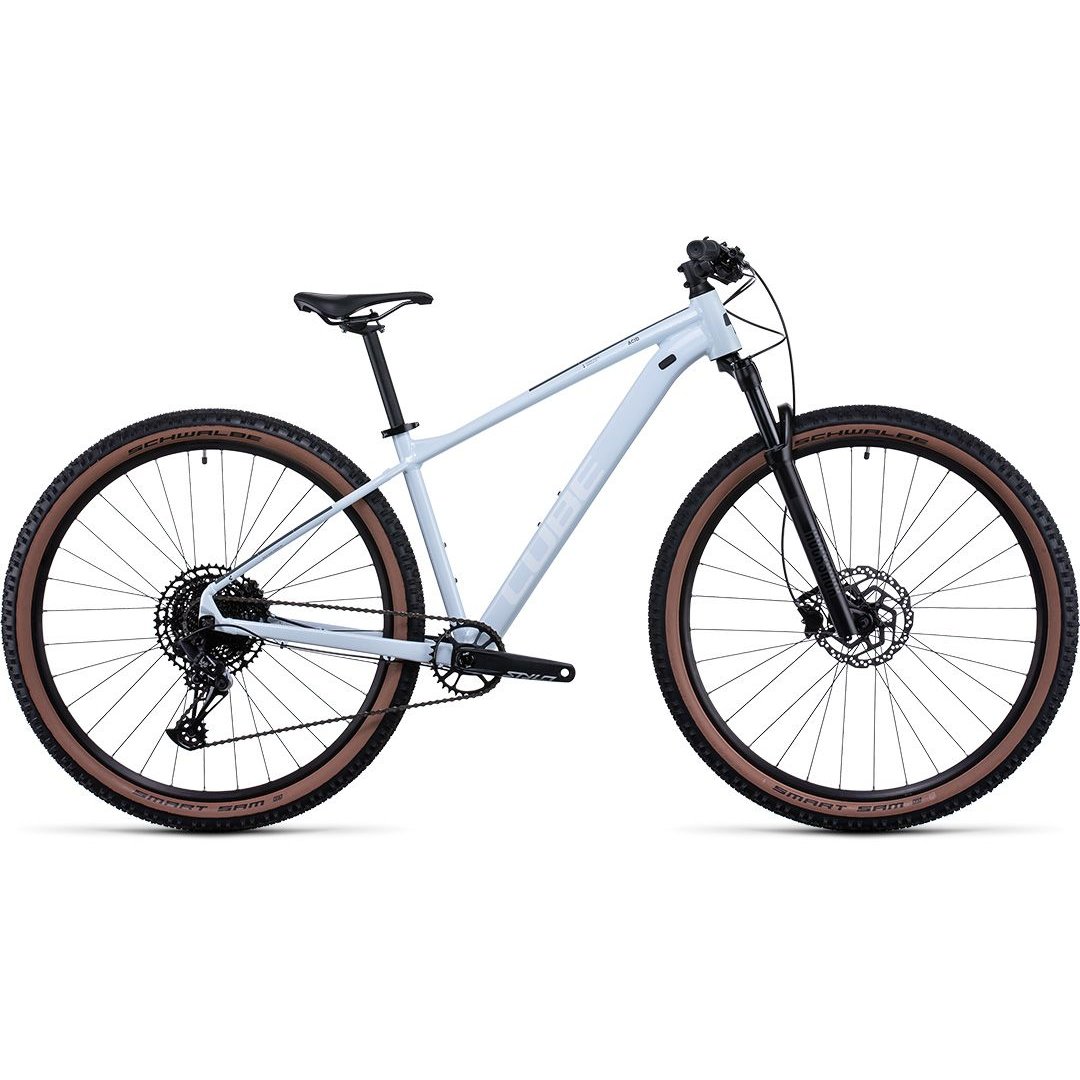

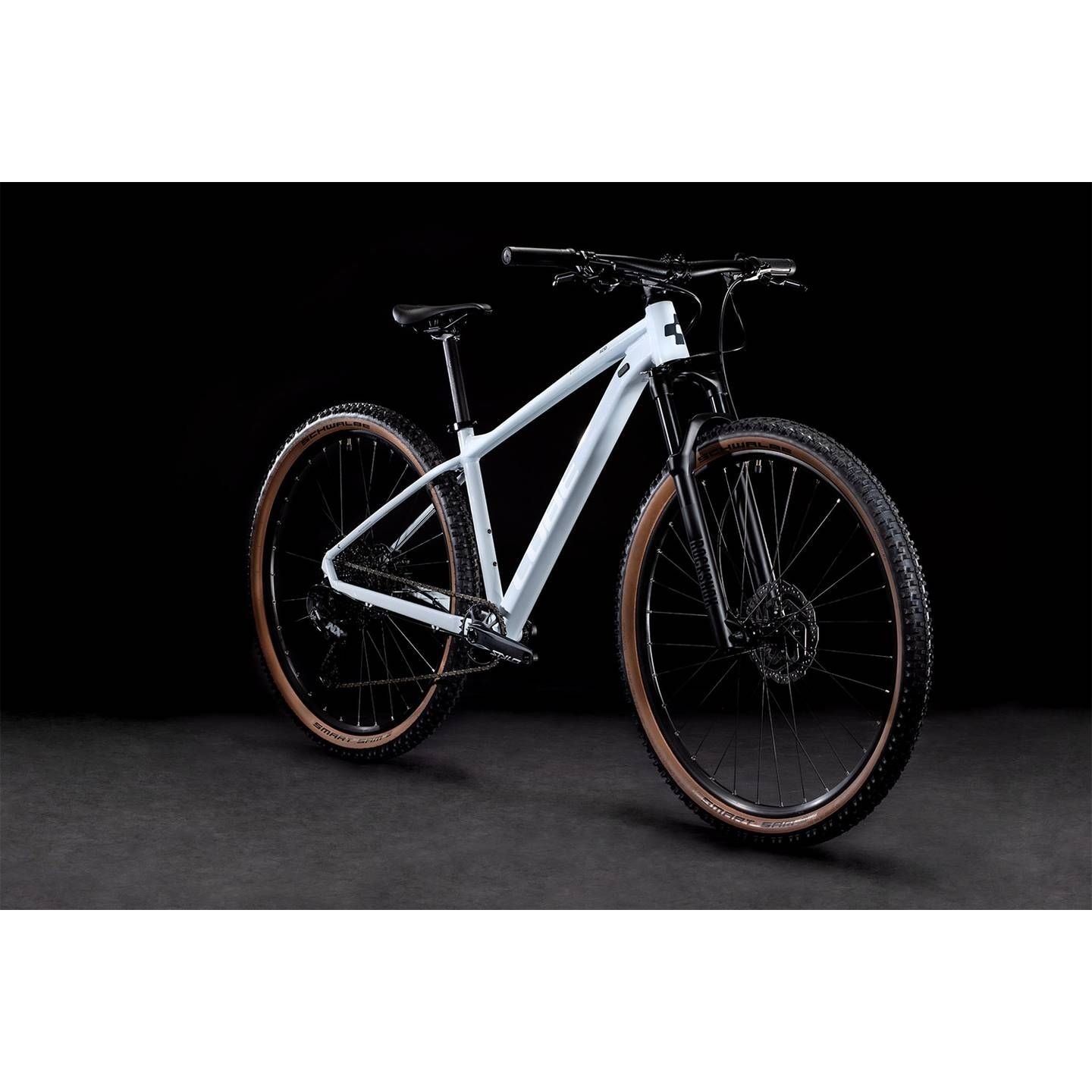

Cube Acid Mountain Bike

With our brand-new Acid, we reckon it's time to reassess how good you think a trail hardtail can be. We started with Sram's NX Eagle 1x12 transmission, because it has the range and performance you'll need for off-road adventures. We added a RockShox Judy Silver Air fork, so that you have 100mm of smooth, adjustable travel on tap - with a remote lockout. We added 2.25in tyres and strong Shimano hydraulic disc brakes, so you're always on top of things. And the whole lot is fitted to our revised, dropper-ready, SizeSplit Acid frame. The only thing missing is you.

Features

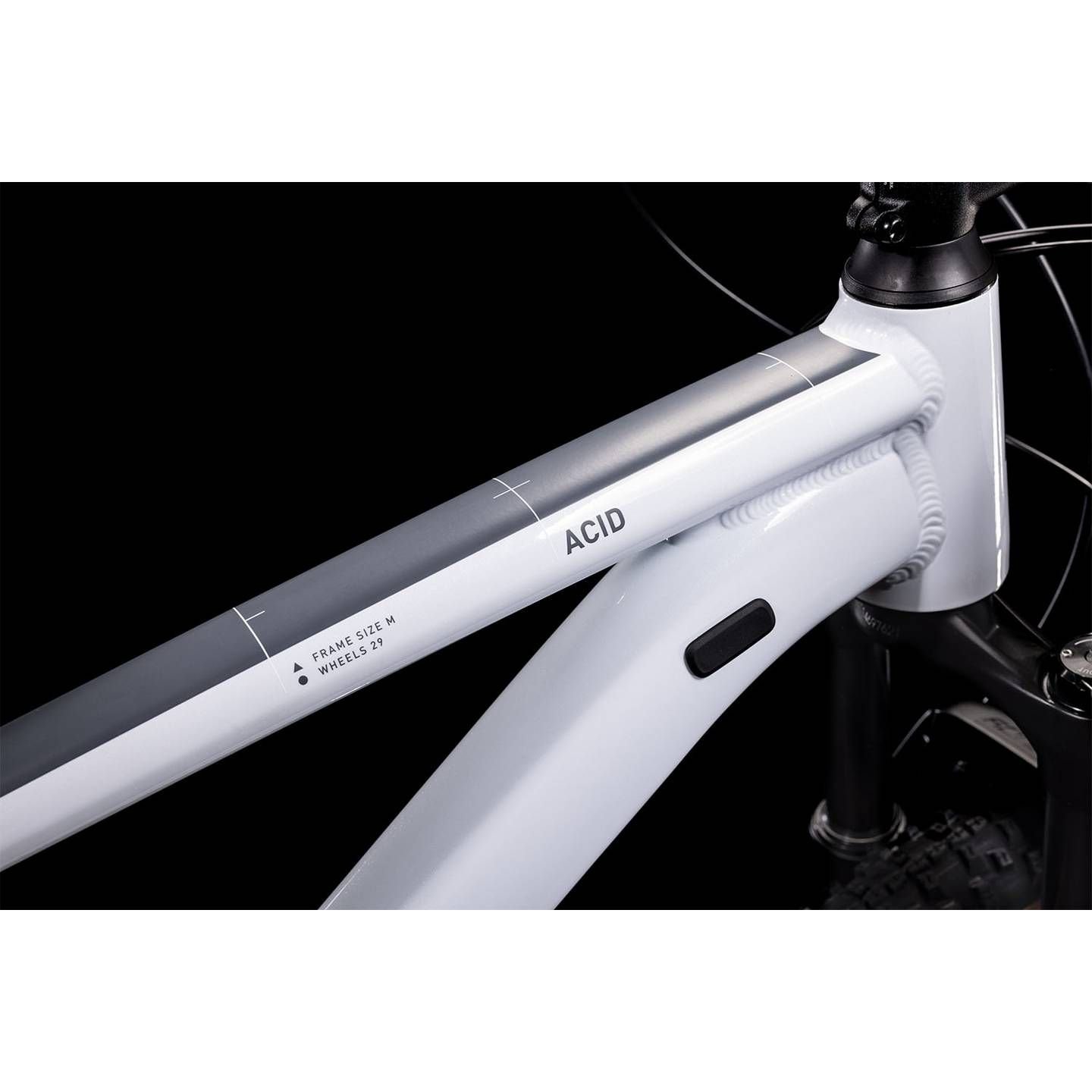

• Completely revised for 2022, the brand-new Acid's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.
• There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
• Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
• Our SizeSplit system has an expanded range too, so however tall you are there'll be an Acid that fits perfectly.
• And, as your skills increase, there's scope to fit a dropper post upgrade.

Specification

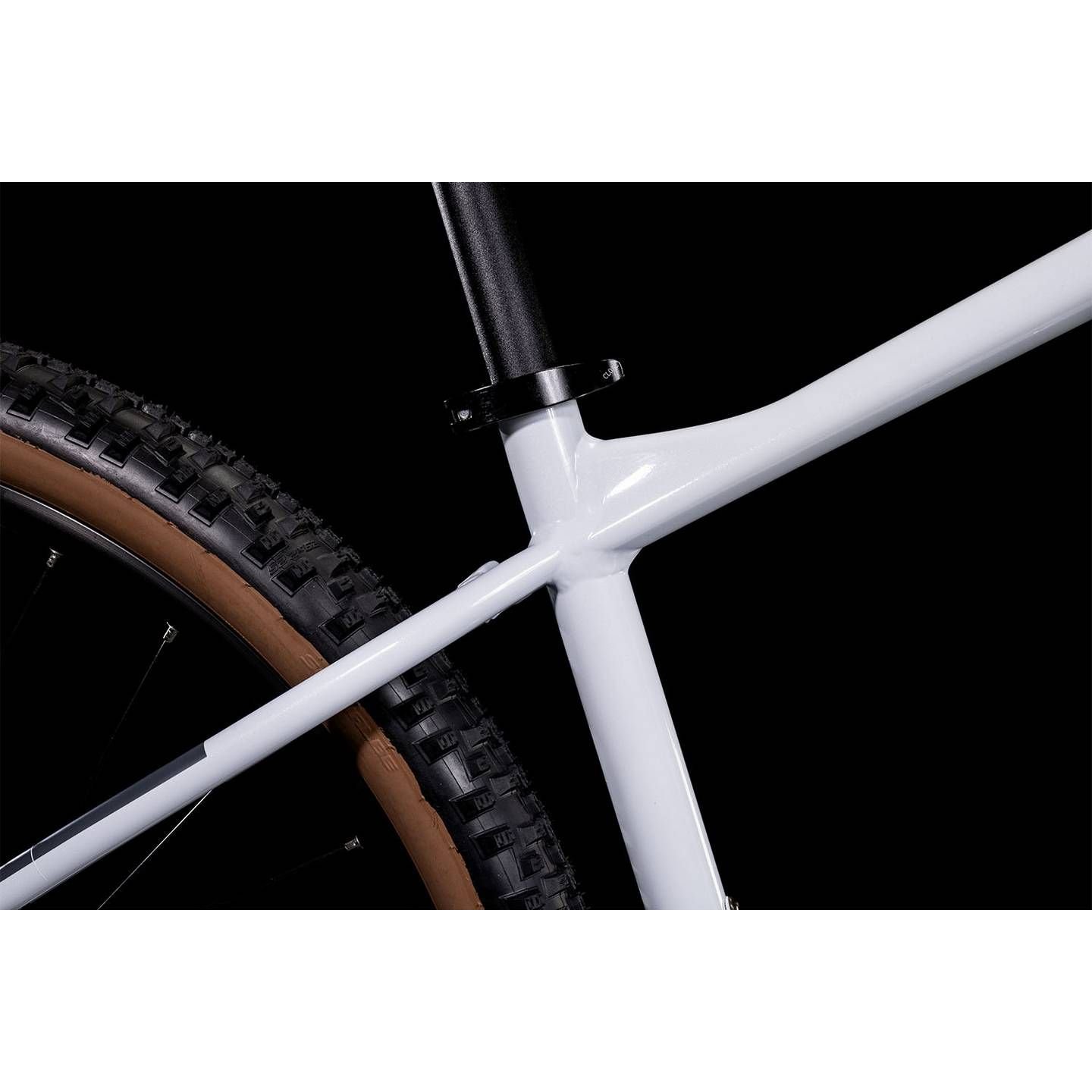

• FRAME: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• SIZE: Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")
• FORK: RockShox Judy Silver TK AIR, 100mm, PopLoc

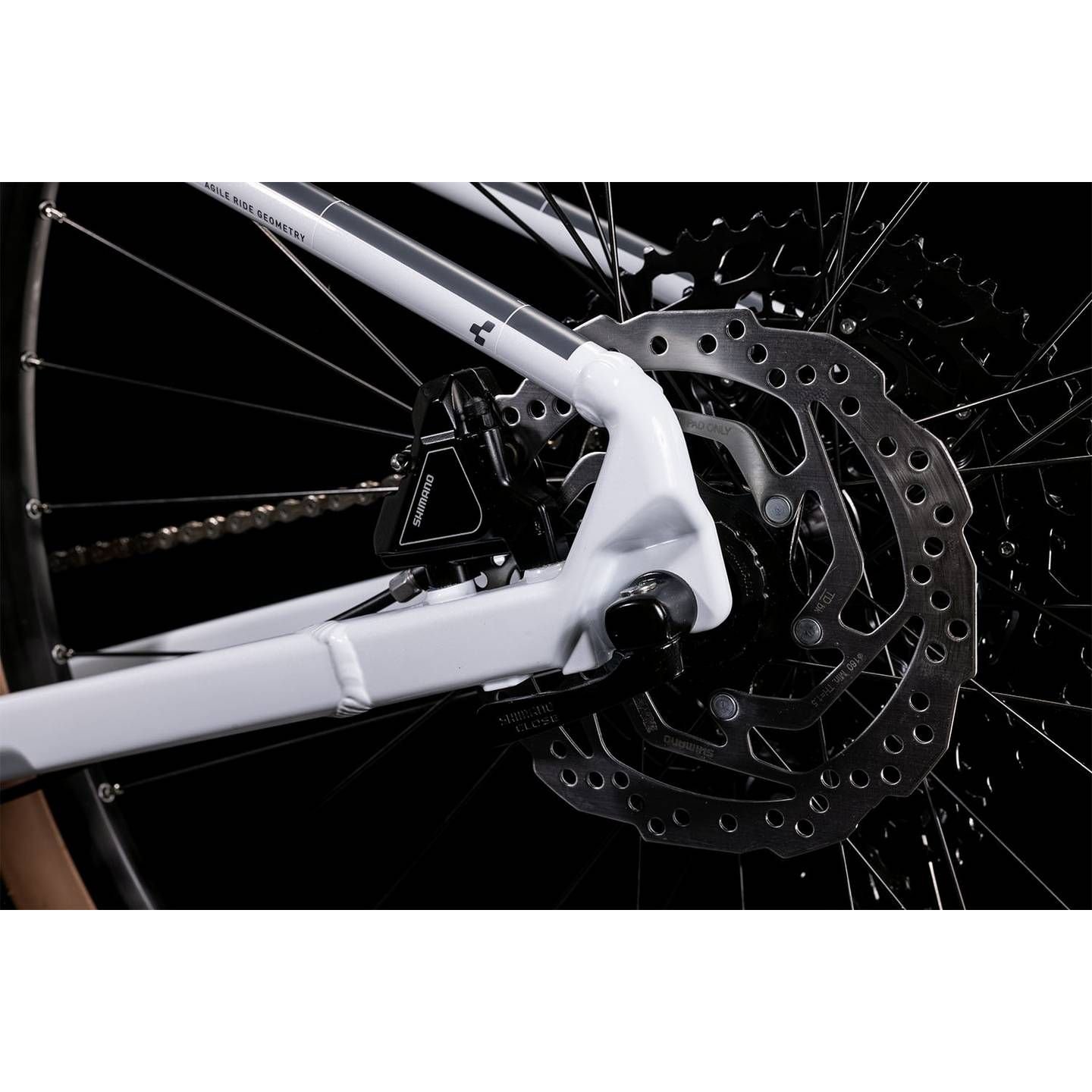

• BRAKE SYSTEM: Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/160)
• REAR DERAILLEUR: Sram NX Eagle™, 12-Speed
• SHIFTERS: Sram NX Eagle™ Trigger

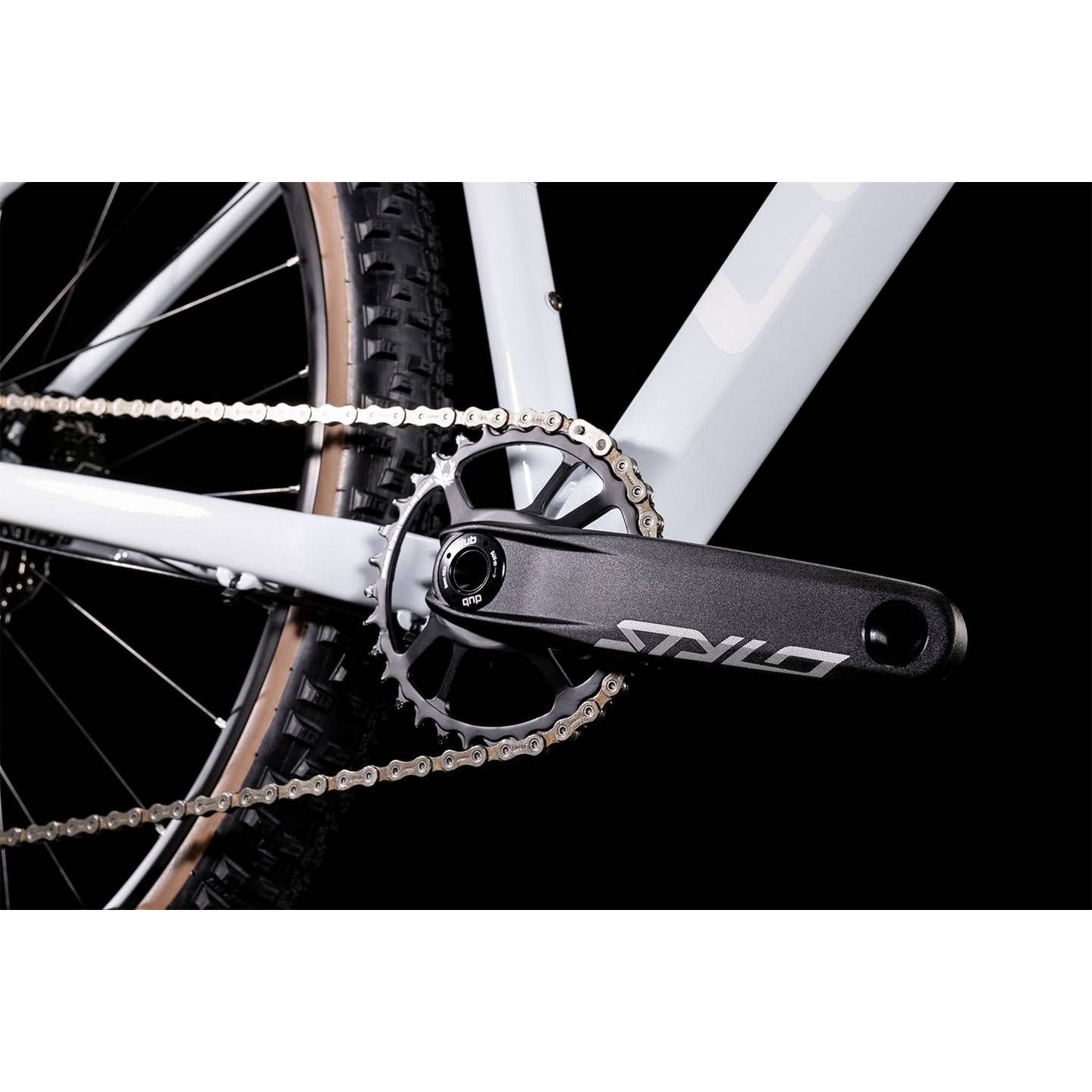

• CRANKSET: Sram Stylo Eagle™ DUB, 32T
• CASSETTE: Sram PG-1210 Eagle™, 11-50T
• CHAIN: Sram SX Eagle™
• FRONT HUB: Shimano Deore HB-M6000, QR, Centerlock
• REAR HUB: Shimano Deore FH-M6000 ,QR, Centerlock
• RIMS: CUBE ZX20, 32H, Disc
• TYRES: Schwalbe Smart Sam, Active, 2.25
• STEM: CUBE Performance Stem SL, 31.8mm
• HANDLEBAR: CUBE Rise Trail Bar, 680mm
• GRIPS: ACID React
• SEAT POST: CUBE Performance Post, 27.2mm
• SEATCLAMP: CUBE Varioclose, 31.8mm
• SADDLE: Natural Fit Venec
• HEADSET: CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
• PEDALS: CUBE PP MTB
• WEIGHT: 13,5 kg

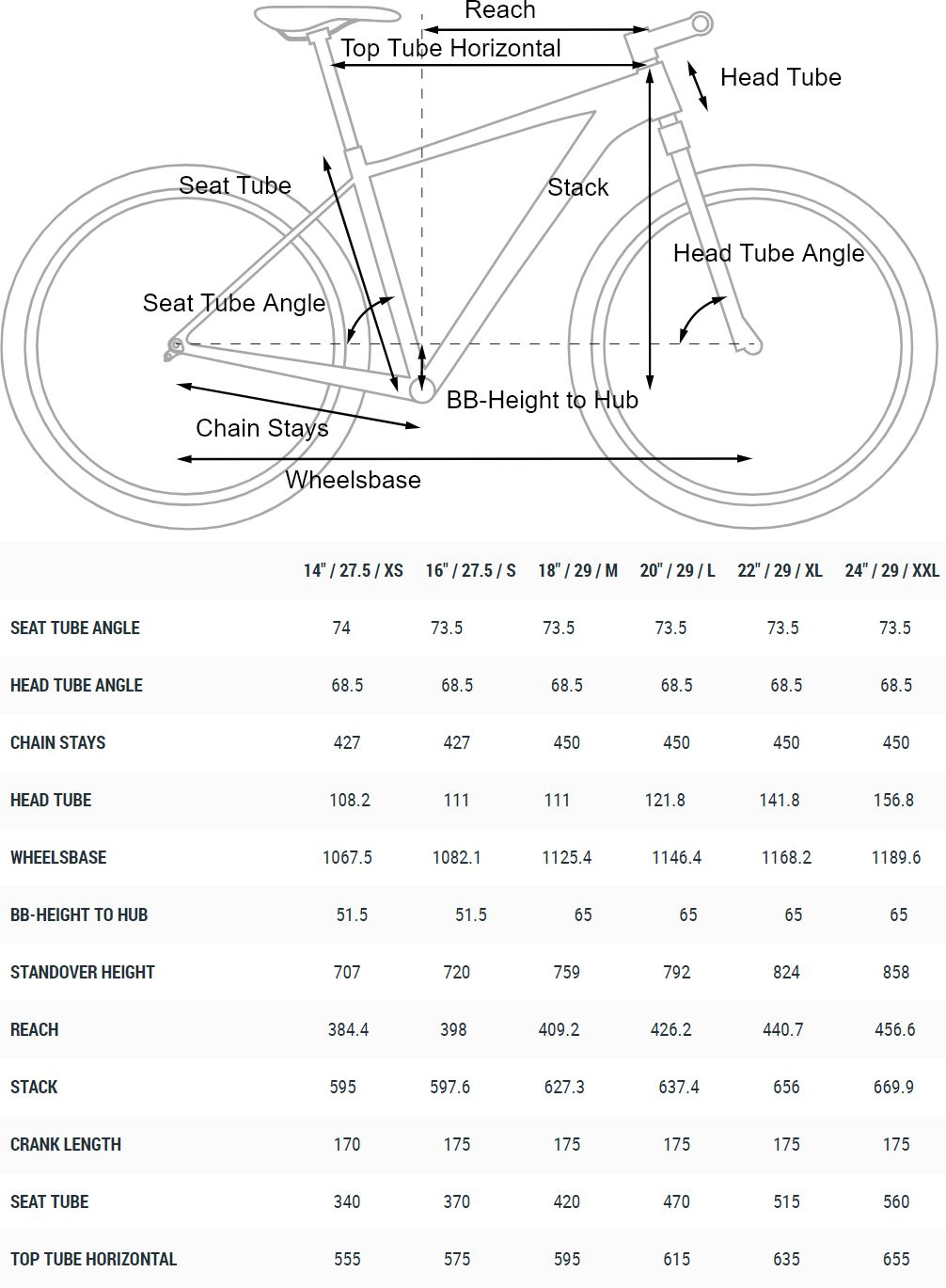

Geometry
