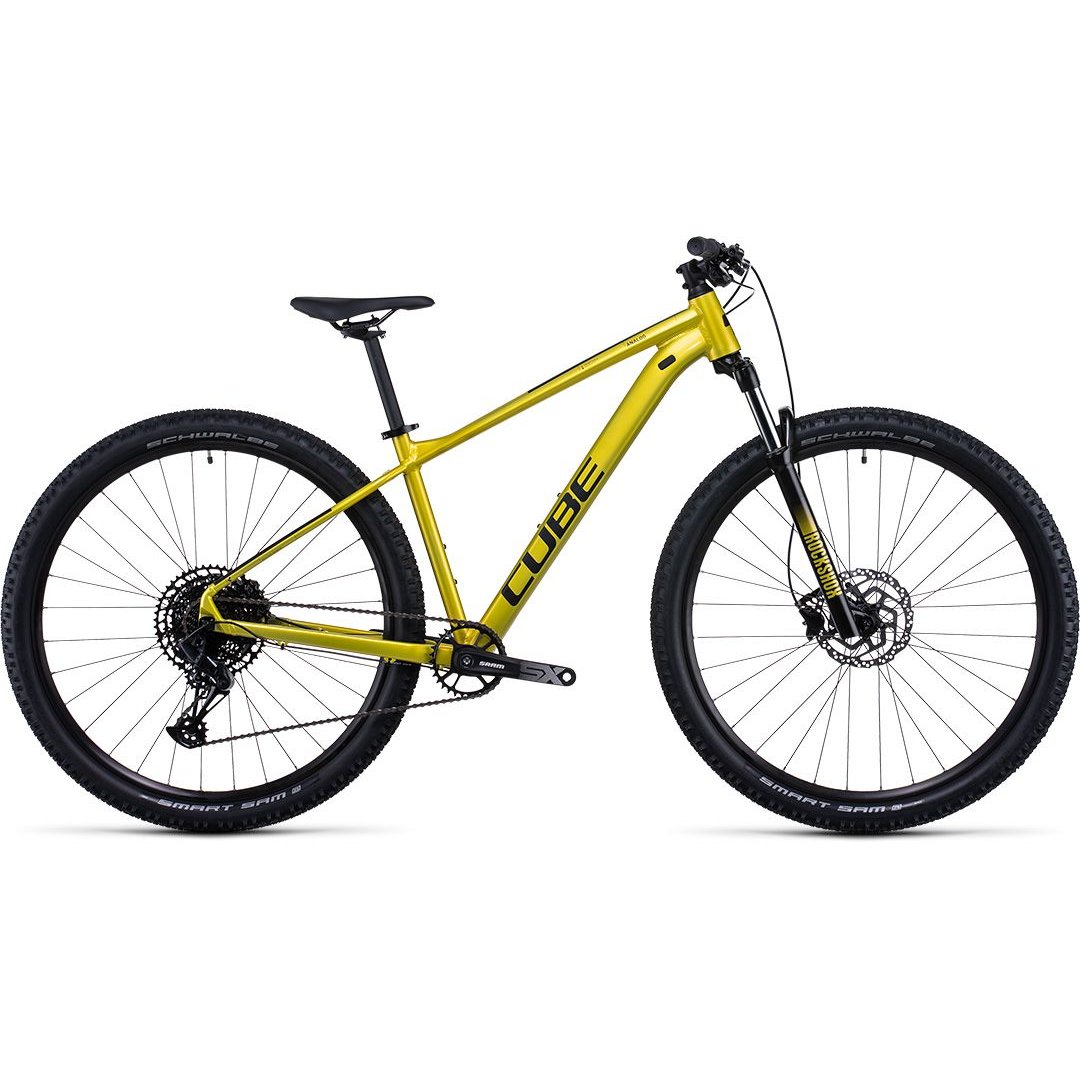

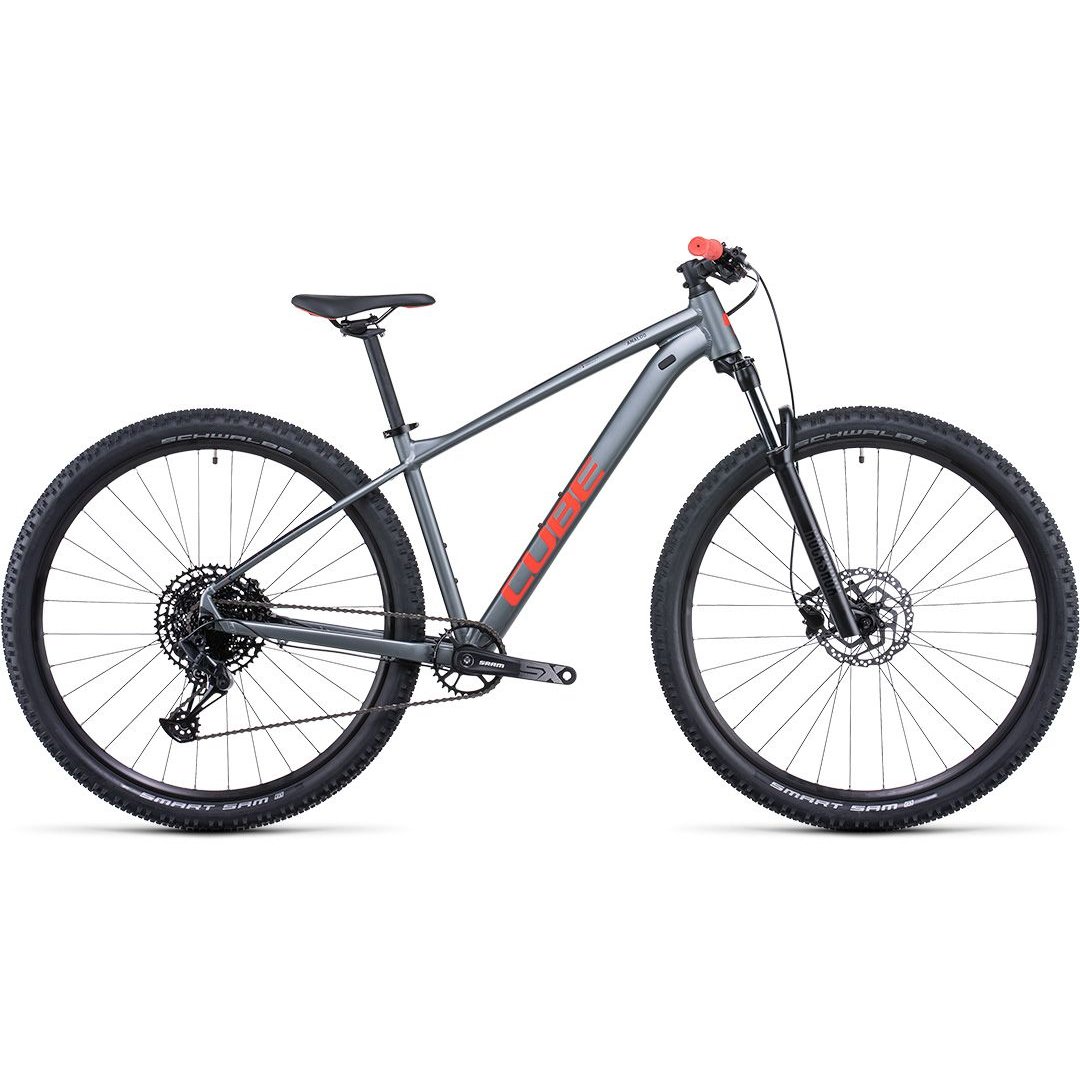

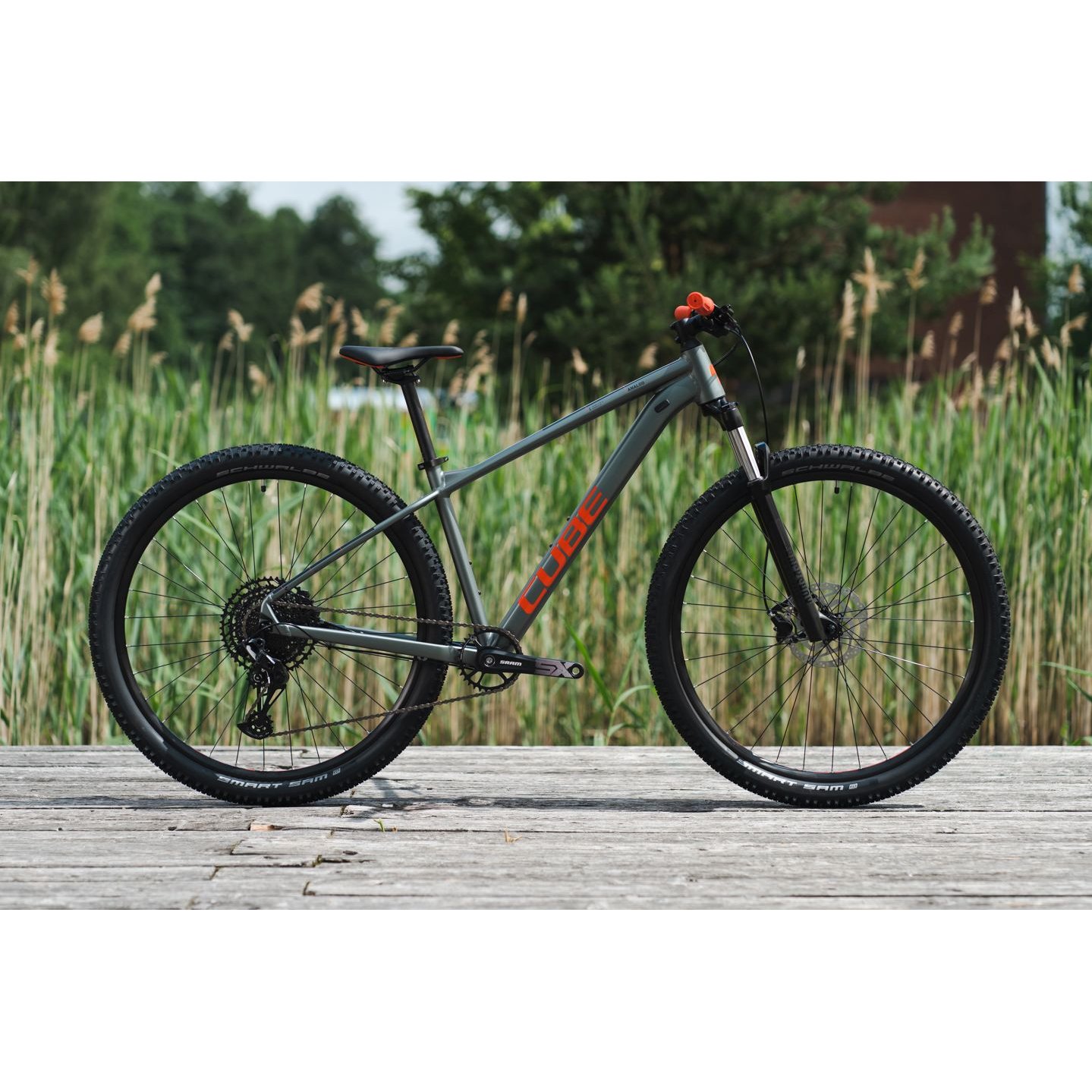

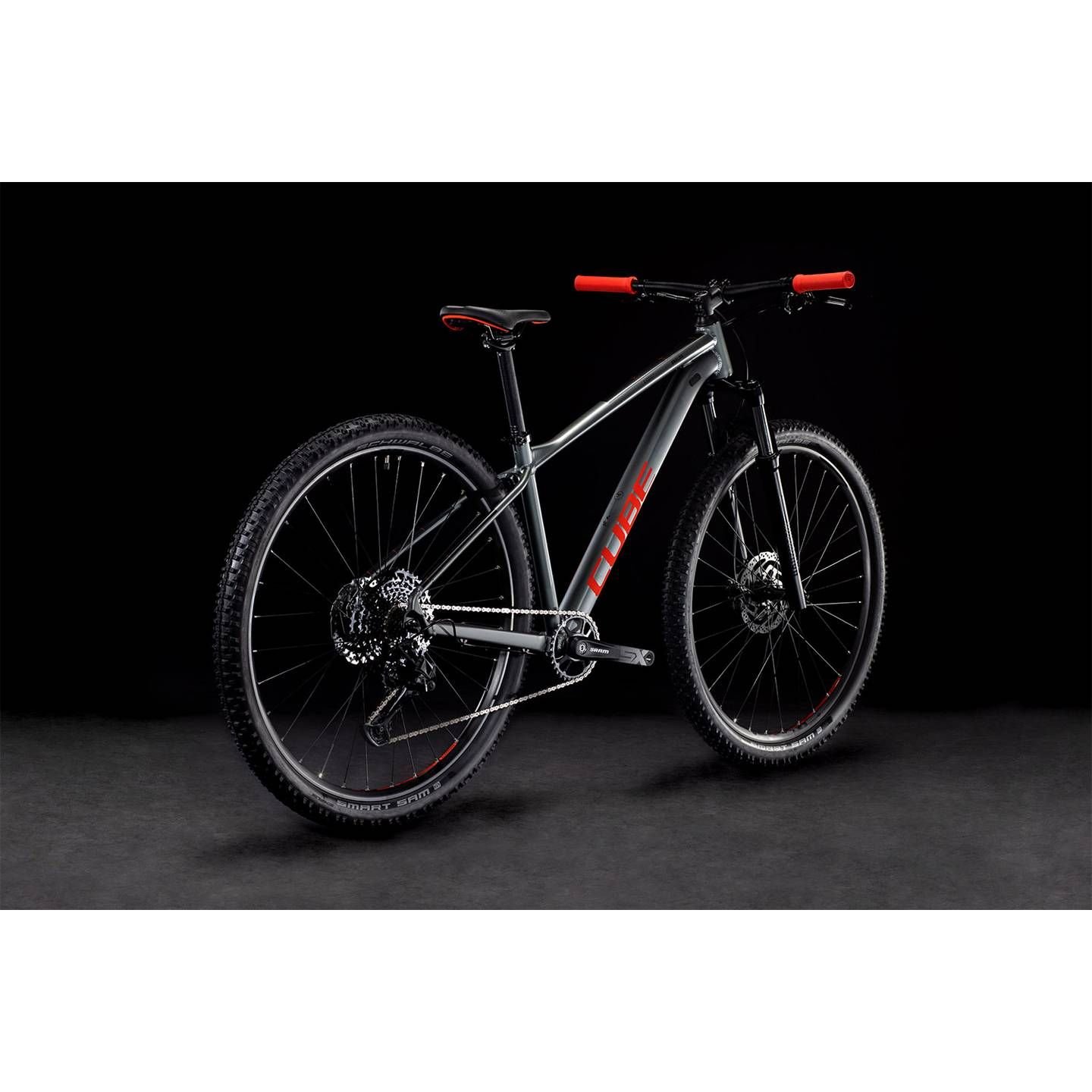

Cube Analog Mountain Bike

A hardtail is a versatile beast, so it helps to have the right kit to get the most out of that versatility. That's why, with the new Analog, we began by choosing Sram's SX Eagle 1x12 transmission. With its huge range, ease of use and reliable performance, it's the go-to for many keen riders. Paired with powerful Shimano hydraulic disc brakes and 100mm of travel from the RockShox Judy fork with lockout, it puts you in perfect control. Grippy 2.25in tyres, perfect sizing from our SizeSplit system and the option for a future dropper post upgrade complete the package.

Features

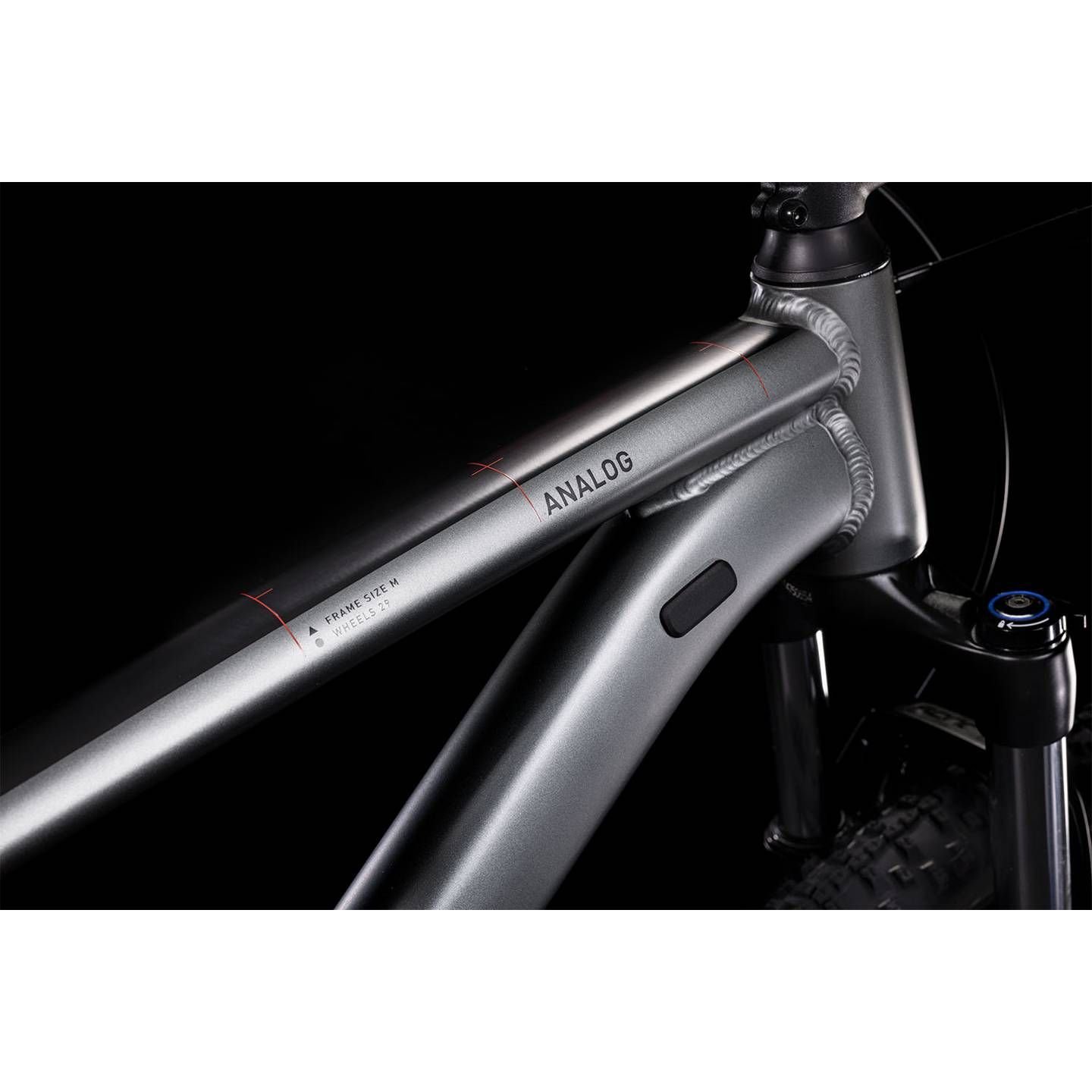

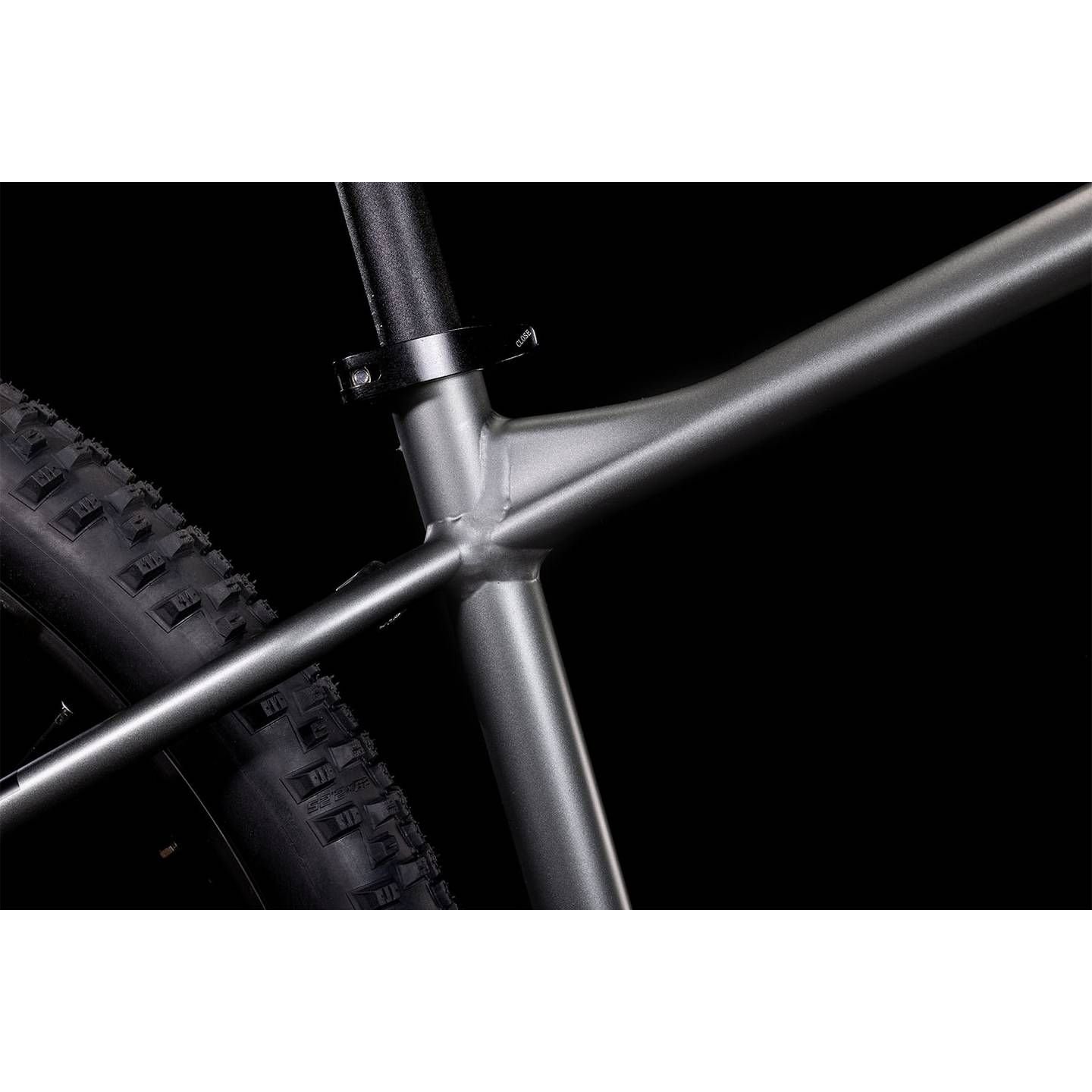

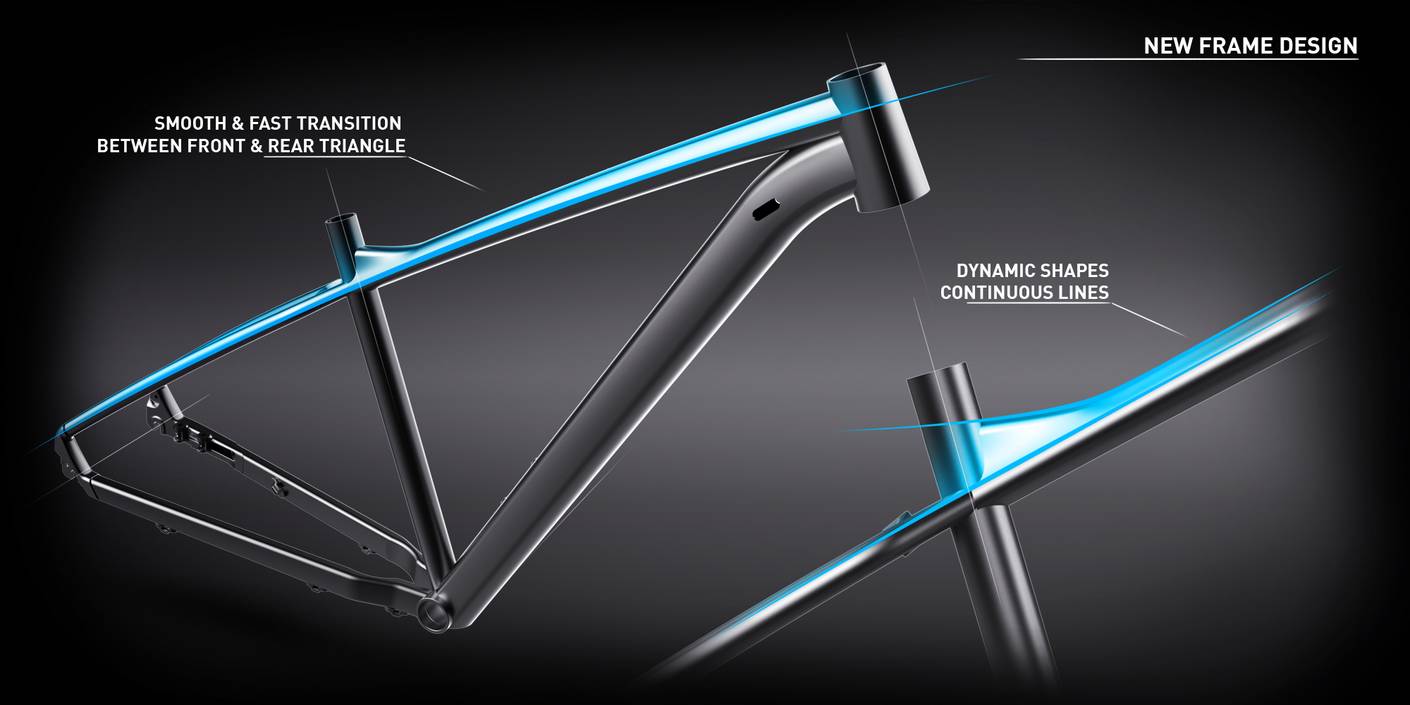

• Completely revised for 2022, the brand-new Analog's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
• It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.

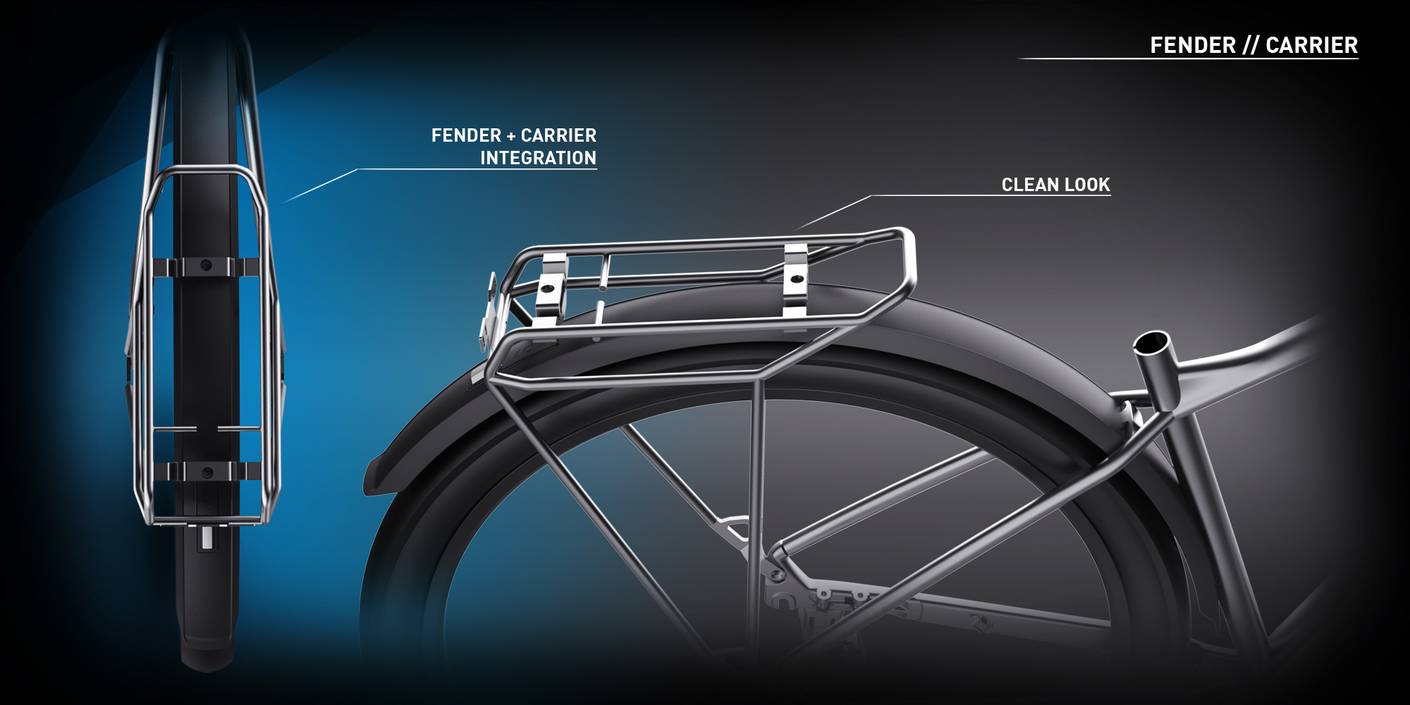

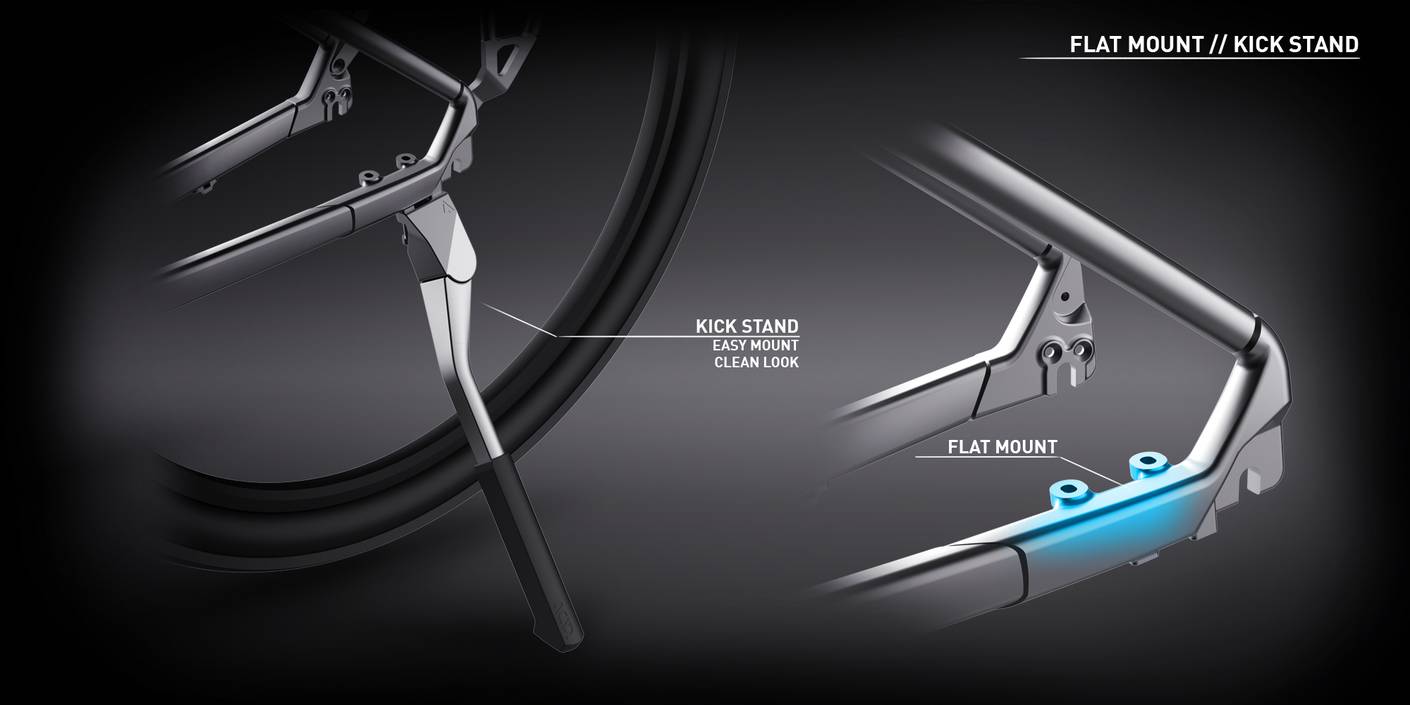

• There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
• Our SizeSplit system has an expanded range too, so however tall you are there'll be an Analog that fits perfectly.
• And, as your skills increase, there's scope to fit a dropper post upgrade.

Specification

• SIZE: Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")
• FRAME: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• FORK: RockShox Judy Silver TK Coil, 100mm, Lockout

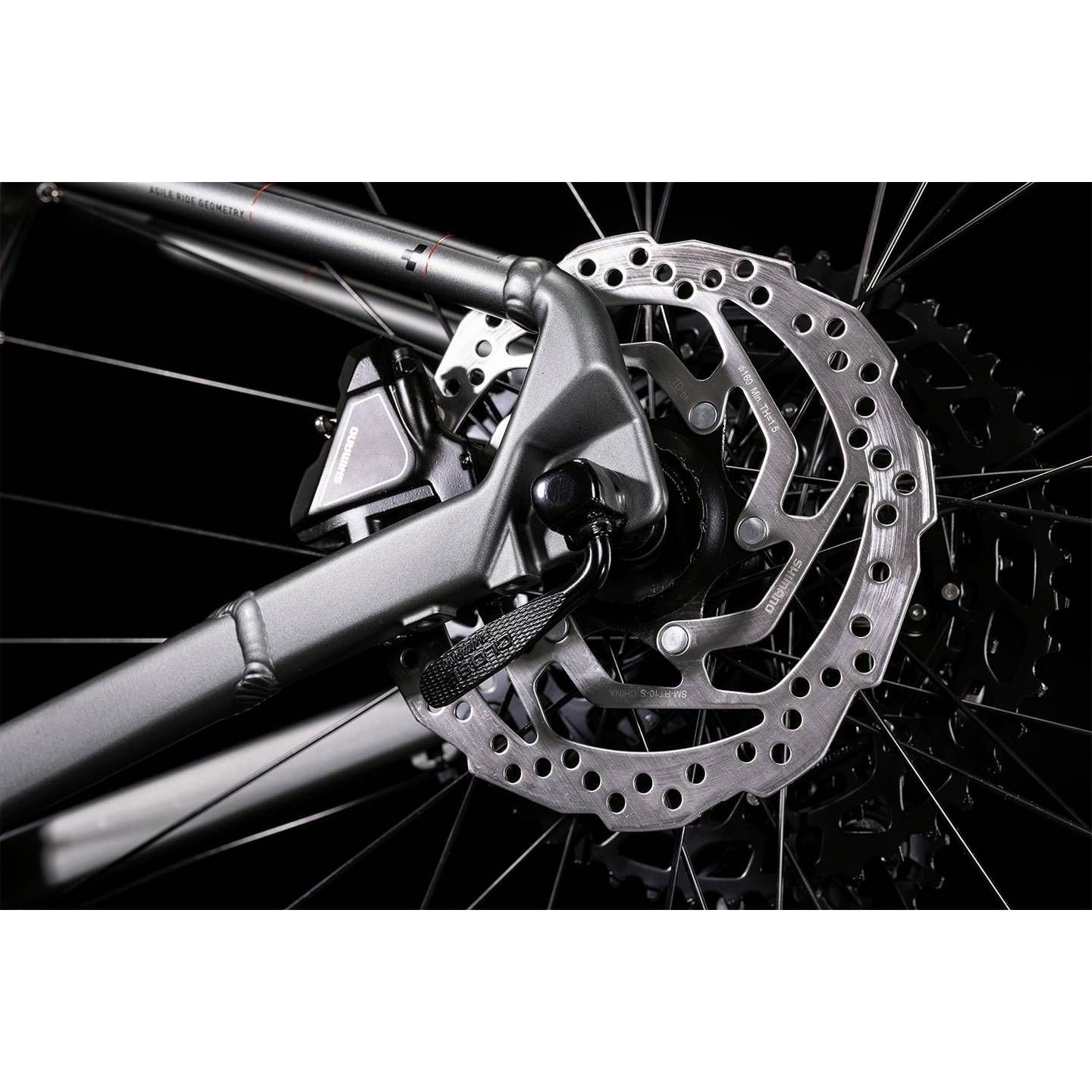

• BRAKE SYSTEM: Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/160)
• REAR DERAILLEUR: Sram SX Eagle™, 12-Speed
• SHIFTERS: Sram SX Eagle™ Trigger

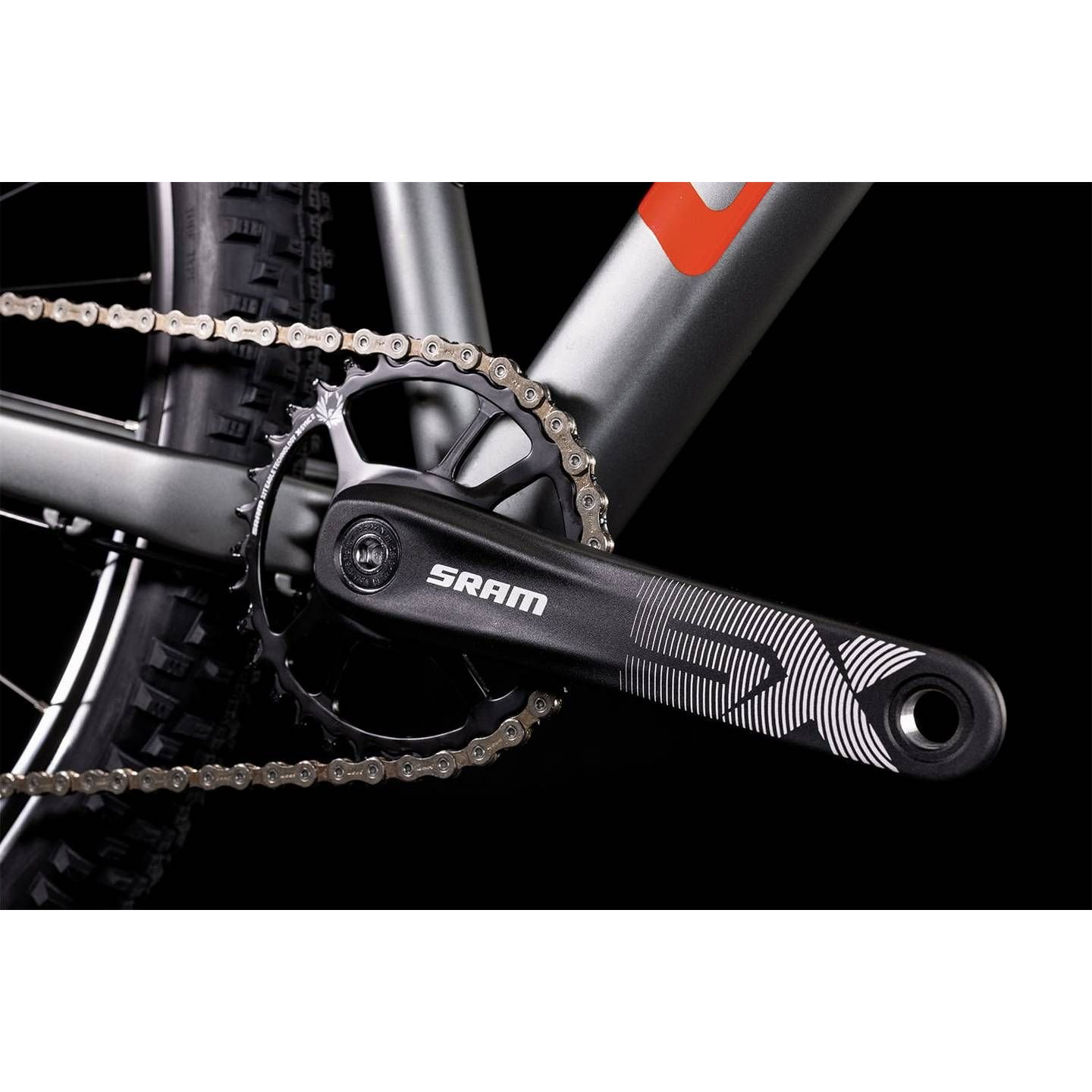

• CRANKSET: Sram SX Eagle™ Powerspline, 32T, 175mm
• CASSETTE: Sram PG-1210 Eagle™, 11-50T
• CHAIN: Sram SX Eagle™
• FRONT HUB: Shimano HB-TX505, QR, Centerlock
• REAR HUB: Shimano FH-TX505, QR, Centerlock
• RIMS: CUBE ZX20, 32H, Disc
• TYRES: Schwalbe Smart Sam, Active, 2.25
• STEM: CUBE Performance Stem SL, 31.8mm
• HANDLEBAR: CUBE Rise Trail Bar, 680mm
• GRIPS: ACID React
• SEAT POST: CUBE Performance Post, 27.2mm
• SEATCLAMP: CUBE Varioclose, 31.8mm
• SADDLE: Natural Fit Venec Lite
• HEADSET: CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
• PEDALS: CUBE PP MTB
• WEIGHT: 13,8 kg

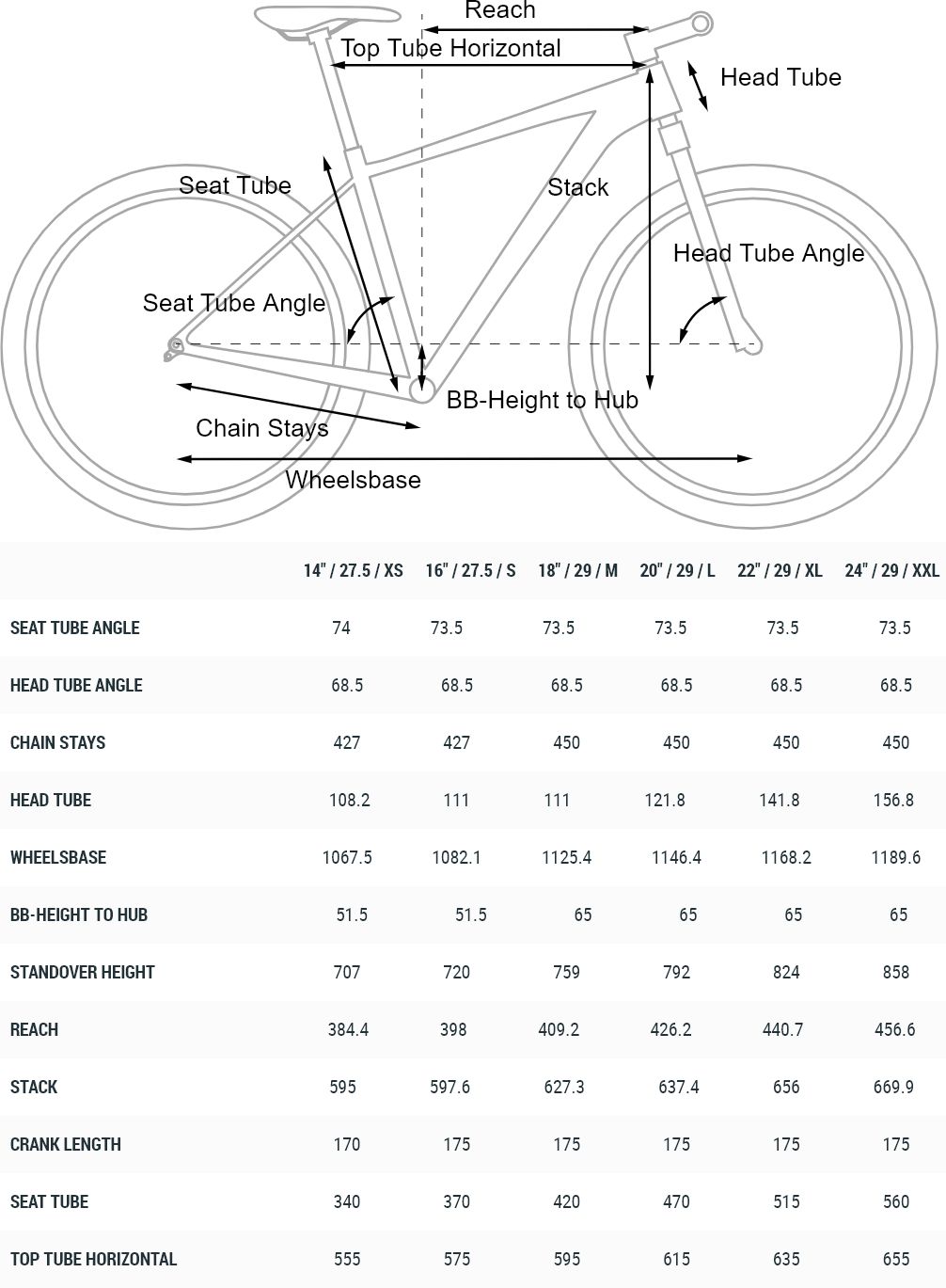

Geometry
