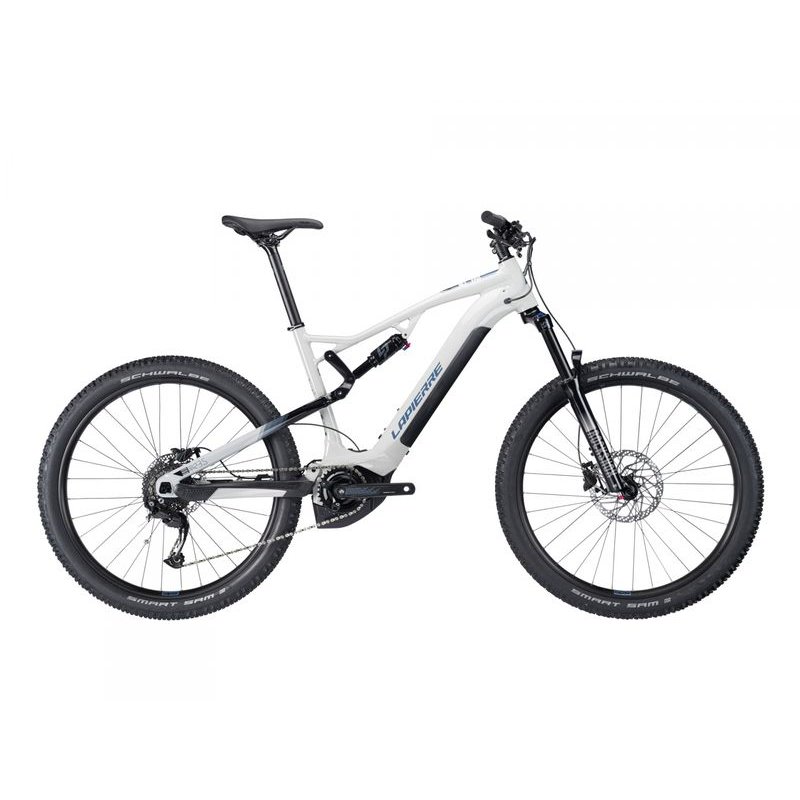

Lapierre Overvolt TR 3.5 27.5 Electric Mountain Bike

Specifications

• Frame: Overvolt OST+ 120mm (27,5+’’) travel Yamaha Supreme 5 alloy boost (updated bracket for PW-ST compatible with added plastic top cover)
• Fork: RockShox RECON SILVER TK Boost 120mm (27,5’’) 46mm Rake
• Shock: Lapierre metric 190x40mm
• Rear derailleur: Shimano Alivio RD-M3100, 9s Shadow
• Crankset: Lapierre Overvolt Yamaha Narrow Wide 32T 170mm
• System: Yamaha PW-ST ‘’25kph’’ / Intube battery 500Wh / display A
• Sprocket: Sunrace CSM090 11-36T 9s
• Chain: KMC E9S 9s
• Brakes: Shimano MT200 hydraulic brakes
• Rotors: Shimano RT30 203mm/180mm
• Shiftlevers: Shimano Altus SLM2010 9s
• Headset: FSA Orbit 1.5 ZS NO.57SC
• Handlebar: Lapierre alloy 6061, Width: 740mm, Rise: 25mm, Ø: 31.8mm
• Grips: New Lapierre DD34 Lock-on
• Stem: Lapierre alloy, 0°, Ø: 31.8mm, L: 45mm
• Seatpost: Lapierre alloy, Ø: 31.6mm, L: 350mm
• Saddle: XLC by DDK
• Front hub: Shimano MT400, boost thru axle
• Rear hub: Shimano MT400, boost thru axle
• Rims: Lapierre eAM+ 32H, 35-584
• Tires: Schwalbe Smart Sam K-Guard 27.5x2.6
• Pedals: NW-91K

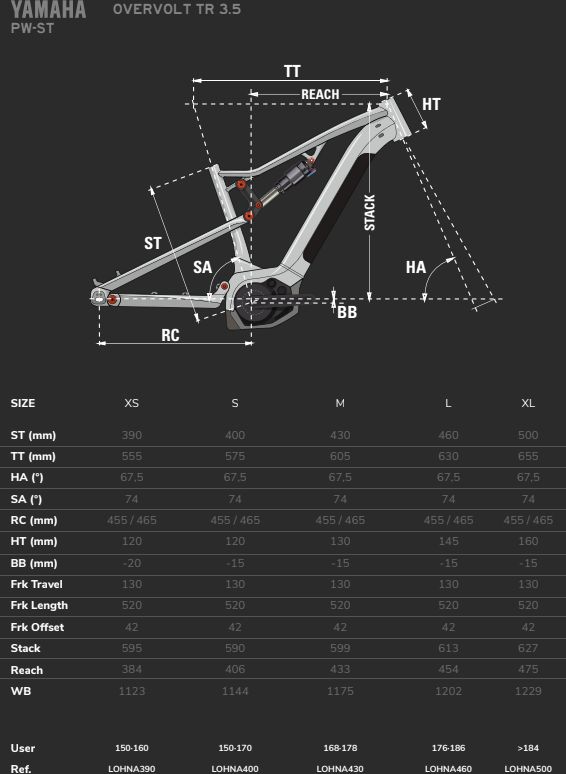

Geometry
