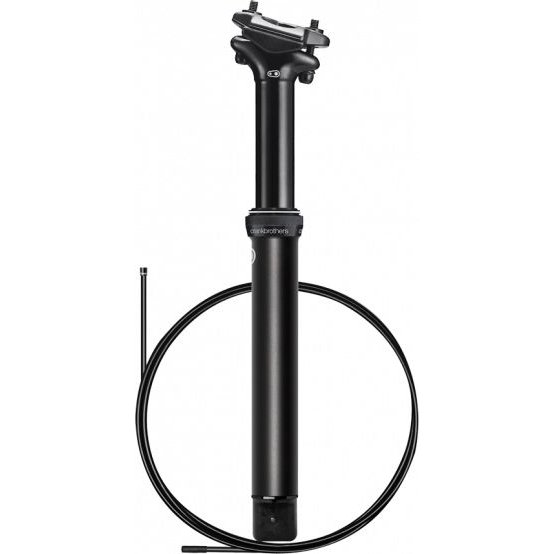

Crankbrothers Highline 3 Dropper Post

The all-new Highline delivers infinite adjustment, smooth feel, and easy installation for any bike.

Features

• Shorter insertion length to fit more bikes
• Premium Trelleborg® sealing
• Exclusive Igus® LL-glide bearings and keys
• Jagwire® cable and housing
• Self-contained hydraulic cartridge delivers industry leading quality and reliability
• Internal routing
• Quick connect mechanism for ease of cable installation
• Linear actuator for quick return speed
• 2-bolt standard head
• Remote sold separately

Specifications

• Material: 7075-T6 aluminum
• Setback: 0
• Minimum stack height: 47mm
• Warranty2 years

Specs 80mm;

• Max extended length: 100mm
• Max insertion length: 264mm
• Total post length: 380mm
• Weight: 460g (27.2), 550g (30.9), 560g (31.6)

Specs 100mm;

• Max extended length: 241mm
• Max insertion length: 220mm
• Total post length: 370mm
• Weight: 480g (27.2), 485g (30.9), 503g (31.6), 580g (34.9)

Specs 125mm;

• Max extended length: 290mm
• Max insertion length: 245mm
• Total post length: 421mm
• Weight: 525g (30.9), 545g (31.6), 635g (34.9)

Specs 150mm;

• Max extended length: 337mm
• Max insertion length: 270mm
• Total post length: 469mm
• Weight: 565g (30.9), 587g (31.6), 685g (34.9)

Specs 170mm;

• Max extended length: 378mm
• Max insertion length: 285mm
• Total post length: 505mm
• Weight: 586g (30.9), 609g (31.6), 735g (34.9)
