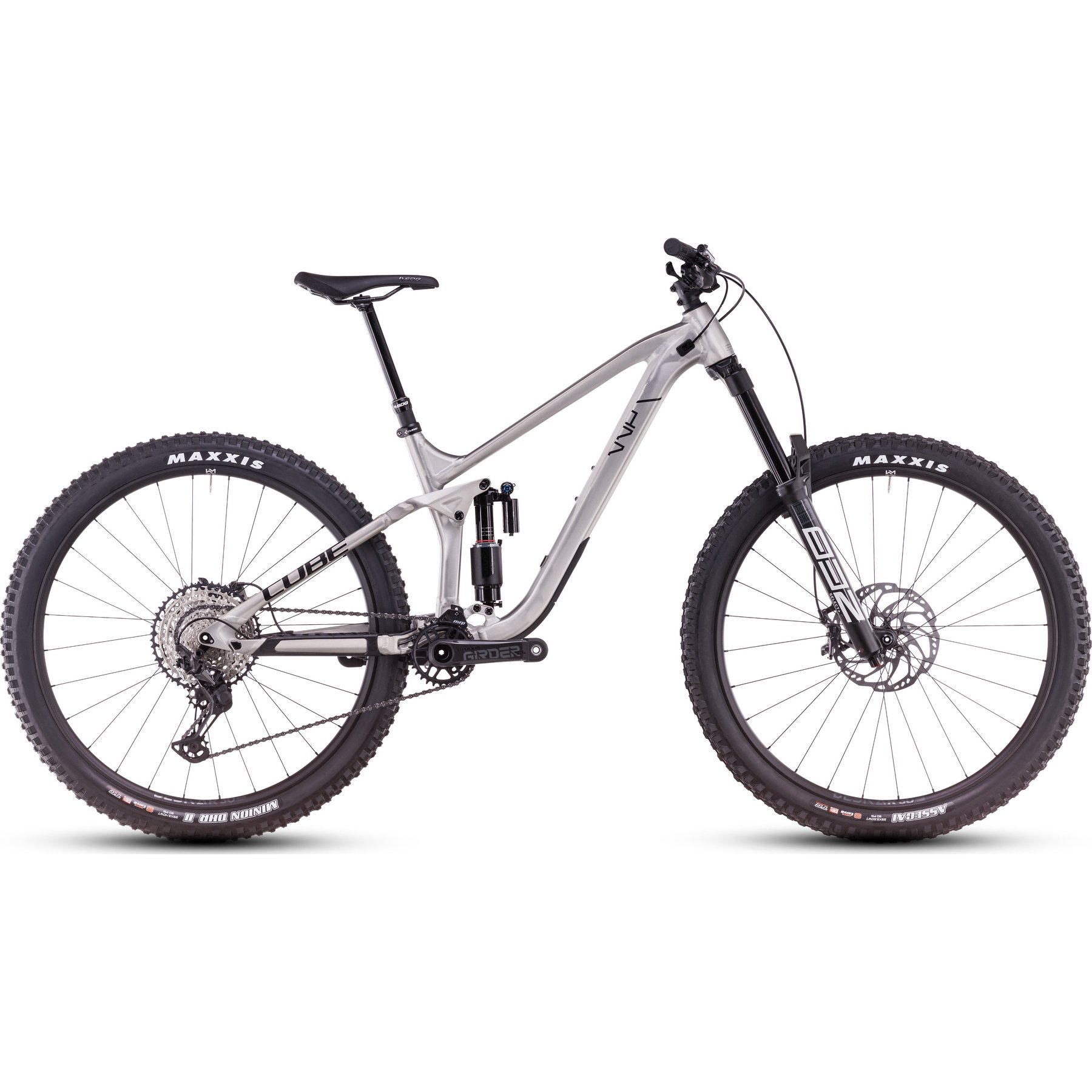

Cube Stereo ONE77 Race 29 Full Suspension Mountain Bike

Big wheels, big travel, big fun. The Stereo ONE77's frame is based on our proven four-bar suspension design and Agile Trail Geometry, for superb suspension performance and dependable handling in a huge range of trail conditions. With a flip chip and two mounting points for air and coil, the rear suspension setup is designed to be progressive – and there are angle adjustment inserts so you can tweak the geometry to suit your own preference. The frame is equally happy with an air or coil shock, and covered bearings and internally routed cables mean you can spend more time shredding and less time wrenching. Simply put, it redefines what a big-travel, big-wheeled bike can do.

Ain't no mountain high enough – and no trail tough enough – to defeat the Stereo ONE77 Race. RockShox Select+ suspension front and rear is just the start. Wrapped in our Agile Trail Geometry and with versatile setup options and great components, it's the bike you'll want beneath you for long days on rowdy trails in the mountains.

Features

• Adjustable headset angle: When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
• High Performance Aluminium: High performance aluminium is all about extracting the best possible performance from this strong, durable material. We select precisely the right grade of alloy for our needs, carefully tweak tube profiles to suit each application, and then meticulously weld each frame. It's your guarantee of a light, strong, durable and safe bike.
• Agile Trail Geometry: Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.
• Advanced Hydroforming: Our high end aluminium frame models are built using Advanced Hydroforming. This manufacturing process uses high pressure fluid to change an aluminium tube's shape, making the best use of the material's properties and maximising strength whilst miminising weight. It all helps reduce the number of welds, resulting in a frame that performs and looks better in every way.
• Flip Chip: Tuneability is the best way to get the ultimate performance from your suspension setup. CUBE's Flip Chip takes customisation to a new level, by allowing you to quickly dial the performance of both air and coil shocks to best suit your riding style, personal preference and trail conditions. Flip it, set it, and ride. It's that simple.

Specifications

• Frame: HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH, 170mm travel
• Size: 29: M, L, XL, XXL
• Suspension Fork: RockShox ZEB Select+ Charger 3.1 RC2, Tapered, 15x110mm, 170mm
• Shock: RockShox Vivid Select+, 230x65mm, Open Compression, Rebound & Hydr. Bottom Out Adjust, 2-Pos. Lever
• Shock Hardware: Top: 40x8mm, Bottom: 28x8mm (20x8mm Coil option)
• Brake System: Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
• Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• Shifters: Shimano XT SL-M8100-IR, Direct Attach
• Bottom Bracket: Praxis PF92, 92mm Pressfit
• Crankset: PRAXIS Girder HD Carbon, 30T
• Cassette: Shimano SLX CS-M7100, 10-51T
• Chain: Shimano CN-M6100
• Chain Guide: MRP 1X Chain Guide
• Headset: ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
• Stem: Newmen Evolution 318.4, 31.8mm
• Handlebar: Newmen Evolution SL 318.40, 800mm
• Grips: SDG Thrice
• Wheelset: Newmen Beskar 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Maxxis Assegai, MaxxTerra/EXO+, Tubeless Ready, 2.5 WT
• Rear Tyre: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
• Saddle: SDG Bel Air V3 Lux Alloy
• Seat Post: SDG Tellis V2, Handlebar Lever, Internal Cable Routing, 31.6mm
• Weight: 15,9 kg

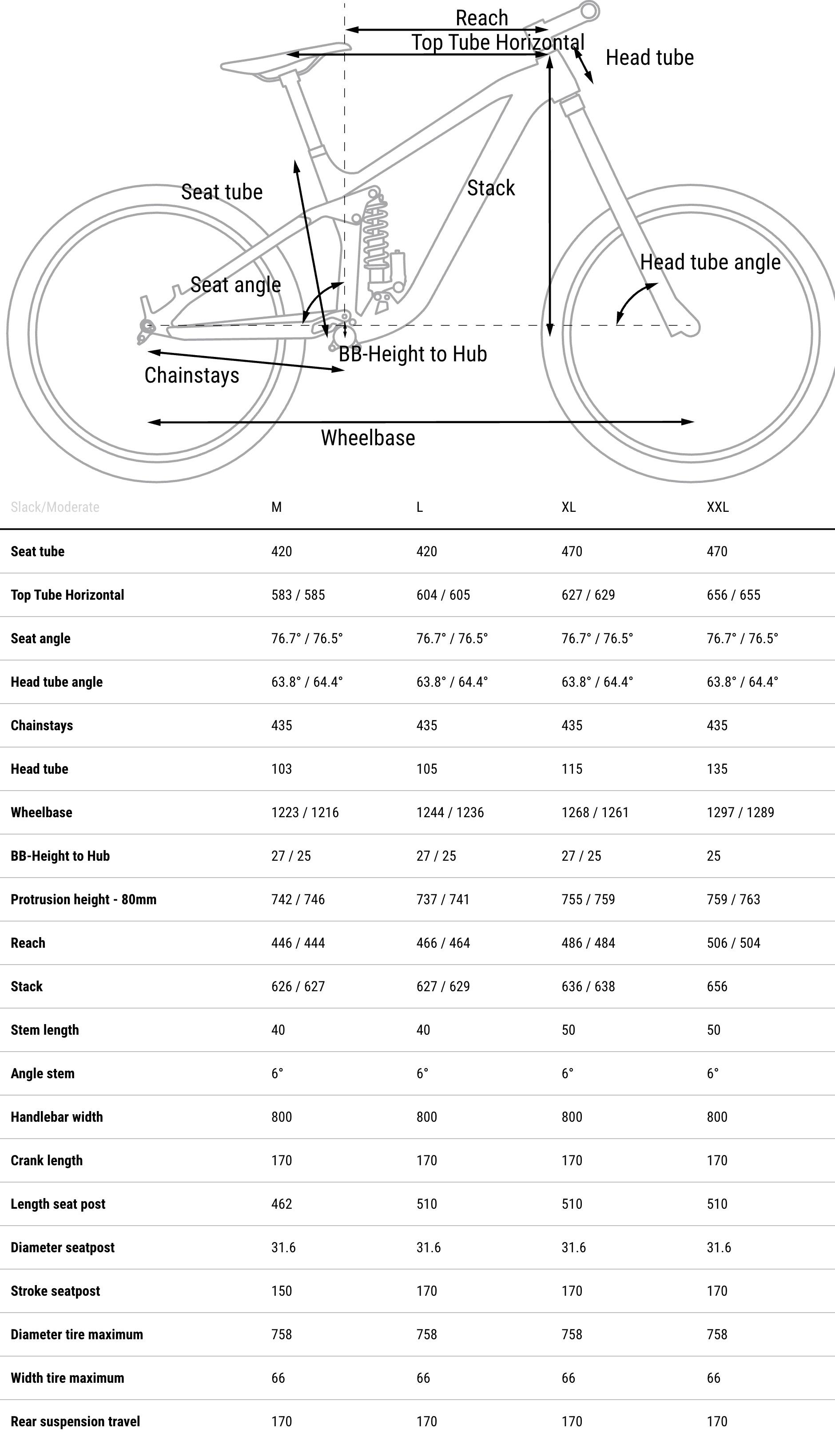

Geometry
