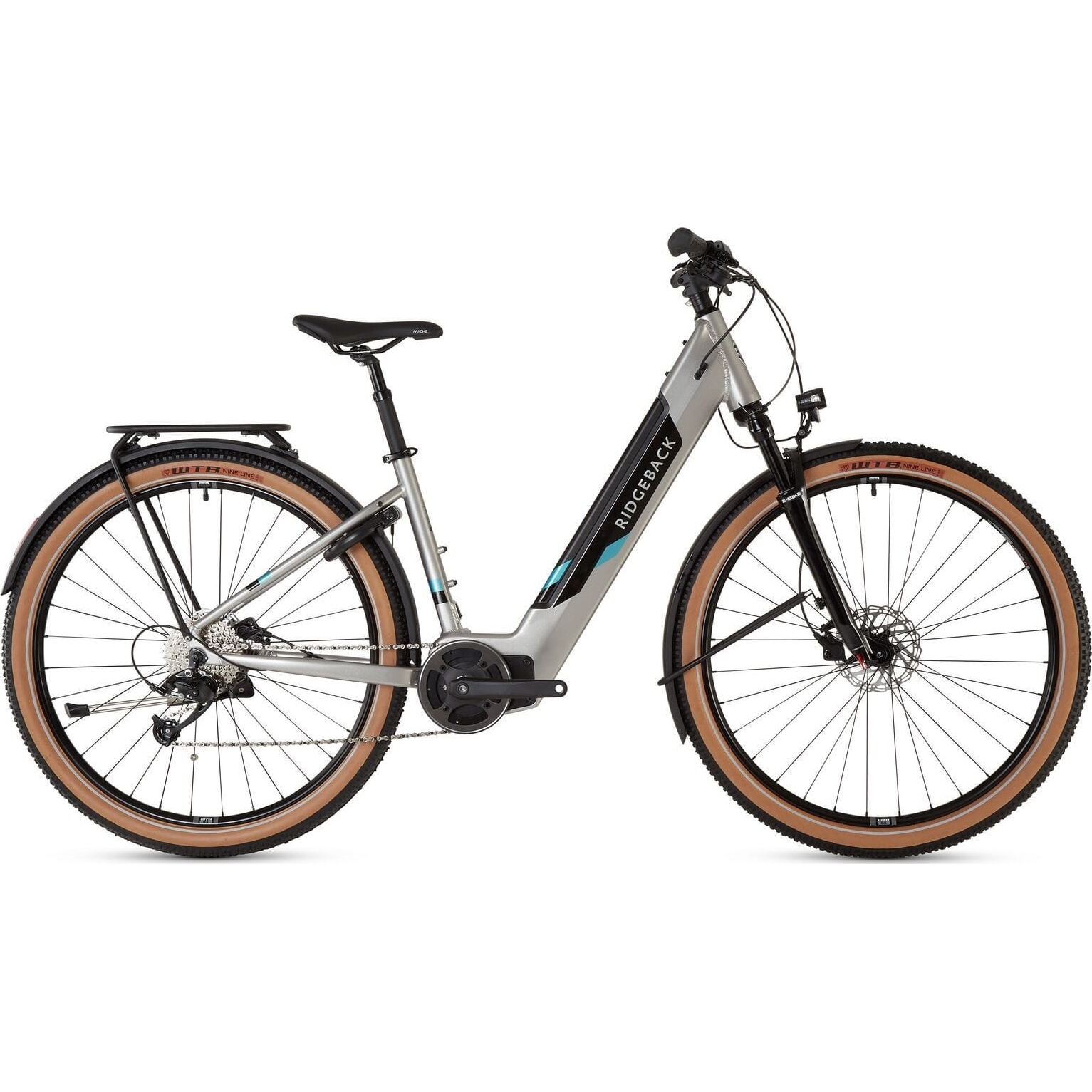

Ridgeback Arcus 3W Womens Electric City Bike

Meet the Arcus 3, our premium SportDrive equipped E-bike.

Features

• A true do it all bike that's at home on woodland trails as well as on the morning commute.

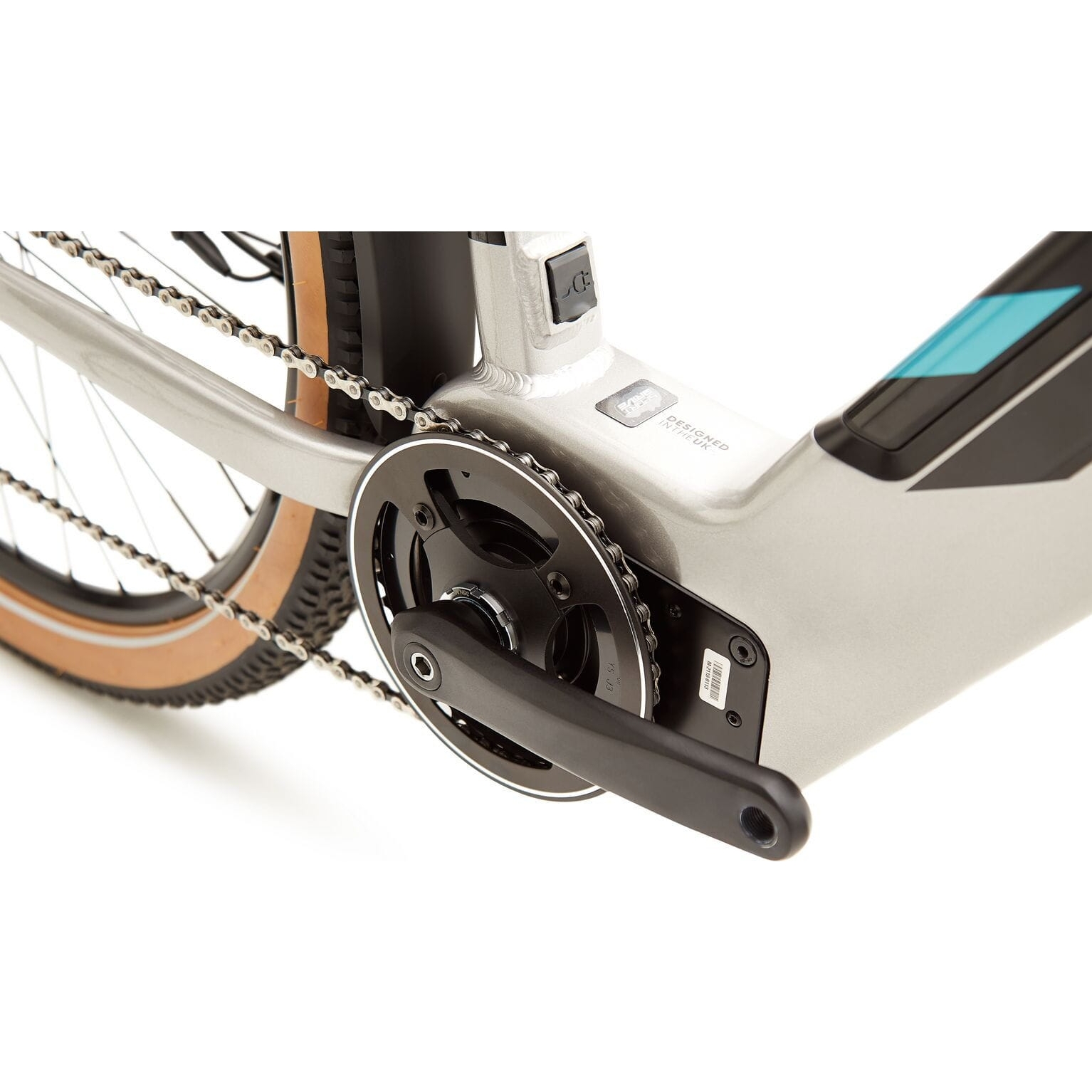

• Hills? What hills? With the SportDrive MDS250S drive unit boasting 95Nm of torque you will never have to worry about another climb again.
• The Arcus 3 can be tuned to exactly how you want to ride it whether that be increased torque for pulling away from traffic lights or a gentler start for a more leisurely ride with increased range.
• With a 500Wh internally mounted battery you can enjoy up to 100km of assisted pedalling, plenty of range for a weekend of exploring.

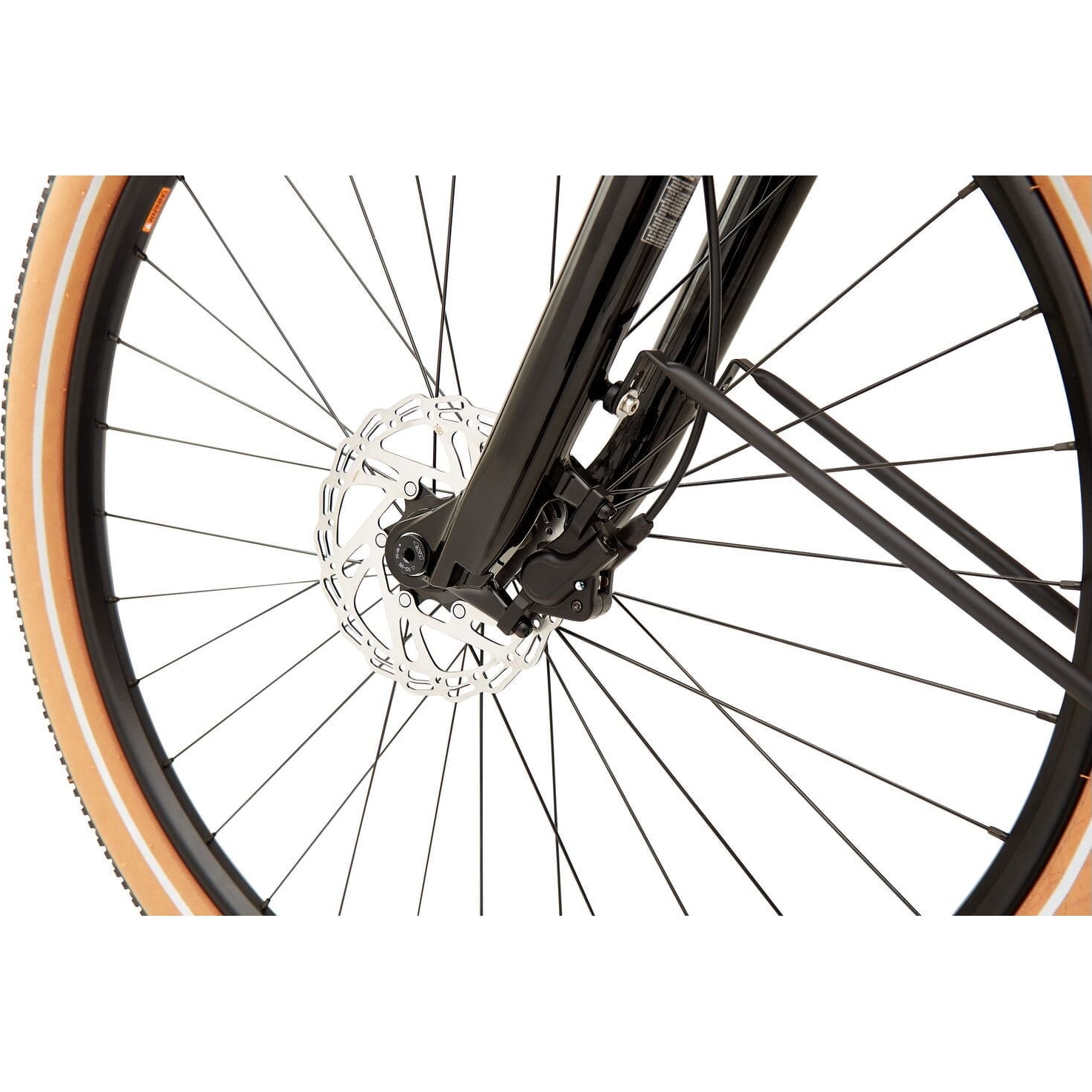

• The Arcus 3 comes fully equipped with a microSHIFT Mezzo 9–speed drivetrain and powerful hydraulic disc brakes.

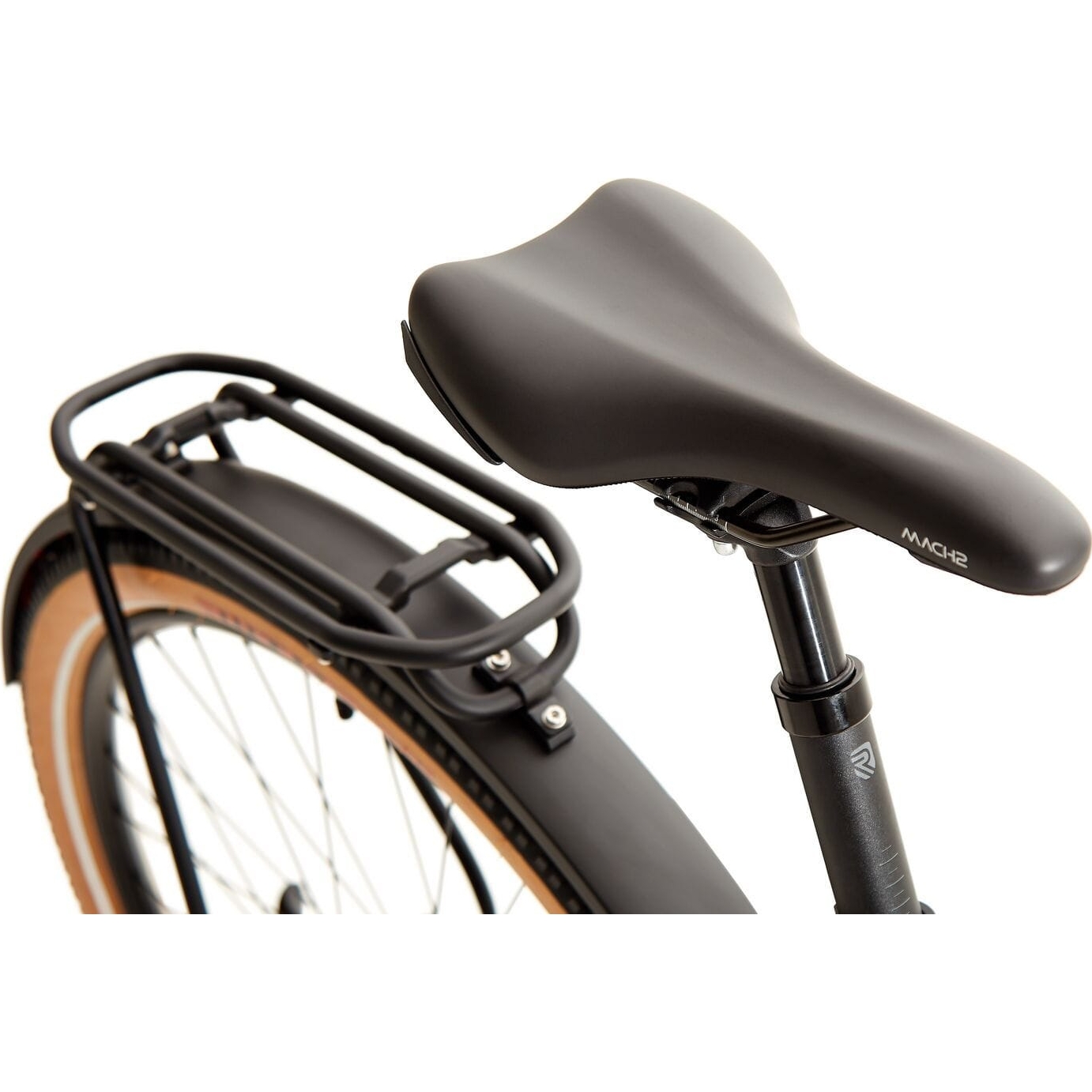

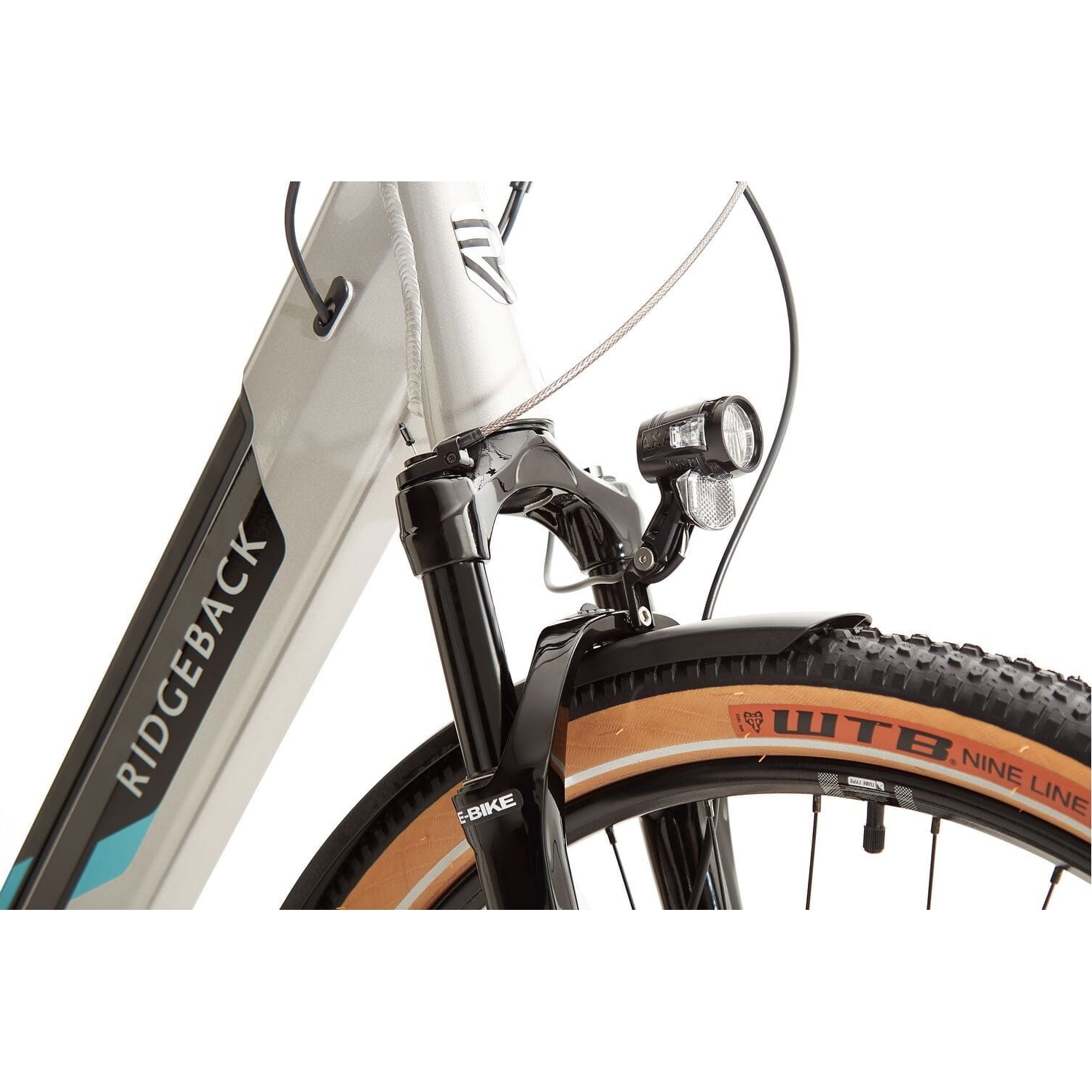

• The RST Air sprung suspension forks with remote lock out give you the adaptability to handle any terrain in comfort whilst bespoke alloy mudguards, AXA Blue line lights and the excellent AtranVelo rear rack system complete the build making a truly versatile package.

Specifications

• Battery Type: SportDrive Internal 500Wh

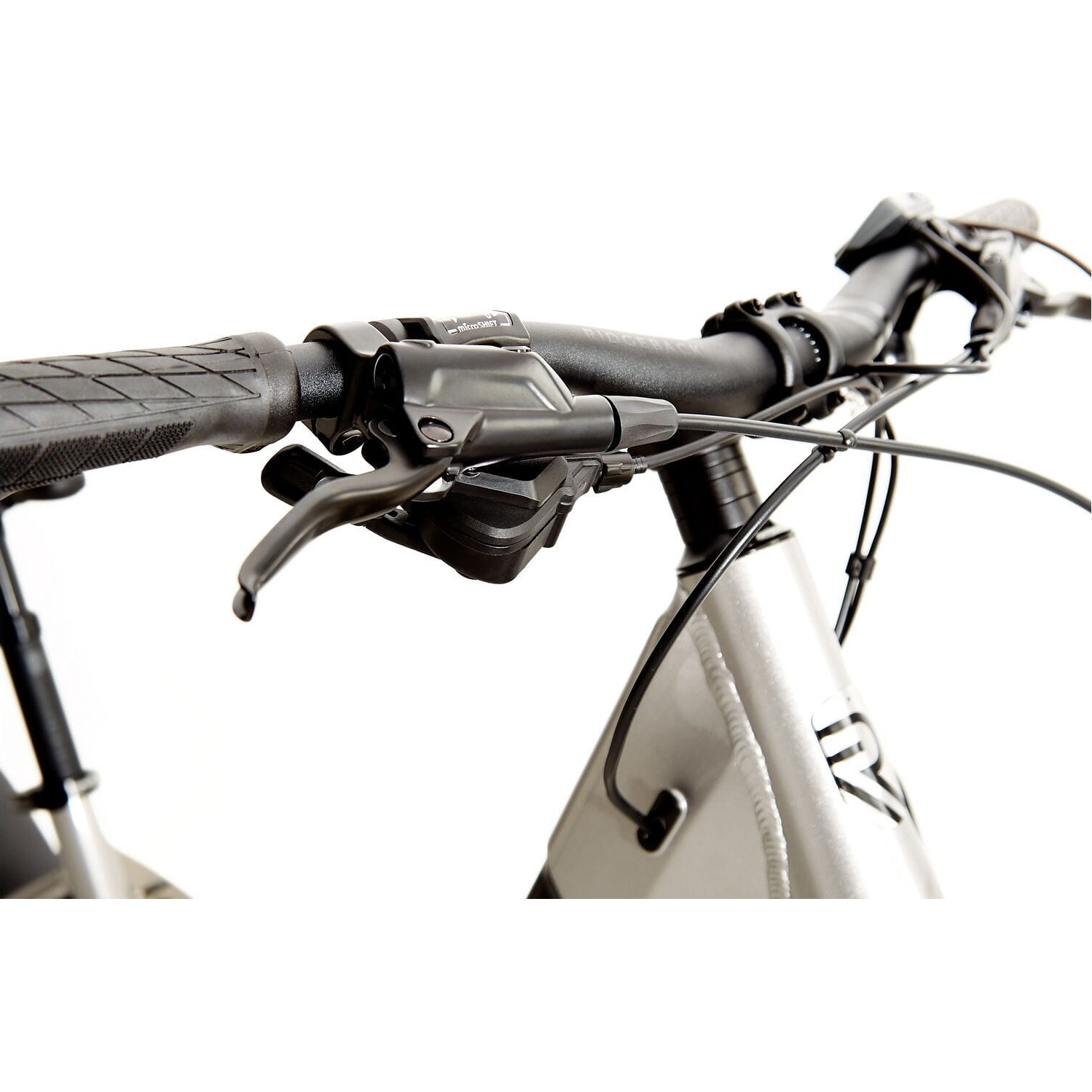

• Brake Levers: ALHONGA AHJ-OD07 Hydraulic Disc Brake
• Brakes: ALHONGA AHJ-OD07 Hydraulic Disc Brake
• Cassette Freewheel: Microshift CS-H092 11-36t 9-speed
• Chain: KMC X9EPT
• Chain Set: SportDrive 170mm 38t
• Charger: SportDrive 2Ah
• Grip Tape: Ridgeback Lock On
• Headset: FSA Orbit 1.5E No.57B Zero Stack
• Hubs: Front: Shimano HB-M6010 32h 15mm / Rear: Shiamno FH-M4050 32h QR
• Motor: SportDrive MD250S 36v 95Nm 250W
• Mudguard: Fitted
• Pedals: Resin Metro
• Rear Derailleur: microSHIFT Mezzo RD-M36L 9-speed
• Rims: WTB SX19 32h
• Seat Post: ONE1 Alloy SPS 405 Suspension 30.9mm x 350mm
• Shifters: microSHIFT Mezzo TS39 9-speed
• Spokes: Steel 14g
• Stem: Ridgeback Alloy 45mm x 3 degrees
• Tyres: WTB Nineline 29x2.25"
• Wheel Size: 29 inch
• Battery Integration: Internal
• Fork: 80mm, RST Air Sprung with lockout
• Fork Material: Alloy
• Frame Material: Alloy
• Specification Disclaimer: Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
• Brake Type: Hydraulic Disc

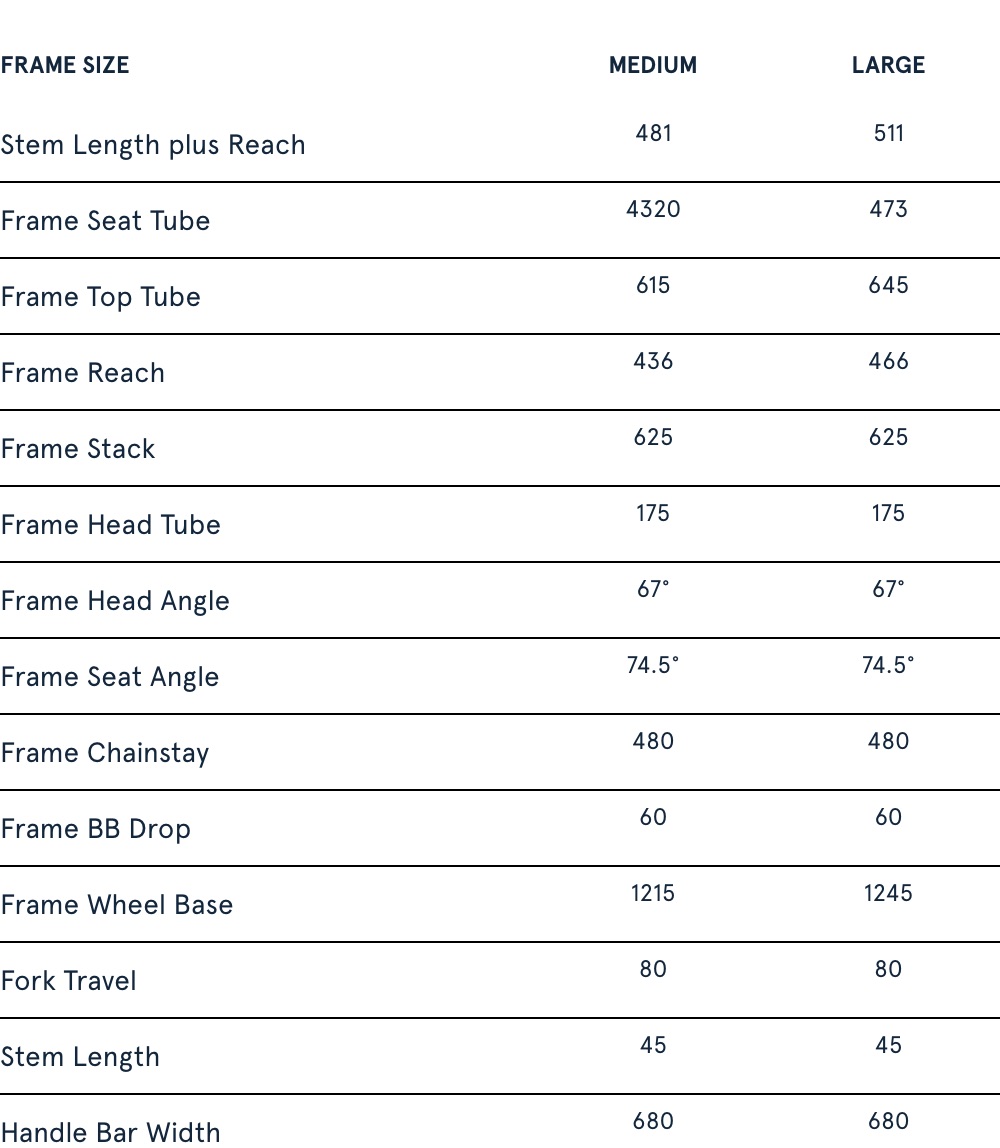

Geometry
