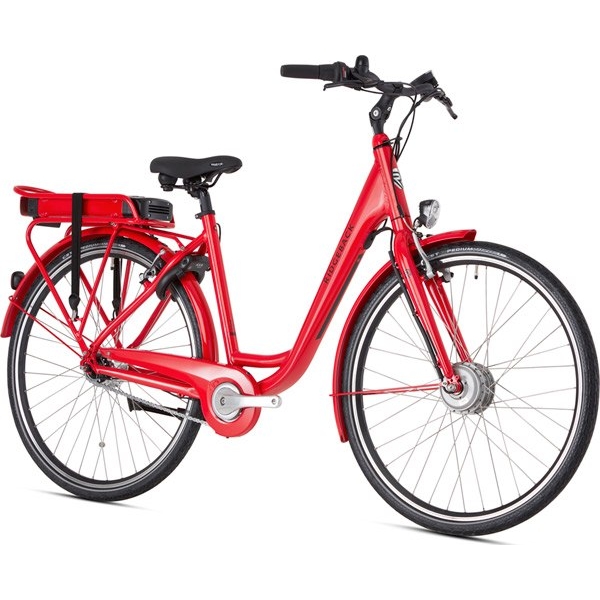

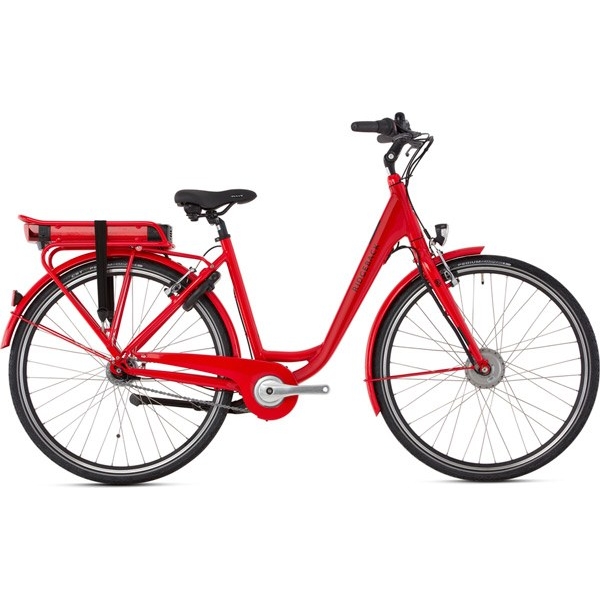

Ridgeback Electron Front Hub Drive Electric City Bike

Our most affordable E-bike, the Electron Front Hub Drive gives a powerful pedal assist to help you ride further, faster.

Features

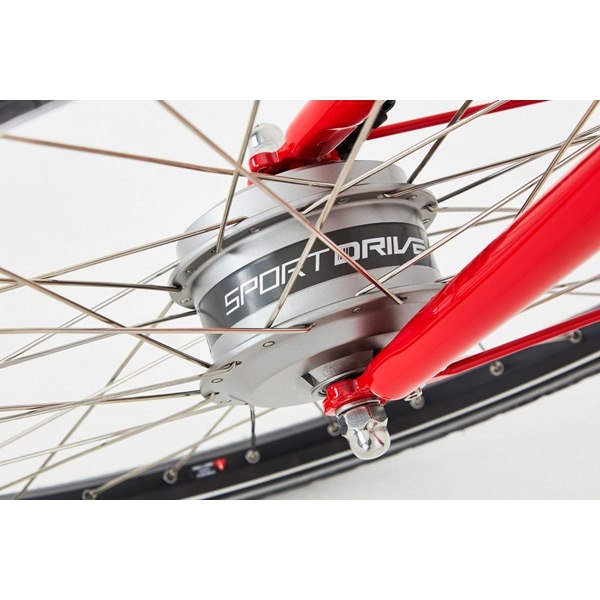

• The motor is located at the centre of the front wheel and gives assistance up to speeds of 25km/h, making light work of any climbs you may encounter.

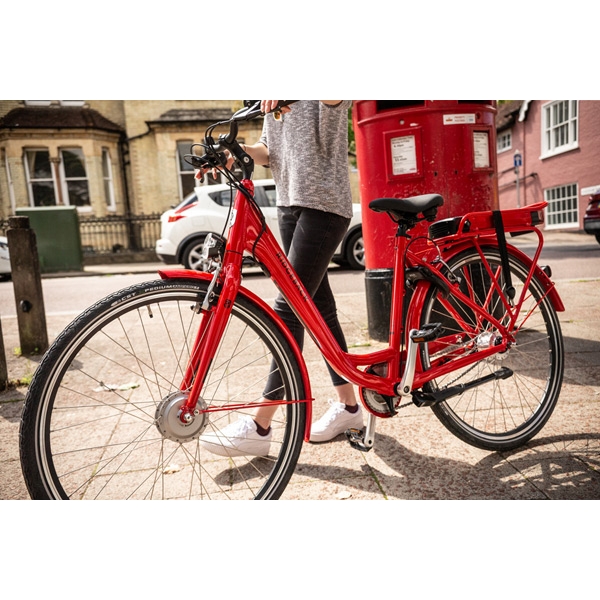

• The open frame design makes it easy to step through the bike, get onto the saddle and start riding.

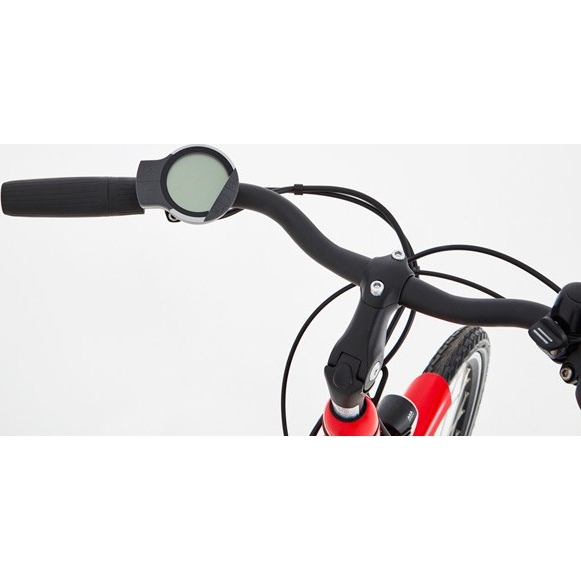

• The Electron has a range of up to 55-kilometres, making it perfect for local rides and an overnight re-charge will have you ready for your next trip. Comfort is catered for with wide tyres, an elastomer-sprung high-fill saddle and an adjustable stem enabling the rider to choose their preferred handlebar height.
• The Electron is also fully equipped with lights, a kickstand and rear wheel lock, as well as mudguards to minimise spray on wet roads and a chain case to protect legs and trousers from oily marks.
• Weight - 24.7kg

Specifications

• Frame: SPORTDRIVE 6061 HEAT TREATED ALUMINIUM
• Fork: STEEL DISC
• Headset: FSA TH-805ST 1-1/8"
• Shifters: SHIMANO NEXUS SL-C3000 7-SPEED
• Chainset: STEEL/ALLOY 170MM, 36T
• Cassette / Freewheel: SHIMANO 18T
• Rims: ALLOY J19SZR 36H
• Hubs: SPORTDRIVE M123 / SHIMANO NEXUS SG-C300 36H
• Spokes: STEEL 14G

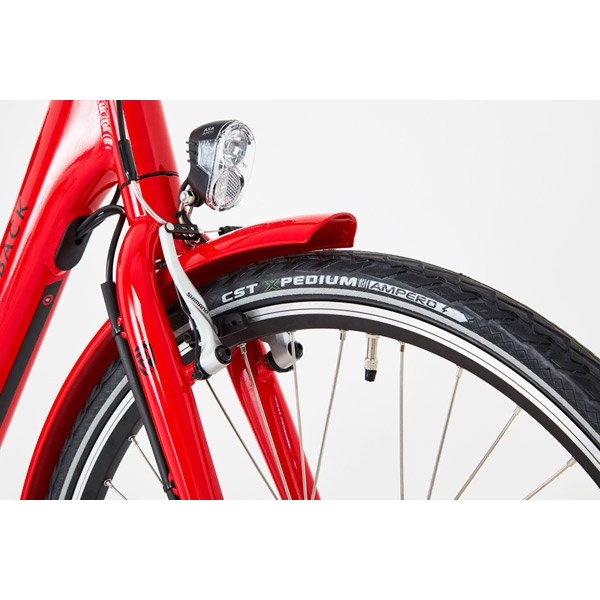

• Tyres: CST AMPERO 700x40C
• Brakes: SHIMANO BR-T4000 V-BRAKE
• Brake levers: SHIMANO BR-T4000 V-BRAKE
• Handlebars: ALLOY 33DEG BACKSWEEP, 25.4MM BAREBORE, 600MM WIDTH
• Stem: ALLOY, ADJUSTABLE 90MM
• Saddle: SELLE ROYAL WAVE
• Seatpost: ALLOY 30x300MM
• Pedals: RIDGEBACK METRO
• Drive Unit: SPORTDRIVE M123, 250W, 30NM

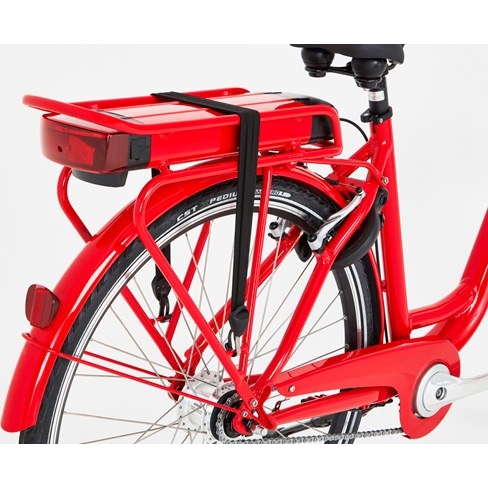

• Battery: SPORTDRIVE 313WH
• Charger: SPORTDRIVE 2AH

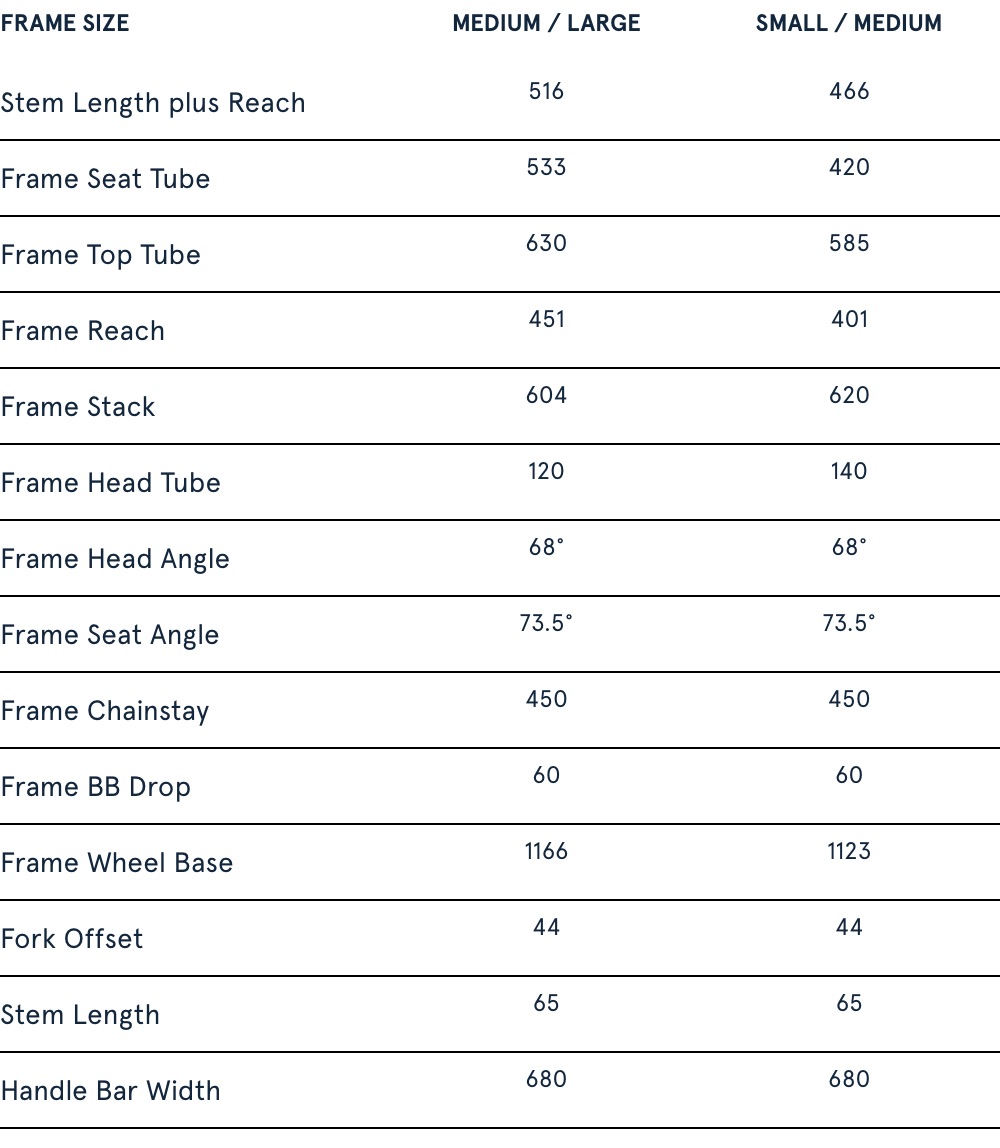

Geometry
