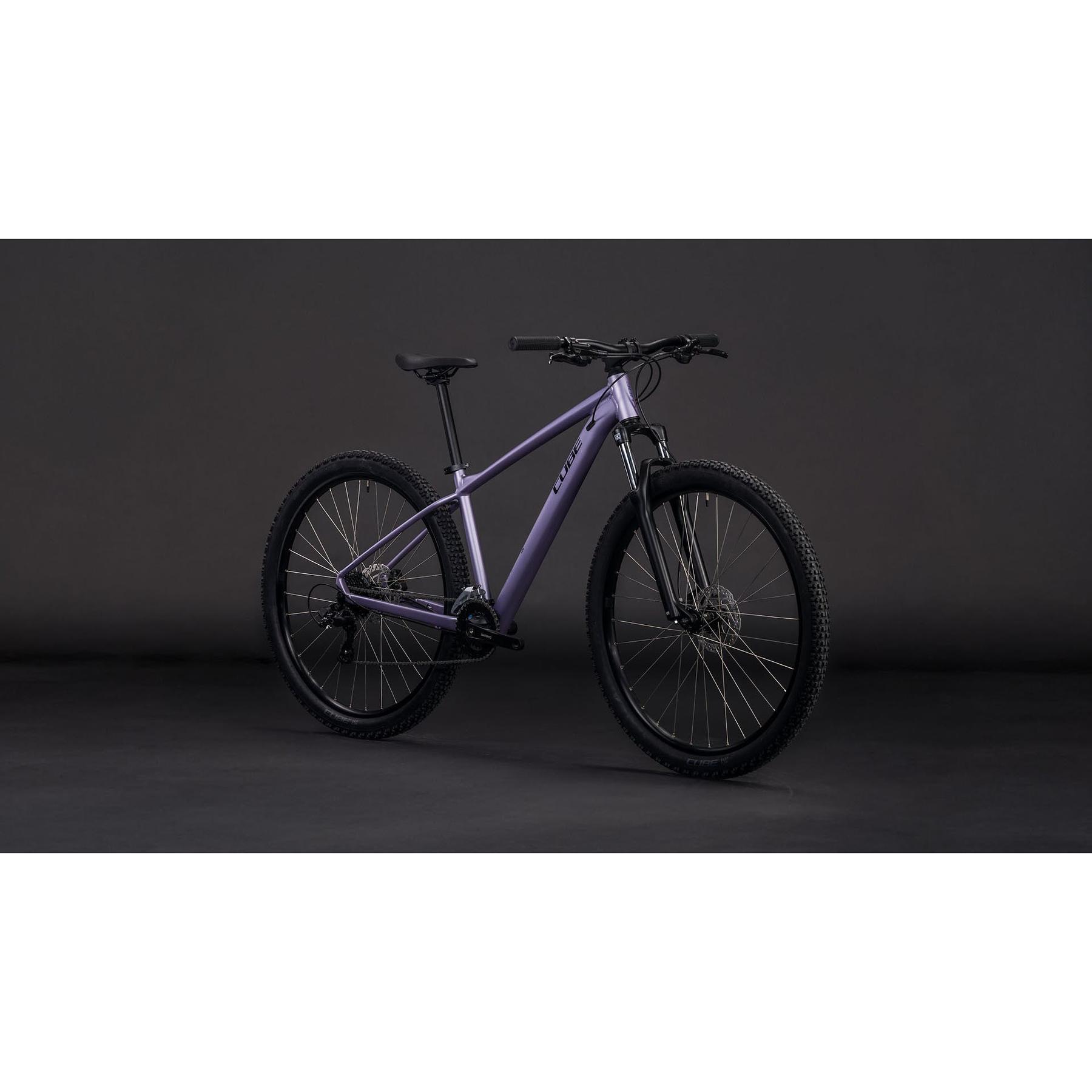

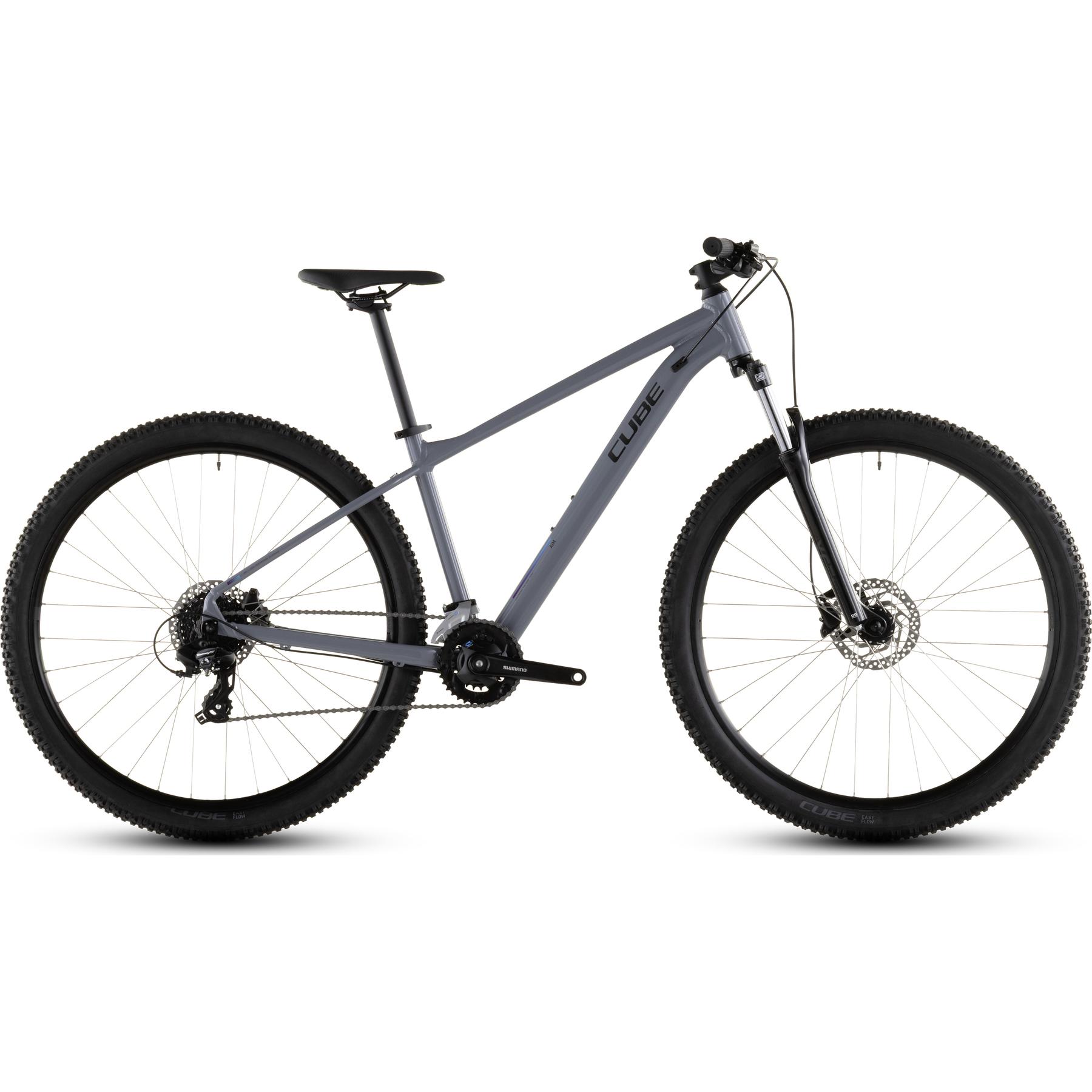

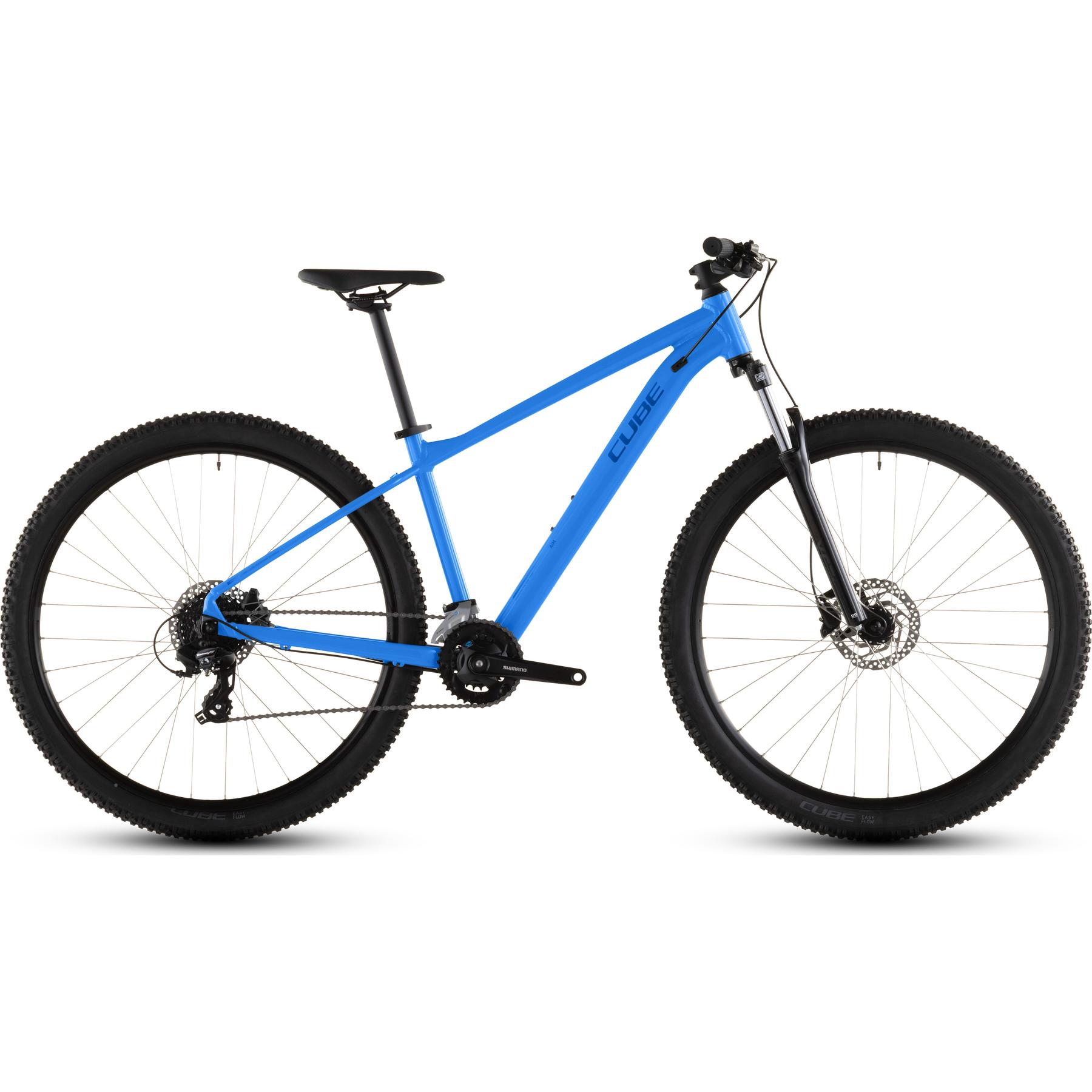

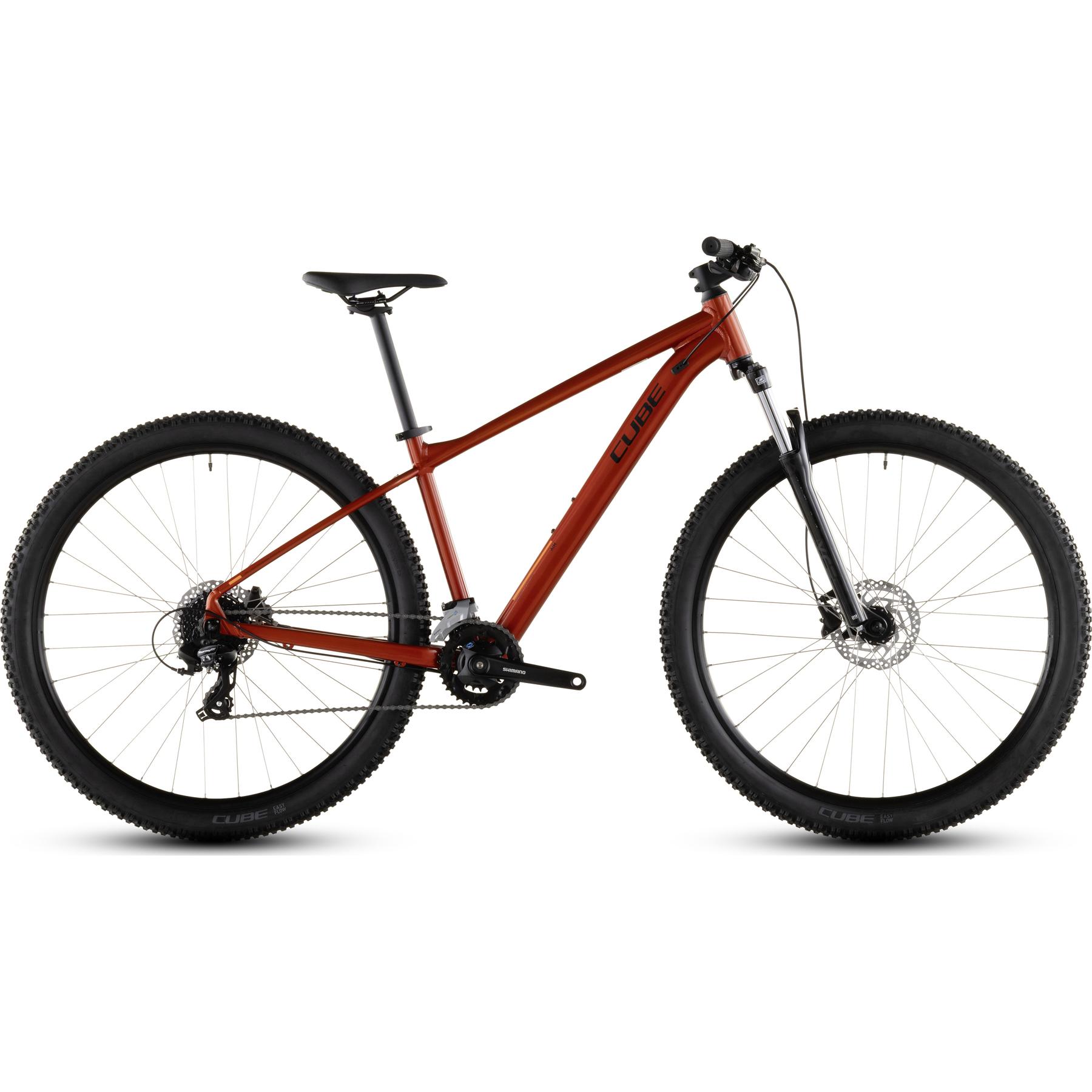

Cube Aim One Hardtail Mountain Bike

Your bike should be an extension of you, so that you can just enjoy the ride.

Features

• That's why, with the Aim ONE, we fitted a 100mm suspension fork and grippy 2.25in tyres.
• Together, they help keep you comfortable and in control, no matter what surface you're riding on.
• Shimano's 2x8-speed gears give you the range you need at the push of a button, and powerful Shimano hydraulic disc brakes bring you safely to a stop no matter what the weather's doing.
• And Size Split, with its huge range of sizes, means every rider can find their perfect Aim.

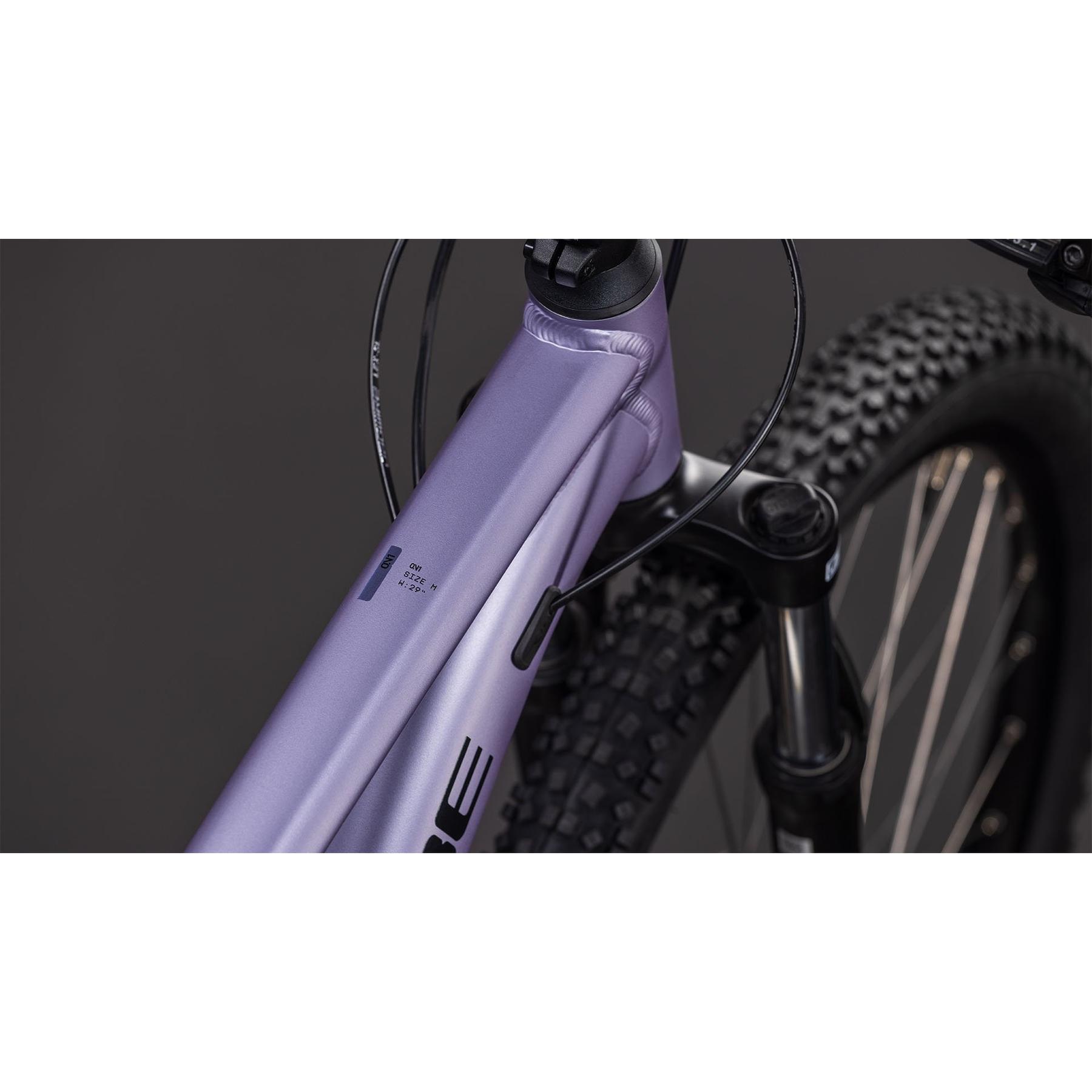

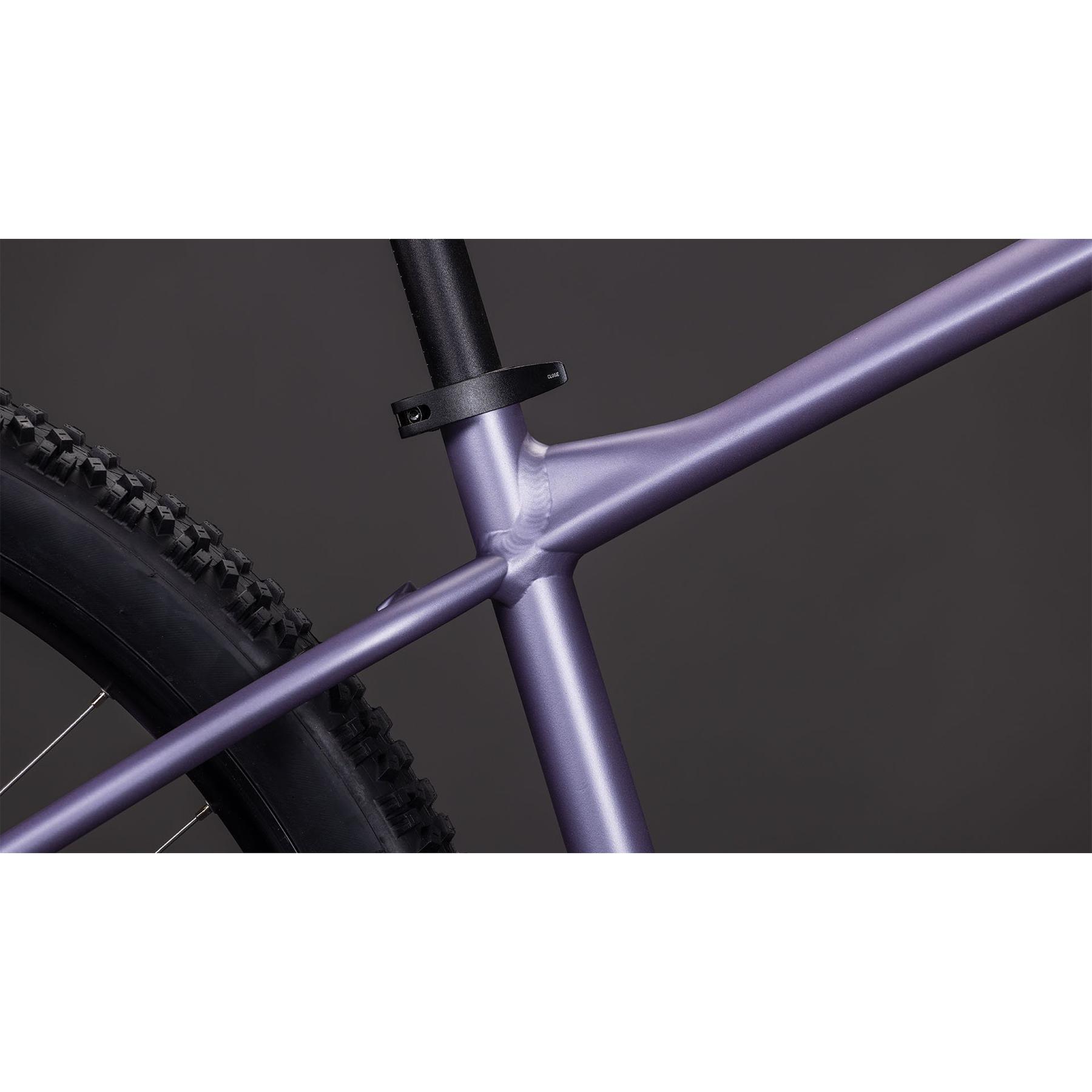

• Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter.

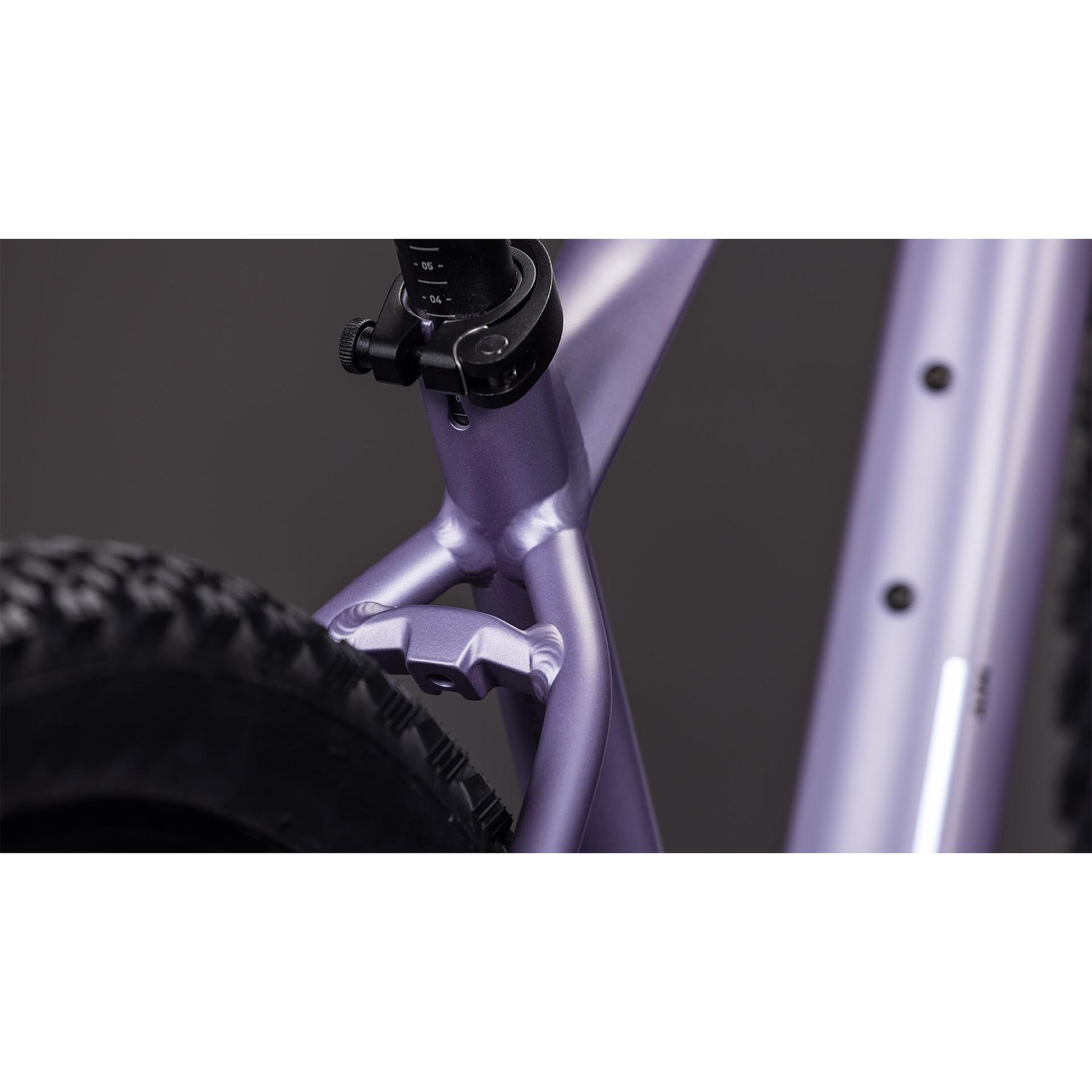

• It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier.
• Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
• Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Specifications

• Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount

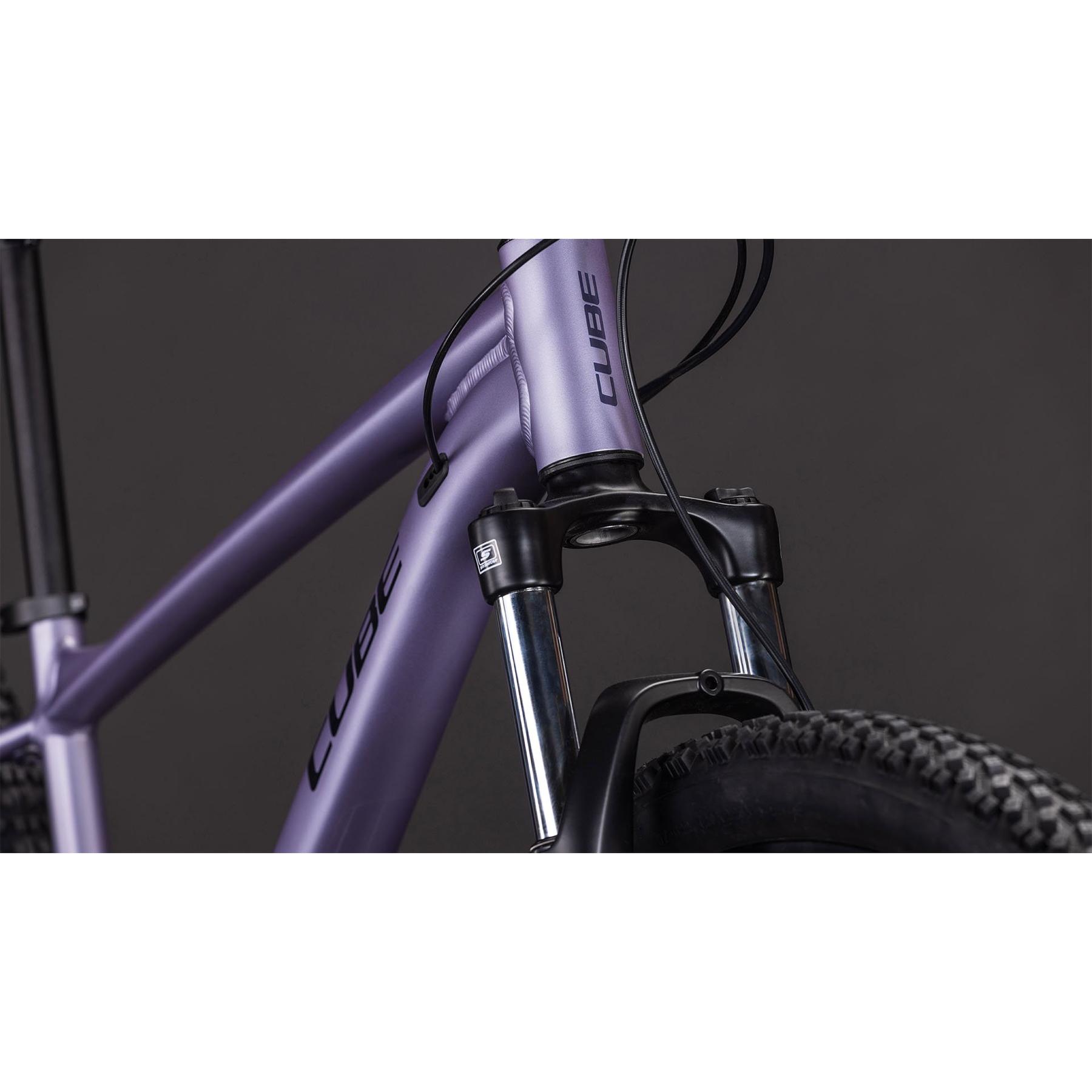

• Fork: SR Suntour XCE, 100mm
• Headset: CUBE FPH863, Semi-Integrated
• Stem: CUBE Performance Stem, 31.8mm
• Handlebar: CUBE Rise Trail Bar, 680mm
• Grips: ACID Icon
• Rear Derailleur: Shimano RD-TX800, 8-Speed
• Front Derailleur: Shimano FD-M315, Top Swing, 31.8mm Clamp
• Shifters: Shimano SL-M315, Rapidfire-Plus
• Brakes: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
• Bottom Bracket: Thun Paso-ML, 73mm BSA
• Crankset: Shimano FC-M315, 36x22T, 170mm
• Casette: Shimano CS-HG200, 12-32T
• Number of Gears: 16
• Chain: KMC Z8.3
• Wheelset: ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
• Tyres: CUBE MTB, 2.25
• Pedals: CUBE PP MTB
• Saddle: ACID Venec Lite
• Seatpost: CUBE Performance Post, 27.2mm
• Weight: 15,10kg

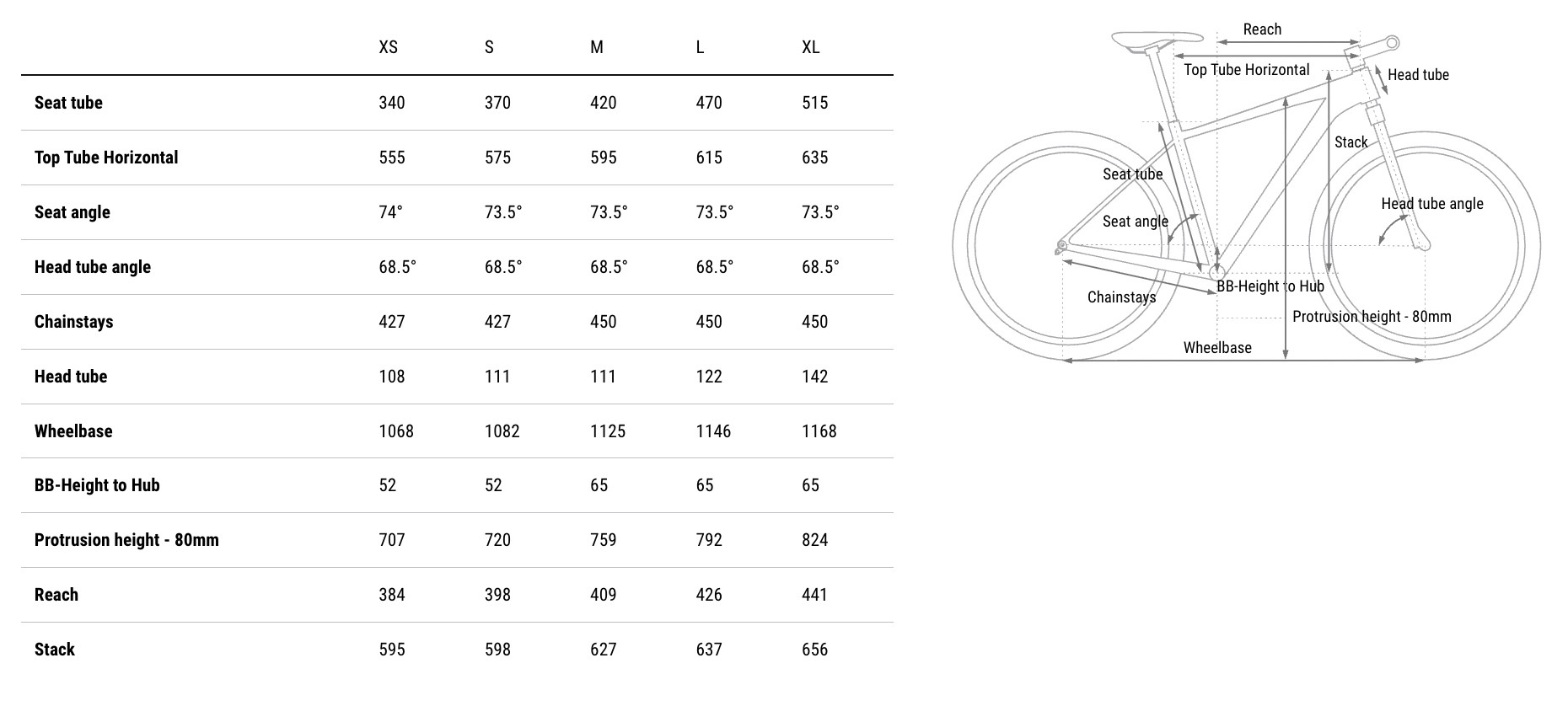

Geometry
