Cube AMS Hybrid One77 C:62 TM 600X Electric Mountain Bike

A bike built to take on the rowdiest mountain trails and come out on top needs components to match.

Features

• So, for the AMS Hybrid 177 C:62 TM 600X, we began by selecting Fox's 38 Float Performance fork and matched it with a Float X2 Performance shock.
• Then we shod a pair of Newmen Beskar 30 wheels with Continental Argotal and Kryptotal 2.4in tyres, and added a set of Sram's powerful Maven Silver hydraulic disc brakes.
• There's a Kiox 400C controller to keep you on top of the Bosch CX drive and 600Wh battery's performance.
• And an ACID carbon crank pairs with Sram's Transmission 90 1x12 gears to get your power to the trail.
• It's ready.
• Are you?
• We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it.
• Built from our C:62 carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery.
• We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed.
• Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference.
• Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard.
• Bring it on!

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing

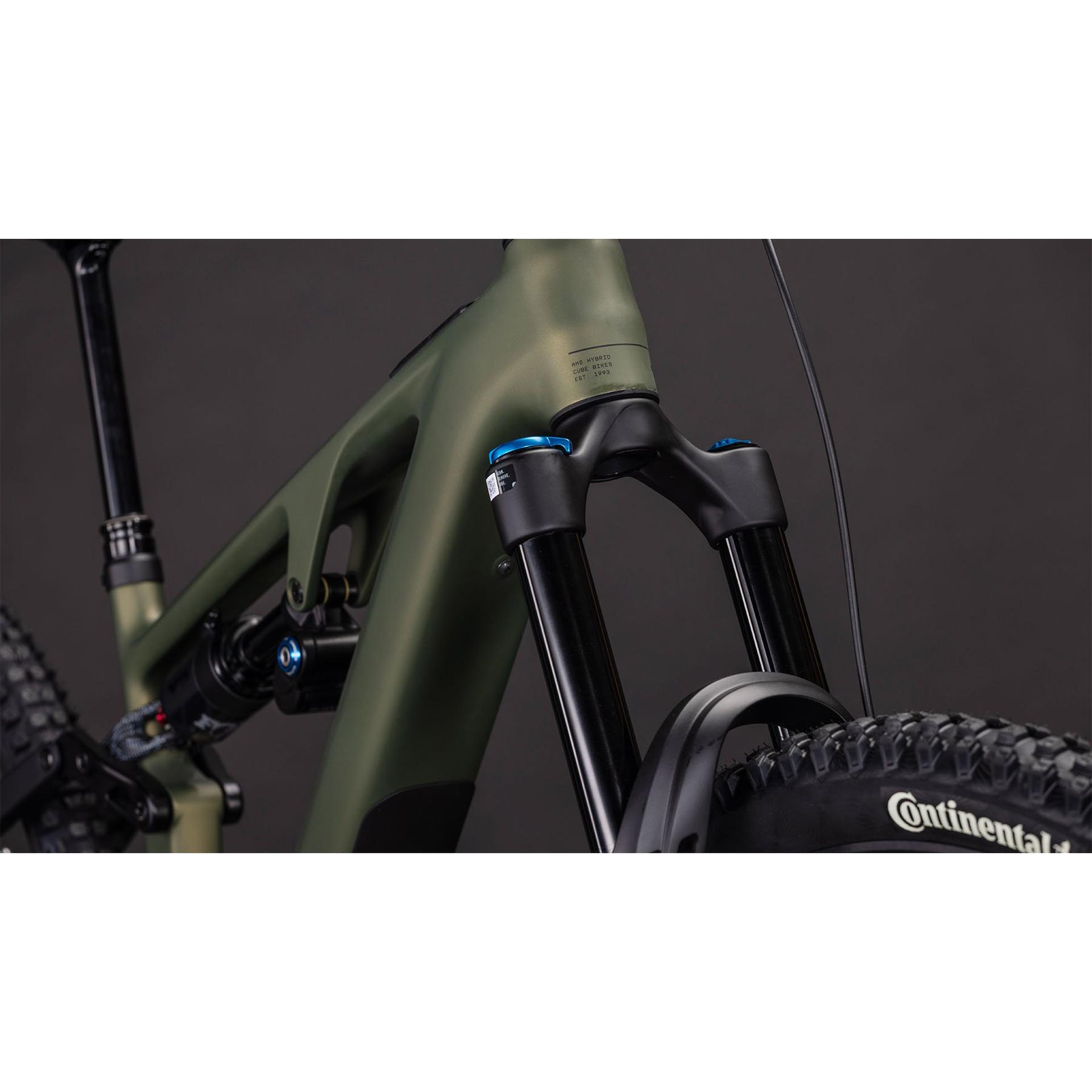

• Fork: Fox 38 Float Performance GRIP, Tapered, 15x110mm, 170mm

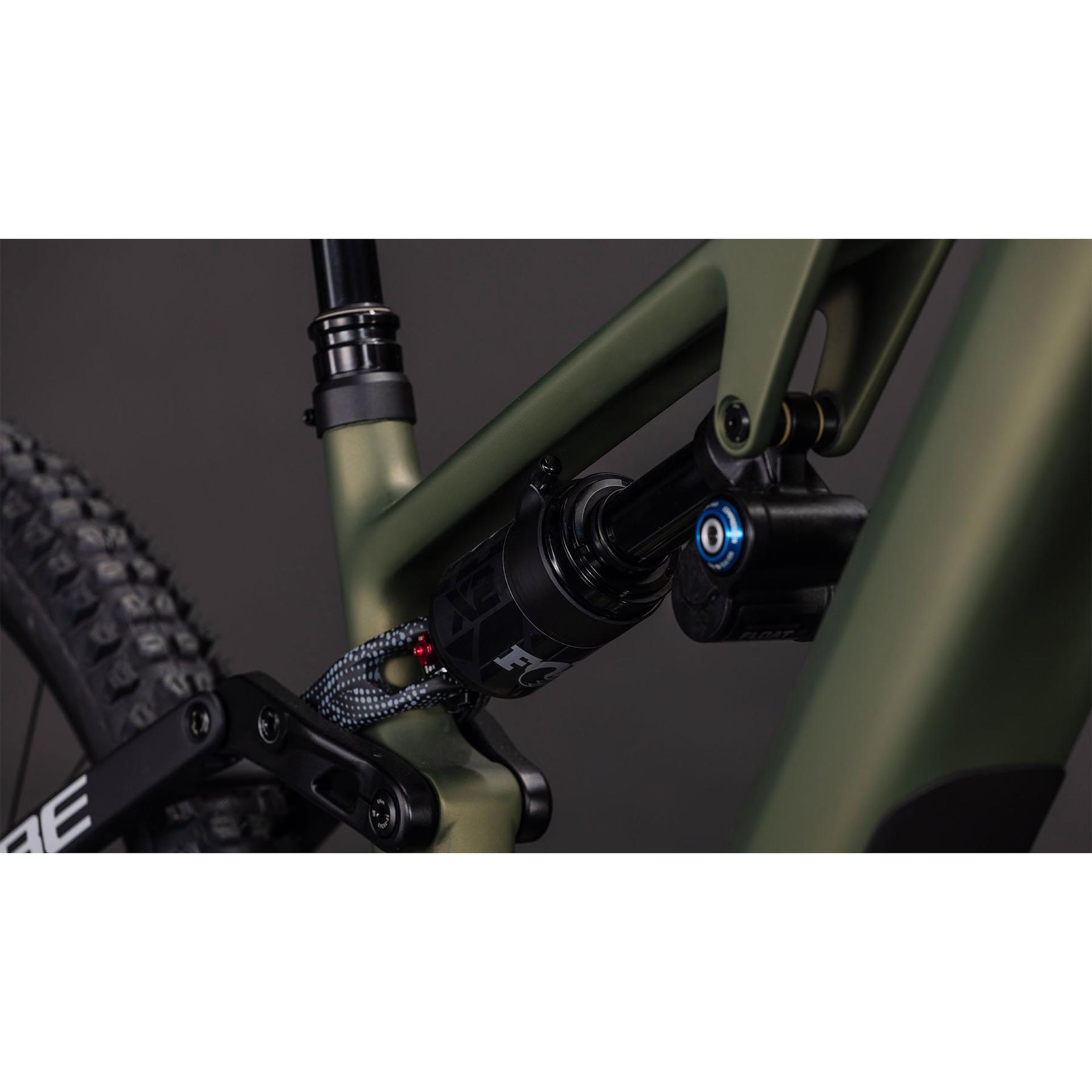

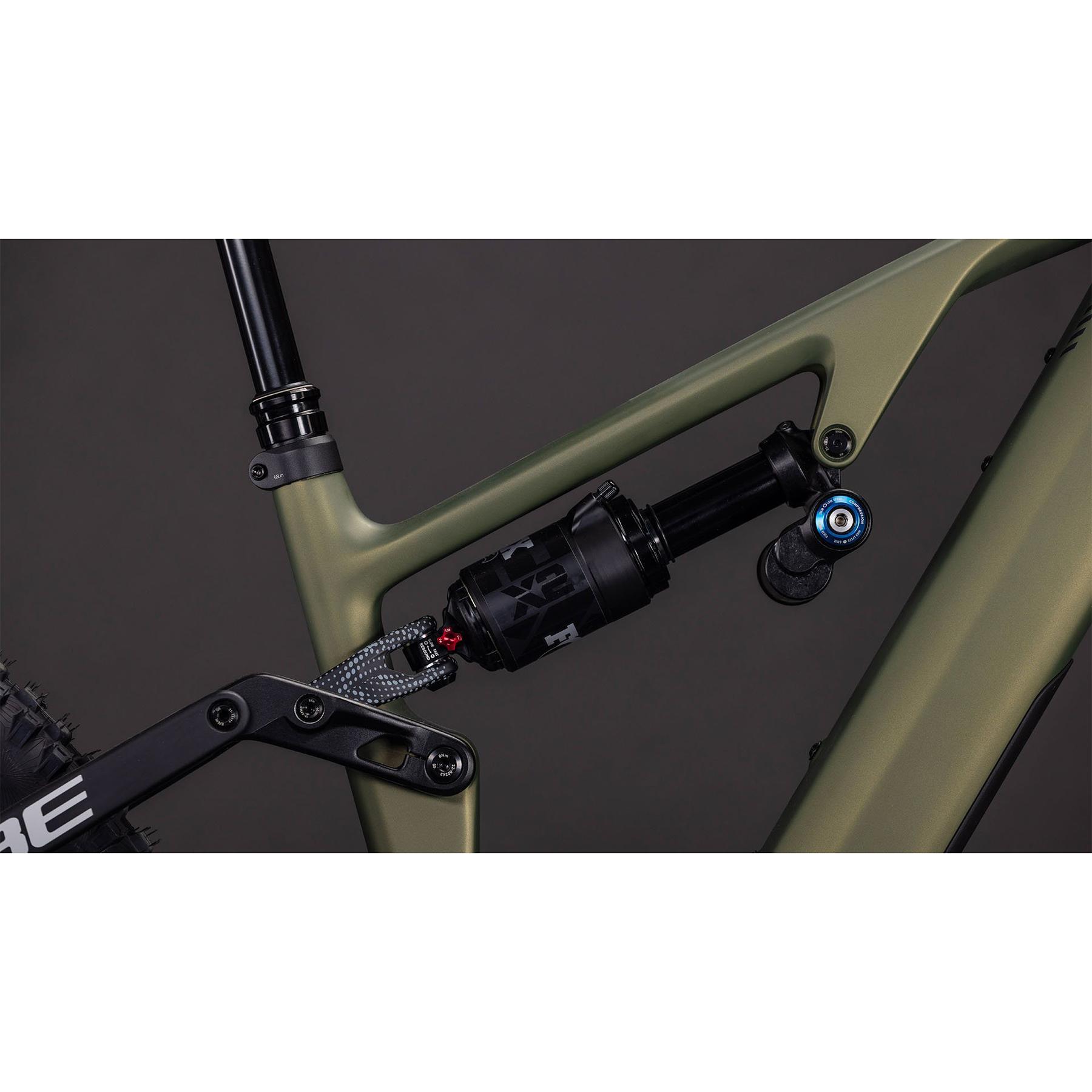

• Shock: Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos. Lever
• Shock Hardware: Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• Stem: Newmen Evolution SL 318.4, 31.8mm
• Handlebar: Newmen Beskar 318.40 w/ VariGrip System
• Grips: Newmen Slat VGS
• Rear Derailleur: Sram Eagle 90 Transmission, 12-Speed
• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Sram Eagle 90 Transmission
• Brakes: Sram Maven Silver, Hydr. Disc Brake (200/200)

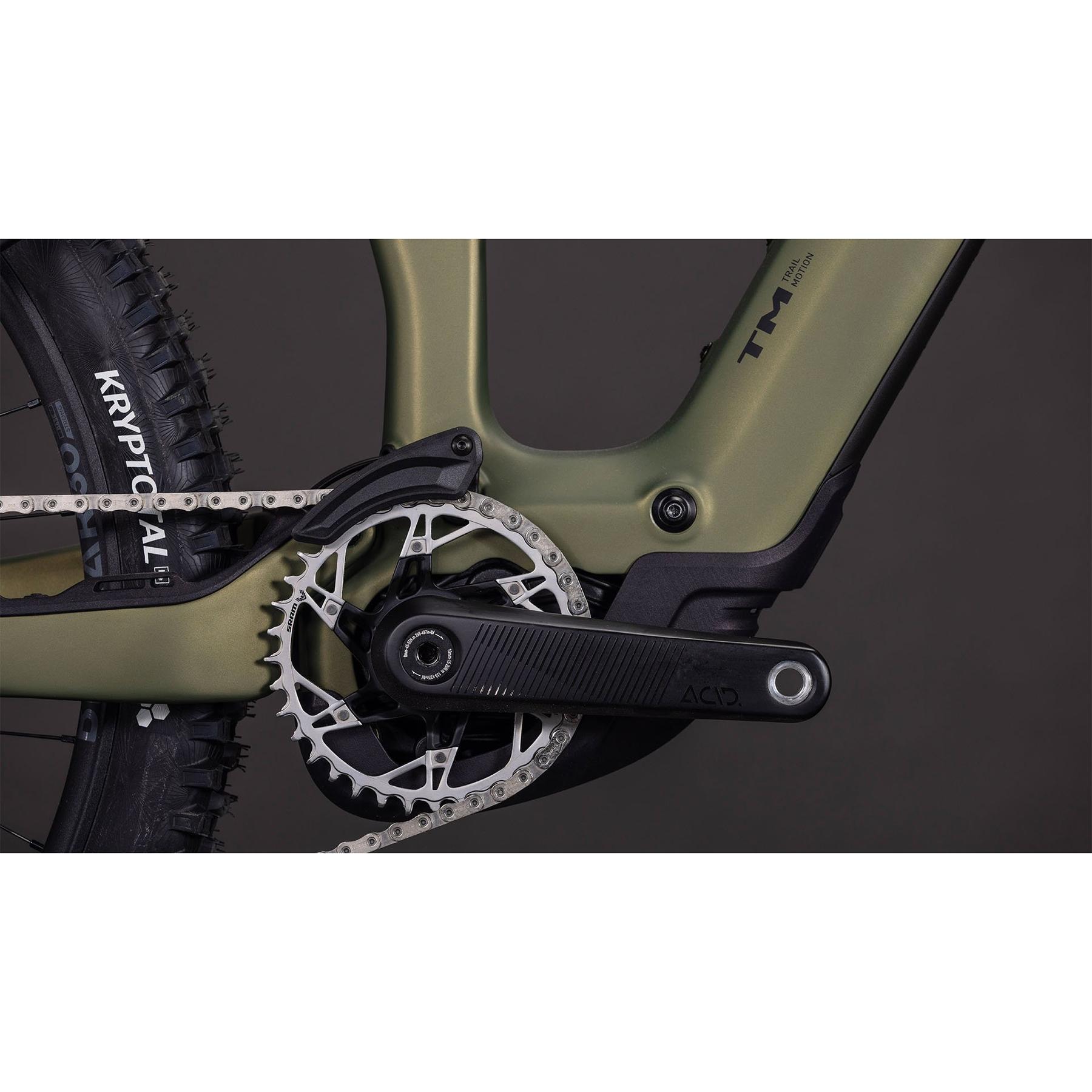

• Crankset: ACID MTB Hybrid Carbon, 36T
• Casette: Sram XS-1275, 10-52T
• Number of Gears: 12
• Chain: Sram GX Eagle™ Transmission
• Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Conti Argotal, Enduro Super Soft, Tubeless Ready, 2.4
• Rear Tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
• Pedals: ACID PP MTB
• Saddle: ACID Venec EMTB Trail 140
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
• Engine: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
• Battery: Bosch PowerTube 600
• Charger: Bosch 4A
• Remote: Bosch Mini Remote

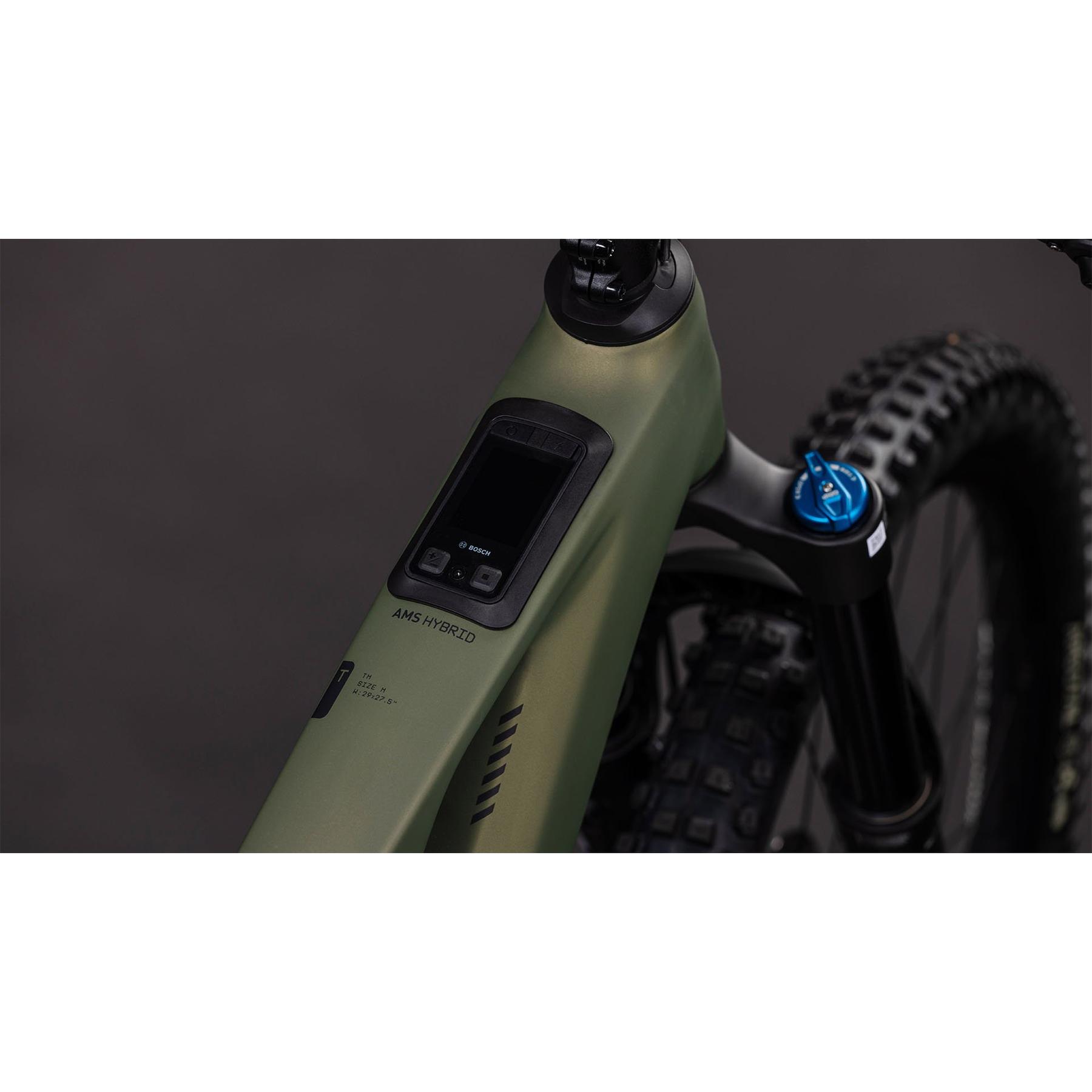

• Display: Bosch Kiox 400C
• Weight: 21,90kg

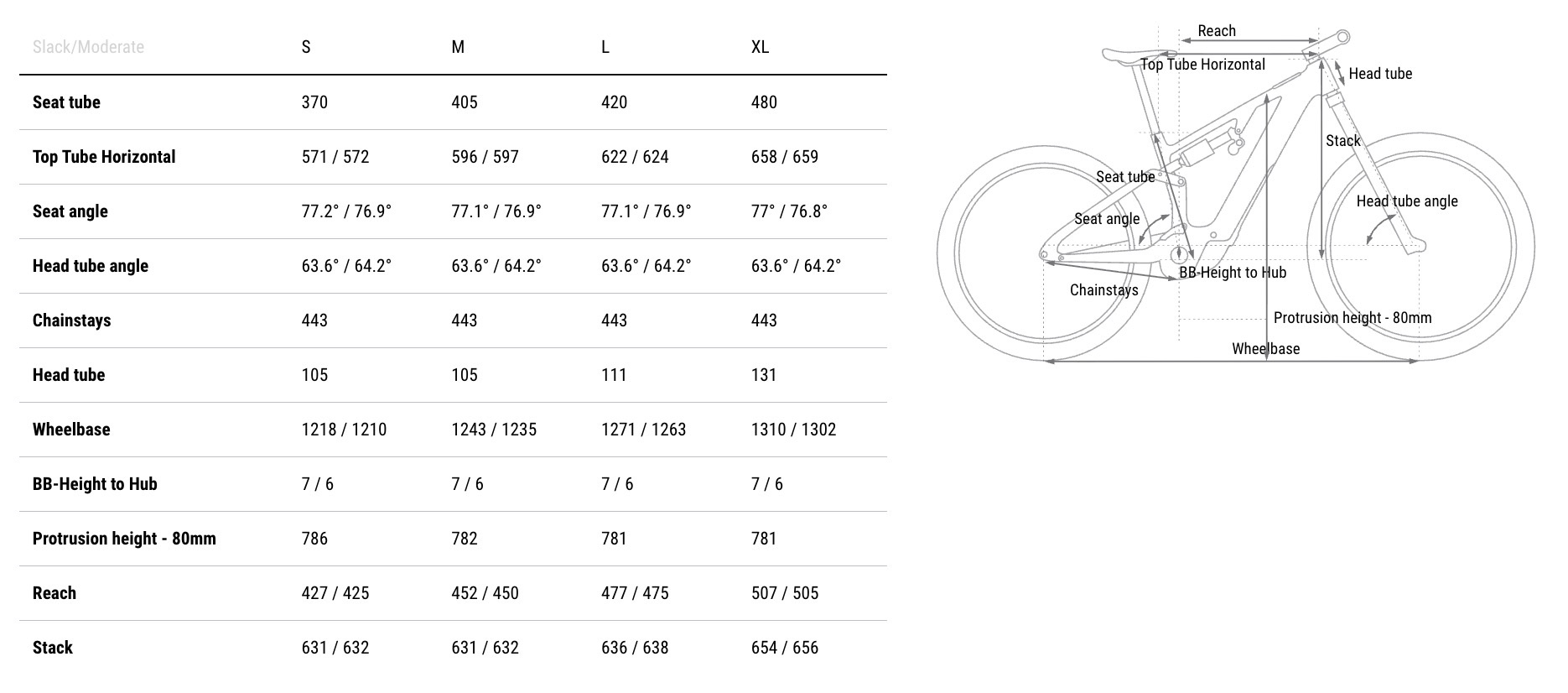

Geometry
