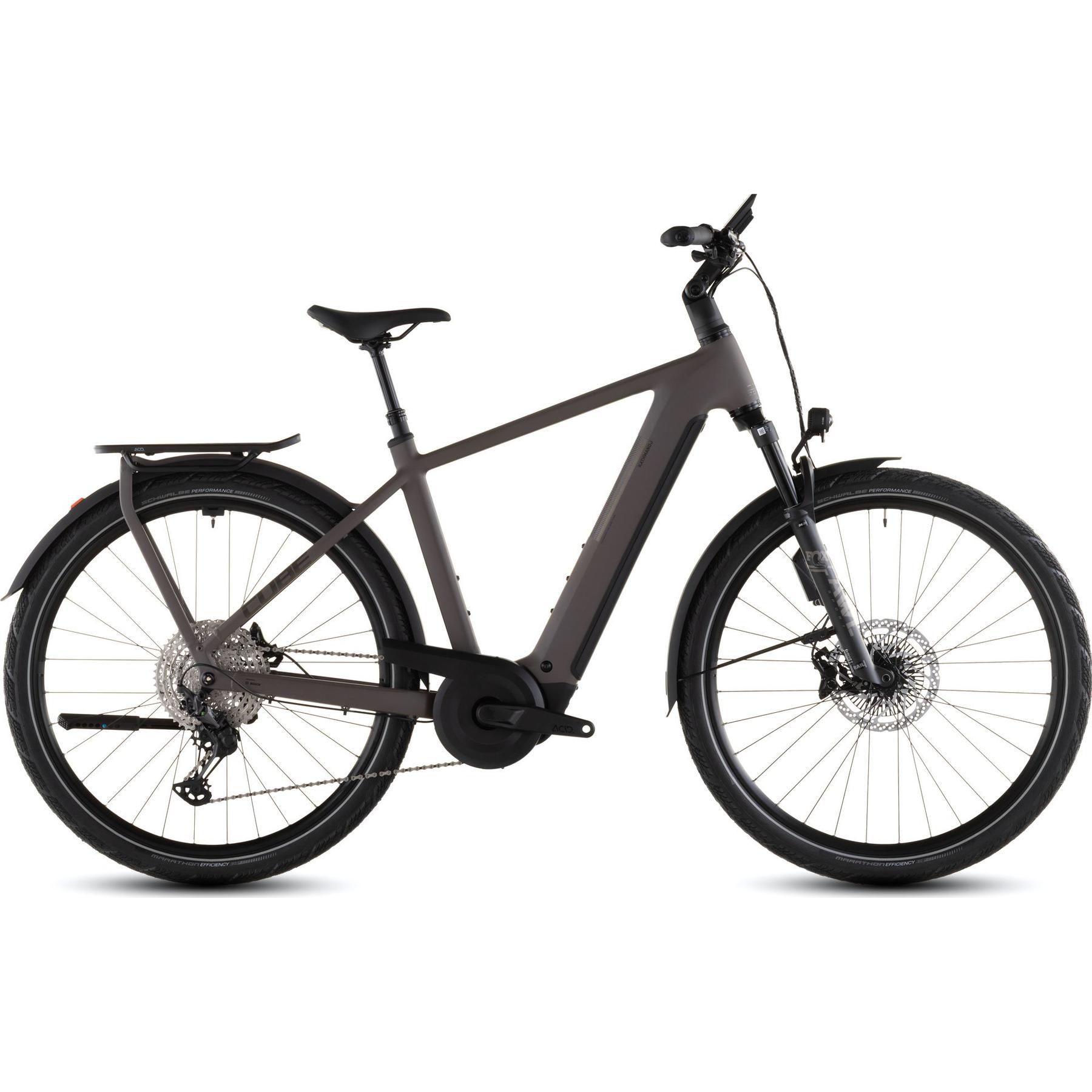

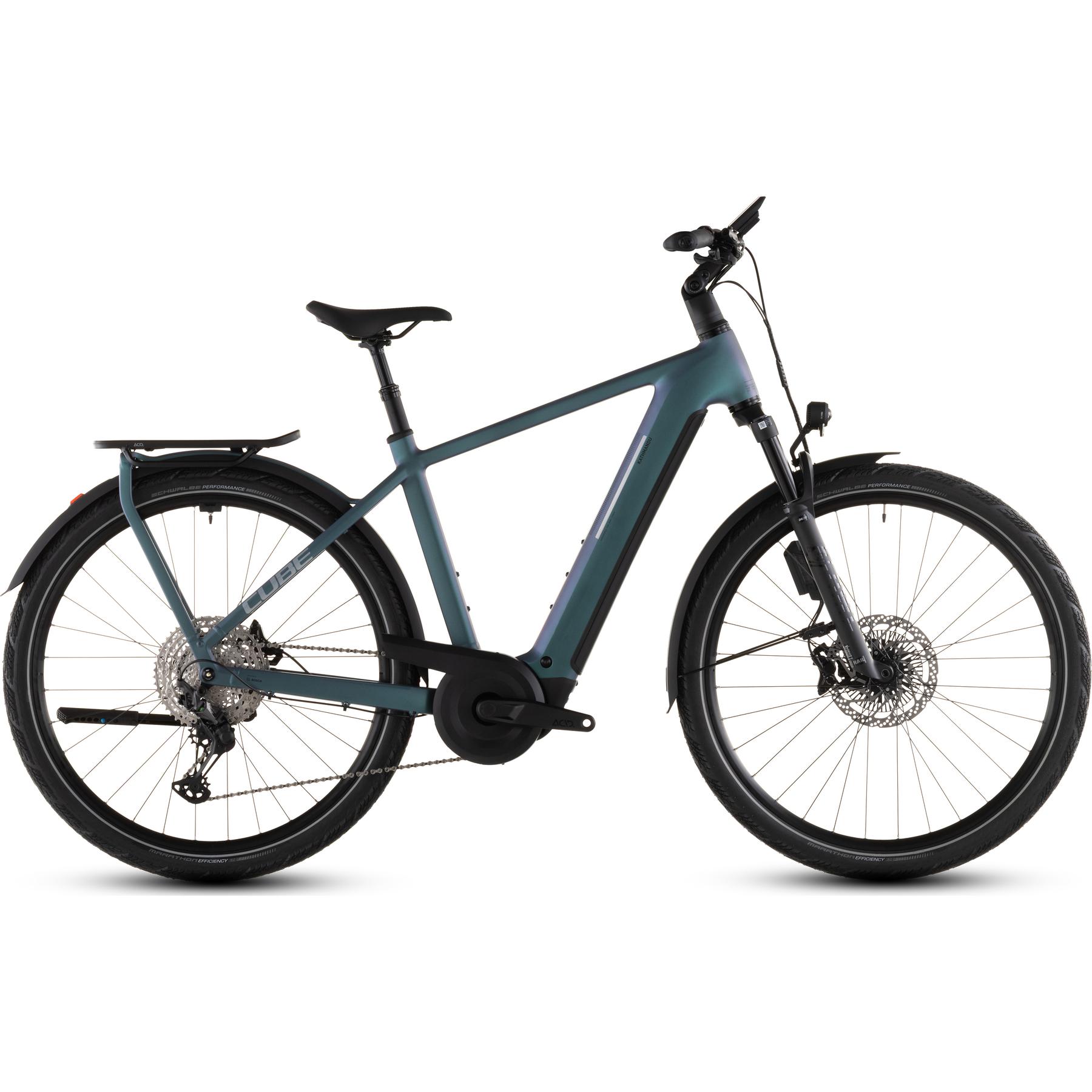

Cube Kathmandu Hybrid EXC 800 Electric City Bike

The CUBE Kathmandu Hybrid EXC is built to go places.

Features

• We started with Bosch's CX motor and an 800Wh PowerTube battery, to give you up to 100Nm of pedal assistance on your way to work or to adventure.
• Then we chose Shimano's legendary XT 1x12 gears, for their huge range and dependable performance.
• Added 4-piston Shimano hydraulic disc brakes with ABS, so you know you can always slow and stop safely.
• And finished with a smooth, comfortable Fox 34 AWL Float Sport suspension fork.
• But that's not quite all, because of course there's also an adjustable stem, dropper seatpost and our strong, elegant and versatile Integrated Carrier 3.0, plus a full complement of accessories.
• The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches.
• The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start.
• Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough.
• Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof.

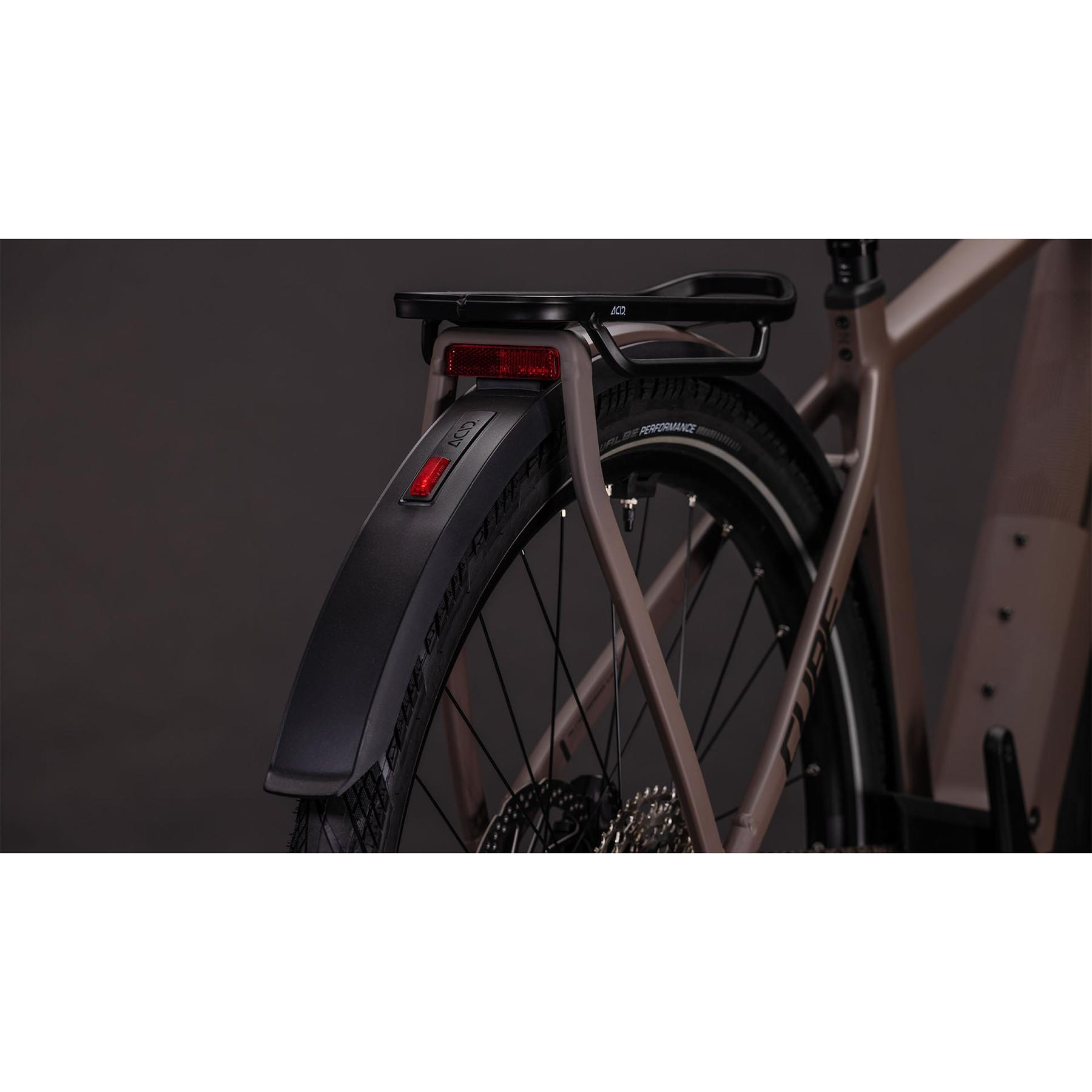

• And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Specifications

• Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, Integrated Seatclamp
• Fork: Fox 34 Float Sport AWL , Tapered, 15x110mm, E-Bike Optimized, 100mm
• Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Handlebar: CUBE Comfort Trail Bar HD, 700mm
• Grips: ACID Travel Comfort
• Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• Shifters: Shimano Deore SL-M6100-R, Rapidfire Plus
• Brakes: Shimano BR-MT420 ABS, Hydr. Disc Brake (203/203) (203)
• Crankset: ACID MTB Hybrid Pro, 40T
• Casette: Shimano Deore CS-M6100, 10-51T
• Number of Gears: 12
• Chain: KMC e12
• Wheelset: ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Tyres: Schwalbe Marathon Efficiency, PerfL, 55-622
• Pedals: ACID PP Trekking
• Saddle: ACID Sequence 180
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
• Front Light: ACID Front Light PRO-E 150 X-Connect, 12V, DC
• Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
• Kickstand: ACID FM Pure Kickstand
• Mudguard: ACID 65 Integrated Carrier 3.0
• Bell: Reich Cycle Bells Ringsound
• Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
• Engine: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
• Battery: Bosch PowerTube 800
• Charger: Bosch 2A
• Remote: Bosch LED Remote
• Display: Bosch Kiox 500
• Weight: 27,40kg

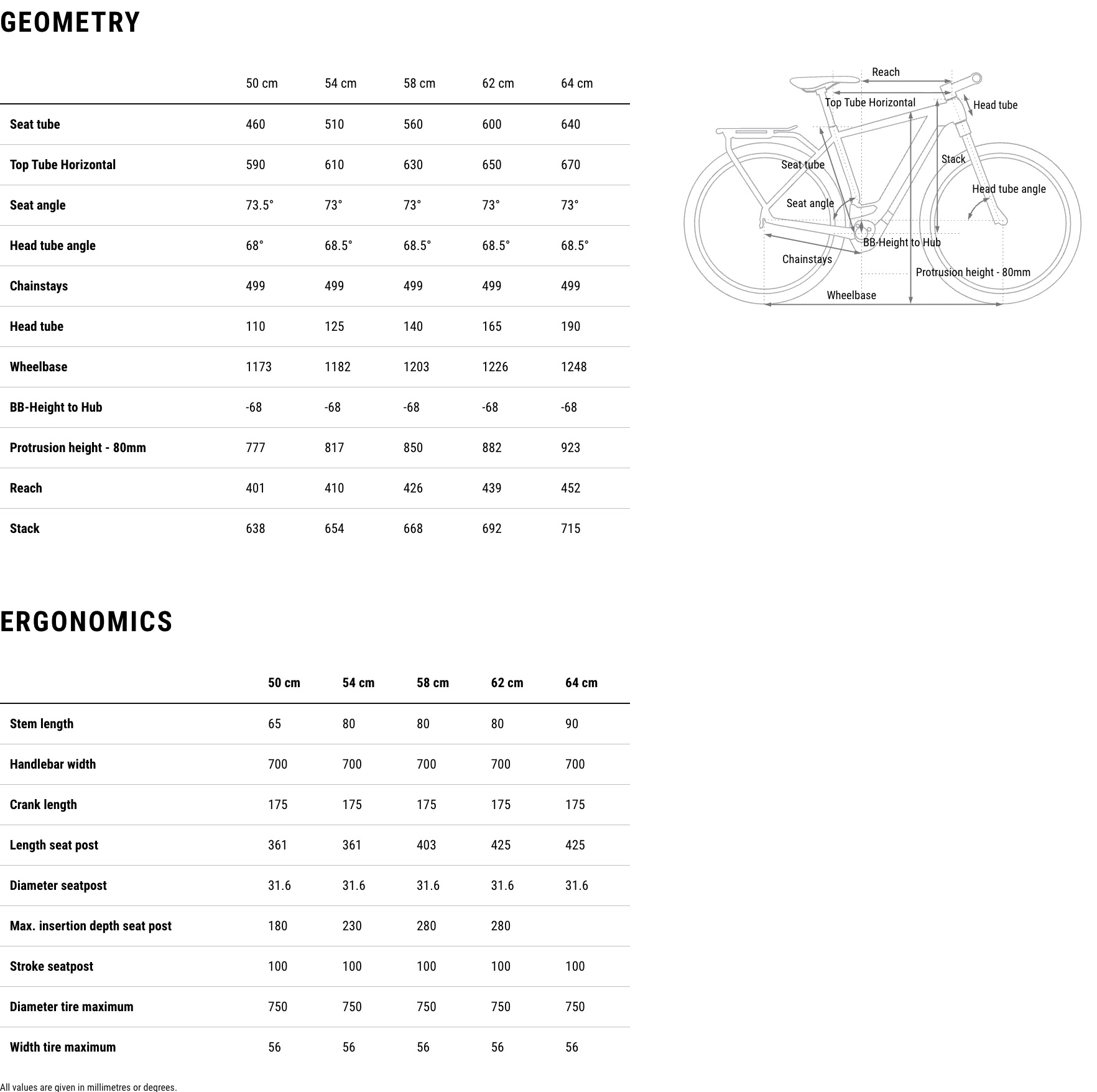

Geometry
