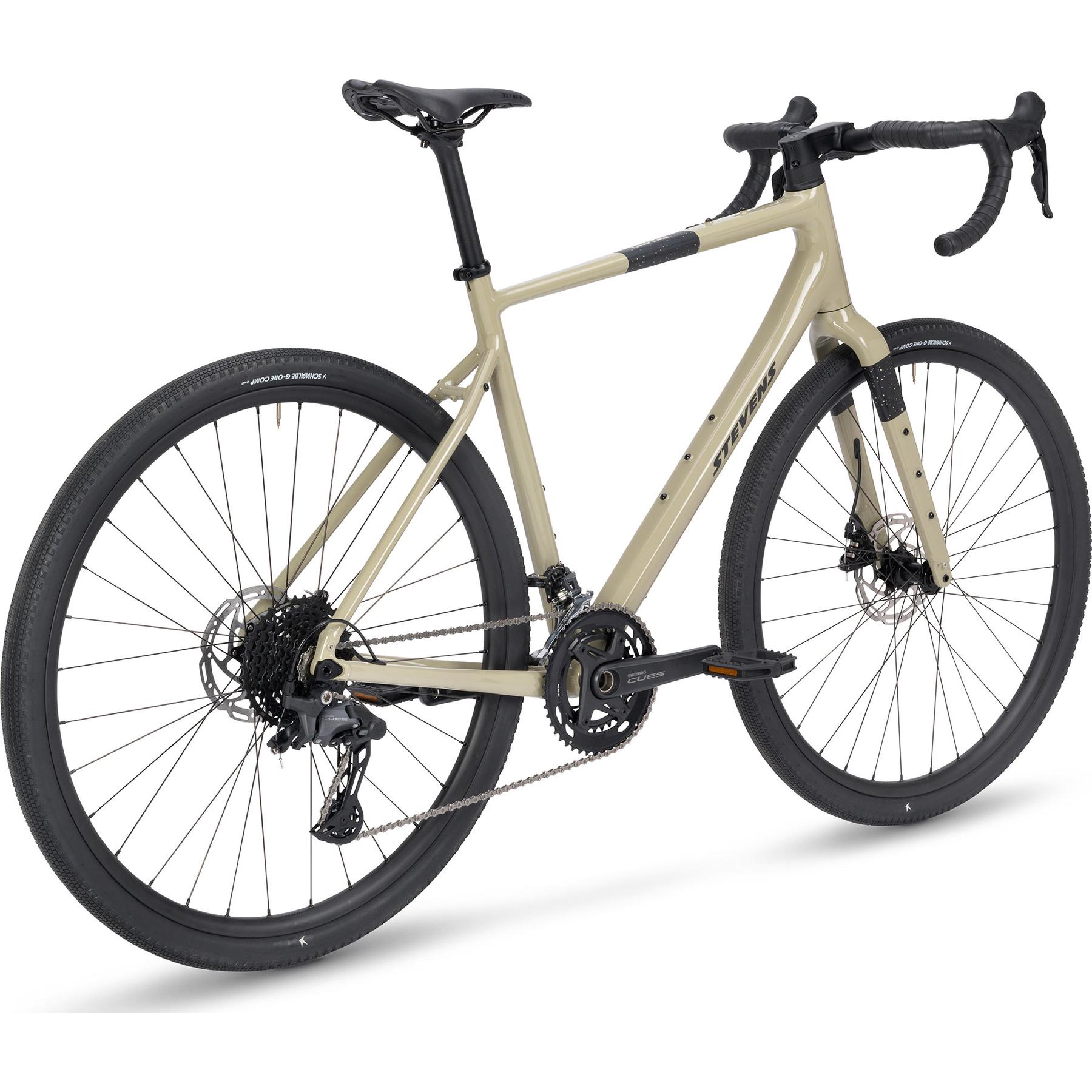

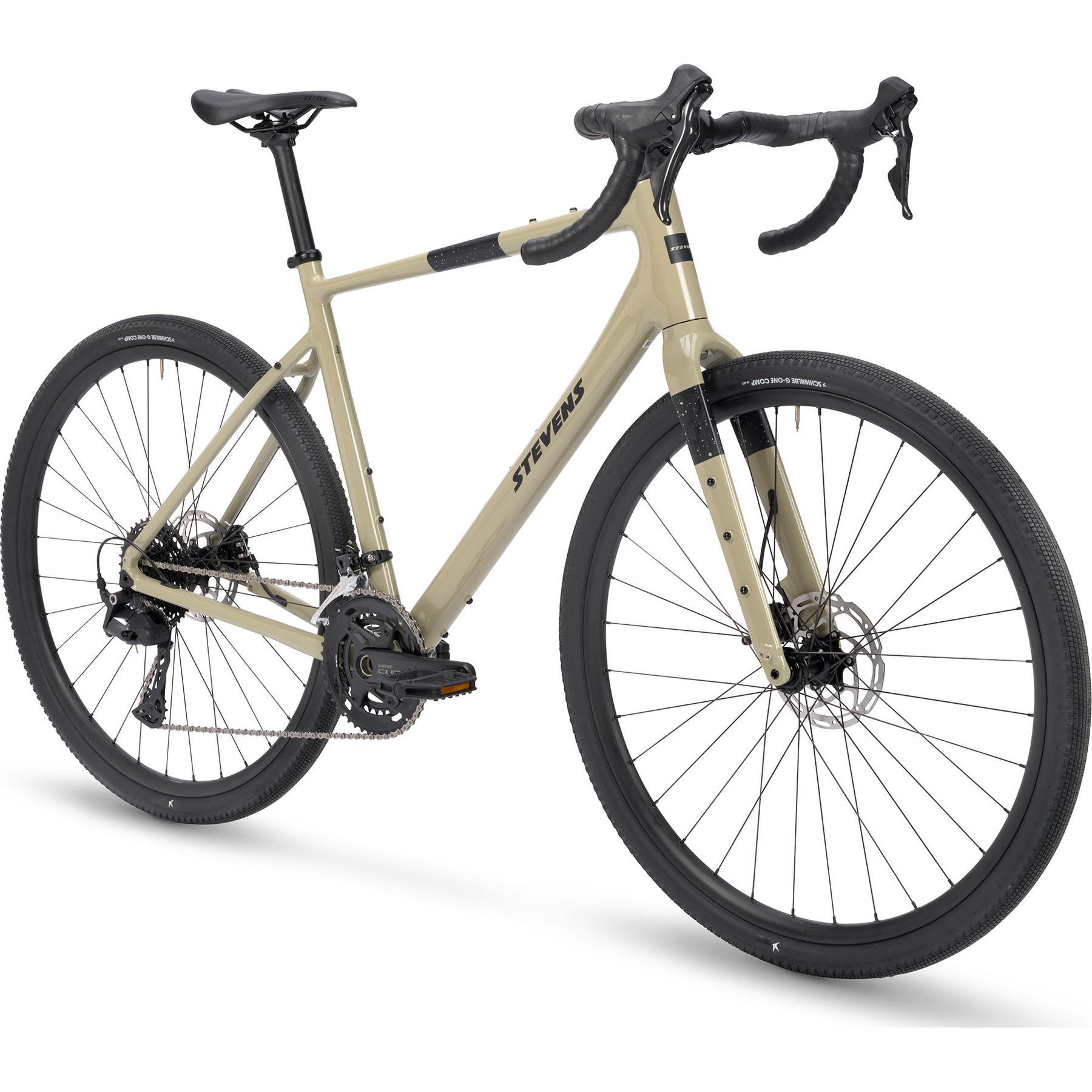

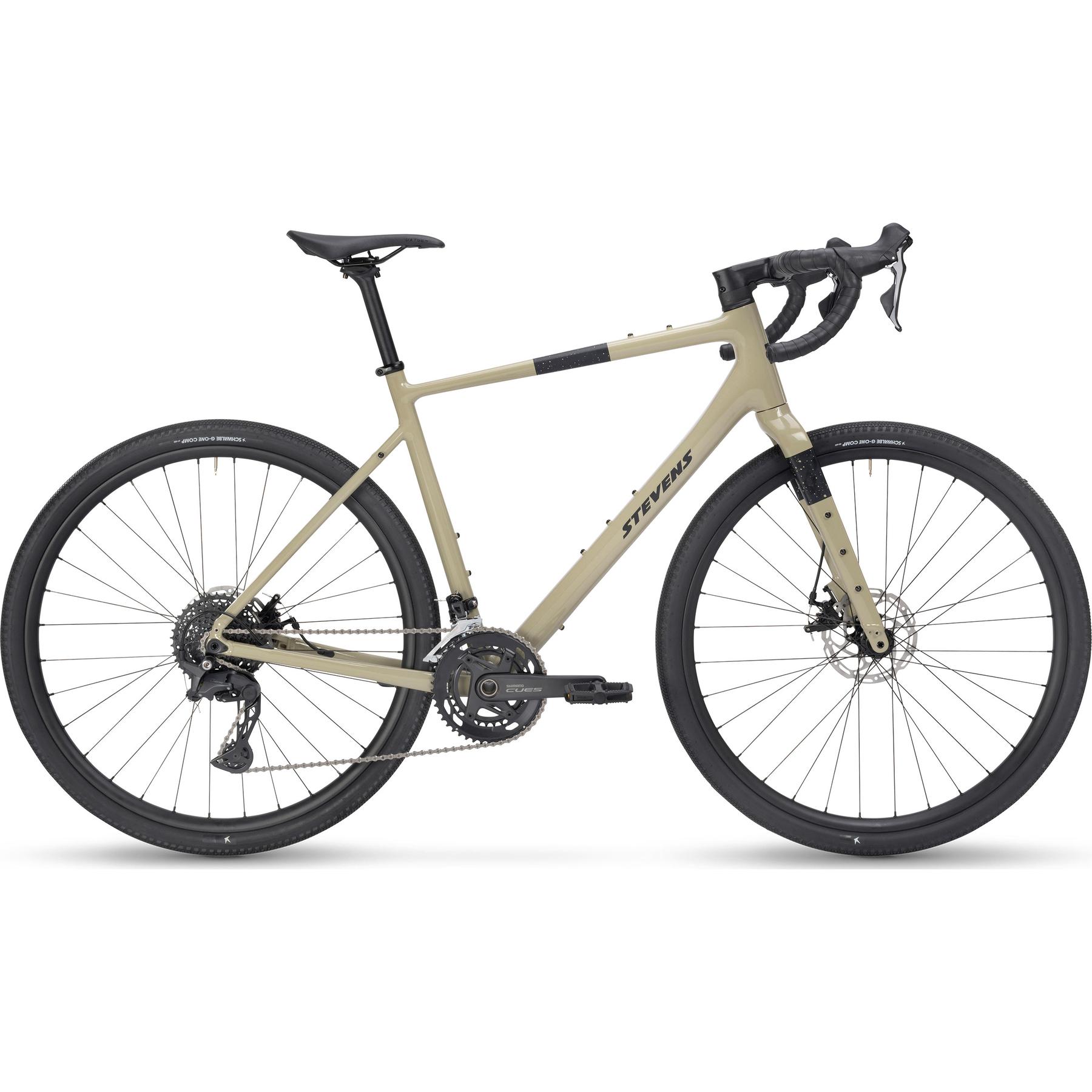

Stevens Gavere Gravel Bike

With the Gavere series, STEVENS is introducing a completely new model range with and without FEQ everyday equipment. Based on the proven geometry of the STEVENS Alloy Gravel Bikes, the completely redesigned, high-quality aluminum frame combines a longer wheelbase with a comfortable geometry for long adventure rides as well as daily commuting. Bike packing attachment points on the fork, top tube, down tube, and seat tube allow for universal use, from a fun machine for fast laps on unpaved trails to multi-day tours. What are you waiting for?

A gravel all-rounder with excellent value for money The Gavere is the ideal companion for commuting, after-work rides, and bikepacking adventures. The newly developed, elegant aluminum frame in Light Khaki with a lightweight aluminum fork ensures smooth and comfortable riding thanks to its relaxed geometry. The Shimano CUES 2x10 drivetrain lets you shift effortlessly at your fingertips, while the wide gear ratio ensures a safe, confident ride – whether in the city or outdoors. The generous tire clearance allows for fast and comfortable riding at reduced tire pressure. Equipped with fast-rolling 45 mm Schwalbe G-One Comp tires, the Gavere offers optimal grip and control on gravel roads, forest paths, and flowing trails.

Features

• The uncomplicated entry into the STEVENS Gravel Alloy world
• Completely newly developed aluminium frame with plenty of tyre clearance and a rigid fork
• Robust Shimano CUES U4000 2x10-speed drivetrain with mechanically actuated Tektro disc brakes
• Durable wheelset with Schwalbe G-One Comp tyres in 45 mm width
• Gravel-specific cockpit with riser handlebars for comfort and optimum bike control

Specifications

• Frame  Aluminium 6061
  • O.L.D.: 142 mm
  • Brake: flatmount disc
  • BB: Pressfit BSA68
  • Front derailleur mount: clamp
  • Cable routing: internal
  • Fender + rack mounts
• Fork  STEVENS S-Lite Aluminium
  • Tapered Steerer 1 1/8" - 1.5"
  • O.L.D.: 100 mm
  • Brake: flatmount disc
• Headset  Token TK1556PD
  • Upper bearing cup: IS52/28.6
  • Lower bearing cup: IS52/40
• Brake front  Tektro MD-C550
  • Mechanical disc brake
  • 2 pistons
• Brake rear  Tektro MD-C550
  • Mechanical disc brake
  • 2 pistons
• Brake disc  Tektro TR160-35
  • Rotor size: 160 mm
  • Center-Lock
• Crankset  Shimano CUES U6000
  • Shimano FC-U6030-2
  • 46-32 T
  • Hollowtech II
  • BB type: BSA 68 mm
• Derailleur front  Shimano CUES U6000
  • FD-U6030-F
  • 2-speed
• Derailleur rear  Shimano CUES U6000 Shadow
  • RD-U6020-10-SGS
  • 10-speed
  • Total capacity: 44 T
• Chain  Shimano CN-LG500
  • LINKGLIDE
• Cassette  Shimano CS-LG300-10
  • 10-speed
  • Combination: 11-13-15-17-20-23-26-30-34-39 T
• Pedals  ATB Pedal Reflex
• Hubs rear  Formula RXC-400
  • Axle: QR12x142 mm
• Hubs front  Formula CL-712
  • Axle: QR12x100 mm
• Rims  Oxygen G25 Disc
  • ETRTO: 25 x 622
• Tires  Schwalbe G-One Comp
  • Tire size: 45-622
  • Green Compound
  • K-Guard
• Cockpit Handlebar  Scorpo Aero Gravel
  • Drop: 130 mm
  • Reach: 70 mm
  • Flare: 16°
  • Rise: 10 mm
  • Clamp: 31.8 mm
• Stem  Scorpo
  • Handlebar clamp: 31.8 mm
  • Angle: -6°
• Saddle  Oxygen Triton 2.0
• Seatpost  Scorpo
  • Length: 350 mm
  • Diameter: 27.2 mm
  • Insertion depth: min. 100 mm
• Shift lever left  Shimano CUES
  • ST-U3030
  • 2-speed
• Shift lever right  Shimano CUES
  • ST-U3030
  • 10-speed
• Bell  STEVENS D85 bell
• Weight  12.0 kg

Geometry
