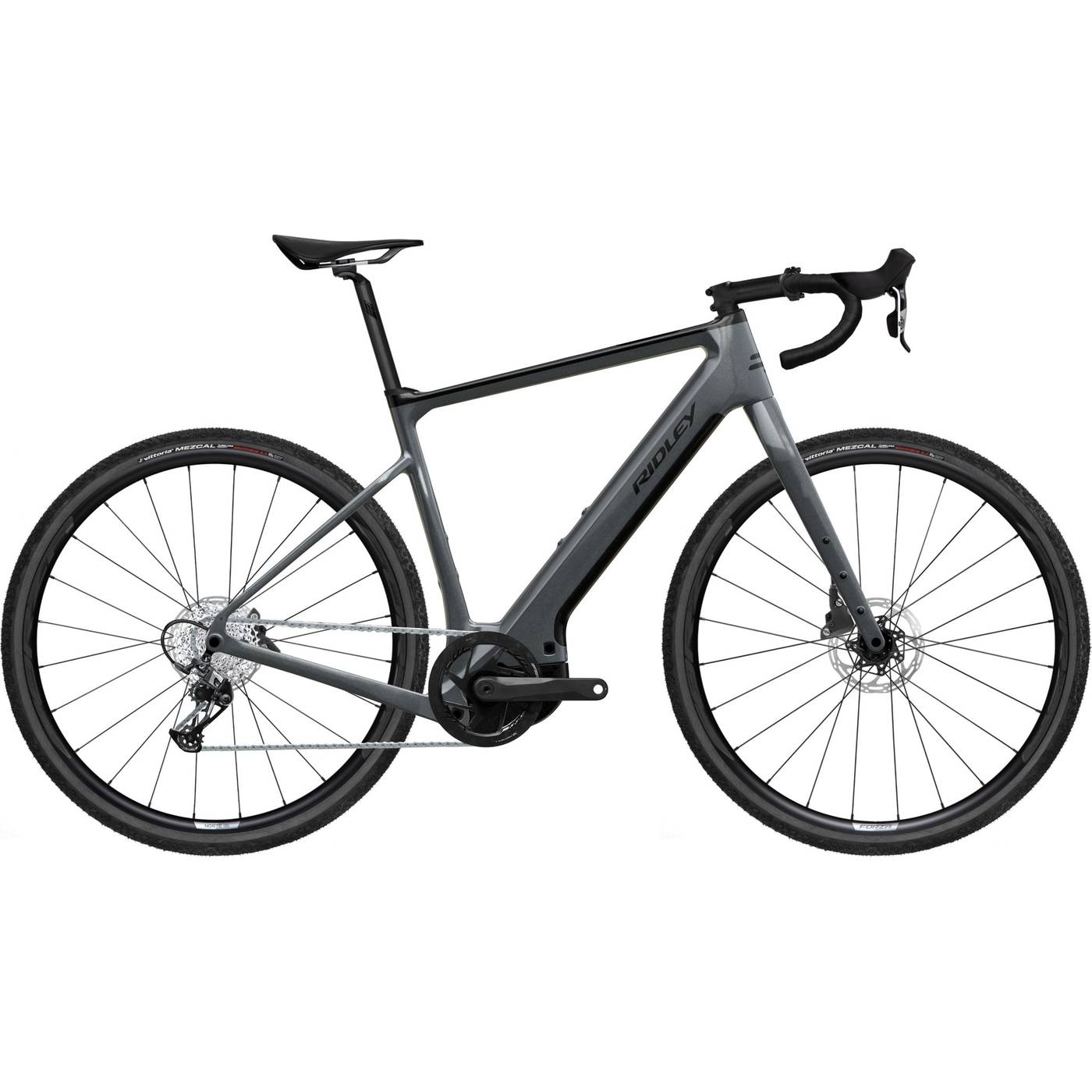

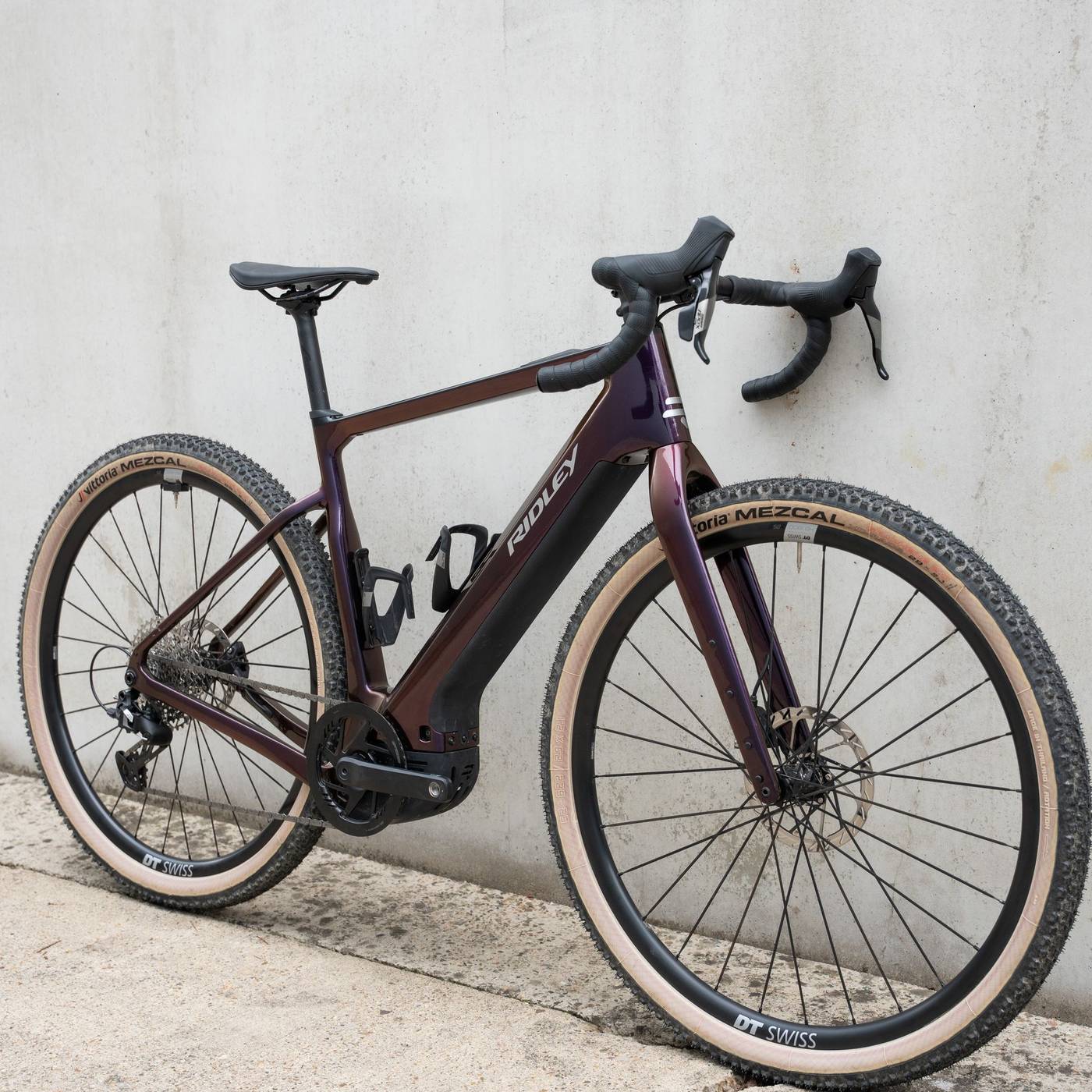

Ridley E-Kanzo Adventure APEX XPLR Electric Gravel Bike

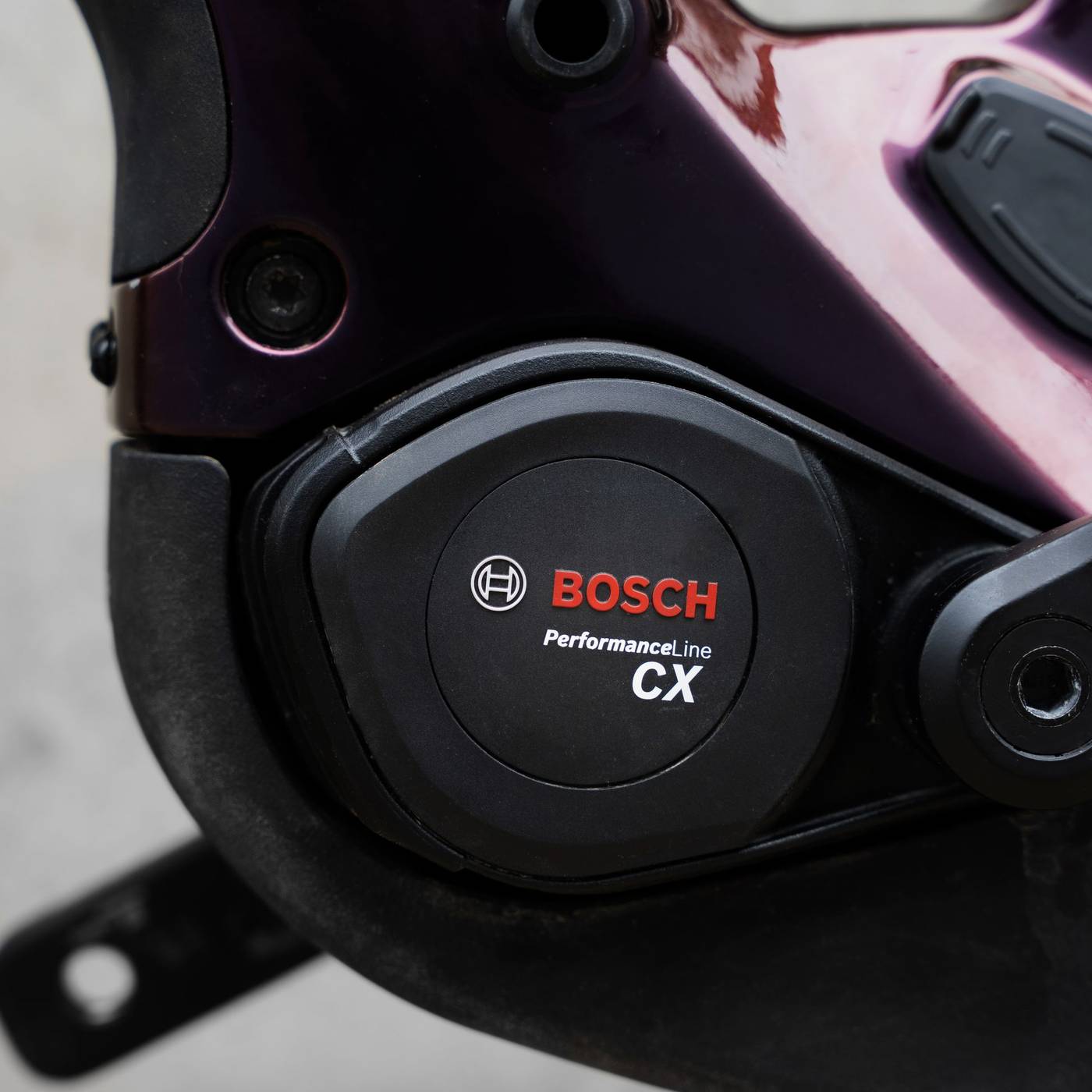

“Destination unknown” perfectly captures the spirit of the E-Kanzo Adventure. Equipped with the powerful Bosch Performance CX motor and a 600Wh integrated Powertube battery, this e-bike provides the ideal balance between range and weight, ensuring you have the energy to conquer even the toughest terrain.

Features

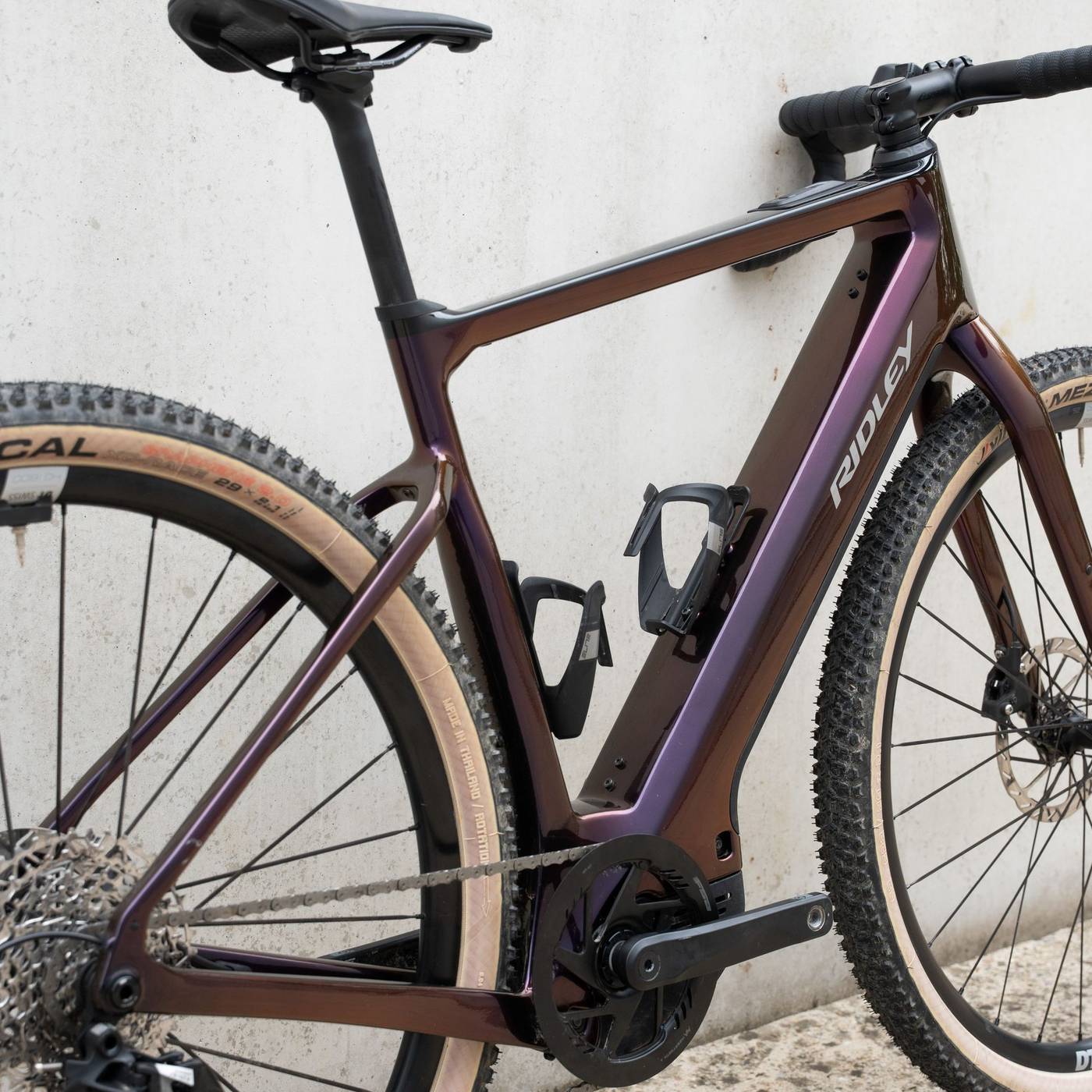

• Its progressive adventure geometry features a slacker headtube angle and a lower bottom bracket, which together deliver enhanced stability and confidence when navigating technical trails. The frame’s compatibility with tires up to 2.1” allows for increased grip and comfort on rugged surfaces, making every ride smoother and more controlled.
• Designed for those who crave exploration beyond paved roads, the E-Kanzo Adventure combines cutting-edge technology and thoughtful design to create a bike ready for any journey, whether on gravel paths, forest trails, or mountain tracks.

Specifications

• Frame: E-Kanzo Adventure

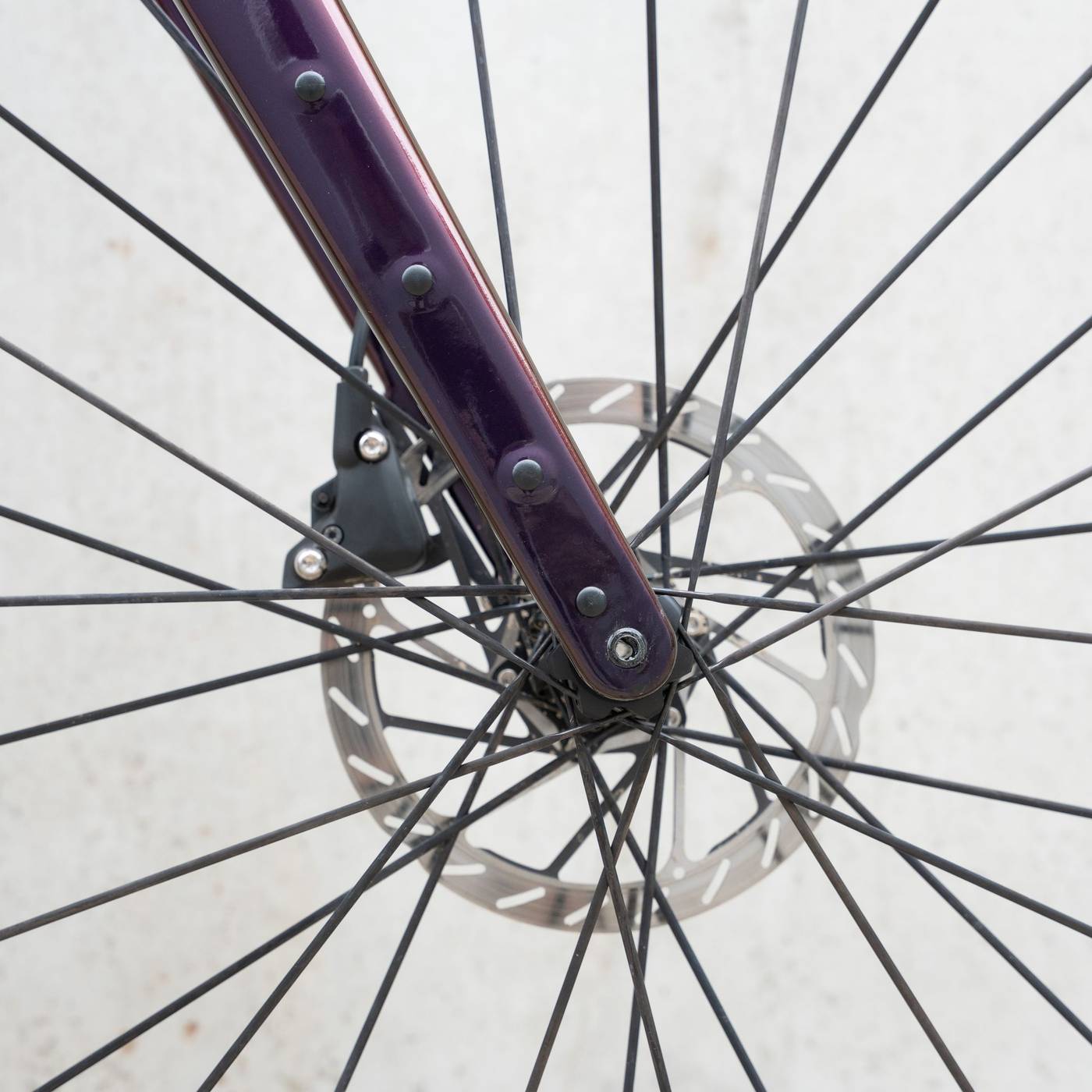

• Fork: 4ZA Gravel 54-435 Disc 7E9/EAC01Bs
• Material: Carbon
• Groupset: Sram Apex XPLR 1x12sp
• Crank Arm: FSA CK E-BIKE CK-220/IS armset 170mm
• Crank Chainring: FSA E-BIKE DM CG+CR 42T W1174+WB659A
• Cassette: SRAM XPLR PG-1231 12s 11-44T
• Electric bike: Yes
• Drive Unit: Bosch Drive Unit BDU38YY
• Battery: Bosch Battery Powertube 600
• Brake Type: Flat Mount
• Rear Derailleur: SRAM Apex 1x12 XPLR Rear Derailleur
• Handlebar: Ritchey Venture Max II // 420 mm
• Stem: Forza Stratos // 80 mm // Black Glossy
• Seatpost: Forza Stratos // Zero Offset // 350mm // 27,2mm // Black Glossy
• Saddle: Selle San Marco Shortfit 2.0
• Front Wheel: DT Swiss Hybrid G1800 Spline TA12/100 25mm
• Rear Wheel: DT Swiss Hybrid G1800 Spline 25mm SHI
• Outer Tyre: Vittoria Mezcal III 29x2.1/TLR/Tan-Blk-Blk
• Max Tire Clearance 700c (*): 29" x 2.1"

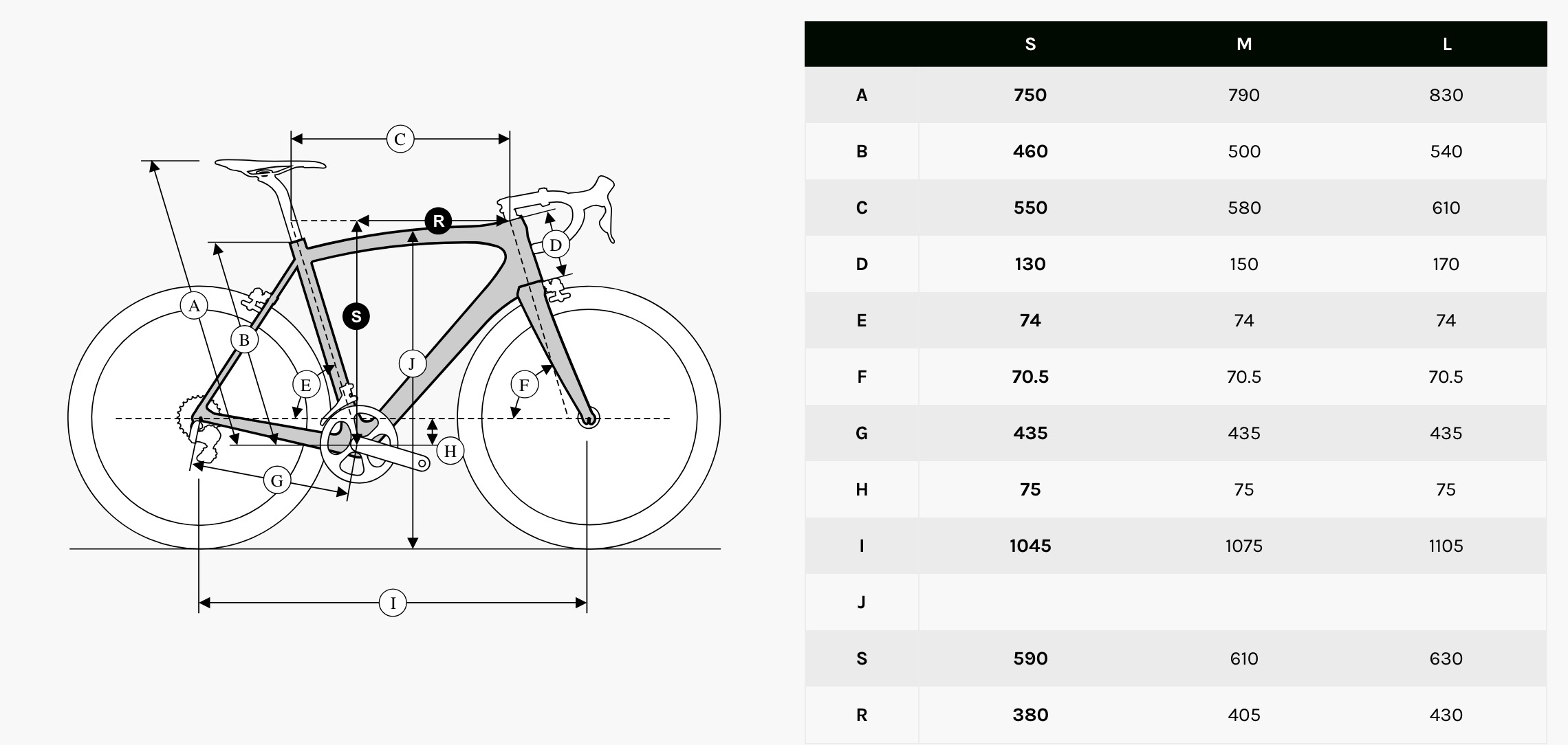

Geometry
