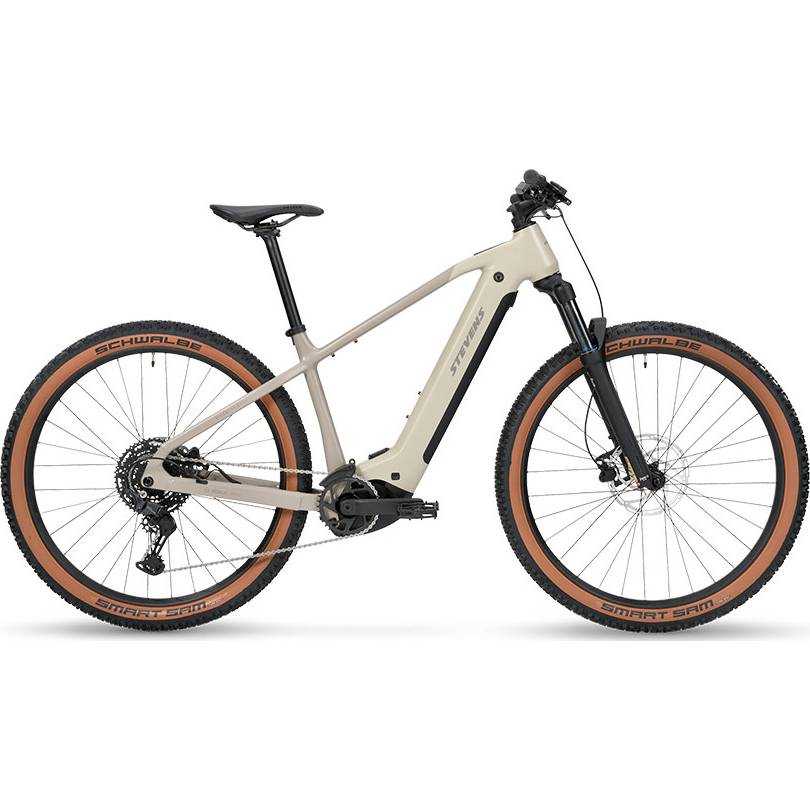

Stevens E-Agnello 6.6.1 Electric Mountain Bike

The E-Agnello 6.6.1 is a versatile e-hardtail with the powerful Bosch Performance Line drive unit. It responds precisely to your pedalling and provides natural support with a powerful 75 Nm torque. Thanks to the optimised gear concept, the motor runs particularly quietly – so you can enjoy the flow on the trail even more intensely. The reliable Shimano CUES U6000 10-speed gear system ensures smooth, precise gear changes – even under load – and allows you to enjoy many low-maintenance, relaxed kilometres in the saddle. With its responsive 120 mm suspension fork and trail-ready Schwalbe Smart Sam Performance tyres, the E-Agnello 6.6.1 feels at home on any terrain. Available in Anthracite or Desert Dust – and in a wide range of sizes.

Features

• Entry-level e-hardtail with high-quality equipment
• New Bosch Performance Line Drive Unit with lightweight 600 Wh PowerTube battery
• Durable Shimano CUES U6000 10-speed drivetrain
• 120 mm air suspension fork with 15 mm thru-axle
• Coordinated 27.5‘ & 29’ wheel sizes

Specifications

• Frame: Aluminium 6061, O.L.D.: 148 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal
• Fork: SR Suntour XCR36X-Boost R, Travel: 120 mm, Air suspension, Tapered Steerer 1 1/8" - 1.5", O.L.D.: 110 mm, Brake: postmount disc 7"
• Headset: Acros Blocklock Taper 1 1/8"-1.5", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/40
• Brake front: Tektro HD-M280, Hydraulic disc brake, 2 pistons
• Brake rear: Tektro HD-M280, Hydraulic disc brake, 2 pistons
• Brake disc front: Tektro TR203-35, Rotor size: 203 mm, Center-Lock
• Brake disc rear: Tektro TR180-35A, Rotor size: 180 mm, Center-Lock
• Crankset: FSA CK-747/IS, BB type: Bosch / ISIS
• Motor sprocket: FSA E-MTB, 36 T, Chainline: 55 mm
• Derailleur rear: Shimano CUES U6000 Shadow+, RD-U6000-GS, 10/11-speed, Total capacity: 39 T
• Chain: Shimano CN-LG500, LINKGLIDE
• Cassette: Shimano CS-LG300-10, 10-speed, Combination: 11-13-15-17-20-23-28-34-41-48 T
• Pedals: MTB Flatpedal Reflex
• Engine: Bosch Performance Line, BDU346Y, The smart system, Continuous rated power: 250 W, Max. torque: 75 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
• Battery: Bosch PowerTube 600, The smart system, Capacity: 600 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion
• Charger: Bosch 4A charger
• Hubs rear: Formula FCL-548S, Axle: QR12x148 mm
• Hubs front: Formula FCL-811, Axle: QR15x110 mm
• Rims: Oxygen Disc 32, ETRTO: 27.5": 32 x 584 | 29": 32 x 622
• Tires: Schwalbe Smart Sam Performance, Tire size: 27.5": 65-584 | 29": 65-622, Foldable, ADDIX Compound
• Handlebar: Oxygen Scorpo, Width: 740 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
• Stem: Scorpo, Handlebar clamp: 31.8 mm, Angle: 5°
• Saddle: Oxygen Havoc
• Seatpost: Scorpo, Diameter: 30.9 mm, Insertion depth: min. 100 mm
• Shift lever right: Shimano CUES U6000, SL-U6000-10R, 10-speed
• Brake lever: Tektro MD-M820, 2 finger
• Display: Bosch Purion 200, The smart system
• Bell: STEVENS D85 bell
• Weight: 23.2 kg
• Sizes: 27,5" - 14" | 29" - 16", 18", 20", 22"

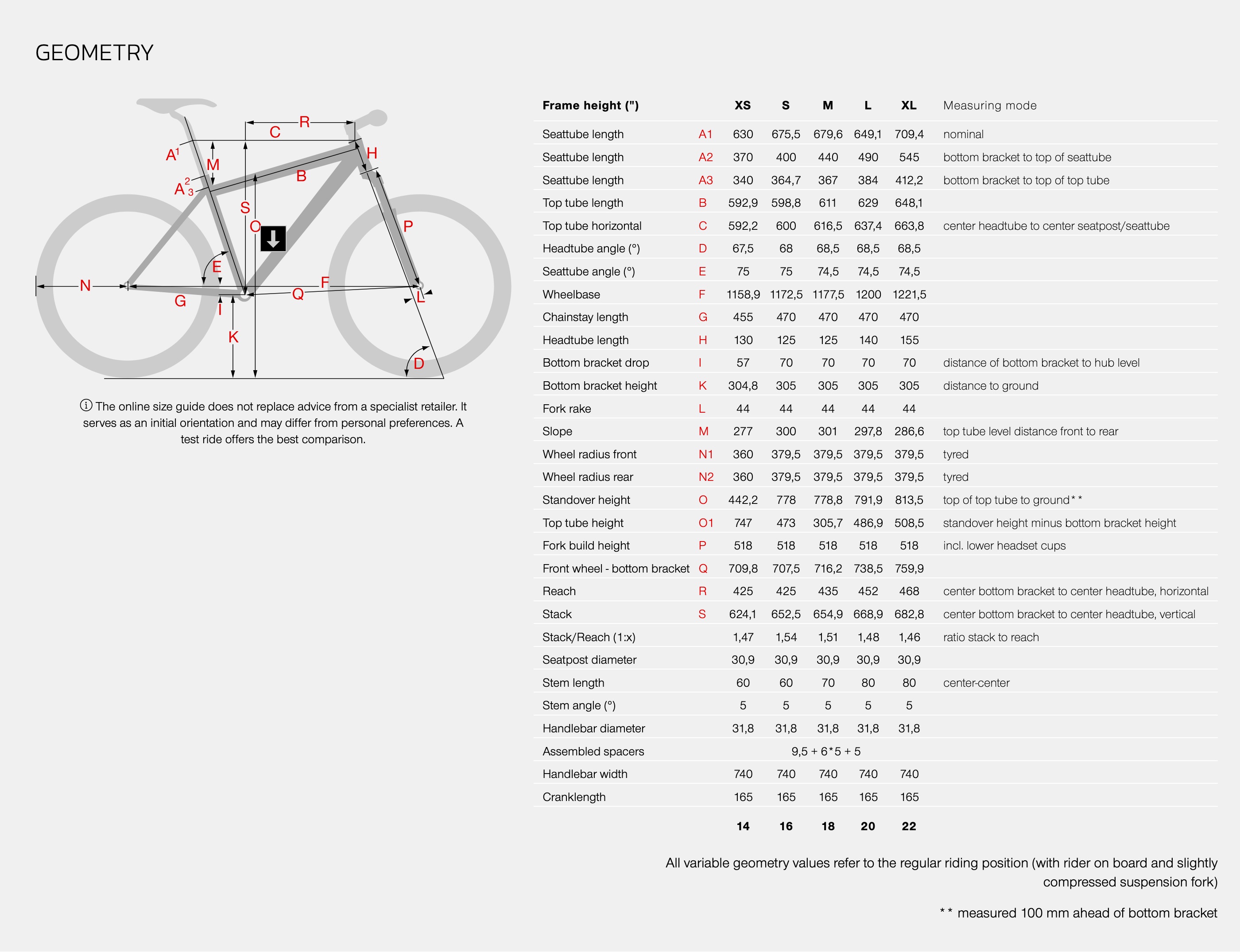

Geometry
