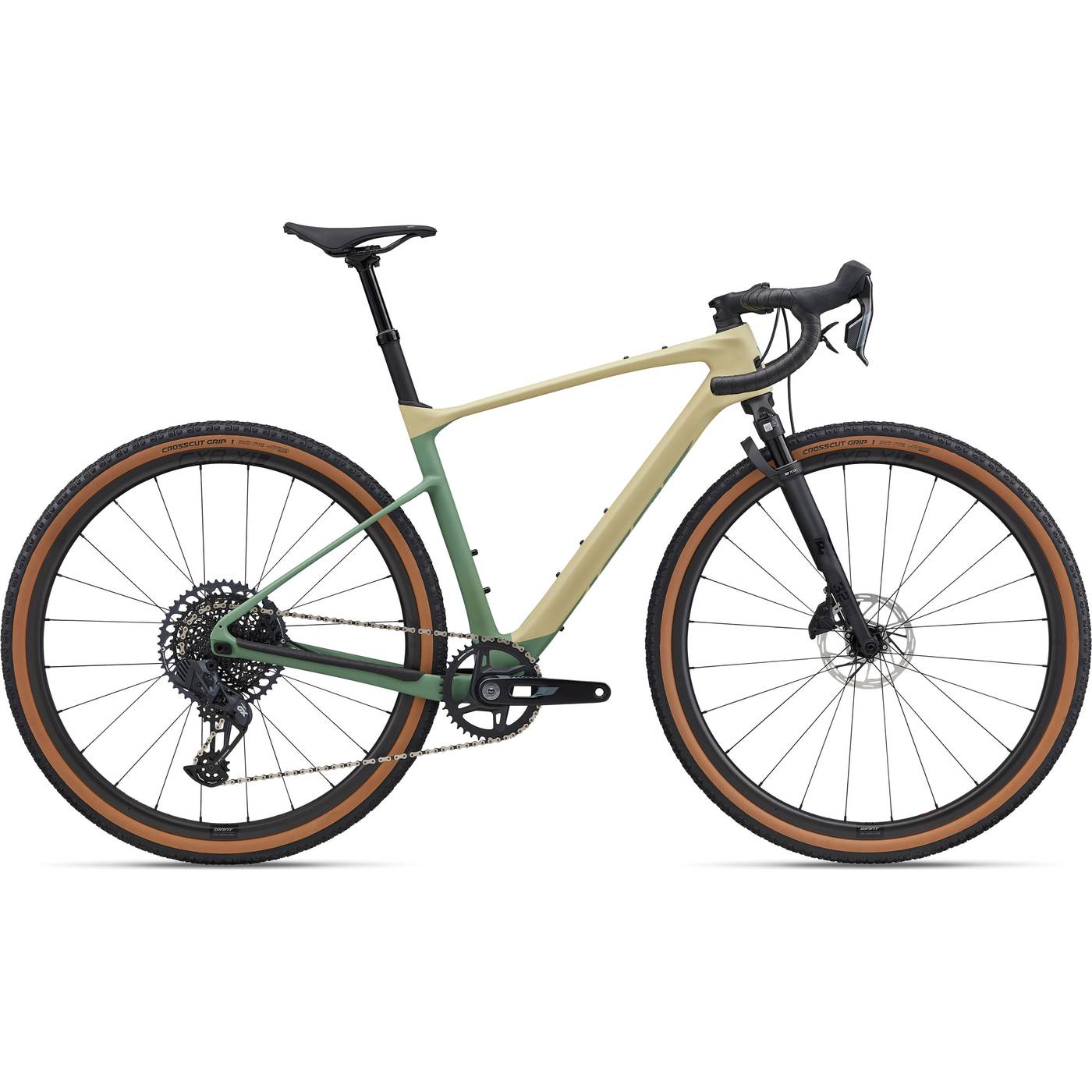

Giant Revolt X Advanced Pro 1 Gravel Bike

Features

• Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
• Flip Chip - Dropout: Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
• Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
• Compact Road Design: Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
• D-Fuse Technology: The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
• OverDrive: Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• MegaDrive: A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.

Specifications

• Sizes: XS, S, M, M/L, L, XL
• Colours: Pale Olive/Shale Green
• Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
• Fork: Fox 32 Float TC, Performance Elite, 40mm, FIT 4 damper, 12x100mm Kabolt thru-axle
• Handlebar: Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
• Seatpost: Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop
• Saddle: Giant Grit SL
• Shifters: SRAM Rival AXS E1, 1x12
• Front Derailleur: N/A
• Rear Derailleur: SRAM GX Eagle AXS
• Brakes: SRAM Rival AXS E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
• Brake Levers: SRAM Rival AXS E1 hydraulic
• Cassette: SRAM XG-1275, 12-speed, 10x52
• Chain: SRAM GX Eagle
• Crankset: SRAM Rival XPLR E1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant CXR 1 X1 WheelSystem, [F] 25.8mm, [R] 25.8mm
• Hubs: [F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
• Spokes: Sapim Laser
• Tyres: Giant CrossCut Grip, 700x45c, tubeless
• Extras: tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
• Max Tyre Clearance: 53mm
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry

Coming Soon
