Giant Revolt 2 Gravel Bike

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

The versatile Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.

Features

• Confident handling: Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
• Tuned compliance: Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
• Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

• Sizes: S, M, M/L, L, XL
• Colours: Asphalt Green, Storm Cloud
• Frame: ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
• Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar: Giant Contact XR Ergo-Control, 31.8mm
• Grips: cork tape with gel
• Stem: Giant Sport, 8-degree
• Seatpost: Giant D-Fuse, alloy, 14mm offset
• Saddle: Giant Approach
• Pedals: PEDALS NOT SUPPLIED
• Shifters: Shimano Sora, 2x9
• Front Derailleur: Shimano Sora, 2x9
• Rear Derailleur: Shimano Sora, long cage
• Brakes: Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers: Shimano Sora
• Cassette: Shimano HG400, 11x34
• Chain: KMC X9 with Missing Link
• Crankset: FSA Vero Pro, 32/48
• Bottom Bracket: cartridge
• Rims: Giant S-X2 Disc wheelset, alloy, 25mm inner rim width
• Hubs: Giant alloy, 12mm thru-axle
• Spokes: stainless
• Tyres: Giant CrossCut AT 2, 700x38c, tubeless
• Extras: Factory tubeless set up
• Max Tyre Clearance: 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
• Max Chainring Size: SRAM Wide 2x 43-30, 1x 46T. SRAM Road 2x 52-39, 1x 52T. Shimano Road 2x 52-36. GRX 2x 48-31, 1x 42T
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

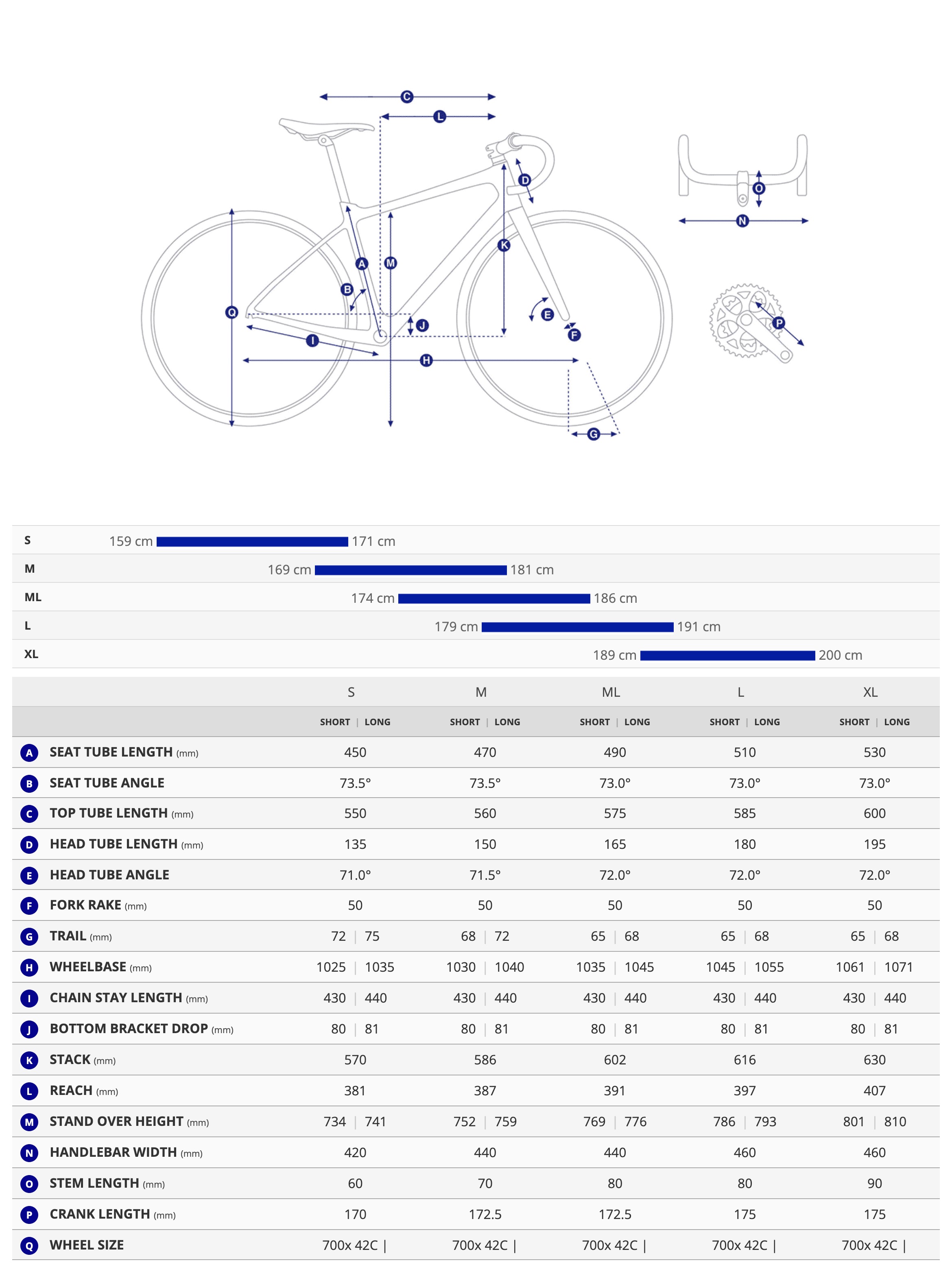

Geometry
