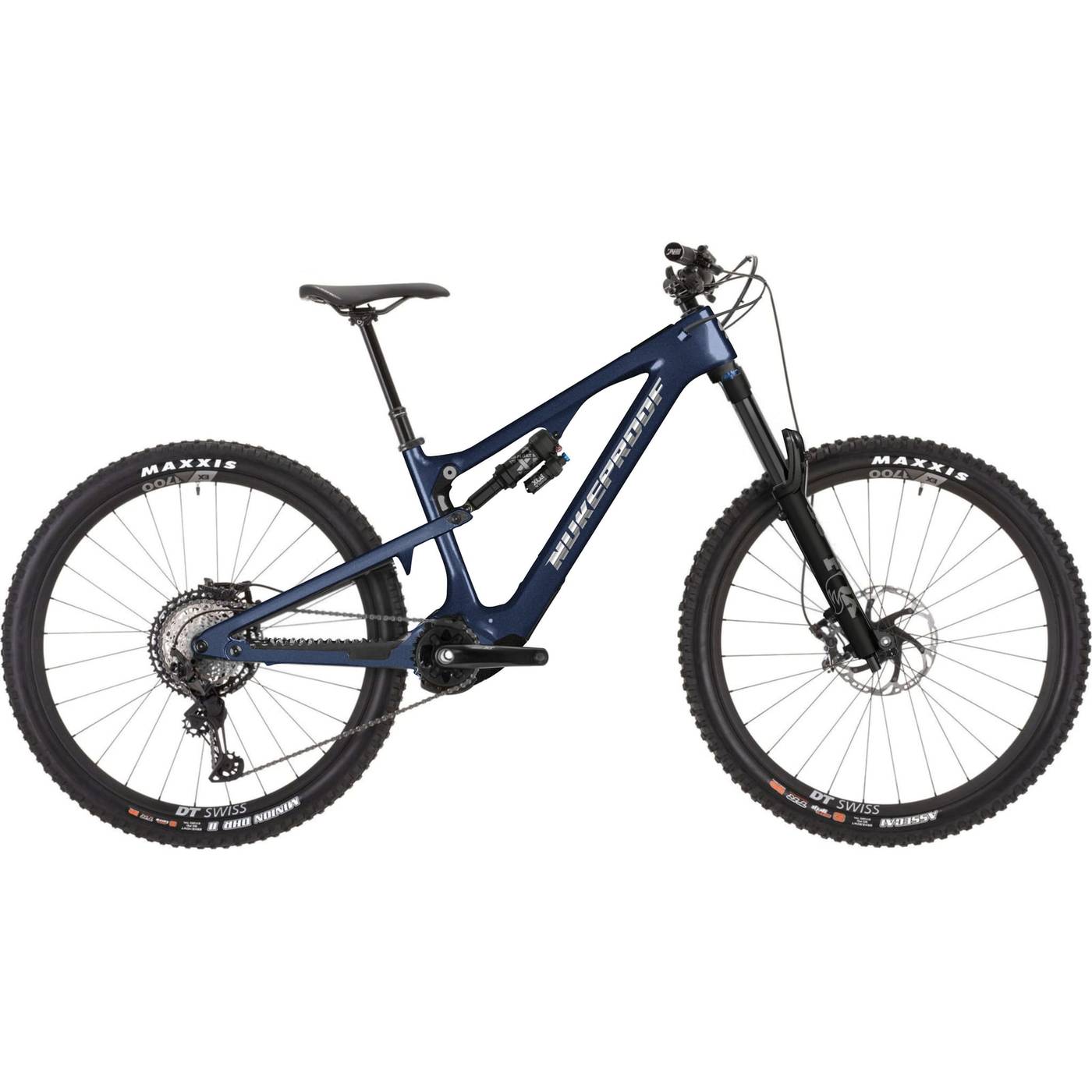

Nukeproof Kilowatt Carbon Expert Electric Mountain Bike

Our Kilowatt is our all-new, Avinox-powered e-bike.

• Featuring an advanced carbon fibre frame and our legendary suspension design and kinematics, this lightweight mid-travel e-bike will be blisteringly quick around your local trails.
• Built around 150R/160F suspension and a four-bar suspension layout, Kilowatt can also handle days at the bike park, but with the powerful Avinox motor, you won't need any uplift.

• This rider wants a light, fast e-bike that is highly capable and with full power.
• They spend days on local trails with their buddies but want a bike that can handle days at the bike park.
• This rider wants the highest performance for the lowest weight and will spend a little extra for carbon.

Key Features

• INTENDED USE: TRAIL / ALL MOUNTAIN / ENDURO
• TRAVEL: 160MM FRONT, 150MM REAR
• MATERIAL: UD CARBON FIBRE
• WHEELSIZE: FRONT: 29" / REAR: 27.5" (29" COMPATIBLE VIA FLIP CHIP)
• SIZES: S / M / L / XL

Specifications

• Frame: Nukeproof Kilowatt Carbon, 150mm Travel, custom designed ultra-strong monocoque UD Carbon Fibre frame, internal battery, internally piped cable routing, Max Bearings, Boost 148mm rear axle spacing and 3D contoured Rubber frame protection, Avinox M2 and M2S Compatible.
• Fork: Fox 36 Float, 29”, Performance Series, Grip Damper, 160mm, 44mm Offset, BOOST, 1.5T Steerer, Black
• Shock: Fox Float X, Performance Series, 2 Position, EVOL LV, Custom CS60, RL70, LMM, Rezi B60, Bleed 0.9 tune 210x55mm
• Drive Unit: Avinox M2S Drive Unit, 1300W Peak Power, Up to 150NM Torque
• Display: Avinox DP100 Flat Colour Touch Screen Display
• Controller: Avinox Wireless BC100 Controller - Left
• Battery: Avinox Fixed Internal Battery S: 600WH, M/L/XL 800WH
• Electric Charger: Avinox 12A Charger Power Cable Charger with EU/UK Plug Supplied
• Shifter: SRAM Eagle-90 Single Click MMX
• Wheelset: DT SWISS HX1900. F: 29", 15x110mm Boost, 6 Bolt, R:27.5"148x12mm Boost,6 Bolt, XD Freehub
• Tyres: F: Schwalbe Magic Mary Evo, Gravity Pro Radial, TLR, 63-622 / 29x 2.5" Ultra Soft, R: Schwalbe Albert Evo, Gravity Pro Radial, TLR, 63-584 / 27.5x 2.5" Soft
• Crankset: SRAM S1000, 155mm
• Rear Deraileur: SRAM Eagle-90 T-Type, 12-Speed Eagle
• Chain : SRAM GX T-Type, 12-Speed Eagle, Flattop, PowerLock, 120 Links
• Cassette: SRAM GX CS1275 T-Type, 12-Speed, 10-52T
• Chain Guide: Nukeproof, supplied with frame
• Brakes: SRAM Maven Base, Organic pads
• Rotors: F: SRAM Centreline 2.0 200mm Rounded, R: SRAM Centreline 2.0 200mm Rounded
• Handlebar: Nukeproof Horizon V2, S/M: 25mm Rise Width - 780mm, L: 25mm Rise Width - 800mm, XL/XXL: 38mm Rise Width - 800mm
• Stem: Nukeproof Neutron, 45mm, Black
• Saddle : Nukeproof Horizon SL, Cro-Mo Rails
• Seatpost: Tranz-X YSI08 31.6mm Adjustable Internal with SRAM Remote lever, S:150mm drop; M:170mm drop; L/XL/XXL:200mm drop
• Headset: Nukeproof, sealed bearings, ZS44/28.6 – ZS56/40
• Grips: Nukeproof Neutron Single Lock On, Diameter - S/M: 29.6mm, L/XL/XXL: 31.8mm
• Weight: TBC

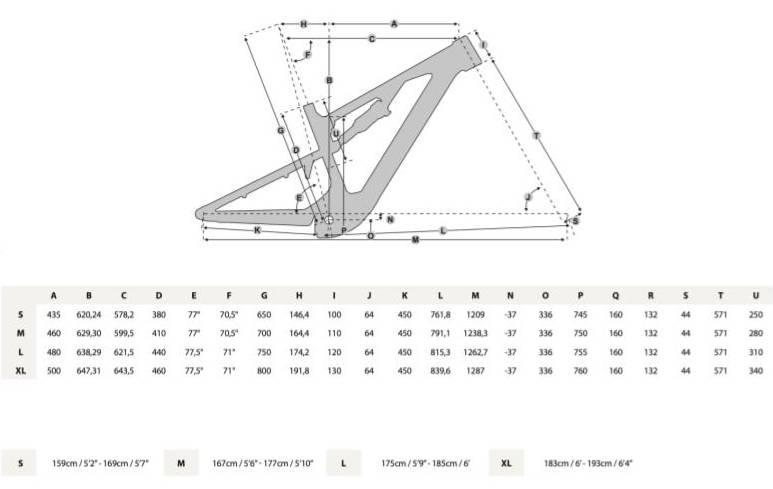

Geometry

Videos
