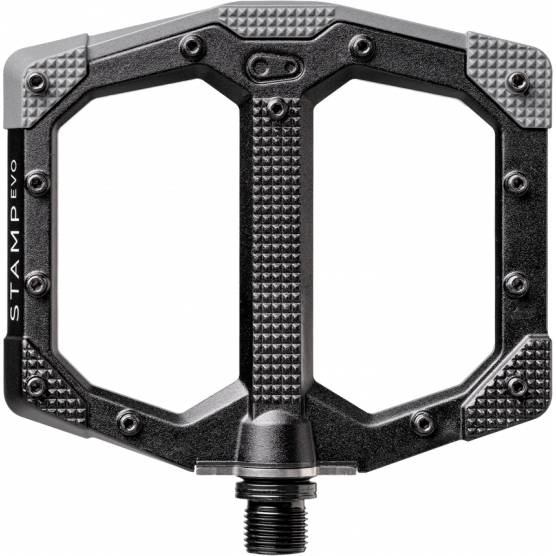

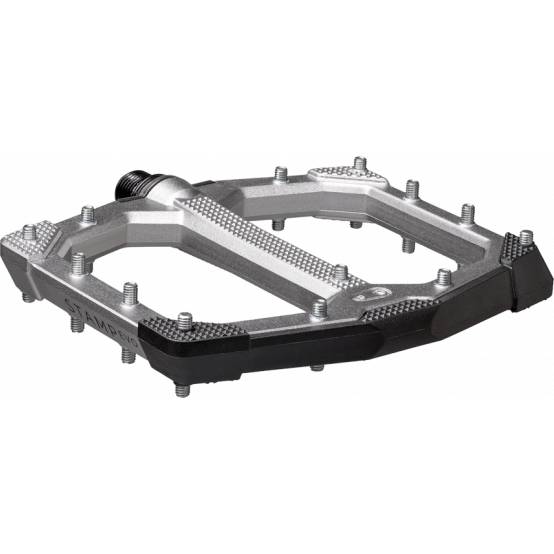

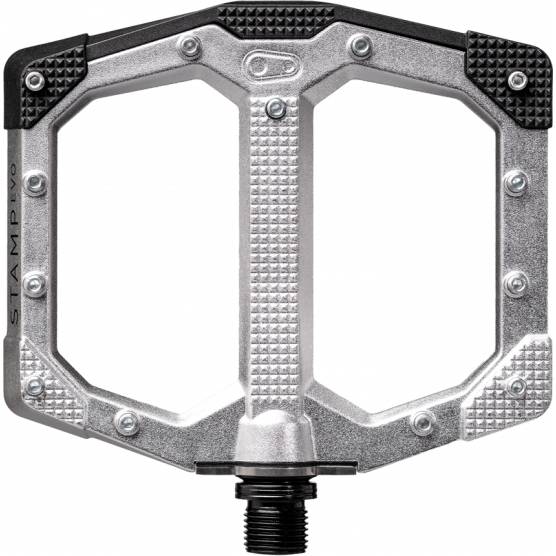

Crankbrothers Stamp EVO Flat MTB Pedals

An extended platform for greater stability, less fatigue, and improved efficiency. The Stamp EVO is 20% longer than the crankbrothers Stamp 7 pedal, enhancing support, stability, and comfort for all your flat pedal riding needs. Because climbing is part of every ride, the Stamp EVO is engineered to get more out of every pedal stroke, helping you ride longer and stronger.

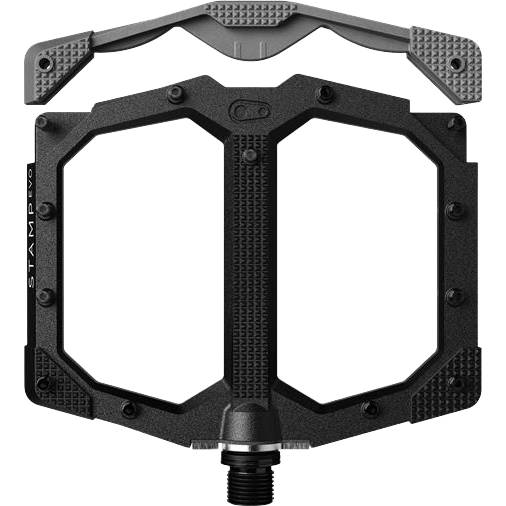

The size-specific platform improves foot placement, while a thin, concave profile and 13 adjustable pins per side ensure secure grip. A two-material construction design focusses on durability in the aluminum body while the replaceable composite bash guards help deflect rock strikes and minimize pedal hang-ups.

Built with a chromoly steel spindle and IGUS internals, available in two sizes to Match your shoe size, the Stamp EVO is ready to rip

Features

• Optimal surface area

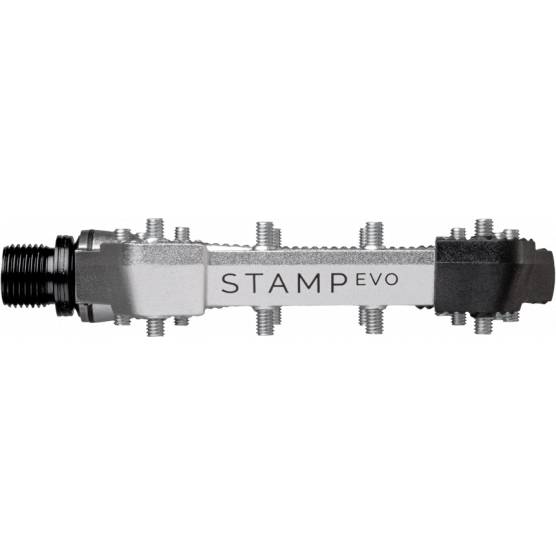

• Minimal profile 11mm-15.5mm thin
• Concave platform for secure foothold
• 13 adjustable pins per side for grip
• Premium bearings & seal system
• Grease port screw for easy maintenance
• Stamp EVO Small recommended for shoe sizes: 4-9 (UK) // 37-43.5 (EU)
• Stamp EVO Large recommended for shoe sizes: 9-14 (UK) // 43.5-49 (EU)
• Extra pin kit & bashguards included

Specifications

• Body Material:Forged 6061-T6 Aluminum & Reinforced Nylon composite bashguard
• Footprint: 103mm wide x 117mm long (Small) / 114mm wide x 133mm long (large)
• Traction Pins: 13 adjustable per side
• Pin Length: 5.6mm outer, 4mm inner, 3mm middle
• Inner Bearing TYPE: Igus LL-glide bearing
• Outer Bearing Type: Igus LL-glide bearing
• Seal System: Premium V-Ring
• Spindle Material: Forged SCM 435 Chromoly Steel
• Max Rider Weight: No restriction
• Weight: 418g per pair (Small) / 464g per pair (Large)
• Warranty: 5 years
