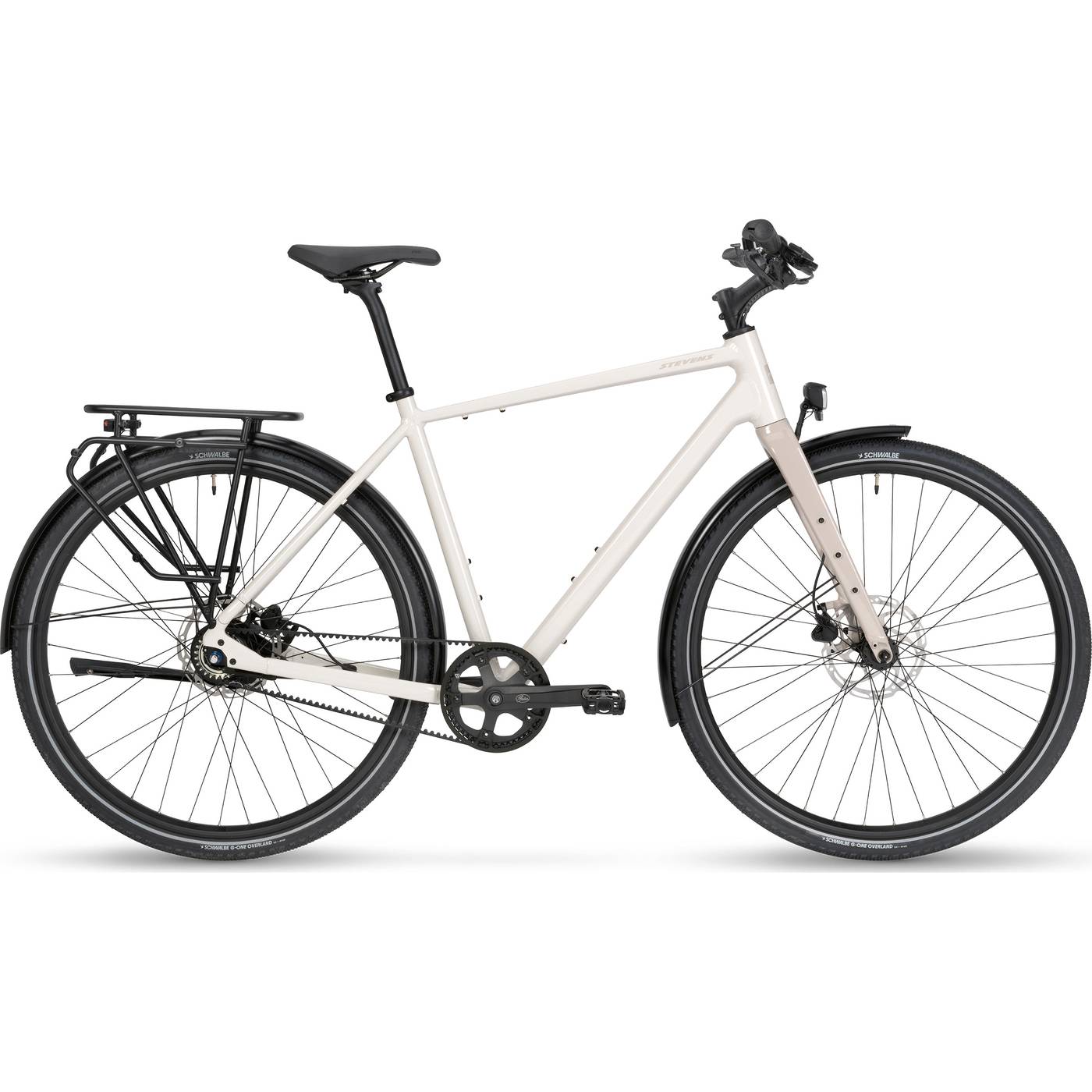

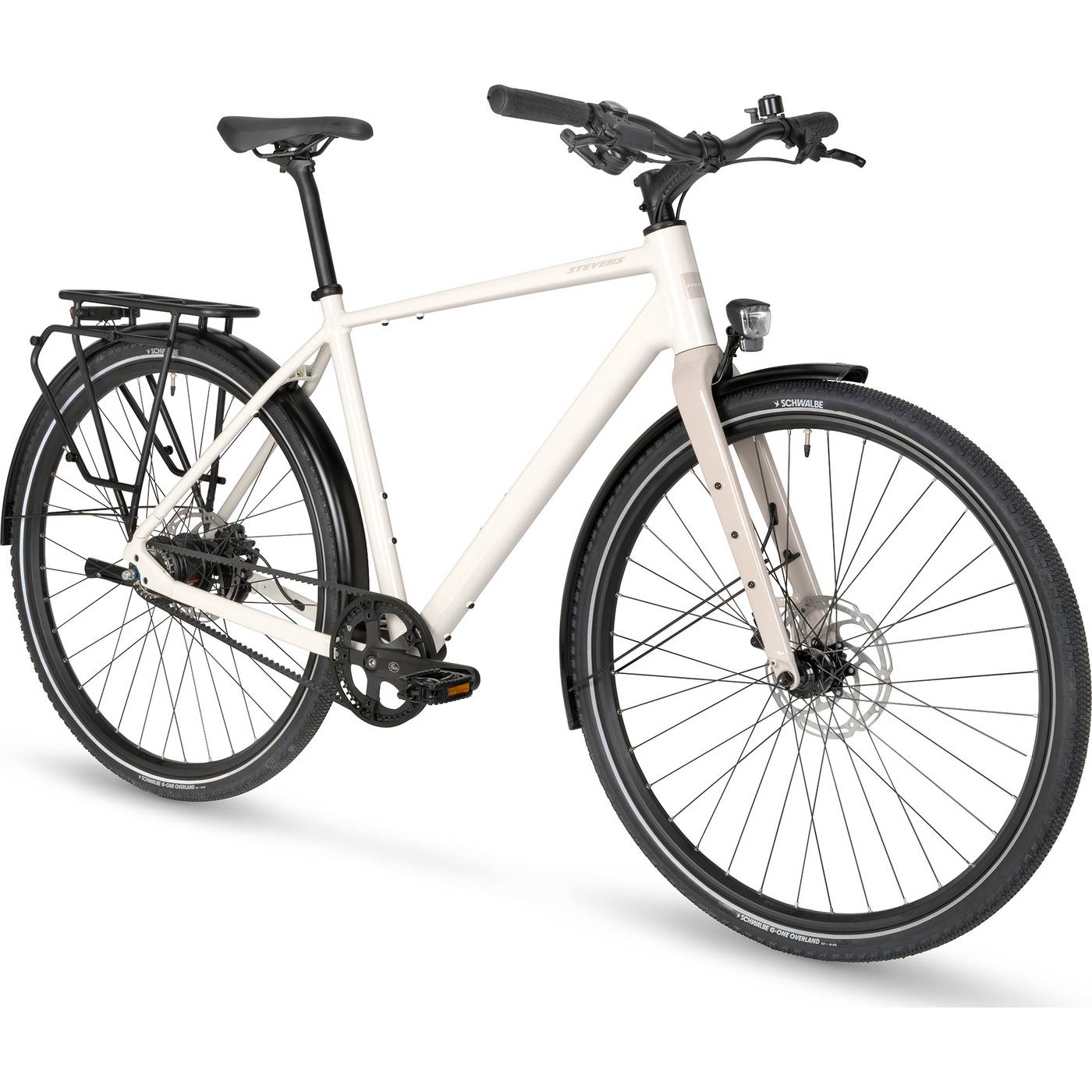

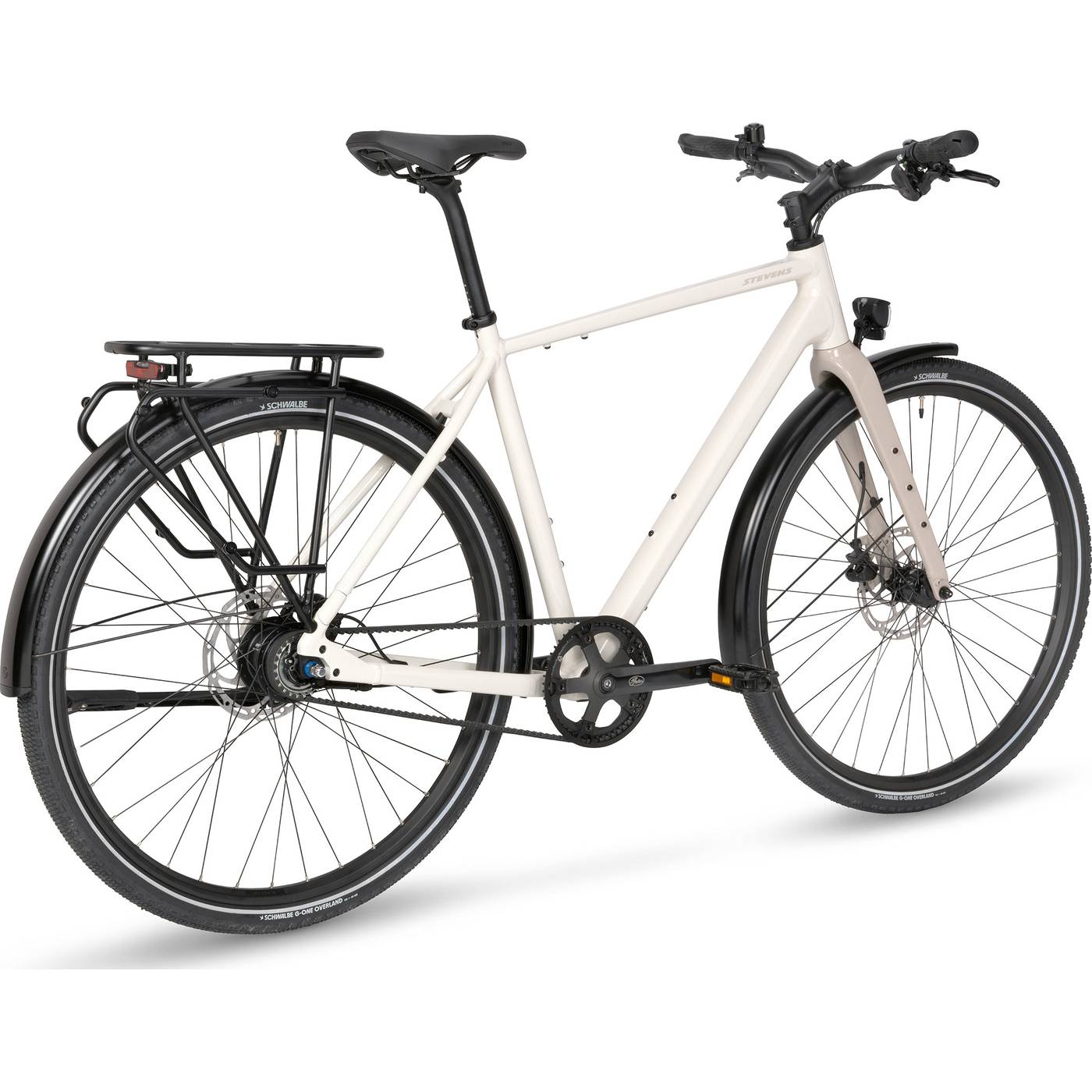

Stevens Caleta 5.2 HT City Bike

Refined touring and leisure bike with proven features and belt drive. Whether on a multi-day tour with luggage, a weekend trip or your daily commute, the dynamic, lively aluminium frame in fresh Pepper White and the lightweight, stable aluminium fork make the Caleta 5.2 the epitome of riding pleasure. The Shimano Nexus 8-speed hub gear ensures reliable shifting and worry-free everyday use. A luggage rack and bright hub dynamo LED lighting make everyday life safe and stylish (FEQ).

Features

• Sophisticated touring and leisure bike with proven specification
• Low-maintenance Shimano Nexus 8-speed gear hub
• Innovative Gates CDN carbon belt
• High-quality hydraulic Tektro brakes
• 45 mm wide Schwalbe tyres with low rolling resistance

Specifications

• Frame: Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: BSA 68 mm, Cable routing: internal, Adjustable dropouts, Bolted seatstay (drive
• side)
• Fork: STEVENS S-Lite Aluminium, Tapered Steerer 1 1/8" - 1.5", O.L.D.: 100 mm, Brake: postmount disc 7"
• Headset: FSA No.80 56 CR II Taper 1 1/8"-1,5", Upper bearing cup: ZS52/28.6, Lower bearing cup: ZS52/40
• Brake front: Tektro HD-T280, Hydraulic disc brake, 2 pistons
• Brake rear: Tektro HD-T280, Hydraulic disc brake, 2 pistons
• Brake disc: Tektro TR180-35, Rotor size: 180 mm, Center Lock
• Crankset: Gates S250 CDN, 50 T, BB type: BSA 68 mm / Square taper (117.5 mm axle length), Chainguard
• Chainring: Gates CDN chainring, 50 T
• Belt: Gates CDN Center Track Carbon Drive Belt, Length: 122 T
• Derailleur rear: Shimano Nexus, SG-C6001-8D, 8-speed gear hub with freewheel, Gear range: 307%
• Cassette: Gates CDN Center Track sprocket, 24 T
• Pedals: ATB Alu Reflex
• Hubs rear: Shimano Nexus, Axle: 10x135 mm threaded
• Hubs front: Shutter Precision PL-8, Hub dynamo, Axle: QR9x100 mm
• Rims: Oxygen Taurus 26, ETRTO: 26 x 622
• Tires: Schwalbe G-One Overland Performance, Tire size: 45-622, Foldable, RaceGuard, ADDIX Eco, Tubeless Ready, Reflective stripes
• Handlebar: Scorpo Rise, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
• Stem: Oxygen, Handlebar clamp: 31.8 mm, Angle: 17°
• Saddle: Selle Royal Vivo Ergo Athletic
• Seatpost: Scorpo, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm, Offset: 17 mm
• Shift lever right: Shimano Alfine 8, SL-S503, 8-speed
• Brake lever: Tektro HD-T280, 3 finger
• Headlight: B+M Briq-S T Senso+, Illuminance: 60 lux, Close range light, Daylight function
• Taillight: AXA Juno, Stationary taillight
• Carrier: Racktime STV RC 04, System: SNAP IT 2.0, QL3.1 Mounting system
• Mudguards: Curana Apollo 60
• Kickstand: STEVENS Edge, Kickstand mount: KSA 40
• Bell: STEVENS Alu bell
• Weight: 14.9 kg
• Laden weight: 140 kg
• Color(s): Pepper White
• Sizes: HT: S, M, L, XL, XXL

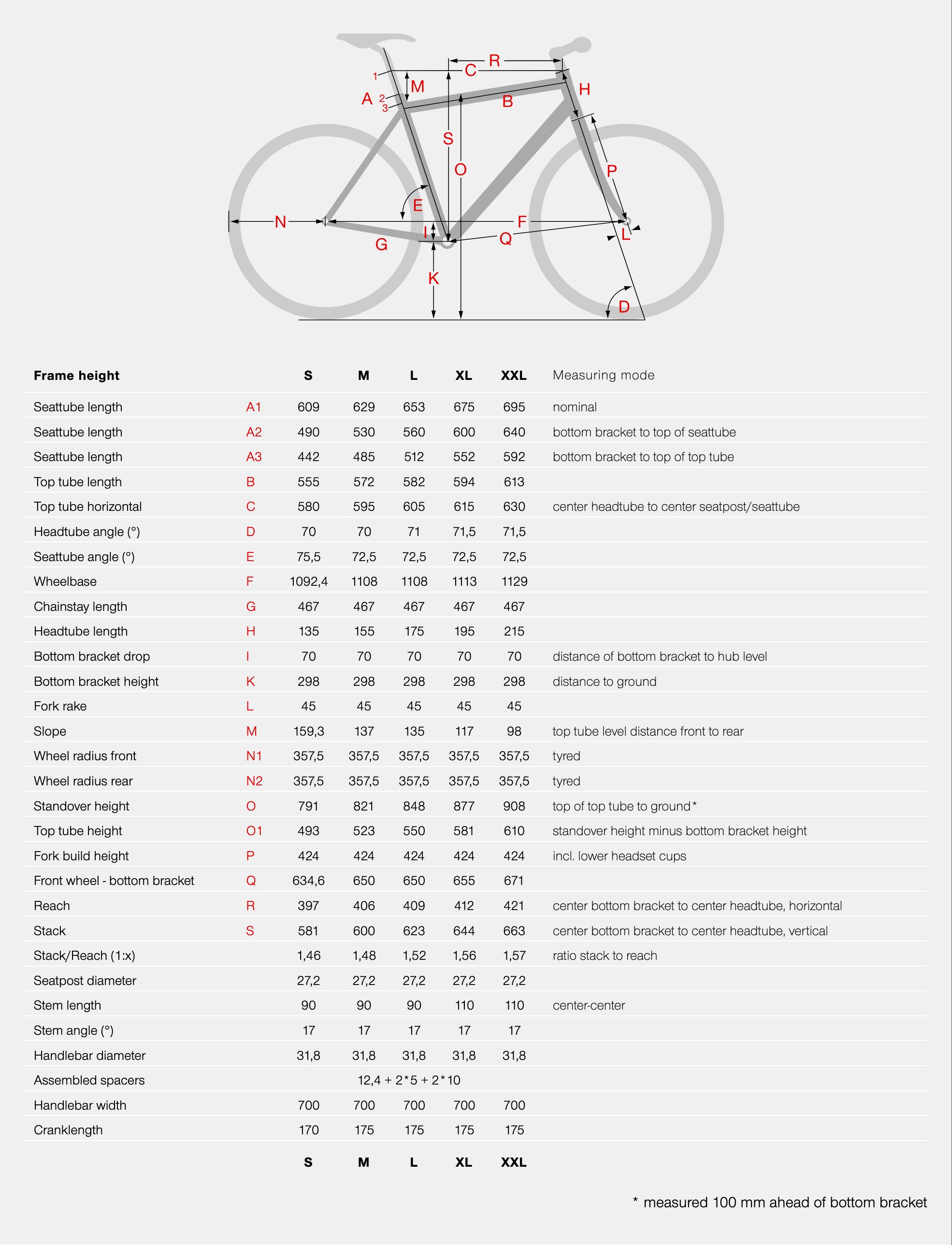

Geometry
