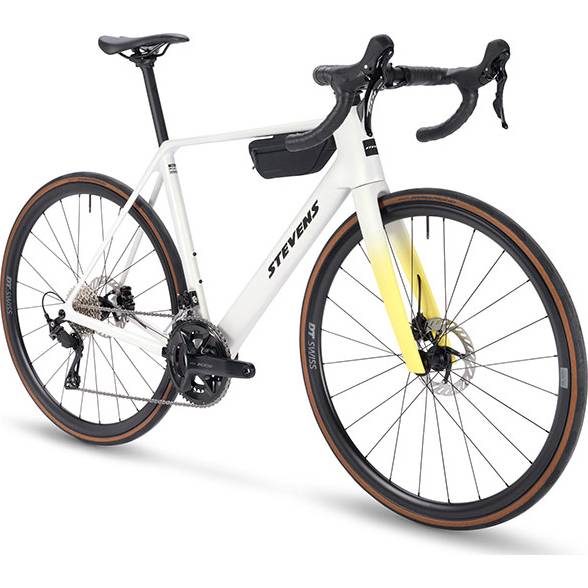

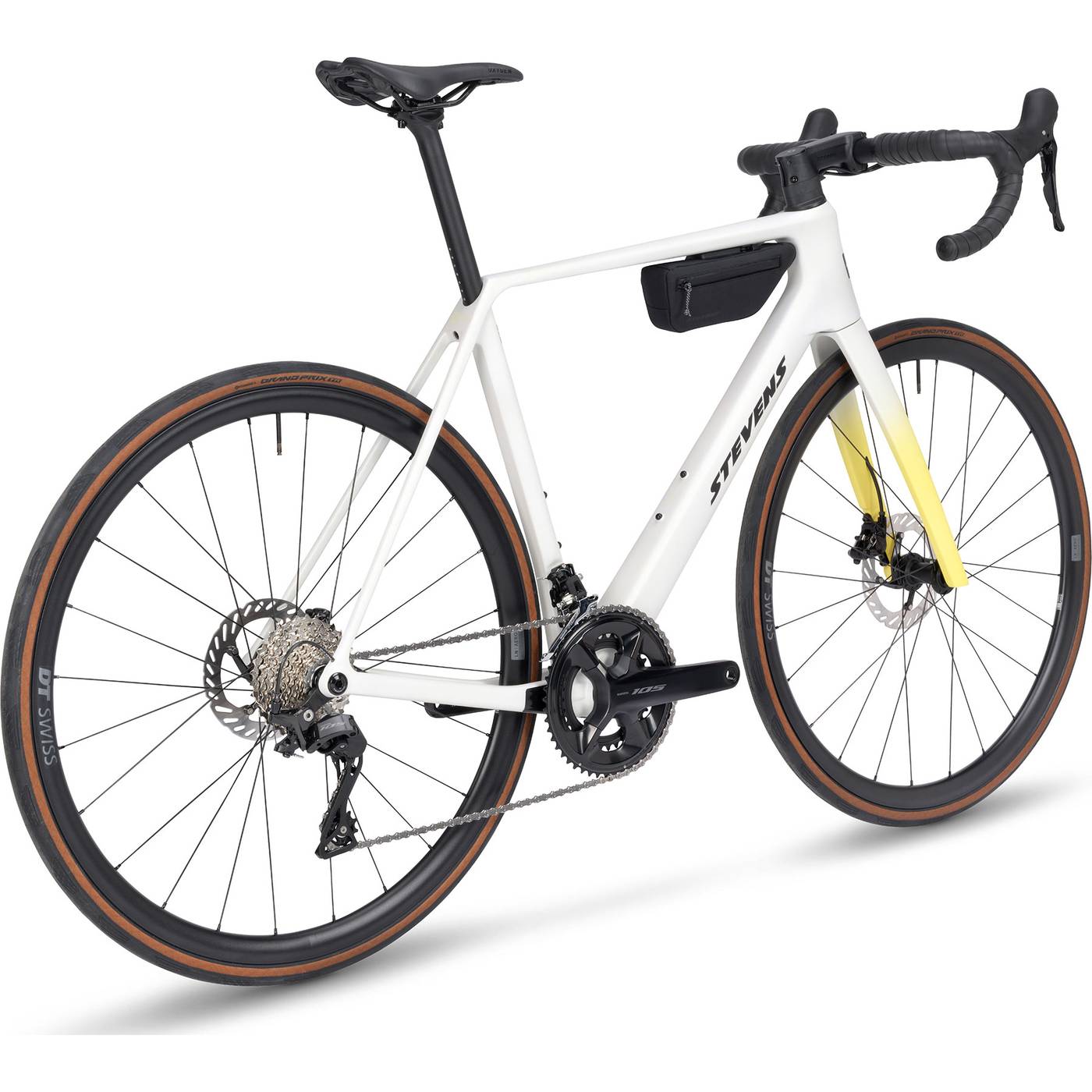

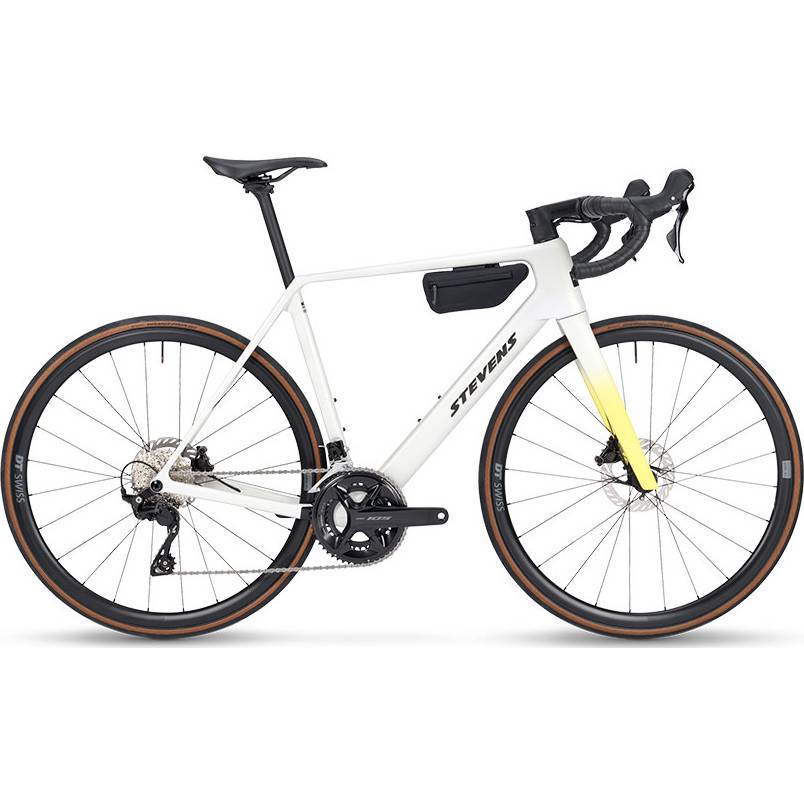

Stevens Izoard Road Bike

The Izoard all-round road bike features a comprehensively redesigned high-tech carbon frame.

• Versatile all-round road bike with everyday-ready features and a relaxed aero frame geometry
• Newly developed high-end carbon frame with UCI approval
• Proven Shimano 105 2x12-speed drivetrain
• Robust DT Swiss aluminum wheelset
• Comes standard with a frame bag developed together with Vaude, featuring a Fidlock mounting system

Features

• Its completely new design adopts the clean, dynamic styling of our most successful custom road bikes.
• The front of the bike unmistakably bears the DNA of the Arcalis Aero Bike: A head tube tapering towards the centre optimises aerodynamics whilst ensuring a fresh, modern look.
• The rear triangle, in turn, benefits from the strengths of our popular Xenith Endurance Bike: comfort-oriented marathon performance, including a 27.2
• mm seatpost that effectively absorbs shocks and reduces fatigue over long distances.
• The maximum tyre clearance of 32 mm offers additional comfort reserves.
• With its new, ‘relaxed’ aero geometry – also inspired by the Xenith platform – and a targeted very low overall weight, the Izoard is perfect for long rides and fast training laps alike.
• Another highlight: the bike comes as standard with a frame bag developed in collaboration with Vaude, featuring a Fidlock magnetic mount.
• This means spare inner tubes or energy bars are always within easy reach.
• The Izoard 105 comes with a full Shimano 105 groupset – ideal for ambitious amateur cyclists who want a straightforward, reliable drivetrain.

Specifications

• Frame: Carbon SL Fiber, 142mm O.L.D., flatmount disc, Pressfit BB86, internal cable routing
• Fork: STEVENS Full Carbon SL, tapered steerer, 100mm O.L.D., flatmount disc
• Headset: Token TK155PD
• Brakes (front/rear): Shimano 105 hydraulic disc, BR-R7170, flatmount
• Brake rotors: Shimano SM-RT70, 160mm, Center-Lock
• Crankset: Shimano 105, 50-34T, Pressfit BB86/Hollowtech II
• Front derailleur: Shimano 105, 2-speed
• Rear derailleur: Shimano 105 Shadow
• Chain: Shimano CN-M6100
• Cassette: Shimano 105, 12-speed, 11-34T
• Front wheel: DT Swiss AR LN Classic, TA12x100mm
• Rear wheel: DT Swiss AR LN Classic, TA12x142mm
• Tires: Continental Grand Prix TR, 30-622, foldable, tubeless-ready
• Handlebar: Scorpo Aero, 120mm drop, 75mm reach, 4° flare, 6° backsweep, 31.8mm clamp
• Stem: Scorpo, 31.8mm clamp, -6°
• Saddle: Oxygen Triton 2.0
• Seatpost: Scorpo, 350mm length, 27.2mm diameter, 0mm offset
• Shift/brake lever left: Shimano 105 ST-R7120-L, 2-speed
• Shift/brake lever right: Shimano 105 ST-R7120-R, 12-speed
• Bell: STEVENS D85
• Accessories: STEVENS frame bag with Fidlock TWIST base
• Weight: 9.0 kg
• Laden weight: 115 kg
• Color: Pearl White Citrus
• Sizes: 48, 51, 54, 56, 58, 61 cm

Size Chart
