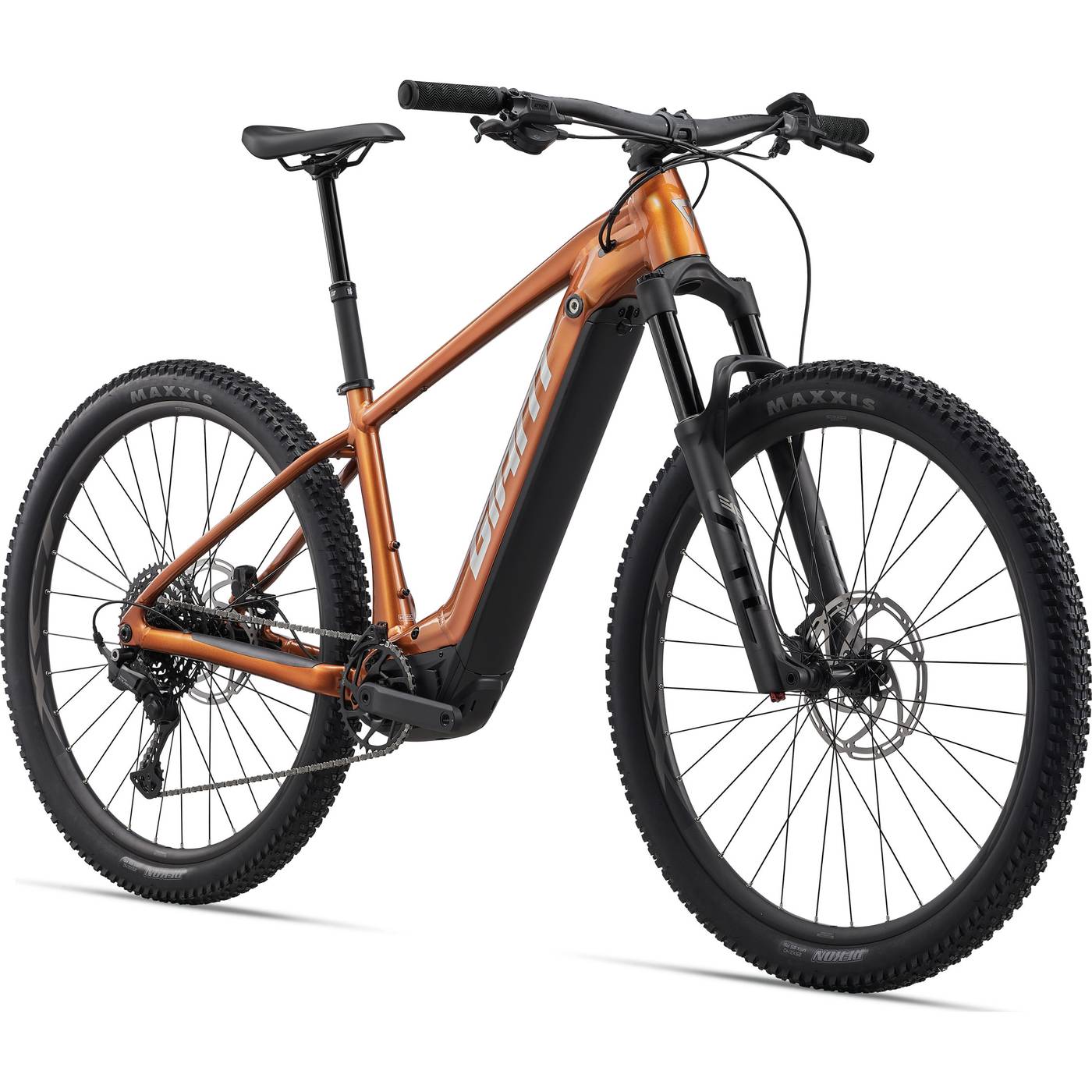

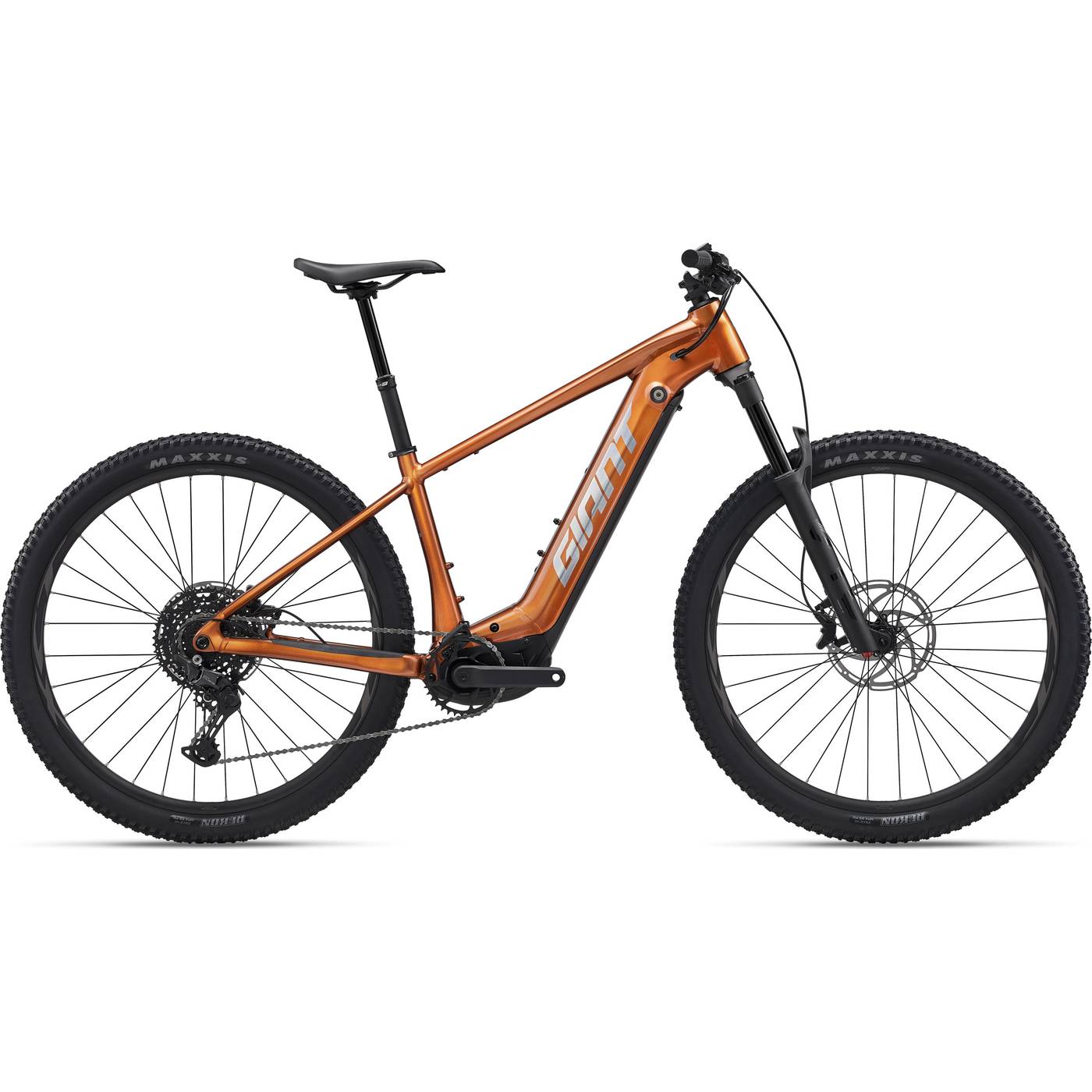

Giant Fathom E+ 1 Electric Hardtail Mountain Bike

Take control of the trail with this fun new hardtail E-bike. Now you can climb with greater ease and ride farther—the perfect formula for a great day on the trail.

Features

• POWER TO PUSH FURTHER: The new SyncDrive Pro 3X motor delivers strong, instantaneous power with 100Nm of torque, helping you attack climbs, hold momentum and level up your trail riding capabilities.
• BALANCED, CONFIDENT HANDLING: A lightweight aluminum frame with trail-friendly geometry, 130mm of front suspension, and stable 29-inch wheels helps you tame challenging off-road terrain.
• RANGE TO RIDE FURTHER: An integrated 800Wh EnergyPak Smart battery (Fathom E+1 only) delivers the range and power needed for high-output trail rides. It charges quickly, up to 80 percent in less than 4 hours using the 4A Smart Charger.

Specifications

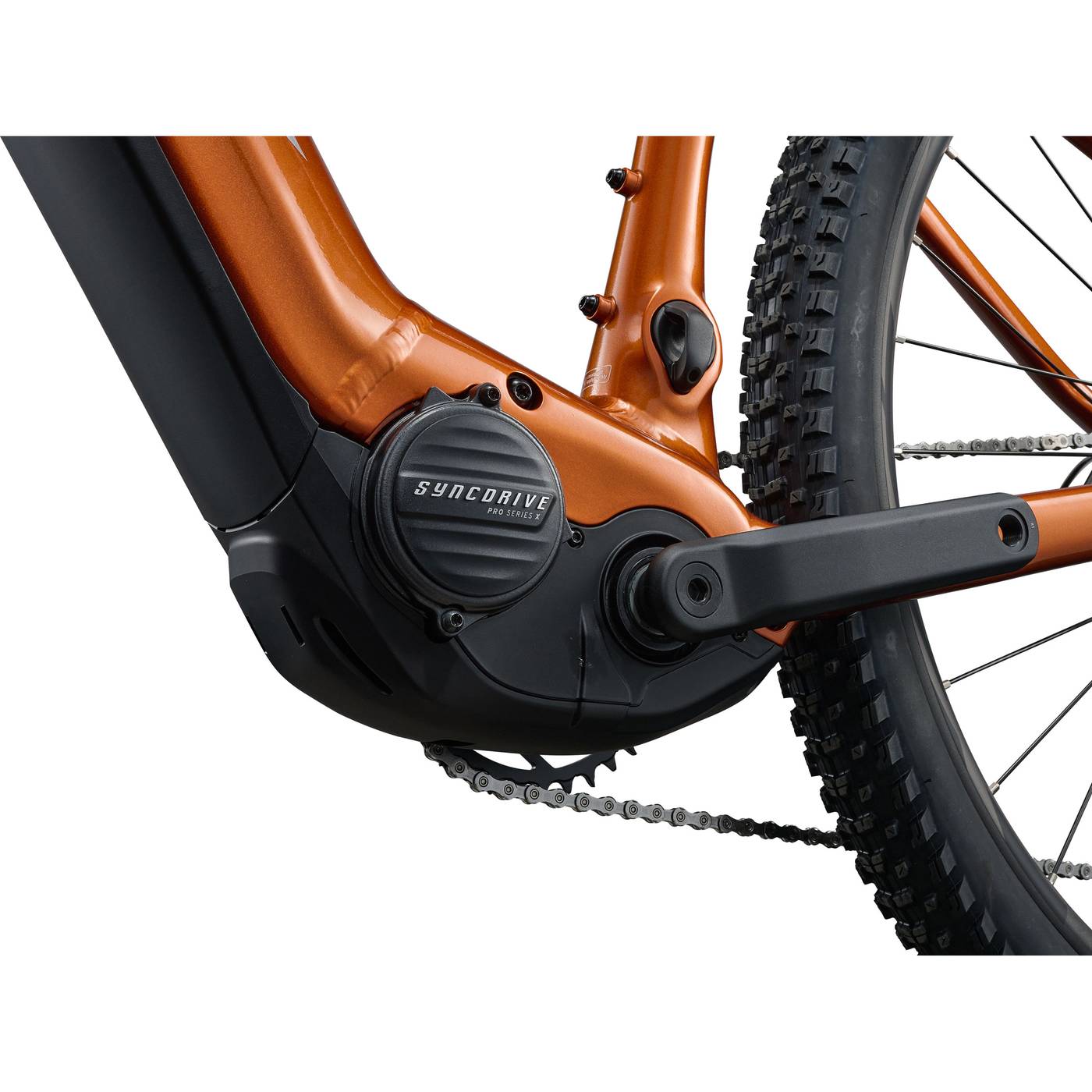

• Motor: Giant SyncDrive Pro 3X 100Nm, PedalPlus 6-Sensor technology
• Controller: Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
• Display: Giant RideControl Dash 2, high-angle visibility, full colour LCD display
• Battery: Giant EnergyPak Smart 800Wh
• Charger: Giant EnergyPak smart charger 4A
• Connectivity: Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
• Sizes: S, M, L, XL, XXL
• Colours: Gloss Amber Glow or Gloss Cryo Silver
• Frame: ALUXX-grade aluminium, OverDrive, 148x12mm thru-axle, integrated KSA40 kickstand mount

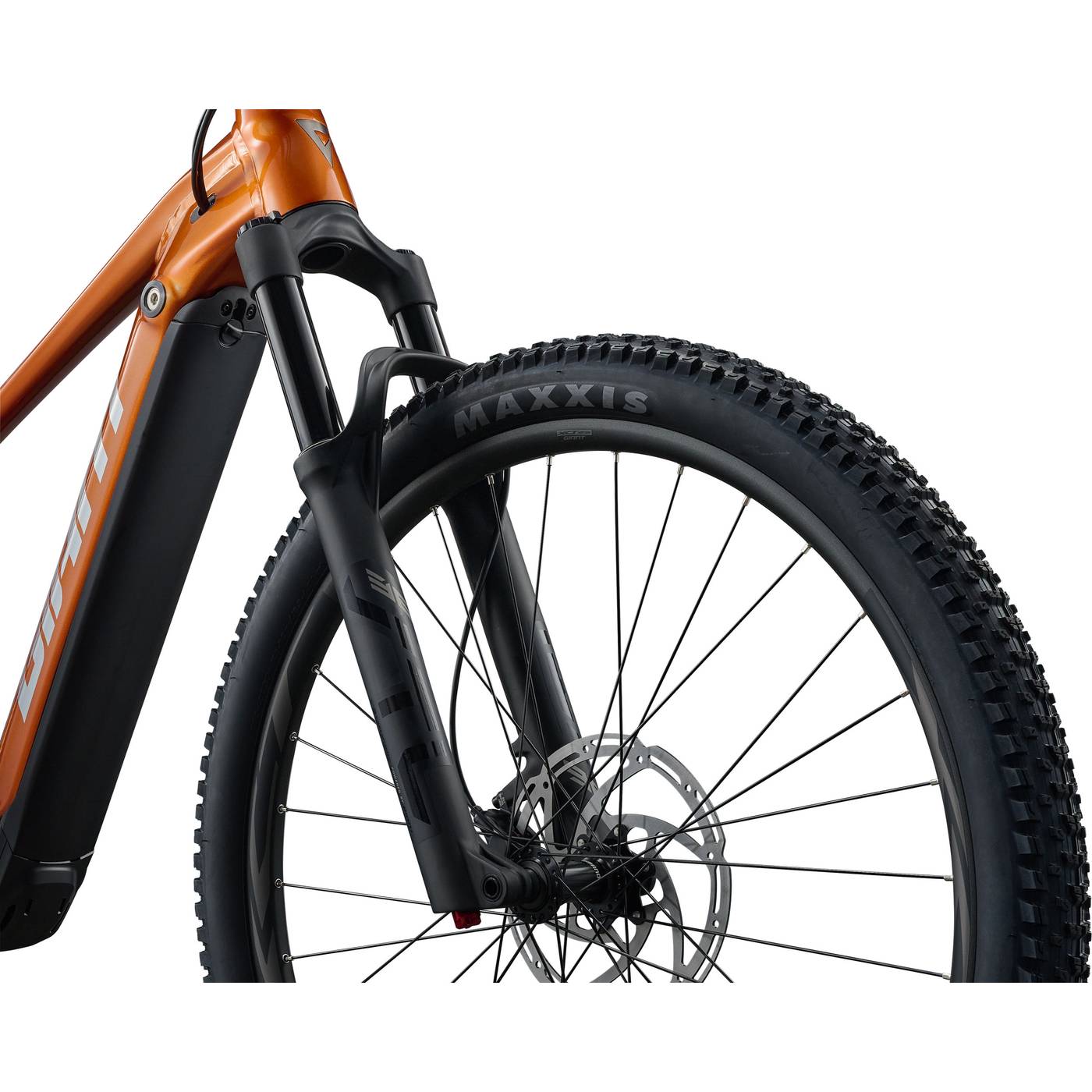

• Fork: Giant STL 36 Air, 130mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible
• Handlebar: Giant Connect TR Riser 31.8x760mm [S], 780mm [M-XXL]
• Grips: Giant Sole-O
• Stem: Giant Contact SL

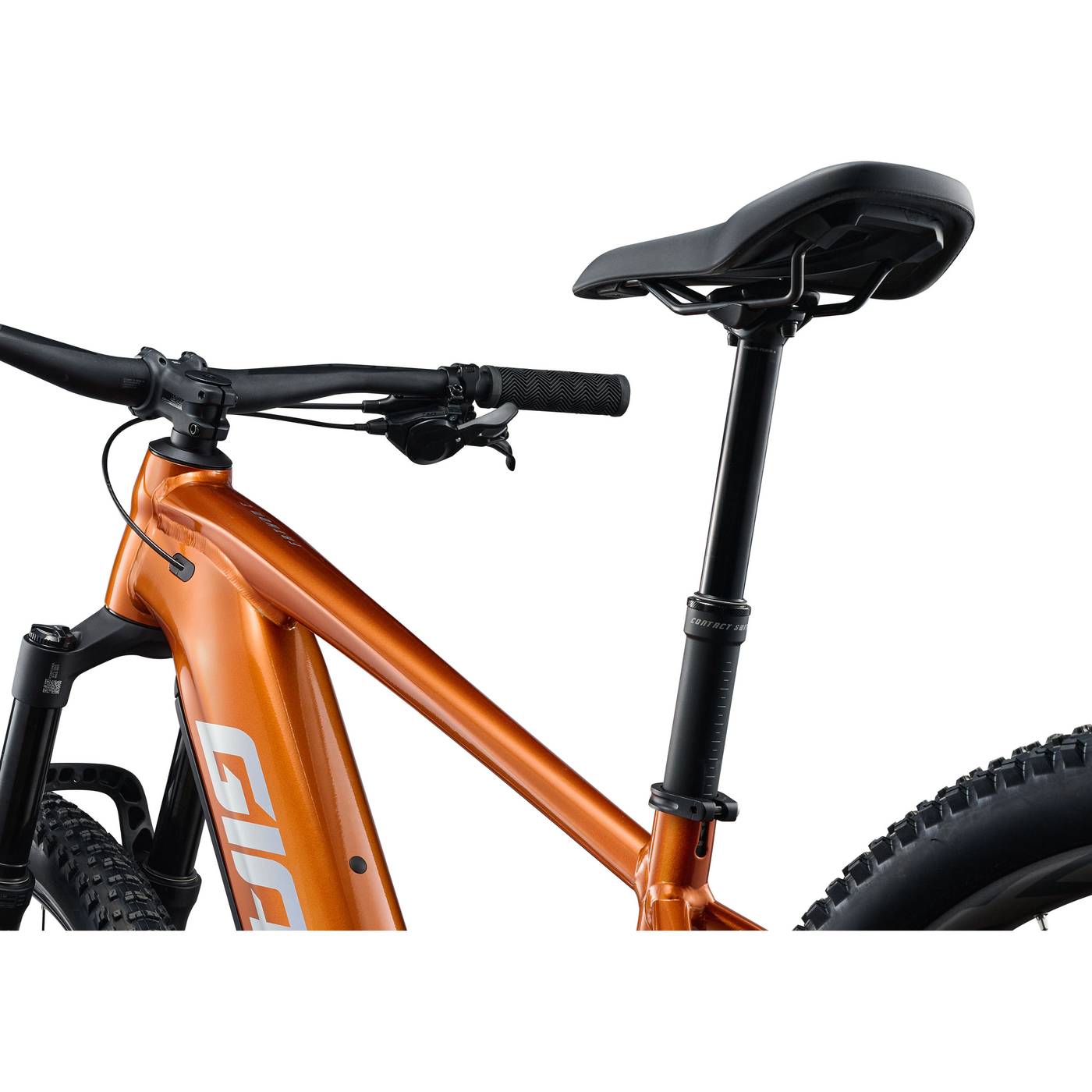

• Seatpost: Giant Contact Switch AT dropper seatpost, 100mm travel
• Saddle: Giant Ergo Contact Trail
• Pedals: Anti-slip Platform
• Shifters: Shimano Cues

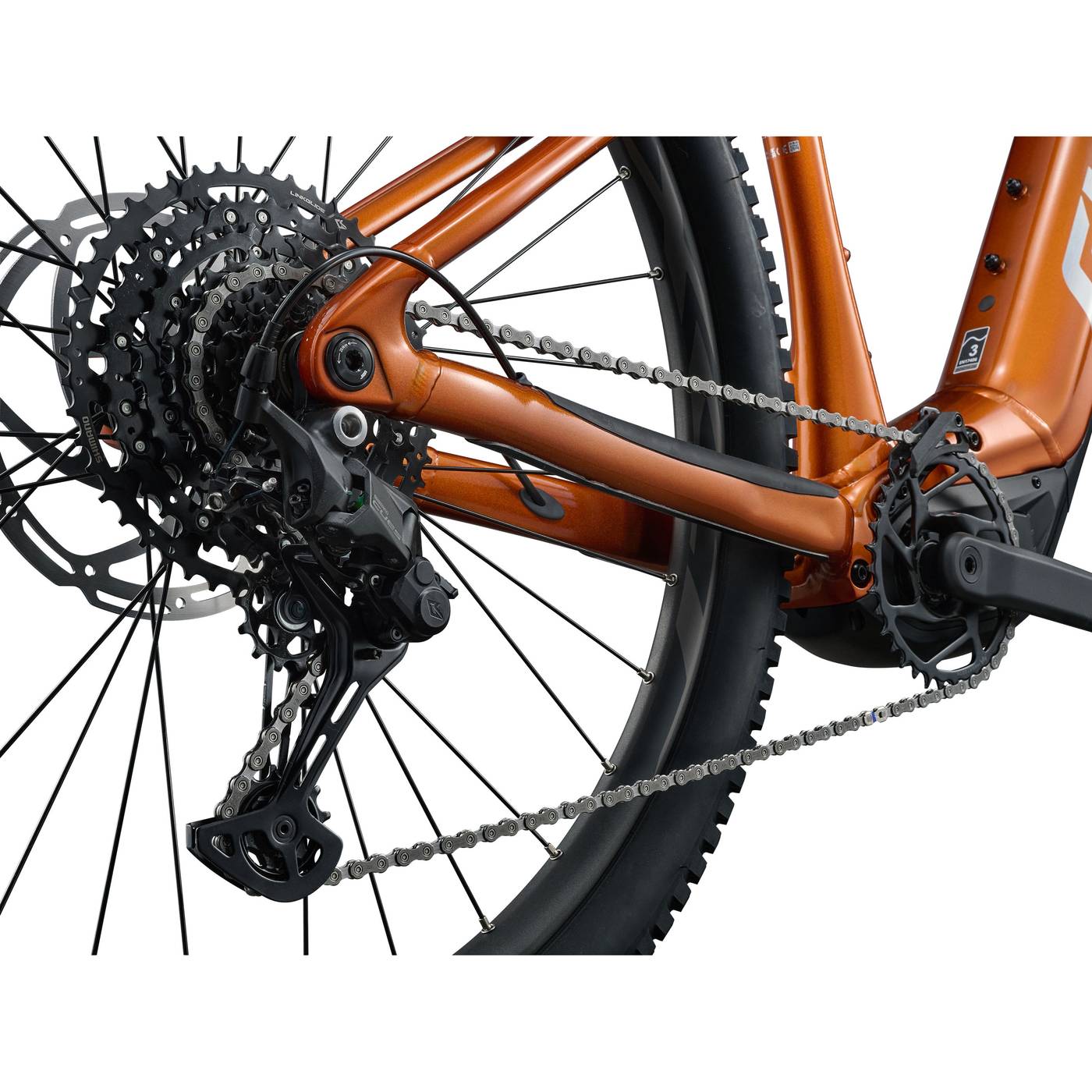

• Rear Derailleur: Shimano Cues, LinkGlide 10-speed Shadow+
• Brakes: Tektra Orion, hydraulic disc
• Brake Levers: Tektra Orion
• Cassette: Shimano Cues11-48T 10-speed
• Chain: Shimano Cues, Linkglide CN-LG500
• Crankset: Forged alluminum direct-mount chainring steel 36T, Forged alumium crank arms
• Rims: Giant XCT 29 Tubeless Ready 25mm e-bike optimized
• Hubs: Shimano TC500, Boost, Center-Lock, 15x110mm[F] 12x148mm[R]
• Spokes: Stainless steel
• Tyres: Maxxis Rekon 29x2.4", EXO, 60TPI
• Lock: ABUS Xplus battery lock
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

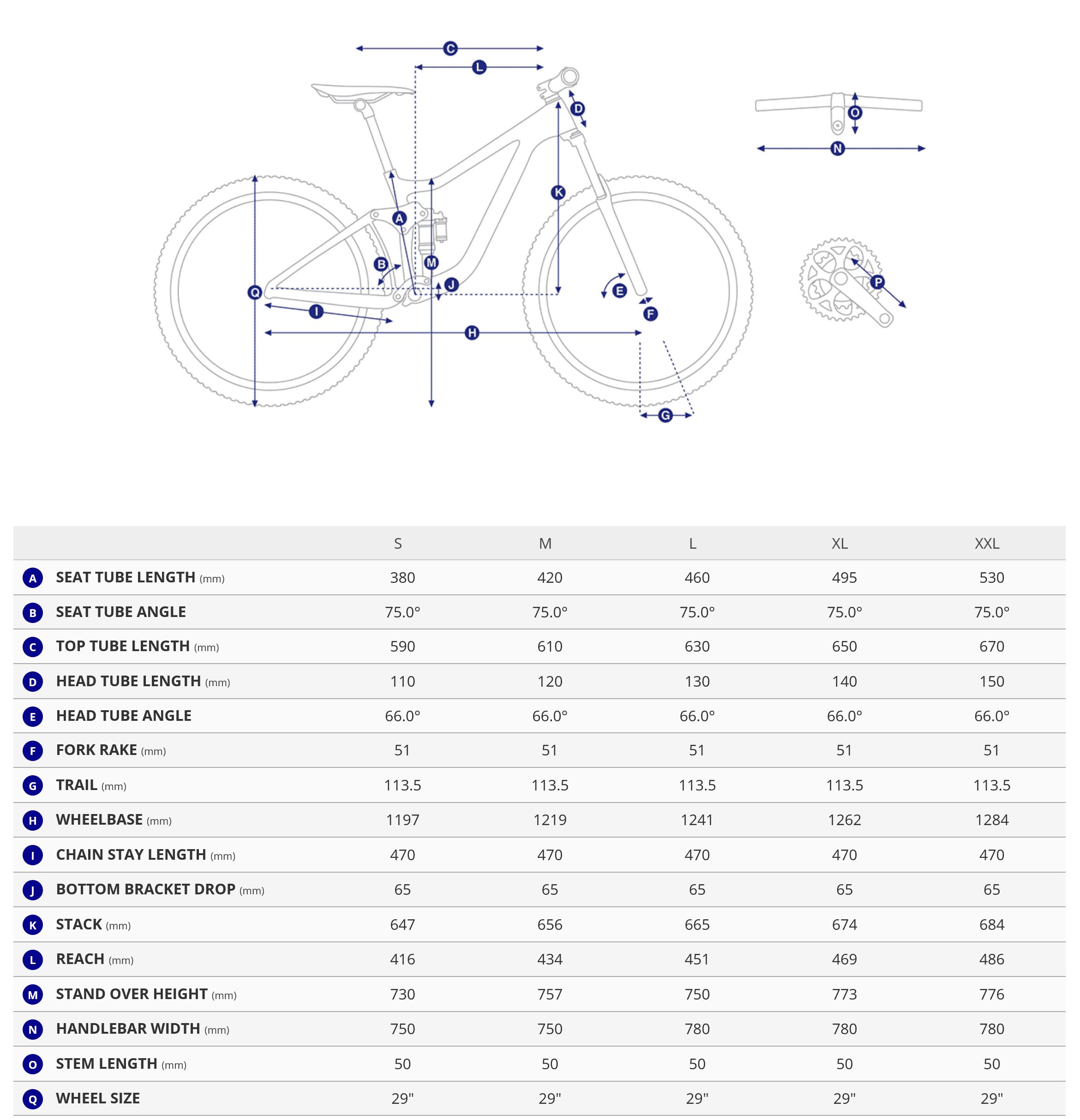

Size Chart
