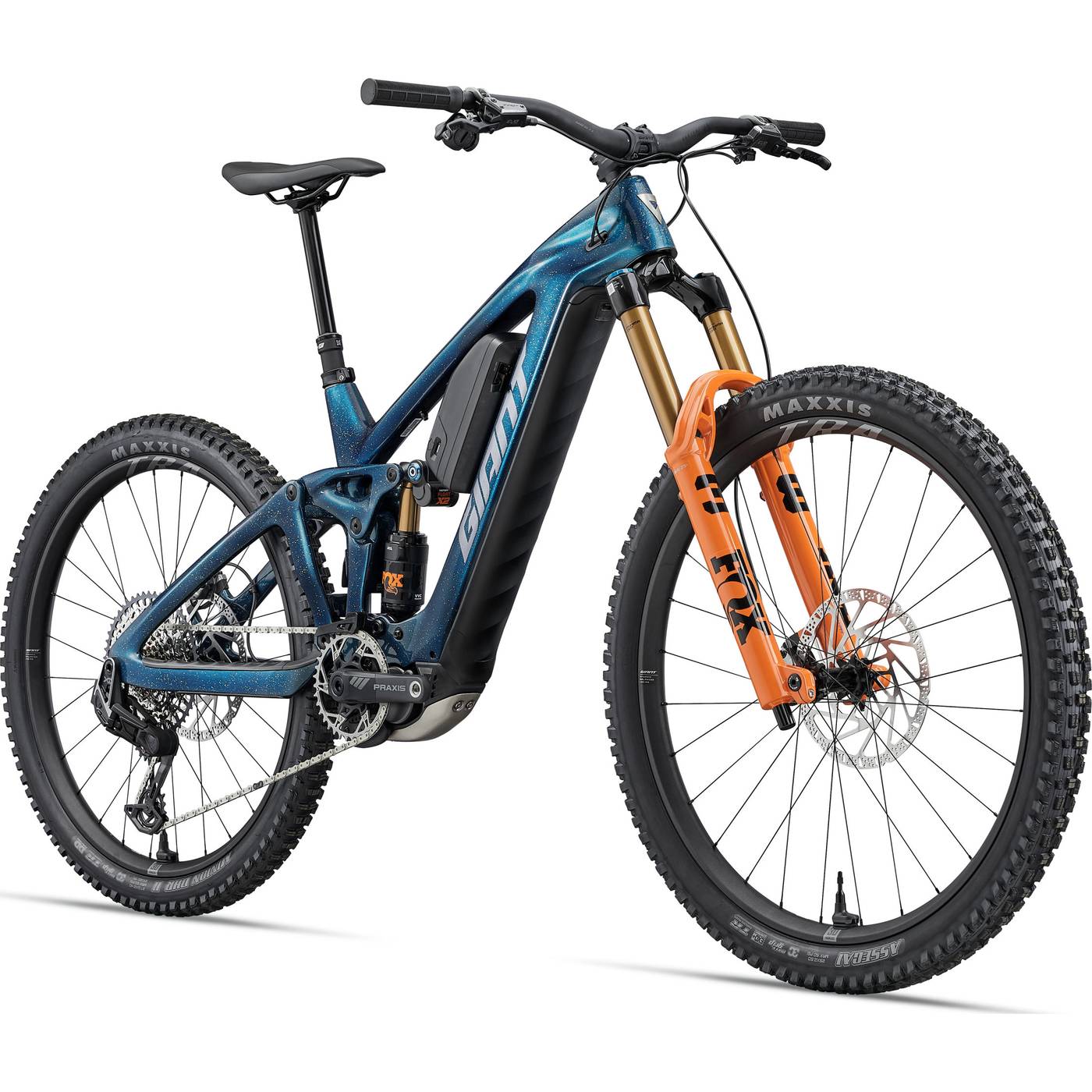

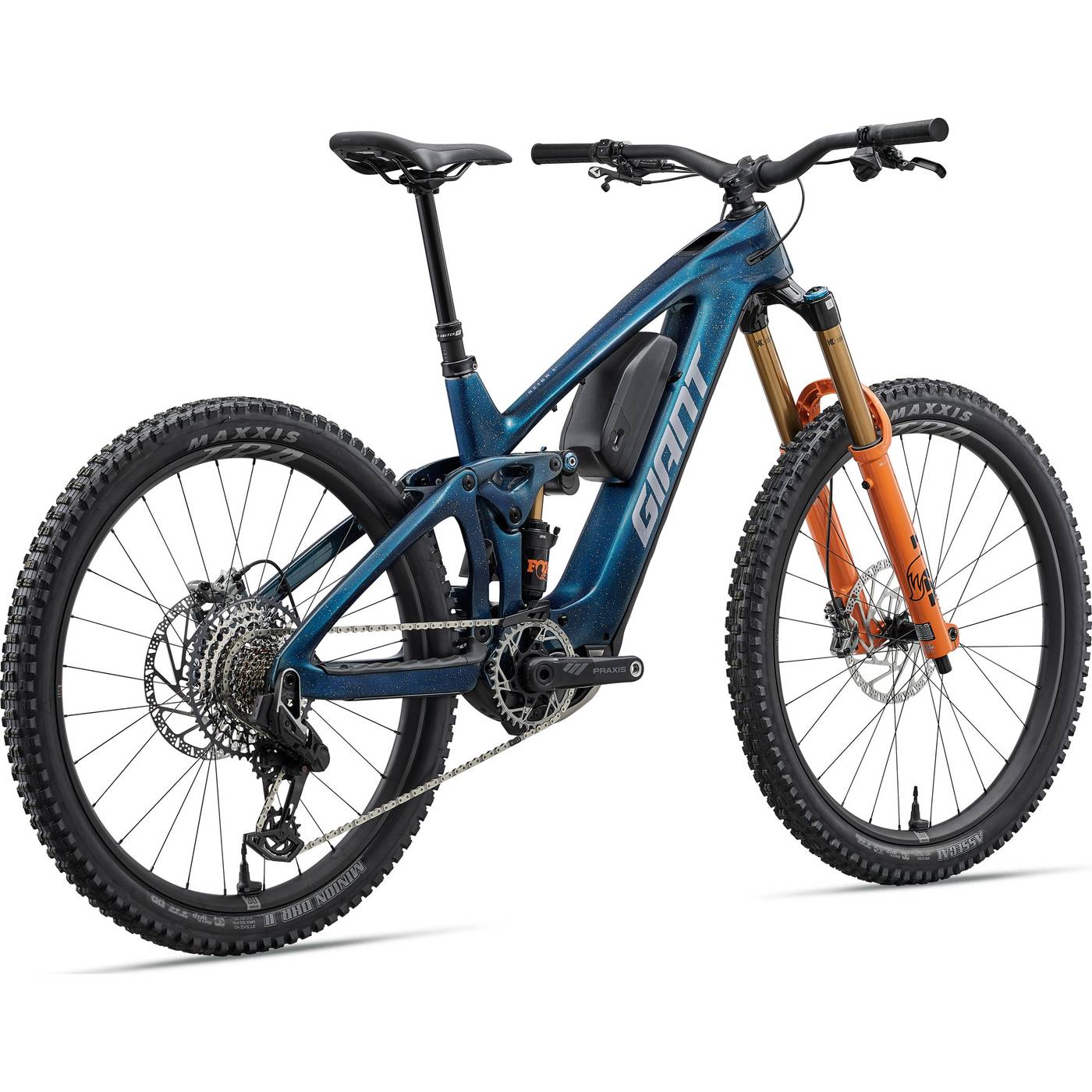

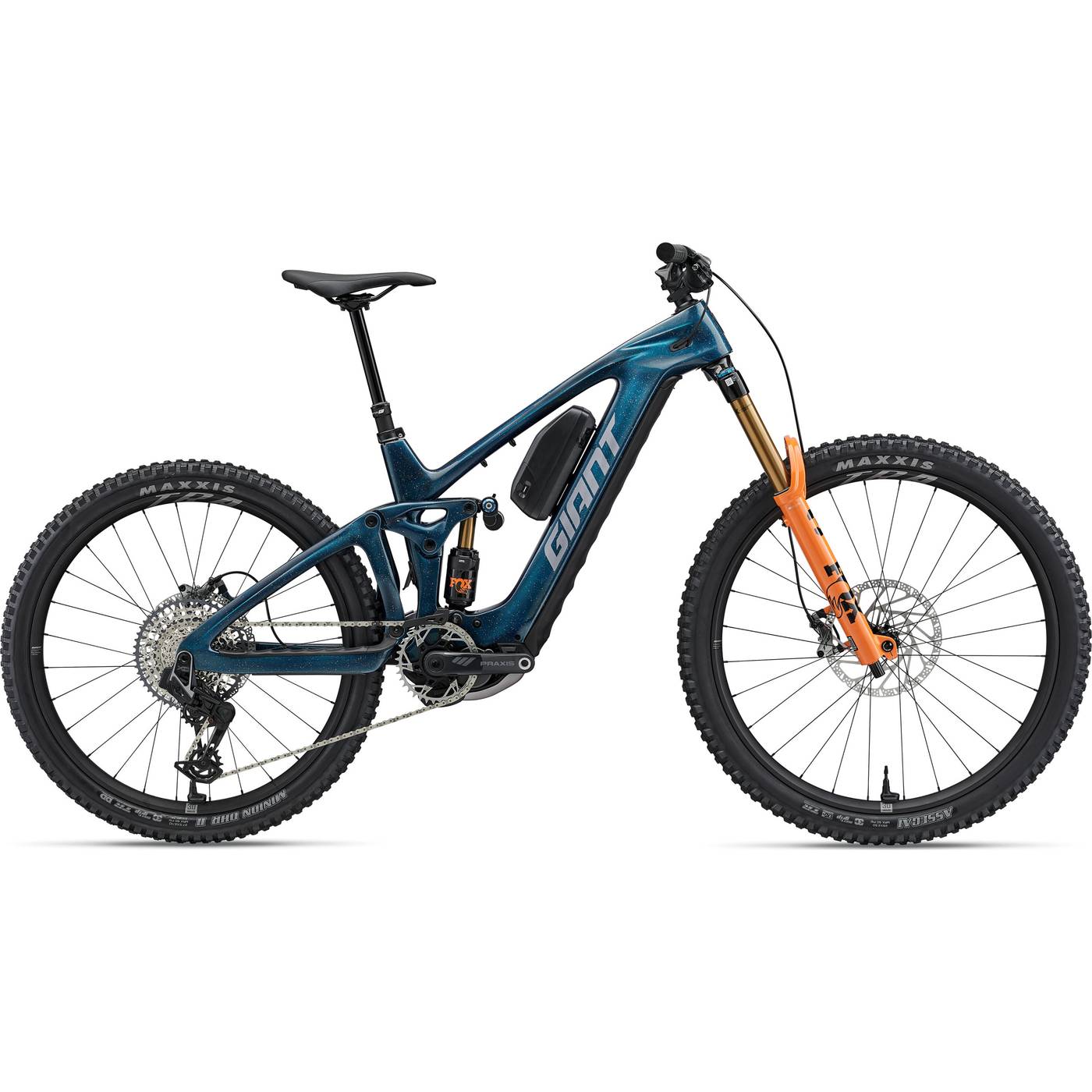

Giant Reign Advanced E+ 0 Electric Full Suspension Mountain Bike

Features

• Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
• Energypak 560: Integrated 560Wh battery pack powers a 48-volt system that produces more power with less heat and stress on the battery cells. Exceptionally durable, it delivers up to 2300 full charge cycles—more than any other E-bike battery—and recharges rapidly, reaching 80% battery capacity in as little as two hours.
• EnergyPak Plus 280: This range extender can boost total capacity by 280Wh. This gives you the choice—lighter weight for everyday rides or longer range for epic ride days.
• RideControl Ergo 4: The new RideControl Ergo 4 builds on the previous generation Ergo 3 with a sleek, grip-integrated 3-button remote control unit. It blends seamlessly with your handlebar and grips and has a larger, more concave shape and improved tactile feedback.
• Maestro Suspension Technology: Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
• E+ System: E+ System combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control units, EnergyPak battery systems and SyncDrive motors.
• For more information, check out the link below.: Tubeless System
• Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all: these benefits.
• SyncDrive Pro 3X: Delivers up to 800 watts of peak power and 100Nm of torque for fast response, balancing high output with precise control for confident, capable trail riding. Engineered to maintain powerful assist levels even at high cadences, giving you sustained support over longer periods.

Specifications

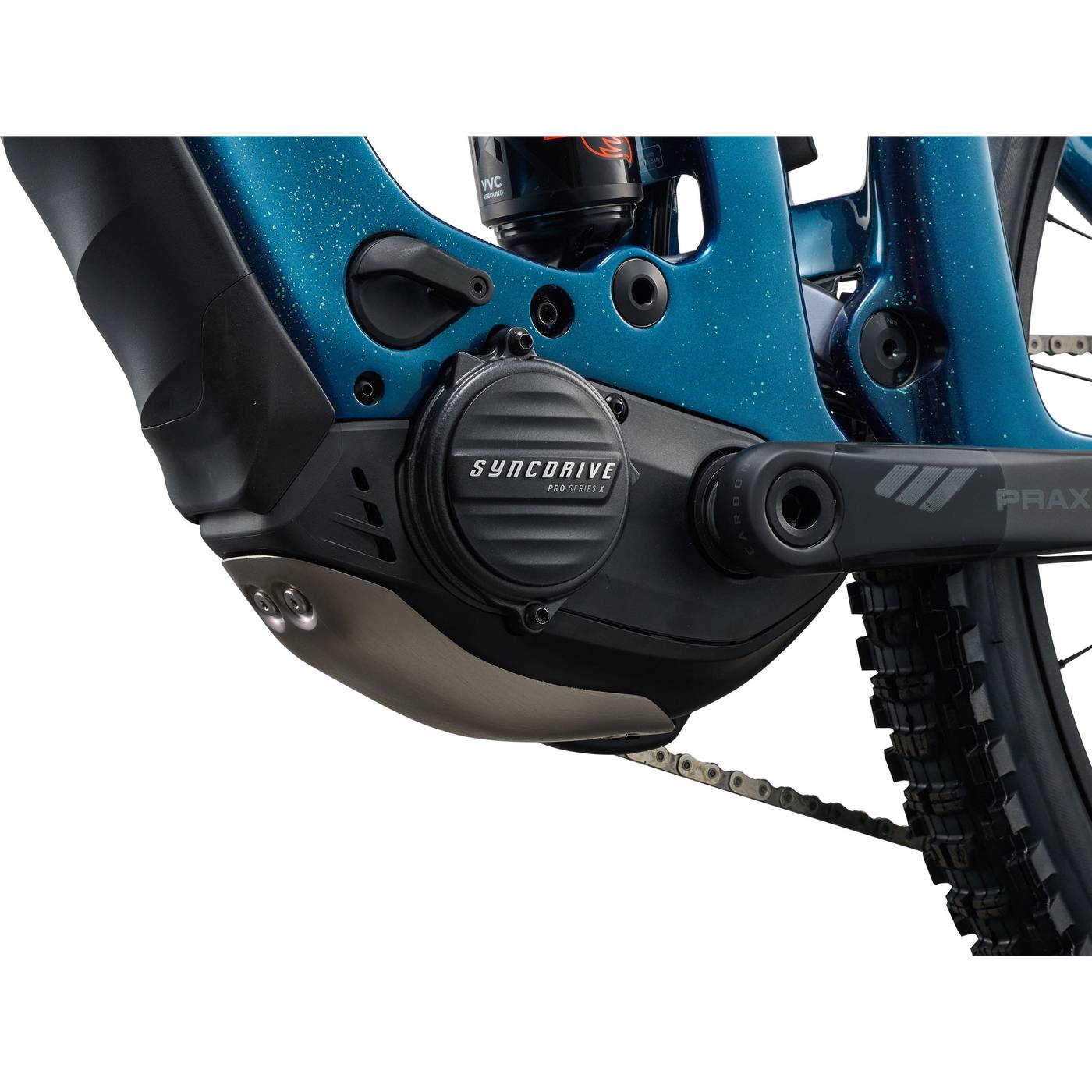

• Motor: Giant SyncDrive Pro3X,100Nm,48V 800W max power, 400% max support ratio
• Controller: Giant RideControl Ergo 4
• Display: Giant RideControl Go Lux
• Battery: iant EnergyPak Smart 560X, 560Wh, 48V Giant EnergyPak Plus 280Wh range extender
• Charger: Giant EnergyPak 4A Charger, 48V
• Sizes: S, M, L, XL
• Colours: Gloss Celestial Tide
• Frame: Advanced-grade composite frame, Advanced forged composite upper rocker, 170mm Maestro suspension system

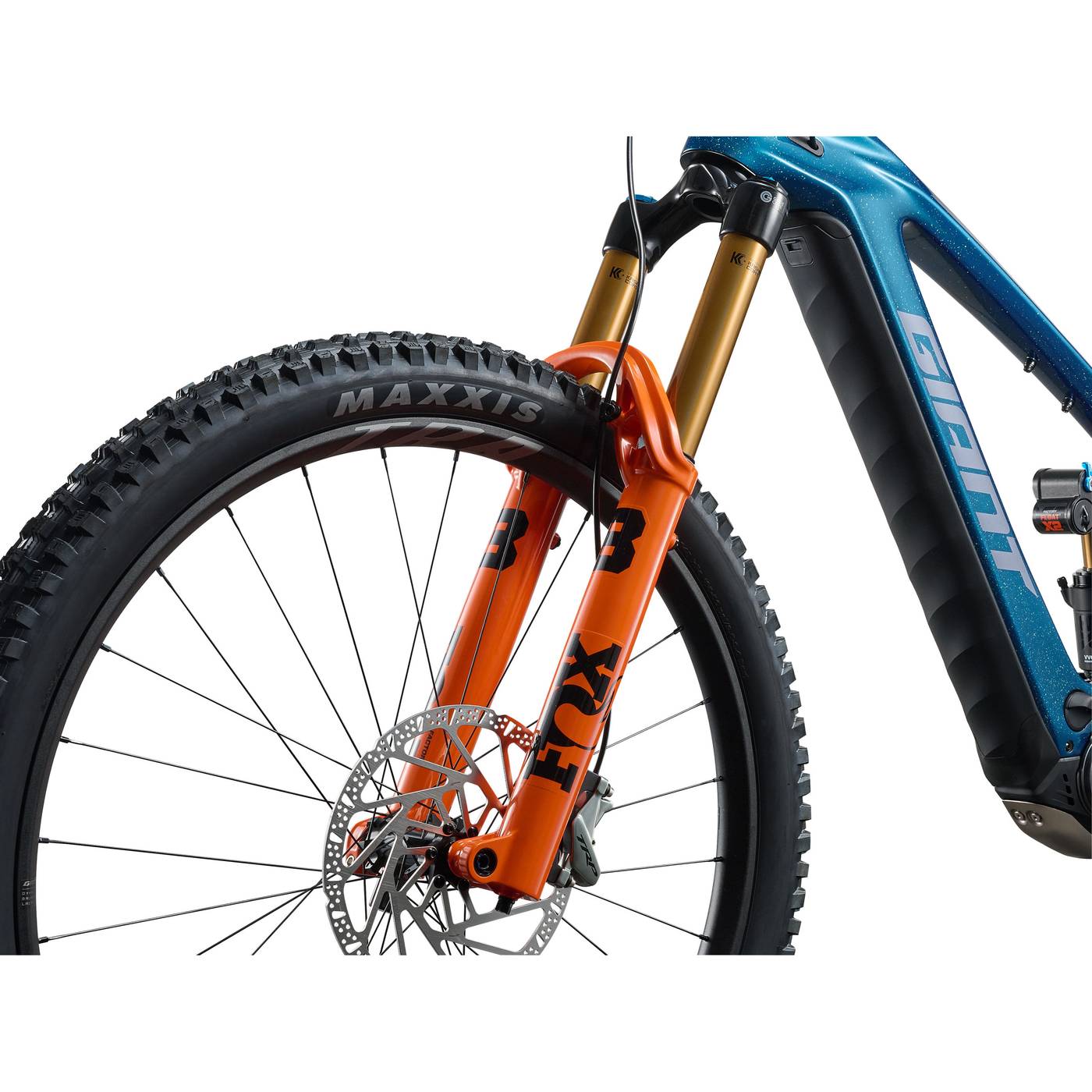

• Fork: Fox 38 Factory, 29", 180mm travel, GripX2 damper, 44mm offset, KoboltX2 110x15mm Boost axle

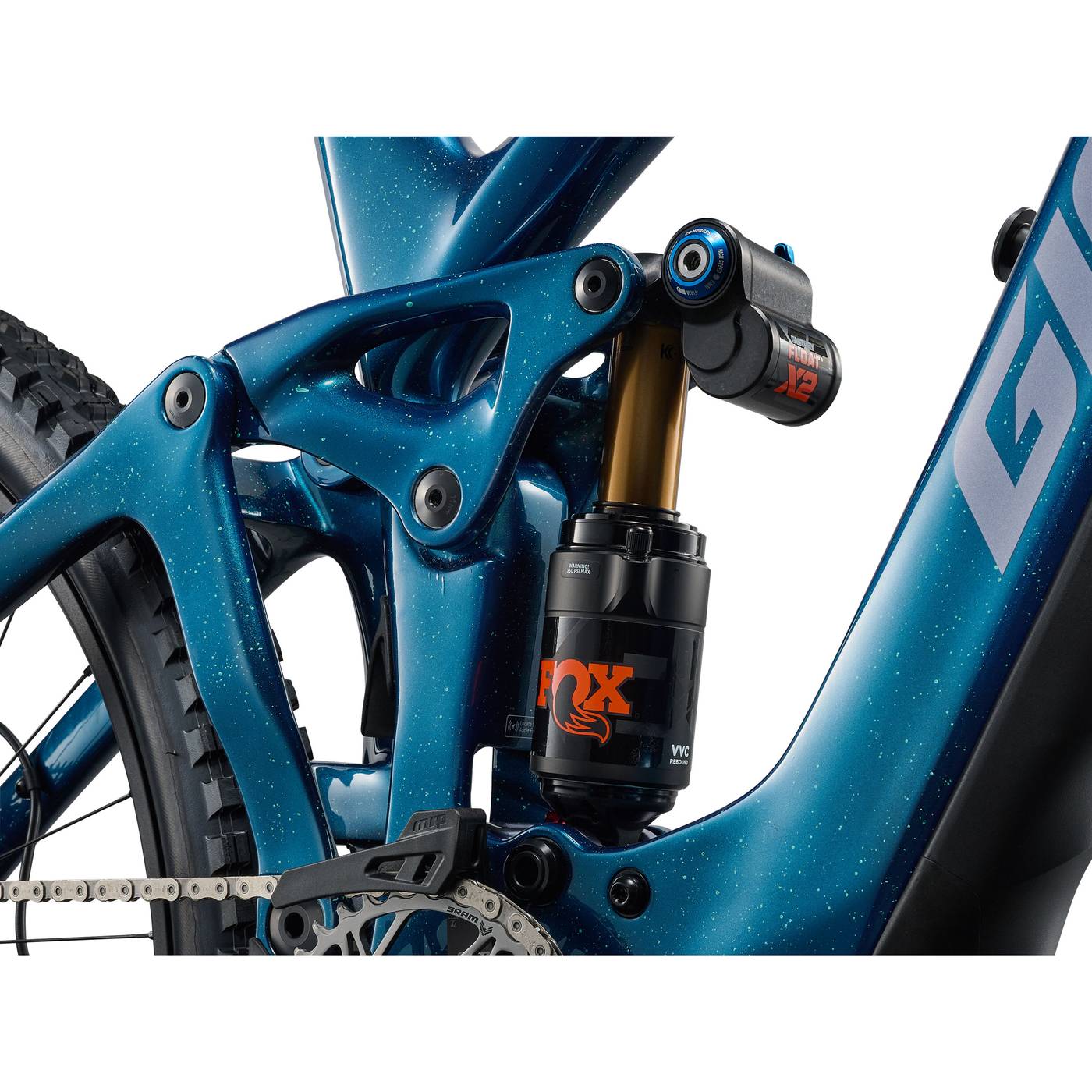

• Shock: Fox Float X2 Factory, 205x65mm, 2-position lever, HSC, LSC, HSR | LSR, custom tuned

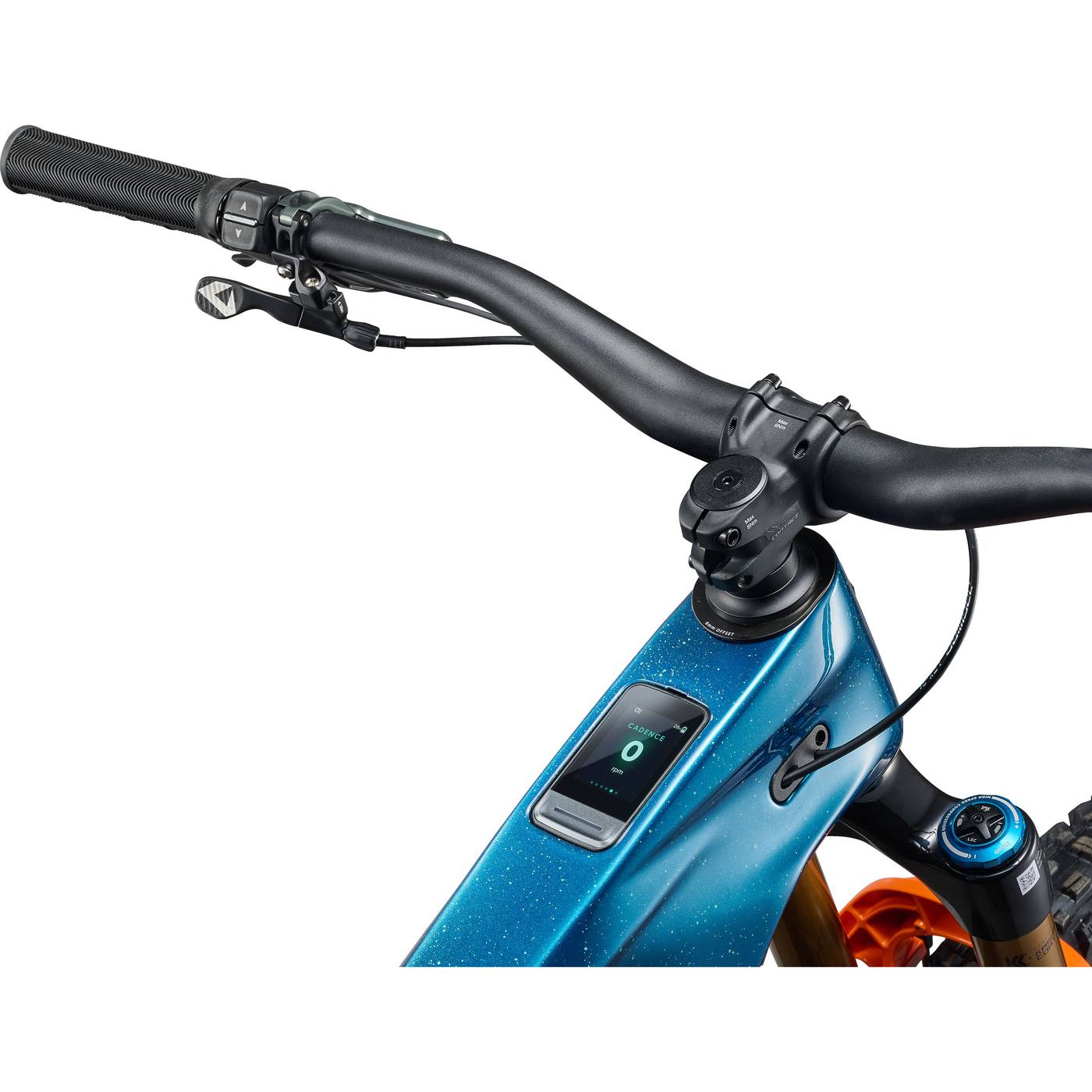

• Handlebar: Giant Contact SL TR35, 35mm rise, 5-degree upsweep, 9-degree backsweep, 35x800mm
• Grips: Giant Tactal Pro-E, tapered, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
• Stem: Giant Contact SL 35, 40 mm

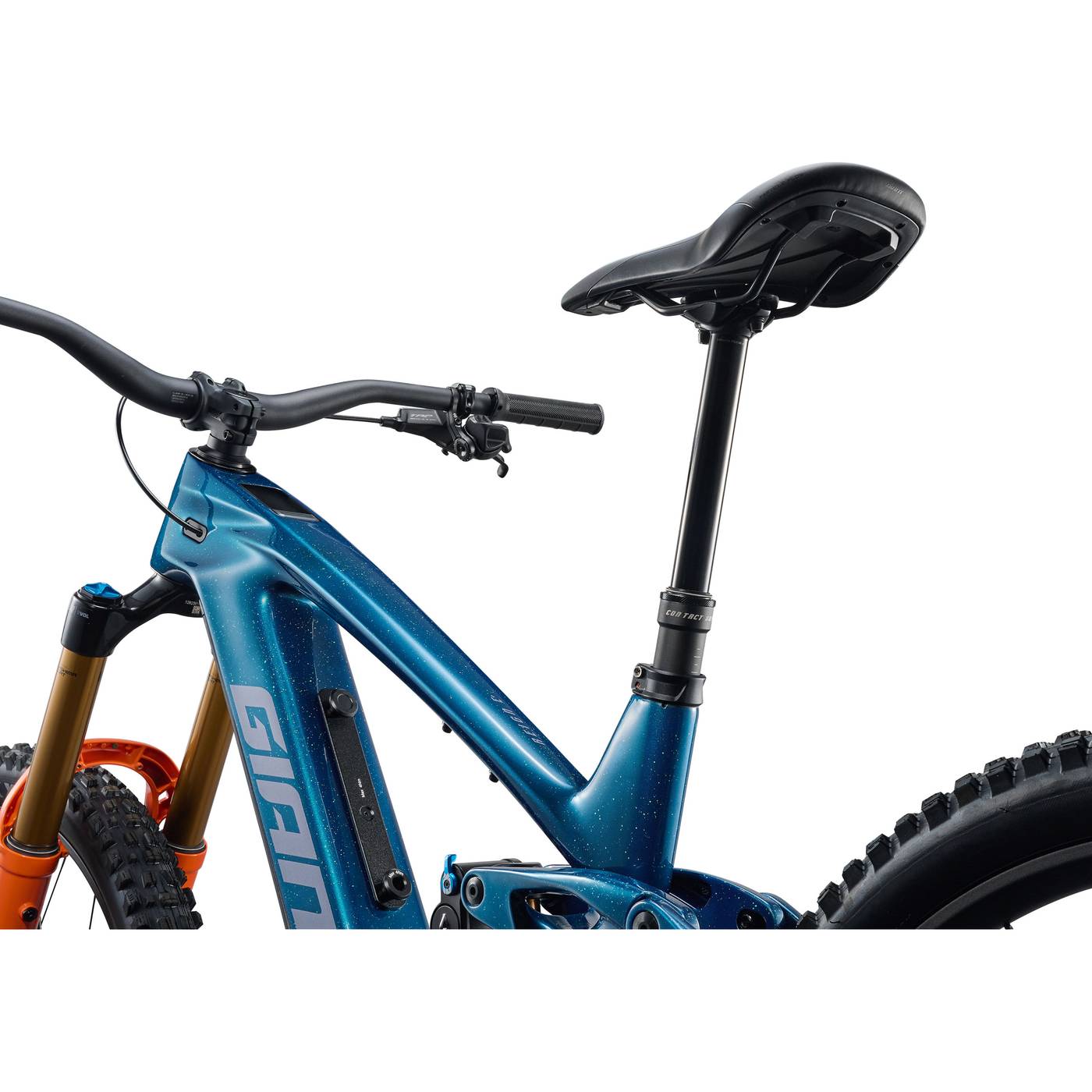

• Seatpost: Giant Contact Switch AT, 30.9 mm travel-adjust dropper post, XS & S: 110-140 mm, M & L: 140-170 mm
• Saddle: Giant Romero, neutral
• Pedals: PEDALS NOT SUPPLIED
• Shifters: SRAM AXS Pod Rocker, discrete clamp
• Front Derailleur: SRAM XO AXS Eagle, Transmission, T-Type

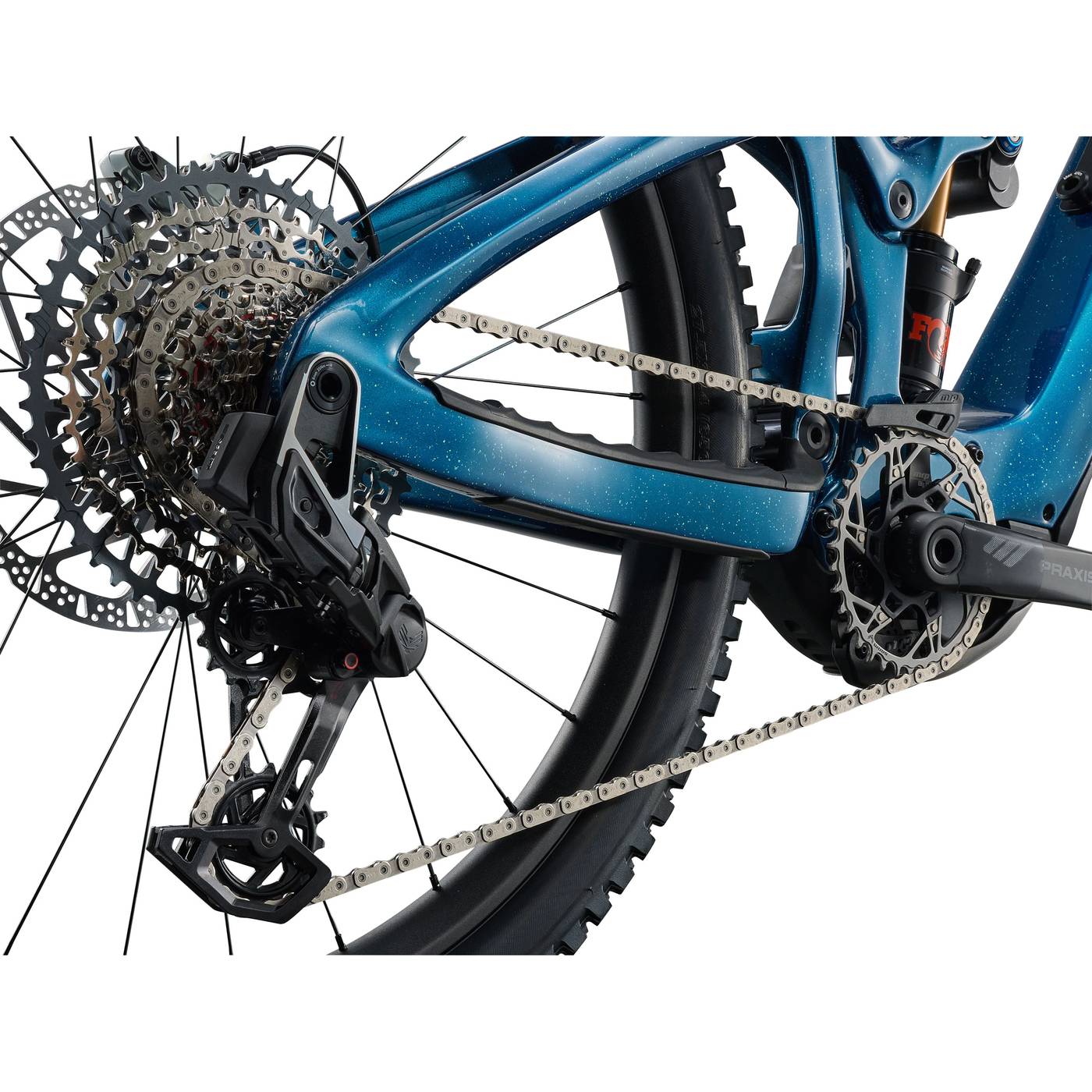

• Rear Derailleur: SRAM XO AXS Eagle, Transmission, T-Type
• Brakes: TRP EVO Pro, hydraulic disc, 4-piston, 220mm [F/R]
• Brake Levers: TRP EVO Pro
• Cassette: SRAM Eagle Transmission, 10x52, 12-speed
• Chain: SRAM Eagle Transmission, Flattop, PowerLink, 12-speed
• Crankset: Praxis Carbon e-crank arms, Q-factor: 168mm, length: 155mm
• Rims: Giant e-TRA, hookless, 30mm inner width, Wide Guard
• Hubs: Giant e-TRA, E-Drive 260Nm 6-pawl driver, 72t engagement, 15x110mm [F] 12x148mm [R], e-bike optimized
• Spokes: Sapim Race [F] E-Lite [R], e-bike optimized, Dynamic Balanced Lacing
• Tyres: Maxxis Assagai 29x2.5" foldable, EXO+ 3C MaxxGrip [F] Maxxis Minion DHR II 27.5x2.4" WT foldable, DoubleDown, 3C MaxxGrip [R]
• Extras: Aegis Tire Checker, BLE+ tire pressure monitoring system tubeless kit (liquid, valves, levers, manual, tool)
• Lighting: Optional: Giant Recon series e-bike lights available and direct-connect compatible
• Combined Maximum Load Limit: 156kg
• Weight: 23.7kg
