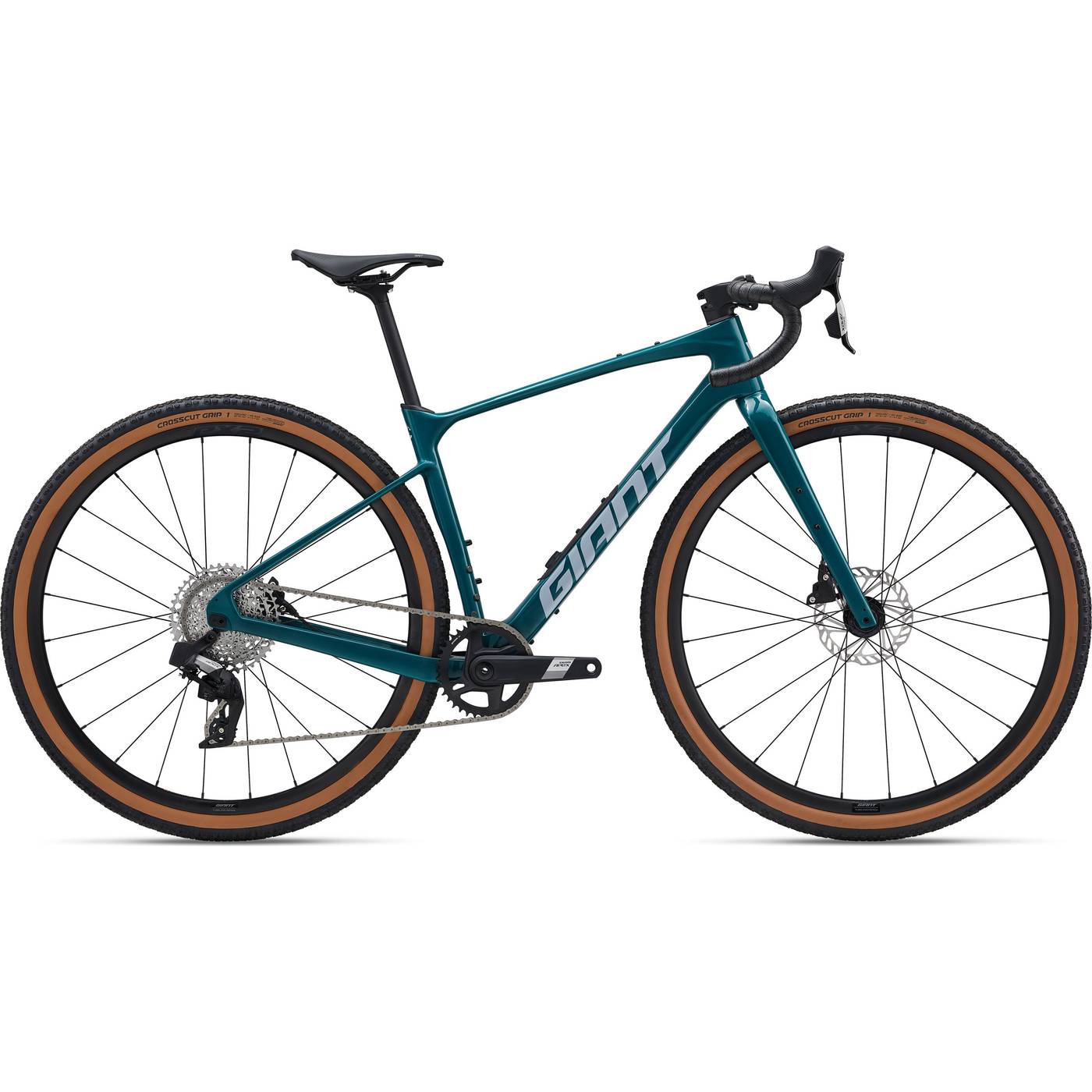

Giant Revolt Advanced 1 Road Bike

Features

• Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
• OverDrive: An oversized fork steerer tube increases front-end stiffness for precise steering at speed, giving you greater control through corners and over rough road surfaces.
• Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
• D-Fuse Technology: The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.

Specifications

• Sizes: S, M, M/L, L, XL
• Colours: Gloss Abyss Teal
• Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost: Giant D-Fuse, composite, 14mm offset
• Saddle: Giant Grit
• Pedals: PEDALS NOT SUPPLIED
• Shifters: SRAM AXS Apex, 1x12
• Rear Derailleur: SRAM Apex XPLR
• Brakes: SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers: SRAM Apex D1, left lever dropper switch
• Cassette: SRAM PG-1231, 12-speed, 11x44
• Chain: SRAM Apex D1
• Crankset: SRAM Apex 1 Wide DUB, 38t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant P-X2 , alloy
• Hubs: Giant alloy, 12mm thru-axle
• Spokes: Sapim
• Tyres: Giant Crosscut Grip 1, 700x45c, tubeless
• Extras: tubeless prepared, in-frame storage bag
• Max Tyre Clearance: 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

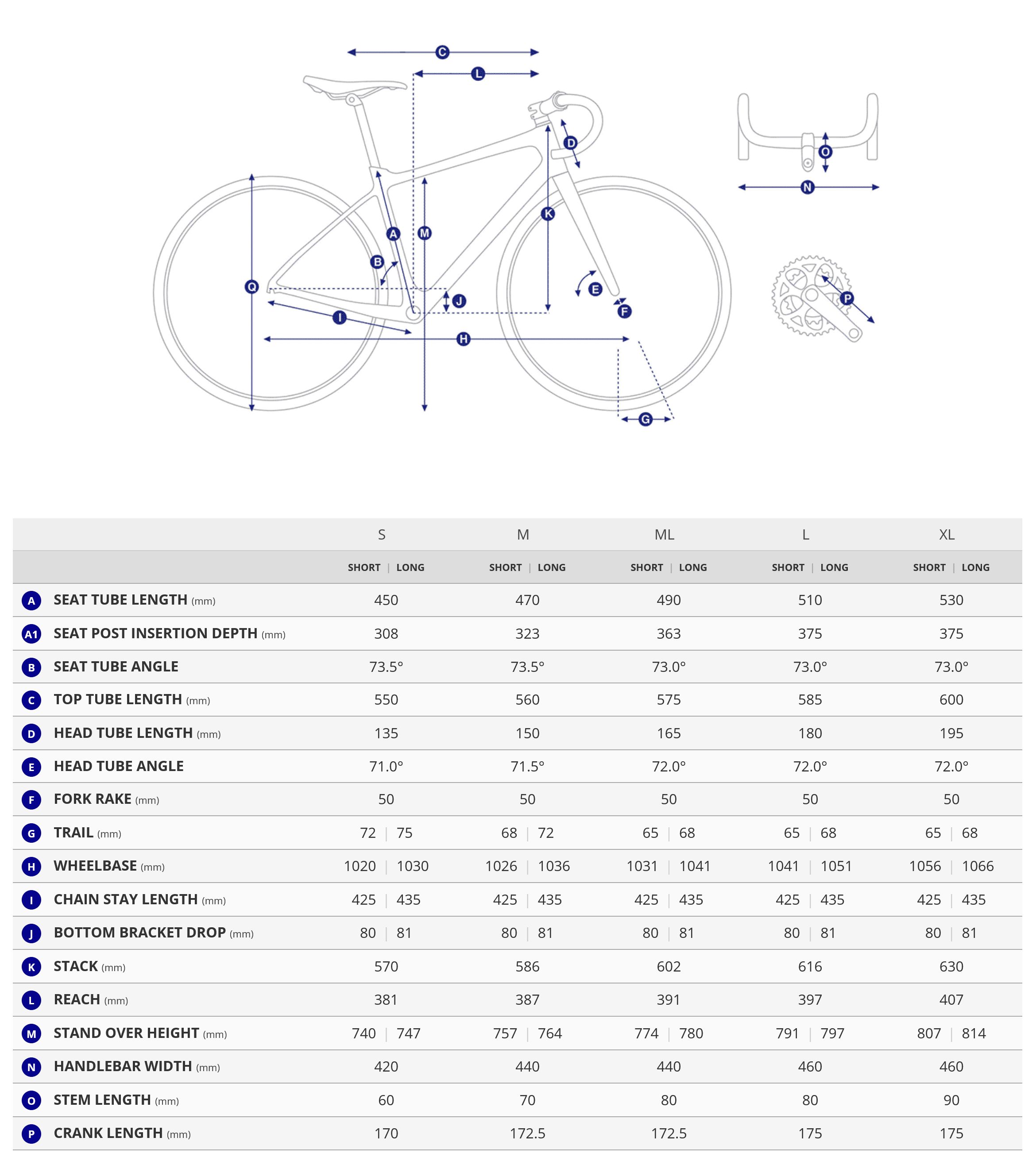

Size Chart
