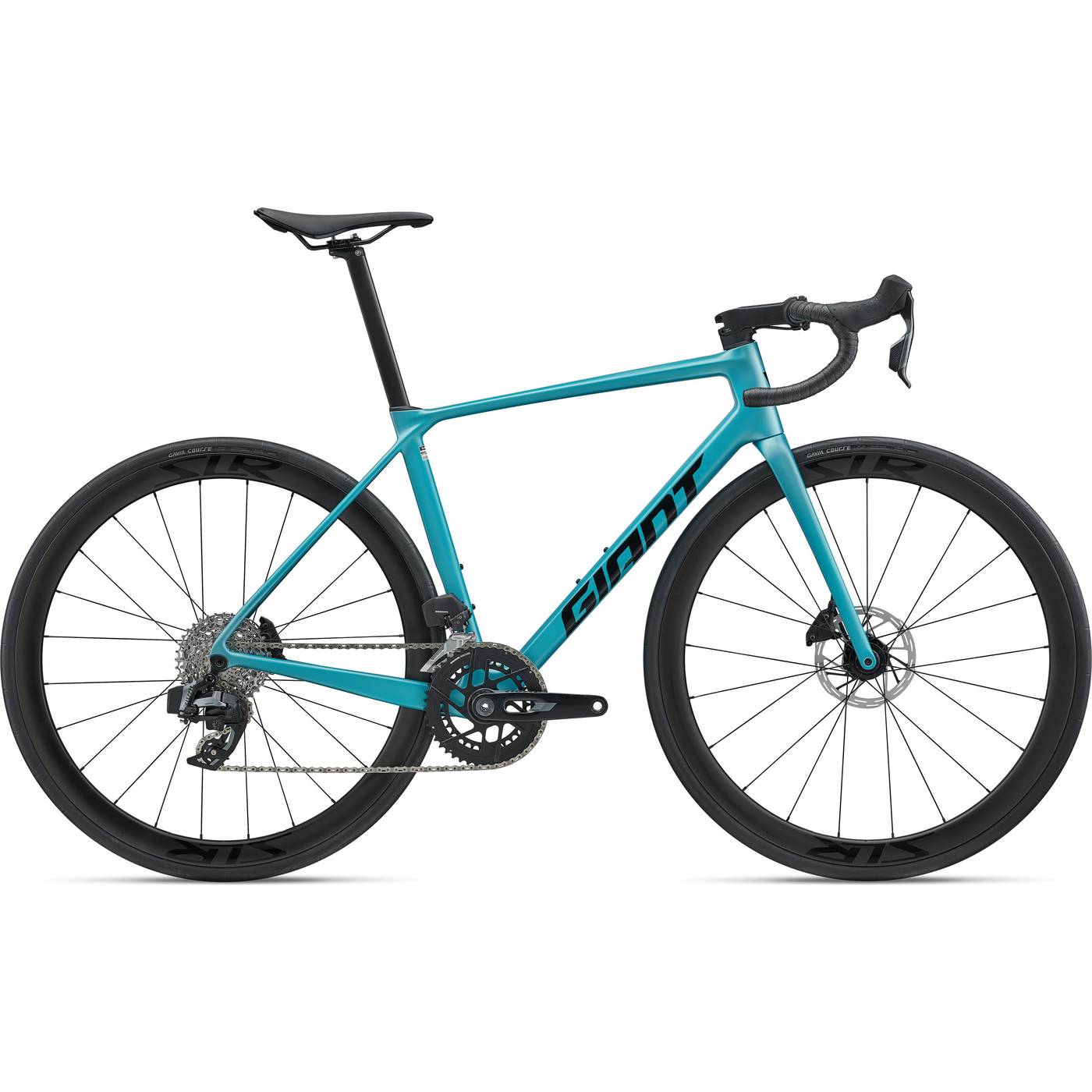

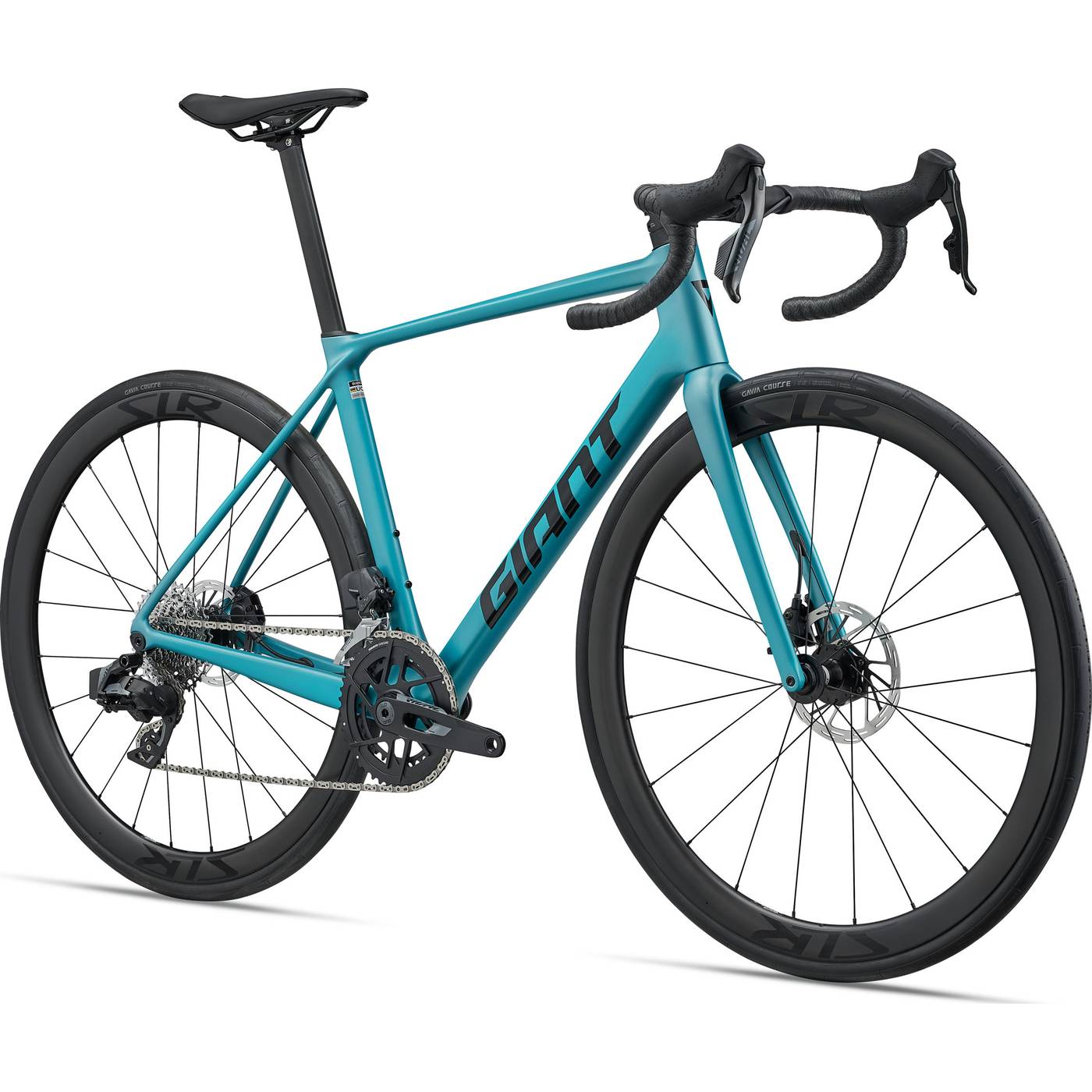

Giant TCR Advanced 0-AXS Road Bike

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.

• Class-leading efficiency: A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
• Advanced aerodynamics: This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
• Total control: A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tire pressures for increased grip and a reduced risk of punctures.

Features

• Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
• PowerCore: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
• Compact Road Design: Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

Specifications

• Sizes: S, M, M/L, L, XL
• Colours: Satin Teal

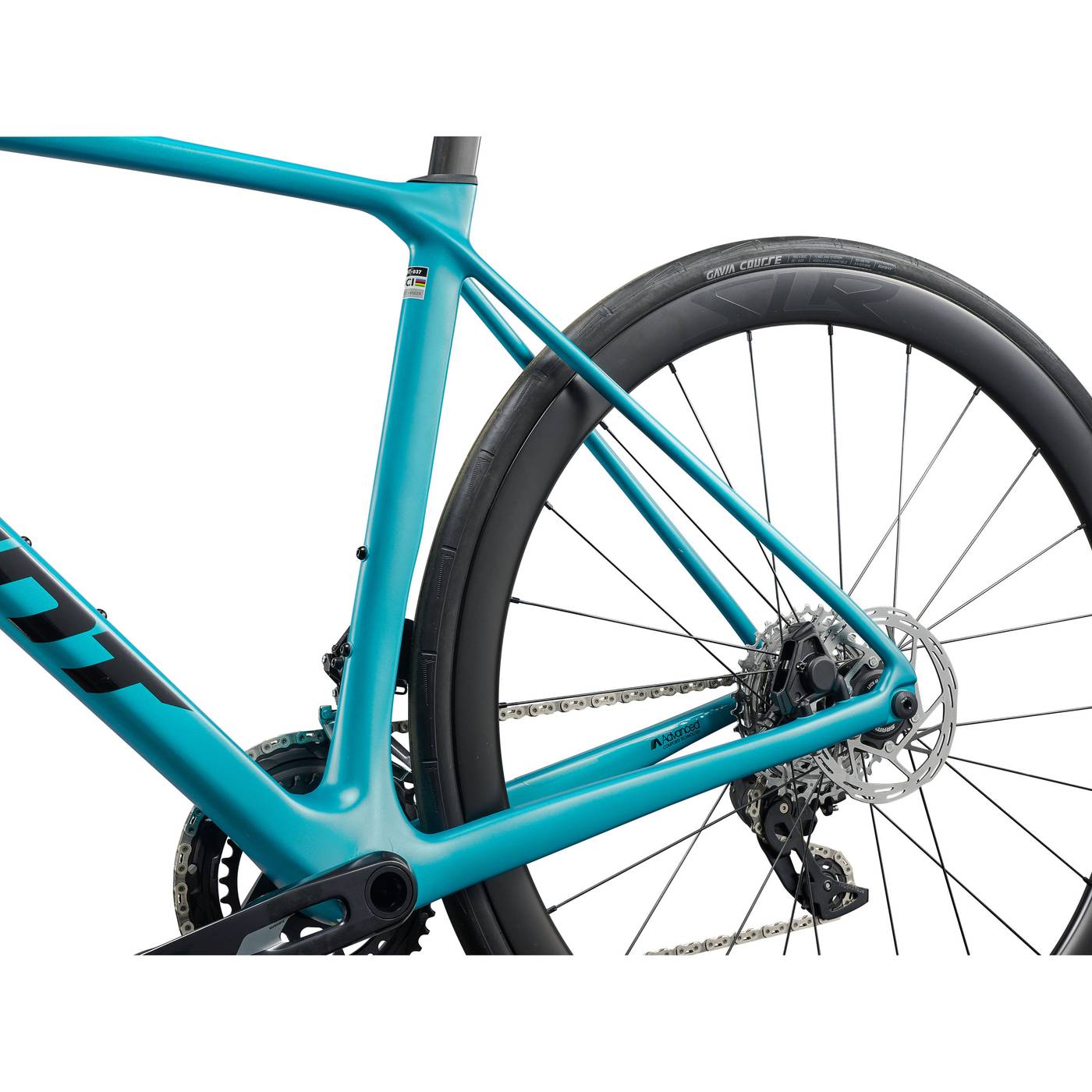

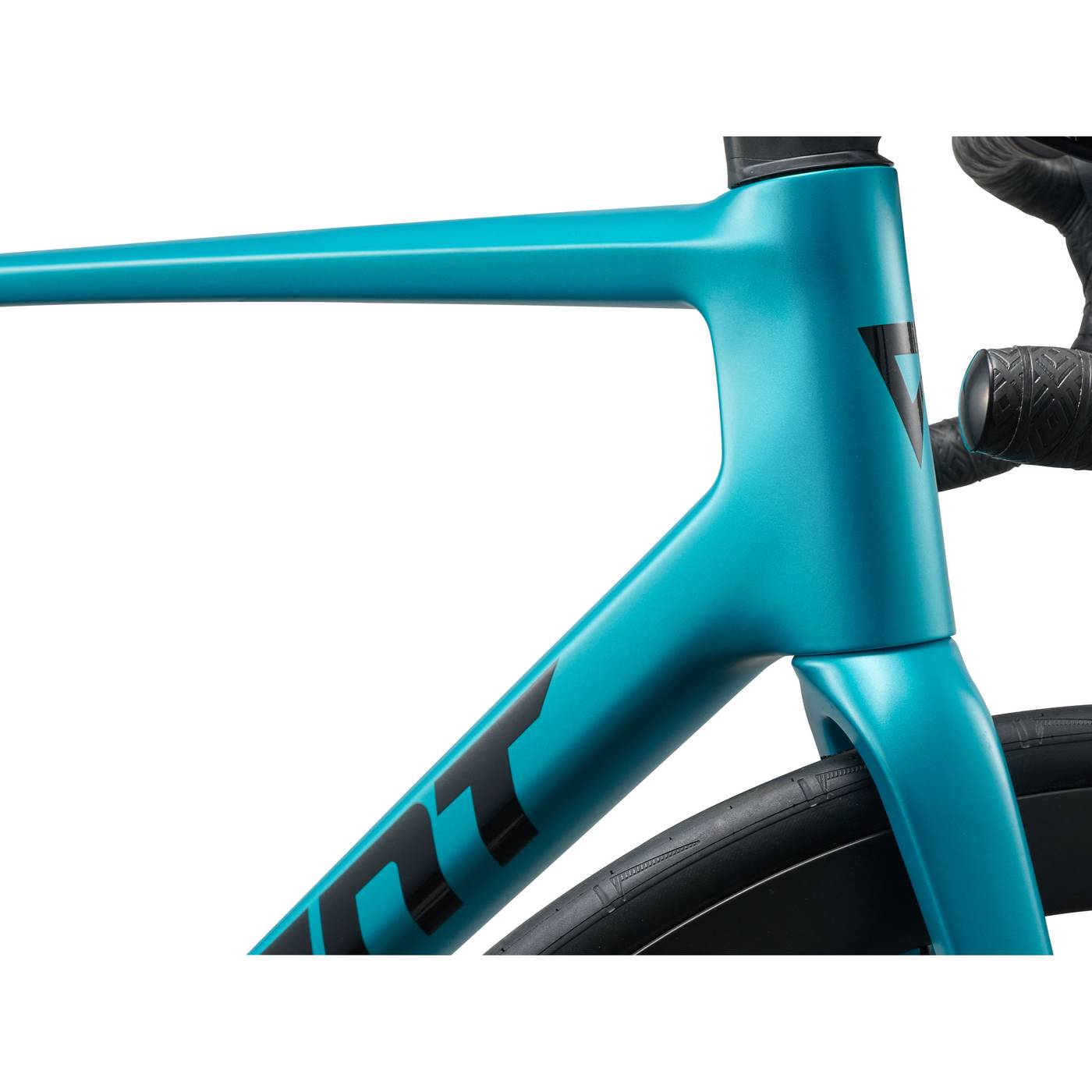

• Frame: Advanced-grade composite, 12x142mm thru-axle, disc

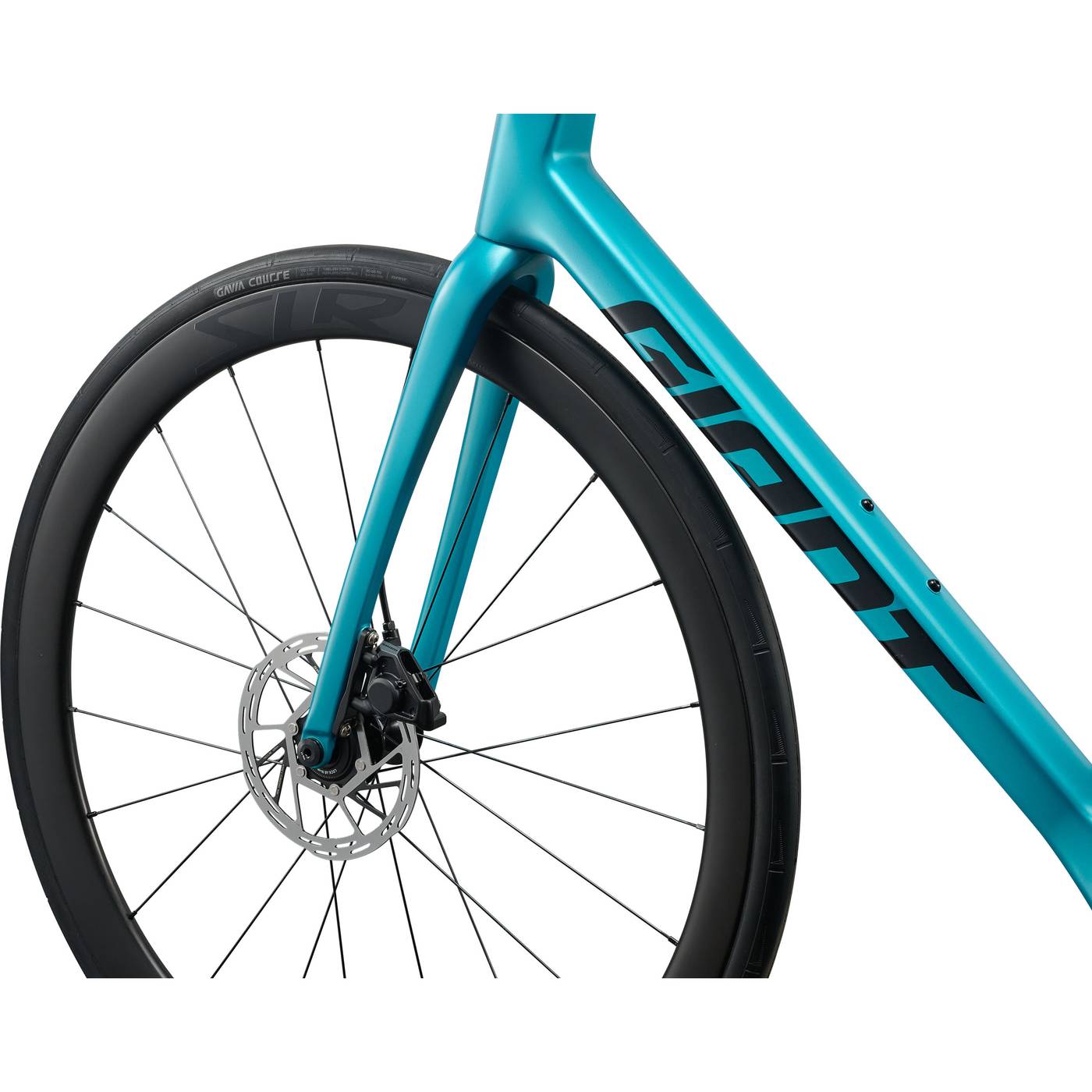

• Fork: Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc

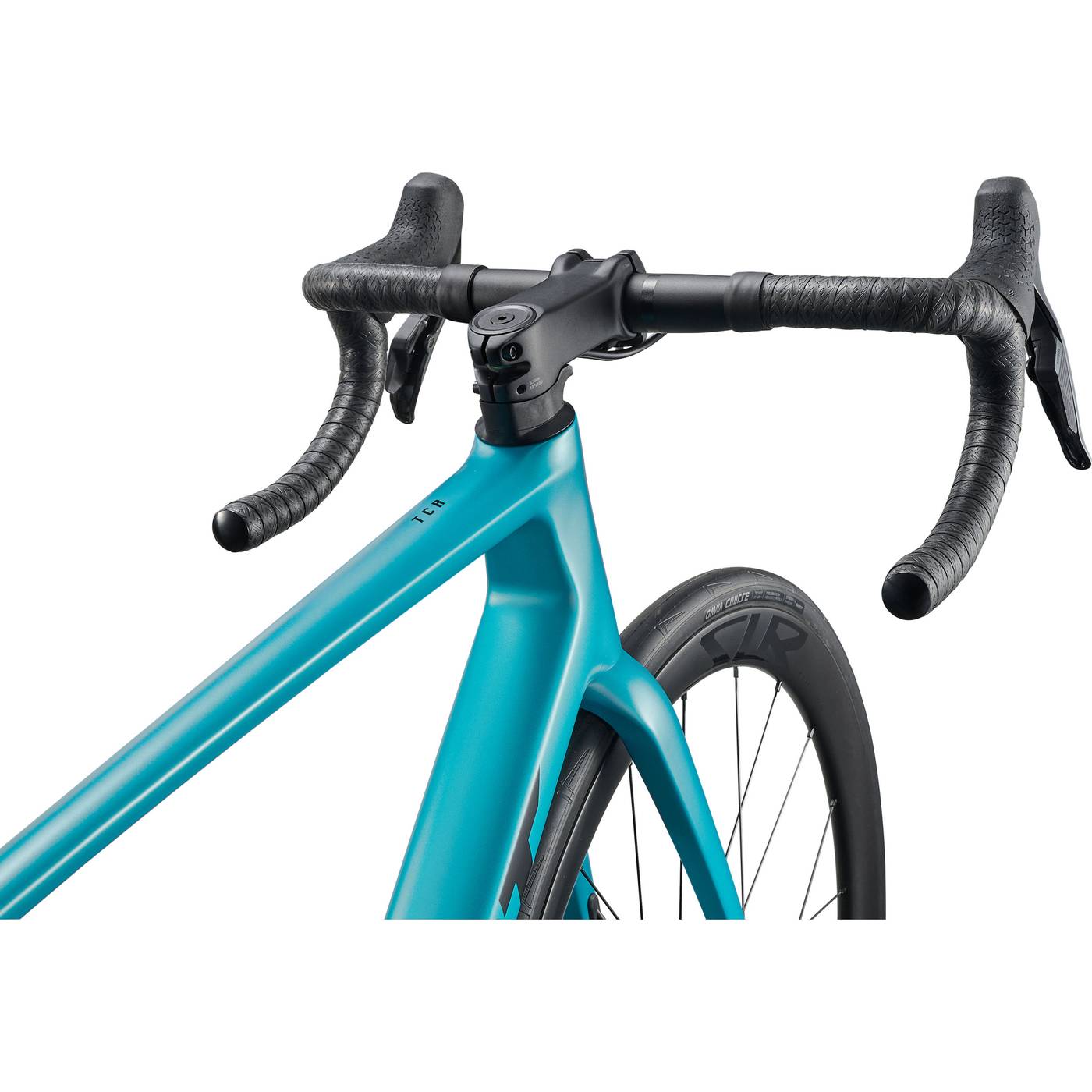

• Handlebar: Giant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost: Giant Variant, composite, -5/+15mm offset
• Saddle: Giant Approach
• Pedals: PEDALS NOT SUPPLIED
• Shifters: SRAM Rival AXS E1
• Front Derailleur: SRAM Rival AXS E1
• Rear Derailleur: SRAM Rival AXS E1
• Brakes: SRAM Rival E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
• Brake Levers: SRAM Rival AXS
• Cassette: SRAM Rival E1, 12-speed, 10x36
• Chain: SRAM Rival E1
• Crankset: SRAM Rival E1, 33/46 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant SLR 2 40 WheelSystem, [F]40mm, [R]40mm
• Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30T pawl driver, CenterLock, 12mm thru-axle
• Spokes: Sapim
• Tyres: Giant Gavia Course 0, tubeless, 700x30c, folding
• Extras: tubeless prepared, 33mm max tyre size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Size Chart
